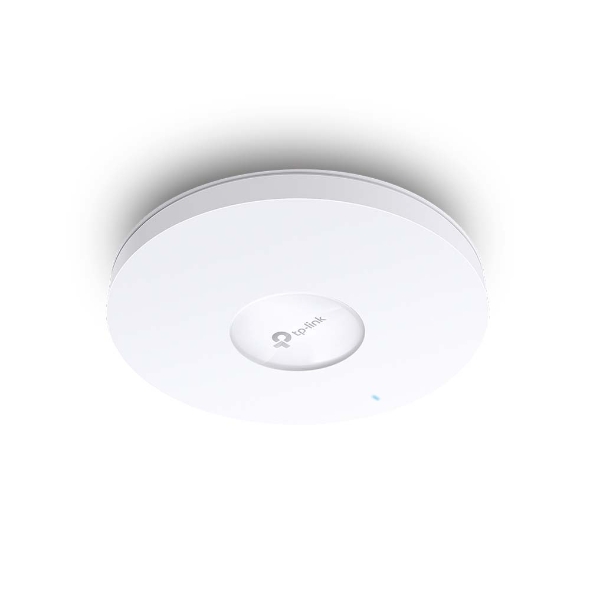

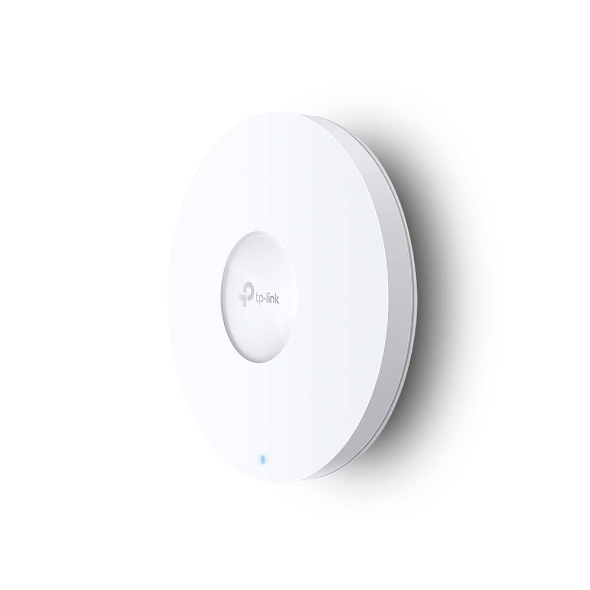

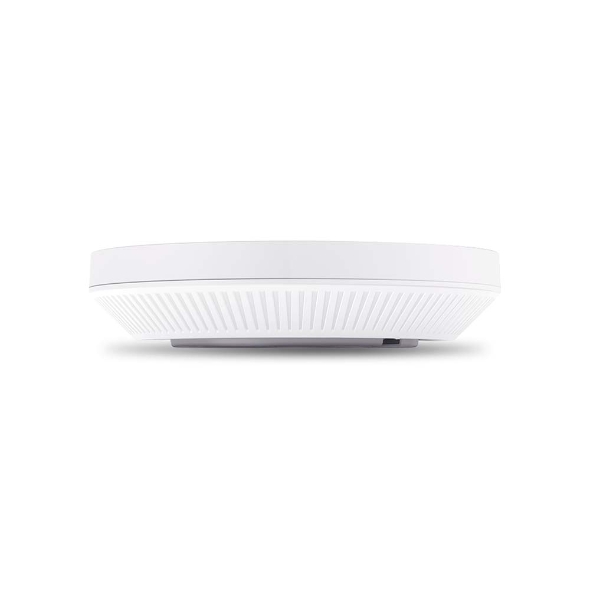

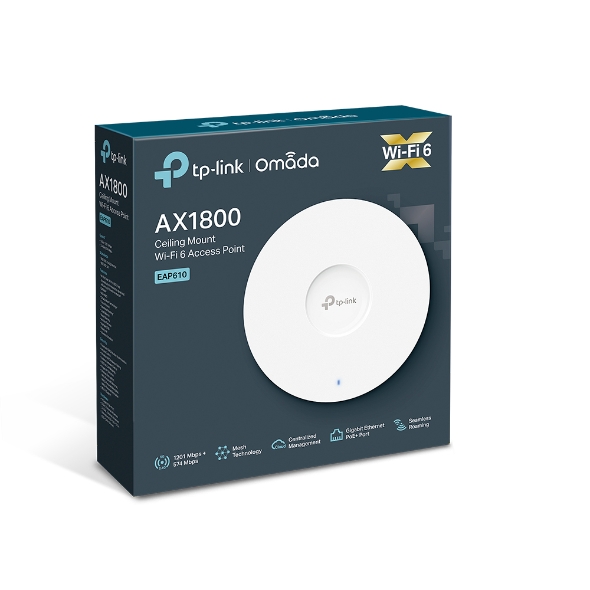

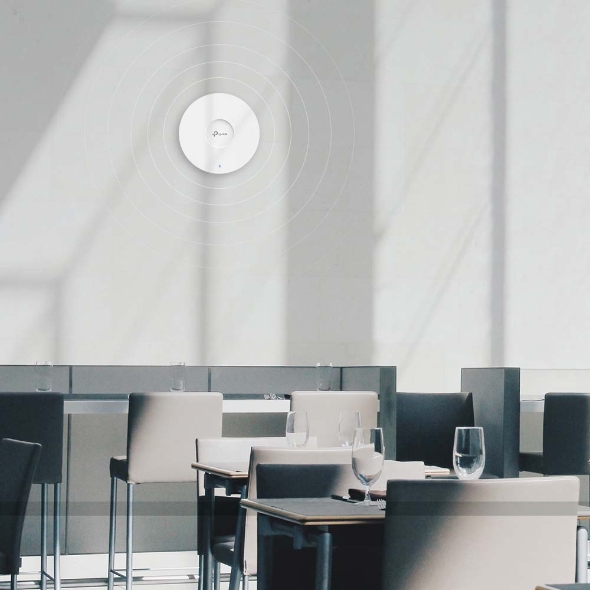

TP-Link Omada EAP610 - AX1800 Ceiling Dual-Band Wi-Fi 6 Access Point
TP-Link Omada EAP610 - AX1800 Ceiling Dual-Band Wi-Fi 6 Access Point - Image 2
TP-Link Omada EAP610 - AX1800 Ceiling Dual-Band Wi-Fi 6 Access Point - Image 3
TP-Link Omada EAP610 - AX1800 Ceiling Dual-Band Wi-Fi 6 Access Point - Image 4
TP-Link Omada EAP610 - AX1800 Ceiling Dual-Band Wi-Fi 6 Access Point - Image 5
TP-Link Omada EAP610 - AX1800 Ceiling Dual-Band Wi-Fi 6 Access Point - Image 6
TP-Link Omada EAP610 - AX1800 Ceiling Dual-Band Wi-Fi 6 Access Point - Image 7

TP Link

TP-Link Omada EAP610 – AX1800 Ceiling Dual-Band Wi-Fi 6 Access Point

SKU TPL-EAP610

Out of stock

£86.76 ex VAT

£104.11 inc VAT

***Whilst this device can be special ordered upon request - It is the same price as the higher specification EAP653, so we advise customers simply utilise this model instead: TP-Link Omada EAP653 AX3000 WiFi 6 Ceiling Access Point

  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
  • Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
  • PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.
  • Ultra-Slim Design: Φ6.3 in. × 1.3 in. elegant design brings more agility.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.§

Learn more about Omada Wi-Fi 6>​
Learn more about Omada Cloud SDN>​

Key specifications

Model
EAP610
Product
AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point
Speed
2.4 GHz: 574 Mbps 5 GHz: 1201 Mbps
Ethernet Port
1x Gigabit Ethernet Port
Power Supply
V3 & V1: 48V Passive PoE or 802.3at PoE or 12V/1A DC V2: 48V Passive PoE or 802.3at PoE or 12V/1.5A DC
Internal Antennas
2.4 GHz: 2x 4 dBi 5 GHz: 2x 5 dBi
Model
EAP610
Name
AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point
Full specification

Description

Technical Specifications

Model EAP610
Product AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point
Speed 2.4 GHz: 574 Mbps
5 GHz: 1201 Mbps
Ethernet Port 1x Gigabit Ethernet Port
Power Supply V3 & V1: 48V Passive PoE or 802.3at PoE or 12V/1A DC
V2: 48V Passive PoE or 802.3at PoE or 12V/1.5A DC
Internal Antennas 2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi
Model EAP610
Name AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point
Main Design LAN Interfaces
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax
Maximum Data Rate 574 Mbps (2.4 GHz)
+1201 Mbps (5 GHz)
Wireless Client Capacity 250+
Antennas 2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi
Transmit Power CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 30 dBm (5 GHz, band 3, EIRP);
FCC: < 25 dBm (2.4 GHz); < 25 dBm (5 GHz)
Centralized
Management		 Omada Software
Controller
Omada Hardware
Controller		 •
Omada APP •
Security Captive Portal
Authentication
Access Control •
Maximum number of MAC
Filter		 4000
Wireless Isolation
between Clients		 •
VLAN •
Rogue AP Detection •
Wireless Encryption WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
802.1X Support •
Wireless
Function		 Multiple SSIDs
Enable/Disable Wireless
Radio		 •
Enable/Disable SSID
Broadcast		 •
Guest Network •
Automatic Channel
Assignment		 •
Transmit Power Control Adjust transmit Power on dBm
QoS (WMM) •
Seamless Roaming •
Mesh •
Beamforming •
MU-MIMO •
Rate Limit Based on SSID/Client
Load Balance •
Airtime Fairness •
Band Steering •
RADIUS Accounting •
MAC Authentication •
Reboot Schedule •
Wireless Schedule •
Wireless Statistics •
Static IP/Dynamic IP •
Model EAP610
Support Data
Rates		 802.11ax
802.11ac 6.5 Mbps to 1083.3 Mbps (MCS0-MCS11, NSS = 1 to 2 VHT20/40/80)
802.11n 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
802.11g 6, 9, 12, 18, 24, 36, 48 ,54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11a 6, 9, 12, 18, 24, 36, 48 ,54 Mbps
Management LED ON/OFF Control
Management MAC
Access Control		 •
Web-based Management •
SNMP v1, v2c, v3
SSH •
Restore & Backup •
Firmware update via Web •
NTP •
System Log •
Email Alerts •
Physical &
Environment		 Power Supply
Maximum Power
Consumption		 V1:
EU: 12.8 W (For PoE); 10.8 W (for DC)
US: 13.9 W (For PoE); 11.8 W (for DC)
V2:
EU: 13.7 W (For PoE); 12.3 W (for DC)
US: 14.2 W (For PoE); 12.8 W (for DC)
V3:
EU: 10.6W (For PoE); 9.6W (for DC)
US: 10.9W (For PoE); 9.8W (for DC)
Reset •
Mounting Ceiling / Wall mouting (Kits included) / Junction Box mouting
Certifications CE, FCC, RoHS, IC
Dimensions (W x D x H) 160 x 160 x 33.6 mm
Environment Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
Operating Humidity: 10%–90% non-condensing;
Storage Humidity: 5%–90% non-condensing;
Elevation-0° Elevation-90°

Additional information

Brand

TP Link
Wi-Fi standard

Wi-Fi 6
Mounting

Ceiling
