TP-Link Omada EAP772 - BE9300 Ceiling Tri-Band Wi-Fi 7 Access Point
TP-Link Omada EAP772 - BE9300 Ceiling Tri-Band Wi-Fi 7 Access Point - Image 2
TP-Link Omada EAP772 - BE9300 Ceiling Tri-Band Wi-Fi 7 Access Point - Image 3
TP-Link Omada EAP772 - BE9300 Ceiling Tri-Band Wi-Fi 7 Access Point - Image 4
TP-Link Omada EAP772 - BE9300 Ceiling Tri-Band Wi-Fi 7 Access Point - Image 5

TP Link

TP-Link Omada EAP772 – BE9300 Ceiling Tri-Band Wi-Fi 7 Access Point

SKU TPL-EAP772

In stock

£163.56 ex VAT

£196.27 inc VAT

TP-Link Omada EAP772 BE9300 Ceiling Tri-Band Wi-Fi 7 Access Point

The TP-Link Omada EAP772 BE9300 is a ceiling mounted access point designed for enterprise environments. Leveraging Wi-Fi 7 technology, it offers exceptional speed, capacity, and reliability, making it ideal for high density areas such as offices, conference rooms, and educational institutions.

Key Features:

  • Tri-Band Wi-Fi 7: Delivers up to 9.2 Gbps total throughput across 6 GHz (5760Mbps), 5 GHz (2880Mbps), and 2.4 GHz (574Mbps) bands.

  • Multi-Link Operation (MLO): Enhances performance by enabling simultaneous data transmission across multiple channels.

  • 320 MHz Channel Bandwidth: Allows for wider channels, increasing data rates and reducing latency.

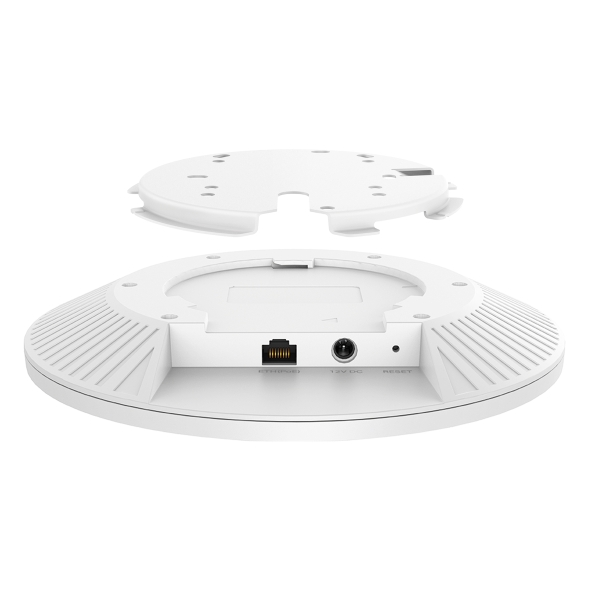

  • 1× 2.5G RJ45 Port: Supports high speed wired connections to fully utilize Wi-Fi 7 capabilities.

  • Power over Ethernet (PoE): Simplifies installation by delivering both power and data over a single Ethernet cable.

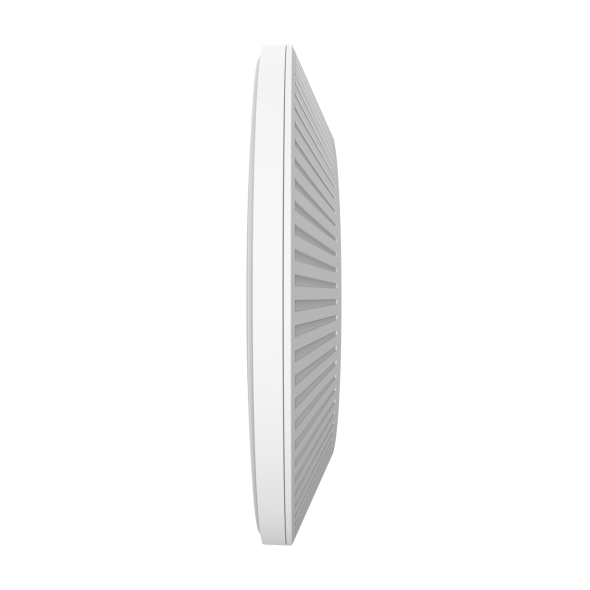

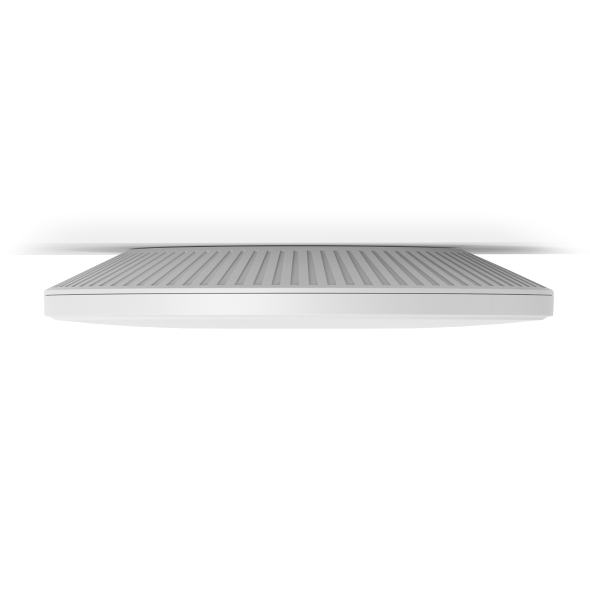

  • Ultra-Thin Design: Ensures discreet ceiling mounting, blending seamlessly into modern interiors.

  • Centralized Cloud Management: Easily manage and monitor the network through the Omada Cloud Controller or mobile app.

  • Omada Mesh Technology: Provides seamless roaming and extended coverage by connecting multiple access points.

Order now for delivery Tuesday 27 October on orders over £300

  • Free next working day delivery to mainland UK on orders over £300 inc VAT placed by 11am, Monday to Friday
  • Orders under £300 inc VAT: £9.99 delivery in 2 to 3 working days.
  • 14 day returns on unused items
  • VAT invoice with every order

Installer or electrician? Apply for a trade account

Key specifications

Model
EAP772
Name
US: BE11000 Ceiling Mount Wi-Fi 7 Access Point EU: BE9300 Ceiling Mount Wi-Fi 7 Access Point
Main Design
LAN Interfaces
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Maximum Data Rate
US: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz) EU: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)
Wireless Client Capacity
2 GHz: 128, 5 GHz: 128, 6 GHz: 128
Antennas
2.4 GHz: 2 × 4dBi, 5 GHz: 2 × 5dBi, 6 GHz: 2 × 5dBi
Bluetooth
1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required.
Full specification

Description

Technical Specifications

Model EAP772
Name US: BE11000 Ceiling Mount Wi-Fi 7 Access Point
EU: BE9300 Ceiling Mount Wi-Fi 7 Access Point
Main Design LAN Interfaces
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be
Maximum Data Rate US: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)
EU: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)
Wireless Client Capacity 2 GHz: 128, 5 GHz: 128, 6 GHz: 128
Antennas 2.4 GHz: 2 × 4dBi, 5 GHz: 2 × 5dBi, 6 GHz: 2 × 5dBi
Bluetooth 1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.
Transmit Power CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 28 dBm (5 GHz, band 3, EIRP); <23dBm (6 GHz, EIRP)
FCC:< 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 23 dBm (6 GHz)
Reception Sensitivity 2.4G:
11ax HE20MCS0:-96dBm; 11ax HE20MCS11:-66.5dBm
11ax HE40MCS0:-93dBm; 11ax HE40MCS11:-64dBm
5G:
11be EHT20MCS0:-94dBm; 11be EHTMCS13:-63dBm
11be EHT40MCS0:-90.5dBm; 11be EHT40MCS13:-60dBm
11be EHT80MCS0:-88dBm; 11be EHT80MCS13:-57.5dBm
11be EHT160MCS0:-85dBm; 11be EHT160MCS13:-55.5dBm
6G:
11be EHT20MCS0:-93dBm; 11be EHTMCS13:-63dBm
11be EHT40MCS0:-90dBm; 11be EHT40MCS13:-60dBm
11be EHT80MCS0:-87.5dBm; 11be EHT80MCS13:-57.5dBm
11be EHT160MCS0:-84dBm; 11be EHT160MCS13:-55dBm
11be EHT320MCS0:-81.5dBm; 11be EHT320MCS13:-52.5dBm
Centralized
Management		 Omada Software
Controller
Omada Hardware
Controller		 •
Omada APP •
Security Captive Portal
Authentication
Access Control •
Maximum number of MAC
Filter		 4000
Wireless Isolation
between Clients		 •
VLAN •
Rogue AP Detection •
Wireless Encryption WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
Model EAP772
Wireless
Function		 Multiple SSIDs
Channel EU: 2G: 1~13; 5G: 36~140; 6G: 33~93
US: 2G:1~11; 5G: 36~165; 6G: 33~233
Enable/Disable Wireless
Radio		 •
Enable/Disable SSID
Broadcast		 •
Guest Network •
Automatic Channel
Assignment		 •
Transmit Power Control Adjust transmit Power on dBm
QoS (WMM) •
Seamless Roaming •
Mesh •
Beamforming •
MU-MIMO 2*2 DL/UL MU-MIMO
MIMO 2*2 (2G/5G/6G) MU-MIMO
2*2 (2G/5G/6G) SU-MIMO
OFDMA DL/UL OFDMA
Rate Limit Based on SSID/Client
Load Balance •
Airtime Fairness •
Band Steering •
RADIUS Accounting •
MAC Authentication •
Reboot Schedule •
Wireless Schedule •
Wireless Statistics •
Static IP/Dynamic IP •
Support Data
Rates		 802.11be
802.11ax 2G Band: 8Mbps to 574Mbps(MCS0—MCS11,NSS=1 to 2 HE20/40)
5G Band: 8Mbps to 2402Mbps(MCS0—MCS11, NSS=1 to 2 HE20/40/80/160)
6G Band: 8Mbps to 2402Mbps(MCS0—MCS11, NSS=1 to 2 HE20/40/80/160)
802.11ac 6.5Mbps to 2166.7Mbps(MCS0—MCS11,NSS=1 to 2 VHT20/40/80/160)
802.11n 6.5Mbps to 300Mbps(MCS0—MCS15,HT20/40)
802.11g 6, 9, 12, 18, 24, 36, 48 ,54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11a 6, 9, 12, 18, 24, 36, 48 ,54 Mbps
Model EAP772
Management LED ON/OFF Control
Management MAC
Access Control		 •
Web-based Management •
SNMP v1, v2c, v3
SSH •
Restore & Backup •
Firmware update via Web •
NTP •
System Log •
Email Alerts •
Physical &
Environment		 Power Supply
Maximum Power
Consumption		 EU: 24.05 W (For PoE); 20.92 W (For DC);
US: 25.44 W (For PoE); 22.57 W (For DC);
Reset •
Mounting Ceiling / Wall mouting (Kits included)
Others Certifications
Dimensions (W x D x H) 220 x 220 x 32.5 mm
Net Weight 700g
Enclosure Material / Rack
Material		 Top cover: PC
Bottom shell: aluminum alloy
Mounting rack: stainless steel
Lightning Protection 4KV
Environment Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
Operating Humidity: 10%–90% non-condensing;
Storage Humidity: 5%–90% non-condensing;

Additional information

Brand

TP Link
Wi-Fi standard

Wi-Fi 7
Mounting

Ceiling
