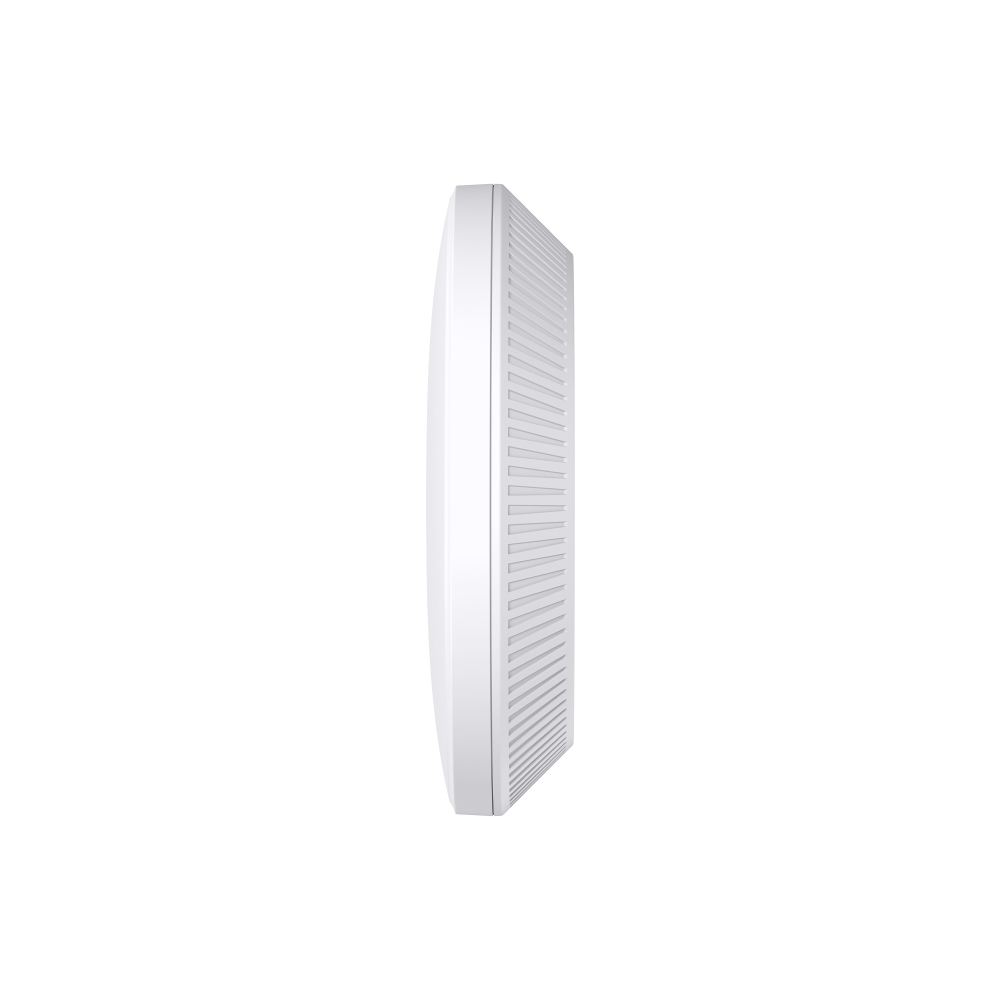

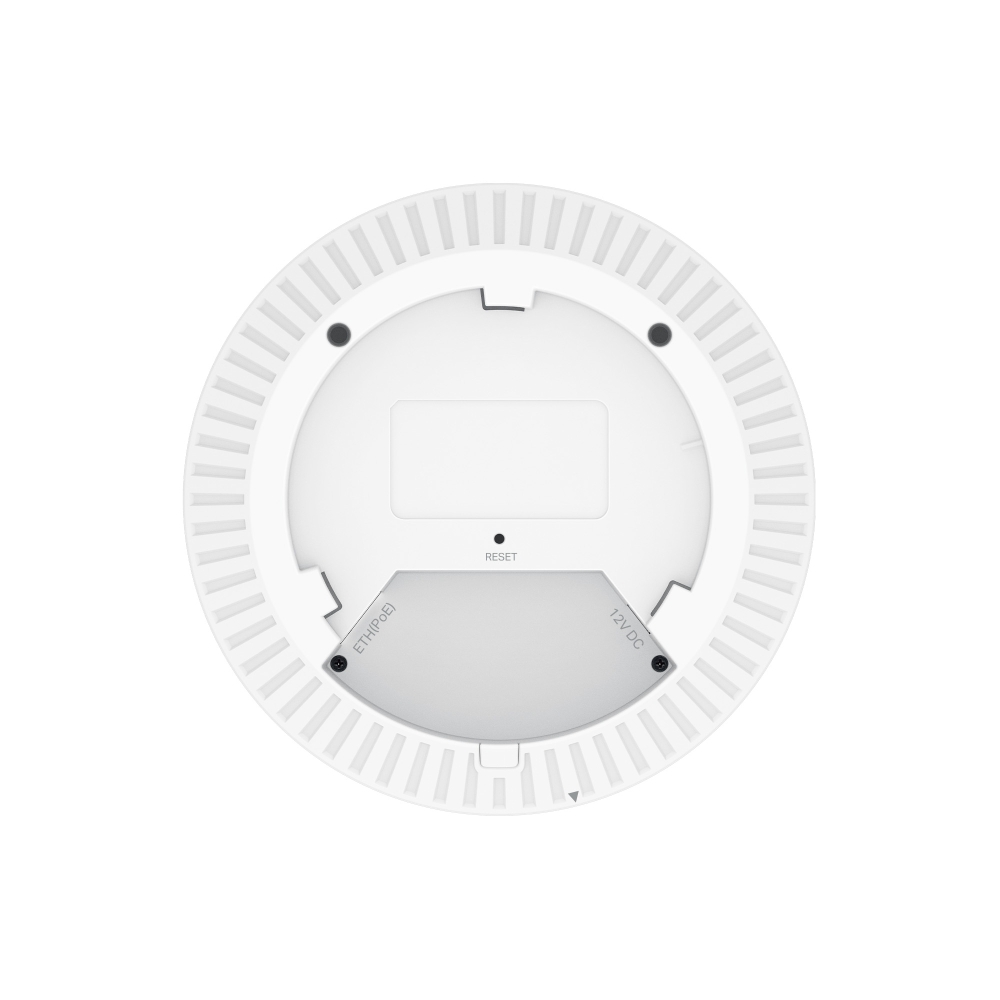

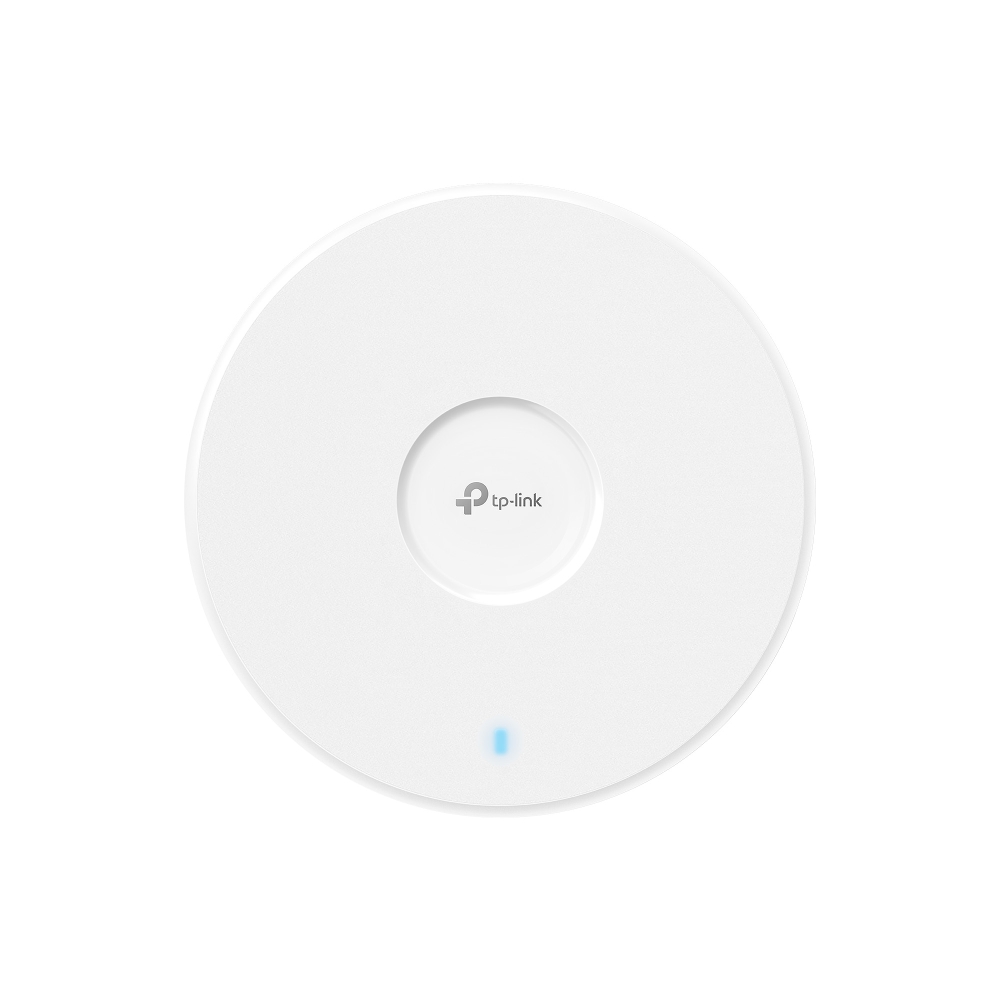

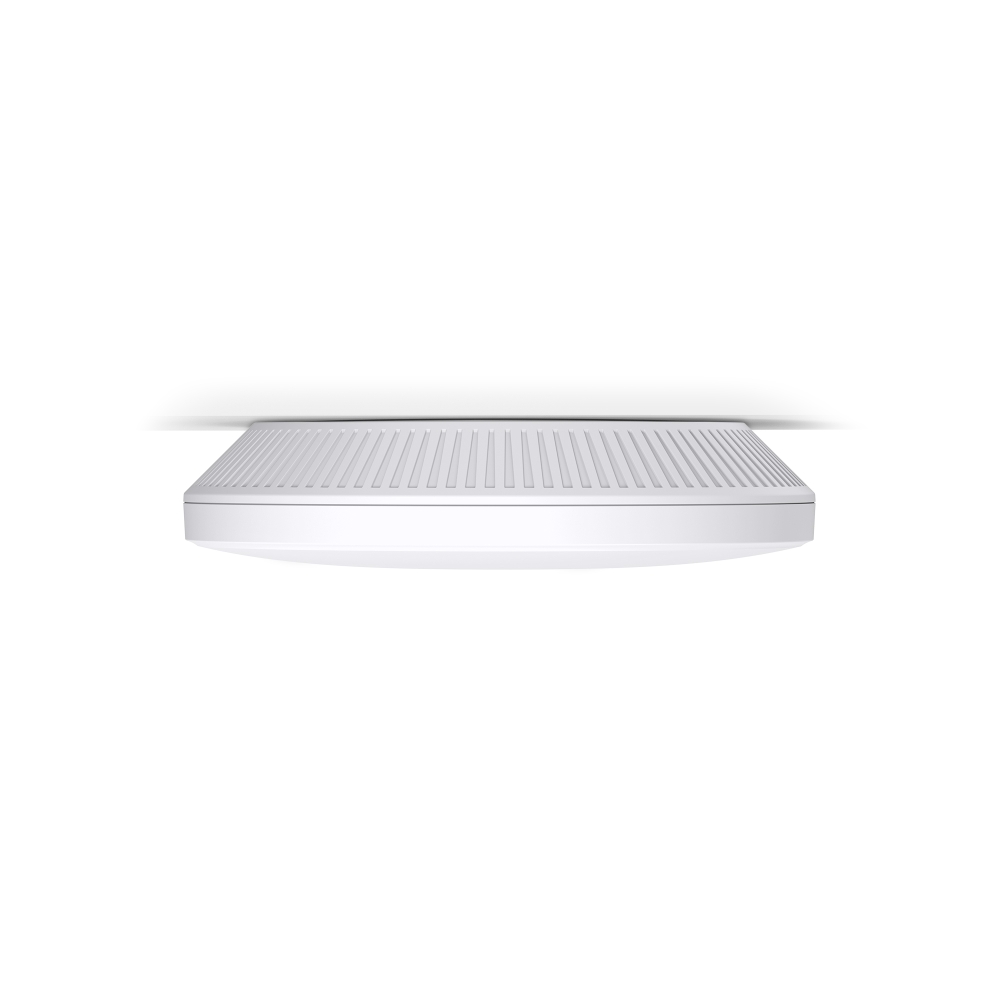

TP-Link Omada EAP723 – BE3600 Ceiling Dual-Band Wi-Fi 7 Access Point

SKU TPL-EAP723

In stock

£90.48 ex VAT

£108.58 inc VAT

TP-Link Omada EAP723 BE3600 Ceiling Dual-Band Wi-Fi 7 Access Point

The TP-Link Omada EAP723 BE3600 is a ceiling mounted access point designed for enterprise environments. Leveraging Wi-Fi 7 technology, it offers exceptional speed, capacity, and reliability, making it ideal for high-density areas such as offices, conference rooms, and educational institutions.

Key Features:

  • Dual-Band Wi-Fi 7: Delivers up to 3.6 Gbps total throughput across 5GHz (2882Mbps), and 2.4GHz (688Mbps) bands.

  • Multi-Link Operation (MLO): Enhances performance by enabling simultaneous data transmission across multiple channels.

  • 160 MHz Channel Bandwidth: Allows for wider channels, increasing data rates and reducing latency.

  • 1× 2.5G RJ45 Port: Supports high-speed wired connections to fully utilize Wi-Fi 7 capabilities.

  • Power over Ethernet (PoE): Simplifies installation by delivering both power and data over a single Ethernet cable.

  • Ultra-Thin Design: Ensures discreet ceiling mounting, blending seamlessly into modern interiors.

  • Centralized Cloud Management: Easily manage and monitor the network through the Omada Cloud Controller or mobile app.

  • Omada Mesh Technology: Provides seamless roaming and extended coverage by connecting multiple access

Order now for delivery Tuesday 27 October on orders over £300

  • Free next working day delivery to mainland UK on orders over £300 inc VAT placed by 11am, Monday to Friday
  • Orders under £300 inc VAT: £9.99 delivery in 2 to 3 working days.
  • 14 day returns on unused items
  • VAT invoice with every order

Installer or electrician? Apply for a trade account

Key specifications

Model
EAP723
Name
US: BE5000 Ceiling Mount Wi-Fi 7 Access Point EU: BE3600 Ceiling Mount Wi-Fi 7 Access Point
Main Design
LAN Interfaces
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Maximum Data Rate
US: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) EU: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
Wireless Client Capacity
2.4 GHz: 128, 5 GHz: 128
Antennas
2.4 GHz: 2 × 4dBi, 5 GHz: 2 × 5dBi
Bluetooth
1 × 3dBi, Bluetooth 5.2
Full specification

Description

Technical Specifications

Model EAP723
Name US: BE5000 Ceiling Mount Wi-Fi 7 Access Point
EU: BE3600 Ceiling Mount Wi-Fi 7 Access Point
Main Design LAN Interfaces
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be
Maximum Data Rate US: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
EU: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
Wireless Client Capacity 2.4 GHz: 128, 5 GHz: 128
Antennas 2.4 GHz: 2 × 4dBi, 5 GHz: 2 × 5dBi
Bluetooth 1 × 3dBi, Bluetooth 5.2
Transmit Power CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 28 dBm (5 GHz, band 3, EIRP)
FCC: <25dBm (2.4 GHz); <25dBm (5 GHz Band1&Band4); <24dBm (5 GHz Band2&Band3)
Reception Sensitivity 2.4GHz:
11be EHT20 MCS0: -97dBm; 11be EHT20 MCS11: -66dBm
11be EHT40 MCS0: -93dBm; 11be EHT40 MCS11: -64dBm
5GHz:
11be EHT20 MCS0:-96.5dBm; 11be EHT20 MCS13:-64.5dBm
11be EHT40 MCS0:-92dBm; 11be EHT40 MCS13:-61.5dBm
11be EHT80 MCS0:–89dBm; 11be EHT80 MCS13:-59dBm
11be EHT160 MCS0:-86.5dBm; 11be EHT160 MCS13:-57dBm
Centralized
Management		 Omada Software
Controller
Omada Hardware
Controller		 •
Omada APP •
Security Captive Portal
Authentication
Access Control •
Maximum number of MAC
Filter		 4000
Wireless Isolation
between Clients		 •
VLAN •
Rogue AP Detection •
Wireless Encryption WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Model EAP723
Wireless
Function		 Multiple SSIDs
Channel EU: 2.4 GHz: 1~13; 5 GHz: 36~140
US: 2.4 GHz: 1~11; 5 GHz: 36~165
Enable/Disable Wireless
Radio		 •
Enable/Disable SSID
Broadcast		 •
Guest Network •
Automatic Channel
Assignment		 •
Transmit Power Control Adjust transmit Power on dBm
QoS (WMM) •
Seamless Roaming •
Mesh •
Beamforming •
MU-MIMO –
MIMO 2*2 (2.4 GHz/5 GHz) MIMO
OFDMA DL/UL OFDMA
Rate Limit Based on SSID/Client
Load Balance •
Airtime Fairness •
Band Steering •
RADIUS Accounting •
MAC Authentication •
Reboot Schedule •
Wireless Schedule •
Wireless Statistics •
Static IP/Dynamic IP •
Support Data
Rates		 802.11be
802.11ax 2.4 GHz Band: 8Mbps to 574Mbps(MCS0—MCS11,NSS=1 to 2 HE20/40
5 GHz Band: 8Mbps to 2402Mbps(MCS0—MCS11, NSS=1 to 2 HE20/40/80/160)
802.11ac 6.5Mbps to 2166.7Mbps(MCS0—MCS11,NSS=1 to 2 VHT20/40/80/160)
802.11n 6.5Mbps to 300Mbps(MCS0—MCS15,HT20/40)
802.11g 6, 9, 12, 18, 24, 36, 48 ,54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11a 6, 9, 12, 18, 24, 36, 48 ,54 Mbps
Model EAP723
Management LED ON/OFF Control
Management MAC
Access Control		 •
Web-based Management •
SNMP v1, v2c, v3
SSH •
Restore & Backup •
Firmware update via Web •
NTP •
System Log •
Email Alerts •
Physical &
Environment		 Power Supply
Maximum Power
Consumption		 EU: 16.8W (For PoE); 13.0W (For DC)
US: 17.8W (For PoE); 14.0W (For DC)
Reset •

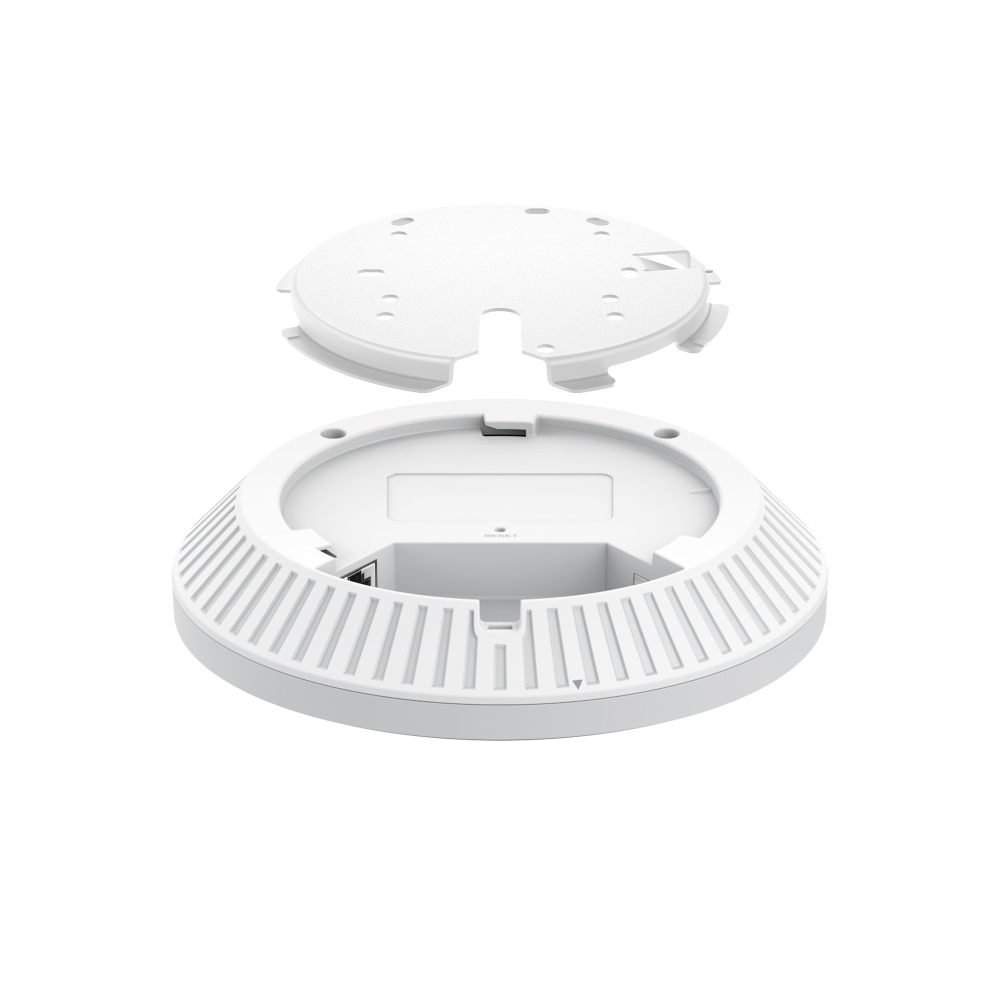

Mounting Ceiling / Wall mouting (Kits included)
Others Certifications
Dimensions (W x D x H) 160 x 160 x 36.7 mm
Net Weight 410g
Enclosure Material / Rack
Material		 Top cover: PC
Bottom shell: aluminum alloy
Mounting rack: stainless steel
Lightning Protection 4KV
Environment Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
Operating Humidity: 10%–90% non-condensing;
Storage Humidity: 5%–90% non-condensing;

Additional information

Brand

TP Link
Wi-Fi standard

Wi-Fi 7
Mounting

Ceiling
