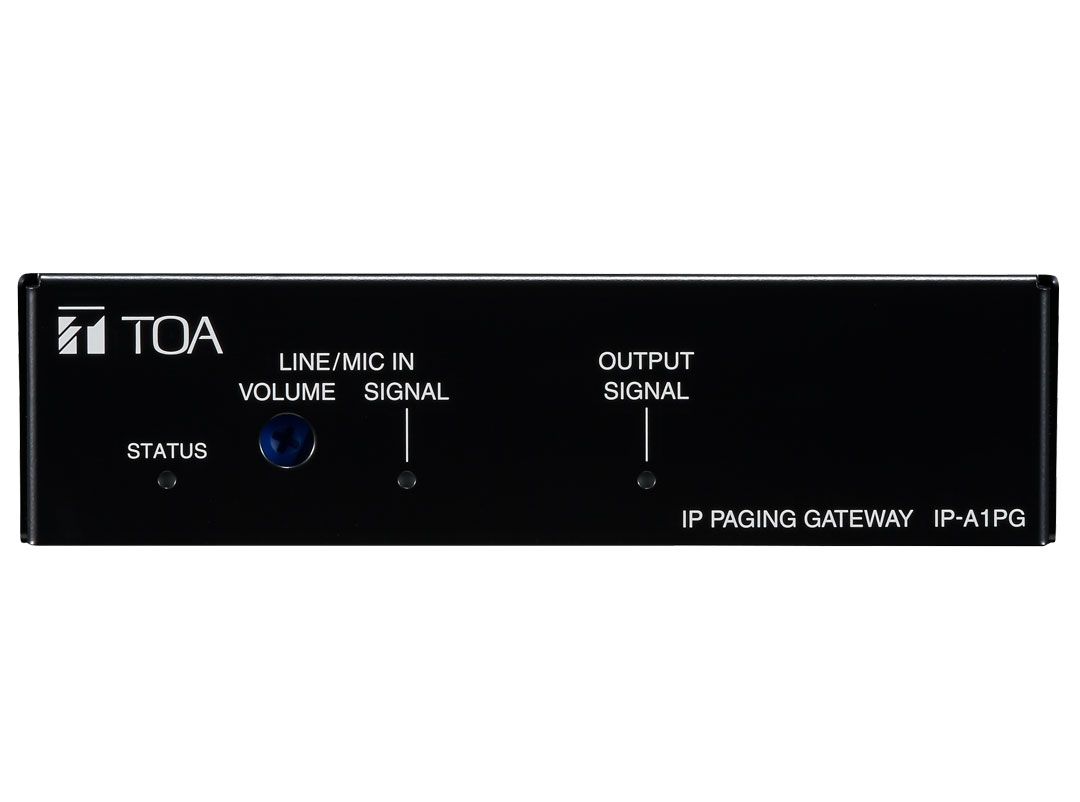

TOA IP Paging Gateway

The IP-A1PG Paging Gateway plugs right into standard IP networks and can be easily integrated into your video management system (VMS) or SIP-based communication system. A single standard network cable provides both power and connectivity with your network.

Furthermore, it provides a multicast-ready audio input and the possibility to send sets of HTTP commands into the network, triggered by the API or control inputs.

Office buildings with a video management system and the need to perform paging into a customized combination of rooms/zones: The IP-A1PG converts the audio calls of the VMS into multicast to address groups of loudspeakers in single rooms, entire floors or the entire building.

• Convert SIP audio, ONVIF* audio backchannels, internal audio files or local audio source into multicast streaming (up to 20 addresses)
• System mute function to mute all broadcasts of IP-A1 series devices within the same network
• 1 local audio input (LINE/MIC and phantom power selectable)
• API (HTTP commands)
• Transmission of up to 10 HTTP command sets (consisting of up to 20 commands each)
• Audio file storage (20 files, total 80 MB, WAV/MP3)
• 5 control inputs and 1 control output
• PoE-powered
