Description
Technical Specifications

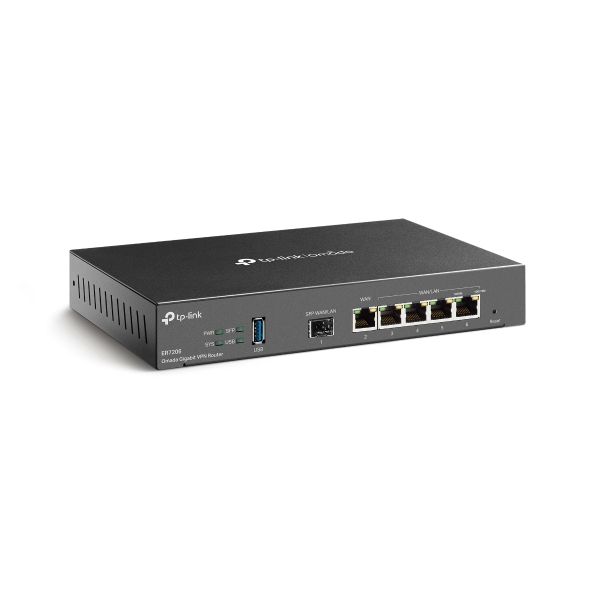

| Model | ER7206 |
|---|---|
| Product Description | Omada Gigabit VPN Gateway |
| Hardware | Standards and Protocols |

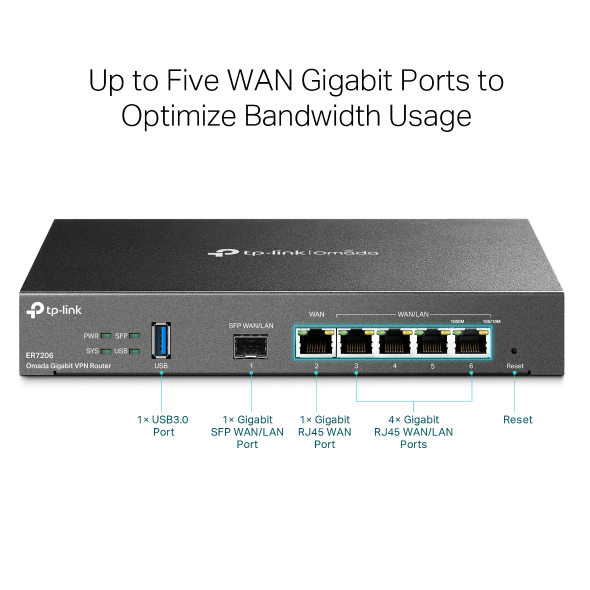

| Interface | 1 Gigabit SFP WAN/LAN Port 1 Gigabit WAN port 4 Gigabit LAN/WAN ports |
| USB | 1 USB3.0 (supports USB LTE dongle and USB Storage) |
| Fan Quantity | Fanless |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset button |

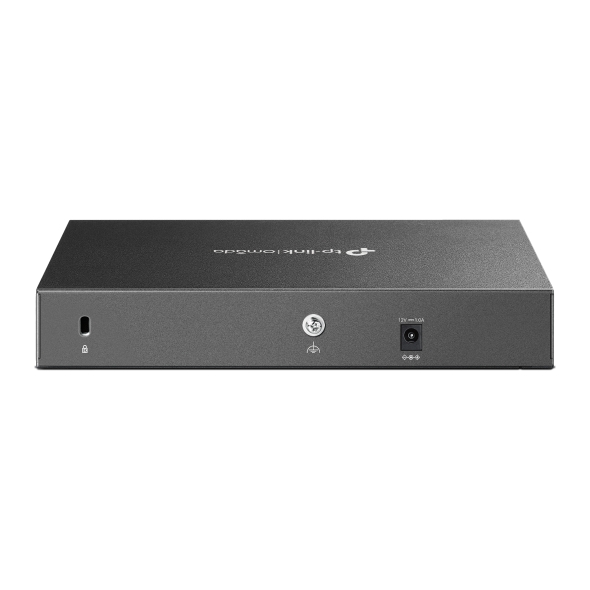

| Power Supply | 12V DC/ 1A Power Adapter |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | PWR, SYS, SFP, USB, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Max Power Consumption | 7.5 W (with USB 3.0 connected) 4.5 W (without USB 3.0 connected) |
| Surge Protection | 4 kV surge protection |
| Mounting | Desktop/Wall/Rackmount |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |

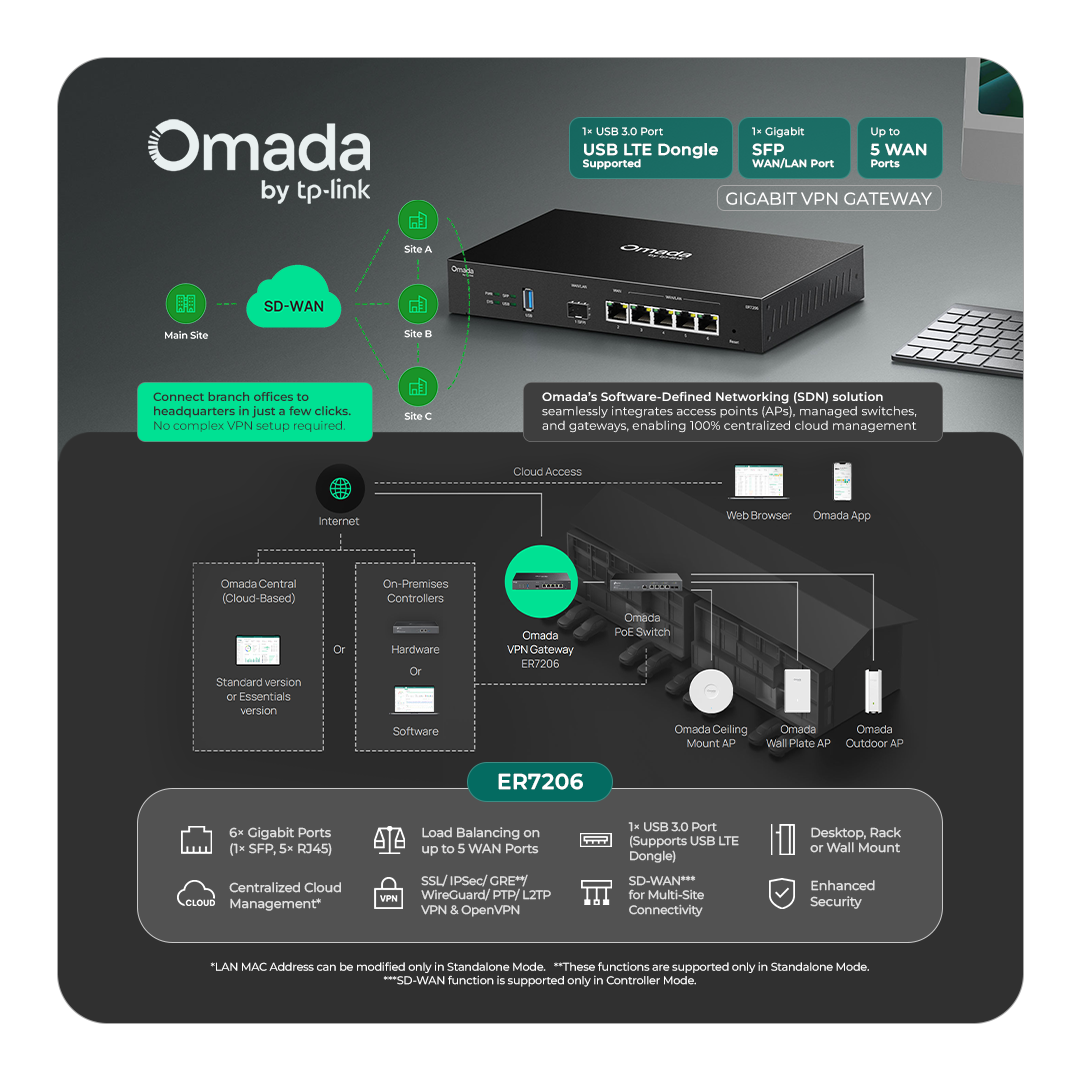

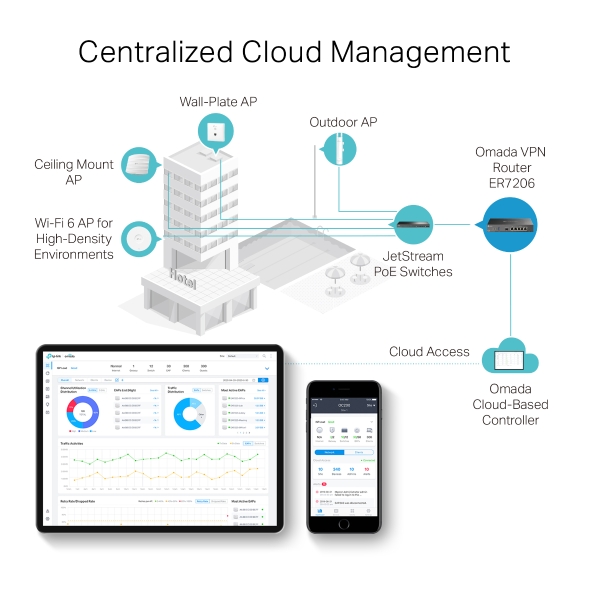

| SDN Support | Hardware Controller (OC200/OC300) |
| Model | ER7206 |
| 1 Performance |
Concurrent Session |
| New Sessions /Second | 5,300 |
| IPS Throughput | TCP: 229 Mbps UDP: 188 Mbps |
| DPI Throughput | TCP: 933 Mbps UDP: 927 Mbps |
| Static IP NAT Throughput (Upload / Download) |
945.3 Mbps / 940.5 Mbps |
| DHCP NAT Throughput (Upload / Download) | 939.6 Mbps / 940.9 Mbps |
| PPPoE NAT Throughput (Upload / Download) | 943.6 Mbps / 940.9 Mbps |
| L2TP NAT Throughput (Upload / Download) | 880.1 Mbps / 859.0 Mbps |
| PPTP NAT Throughput (Upload / Download) | 855.0 Mbps / 907.2 Mbps |
| 66 Byte Packet forwarding rate (Upload / Download) |
1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate (Upload / Download) |
81,279 pps / 81,275 pps |
| IPSec VPN Throughput | ESP-SHA1-AES256: 617.1 Mbps ESP-SHA256-AES256: 592.8 Mbps ESP-SHA384-AES256: 592.4 Mbps ESP-SHA512-AES256: 604.5 Mbps |
| GRE | Unencrypted: 611.9 Mbps Encrypted: 325.0 Mbps |
| WireGuard VPN | 341.3 Mbps |
| SSL VPN | 131.6 Mbps |
| OpenVPN | 139.1 Mbps |
| L2TP VPN Throughput | Unencrypted: 977.4 Mbps Encrypted: 334.6 Mbps |
| PPTP VPN Throughput | Unencrypted: 1064.1 Mbps Encrypted: 206.8 Mbps |
| Basic Functions | WAN Connection Type |
| DHCP | DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP |
| MAC Clone | 2 Modify WAN/LAN MAC Address |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| Stateful ACL | √ |
| Model | ER7206 |
| Basic Functions | mDNS Repeater |
| Quality of Service | √ |
| Bridge VLAN | √ |
| VLAN | 802.1Q VLAN |
| Transmission | Load Balance |
| NAT | One-to-One NAT Multi-Net NAT Port Forwarding 1 Port Triggering NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Routing | Static Routing Policy Routing 2 RIP 2 OSPF |
| Session Limit | IP-based Session Limit |
| Bandwidth Control | IP-based Bandwidth Control |

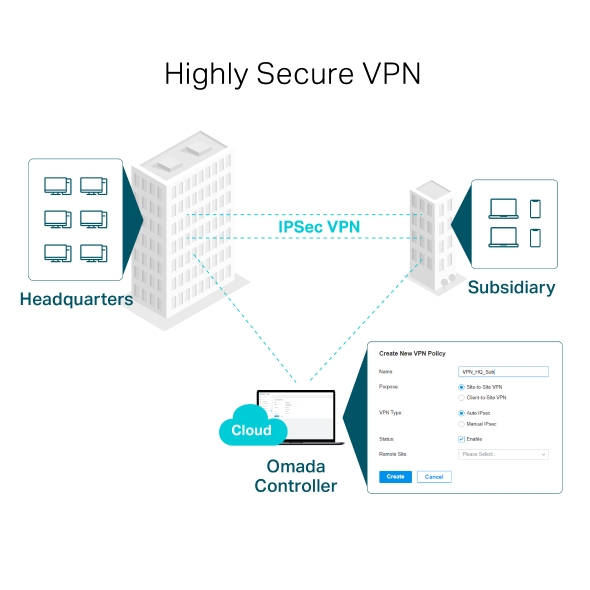

| VPN | IPSec VPN |
| PPTP VPN | PPTP VPN Server 3 PPTP VPN Client (10) 50 Tunnels PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server 3 L2TP VPN Client (10) 50 Tunnels L2TP over IPSec |
| GRE | Only in Standalone Mode |
| WireGuard VPN | √ |
| SSL VPN | 50 Tunnels |
| OpenVPN | OpenVPN Server 3 OpenVPN Client (5) 55 OpenVPN Tunnels “Certificate + Account” Mode Full Mode |
| Model | ER7206 |
| Security | Attack Defense |
| Filtering | 1 Web Group Filtering URL Filtering 1 Web Security |
| DNS Proxy | DNSSEC, DoH, and DoT |
| ARP Inspection | Sending GARP Packets 2 ARP Scanning IP-MAC Binding |
| Access Control | Source/Destination IP Based Access Control |
| Authentication | Web Authentication |
| Management | Service |
| Maintenance | Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 5 Diagnostics (Ping & Traceroute) 5 NTP Synchronize Port Mirroring CLI (only in Standalone Mode) Syslog Support |
| Others | Certification |
| Package Contents | ER7206, Power Adapter, Quick Installation Guide, Rackmount Kit |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing |
