Technical Specifications
| Model | ER706W V1.2 |
|---|---|
| Product Description | Omada AX3000 Gigabit VPN Gateway |
| Hardware | Standards and Protocols |

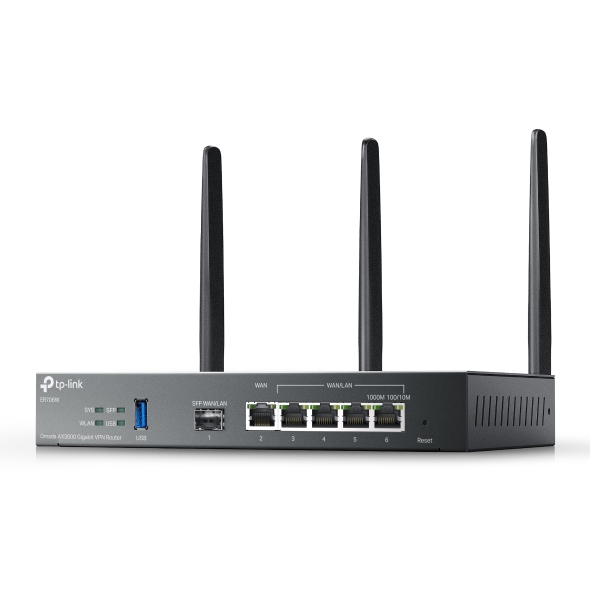

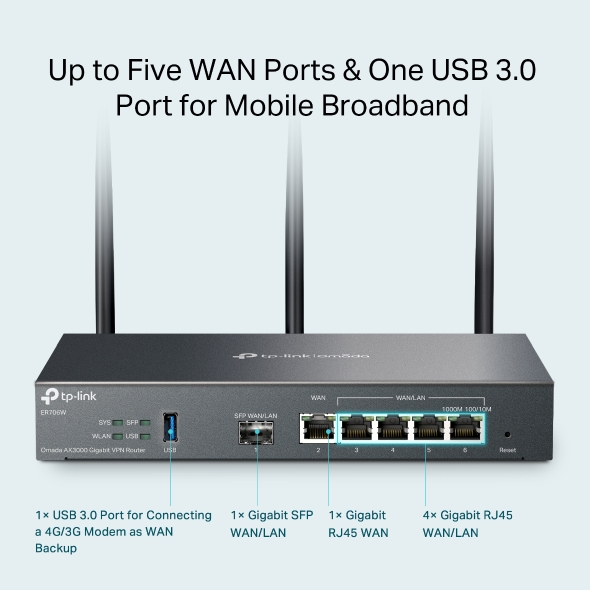

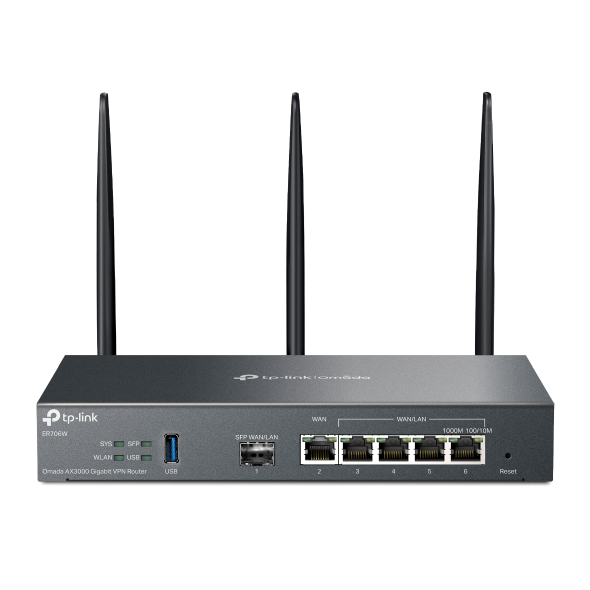

| Interface | 1 Gigabit SFP WAN/LAN Port 1 Gigabit WAN port 4 Gigabit LAN/WAN ports |
| USB | 1 USB3.0 (supports USB LTE dongle and USB Storage) |
| Wi-Fi Speed | 2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps HE160 |
| Antennas | 2.4 GHz: 2x 3 dBi dual-band detachable antennas 5 GHz: 3x 4.5 dBi dual-band detachable antennas |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset button |

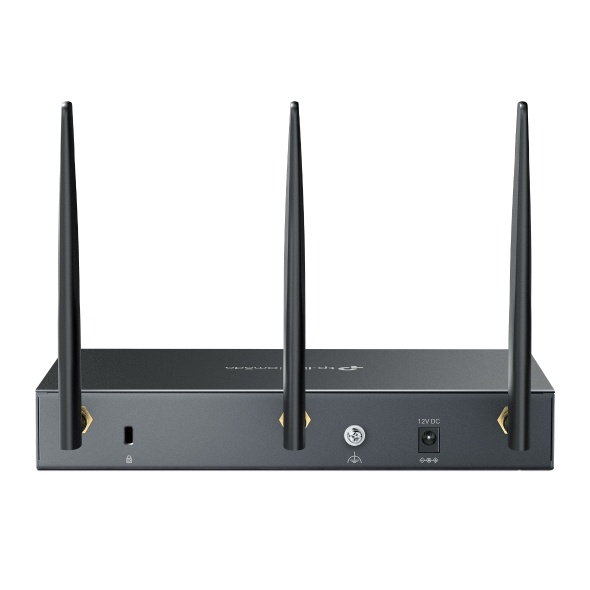

| Power Supply | 12VDC / 2A Power Adapter |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | SYS, WLAN, SFP, USB, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Max Power Consumption | EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected) US:22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected) |
| Surge Protection | 4 kV surge protection |
| Mounting | Desktop/ Wall-mounting |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions not included) |
| SDN Support | Hardware Controller |
| Model | ER706W V1.2 |
| 1 Performance |
Concurrent Session |
| New Sessions /Second | 5,100 |
| Static IP NAT Throughput (Upload / Download) |
937.2 Mbps/936.1Mbps |
| DHCP NAT Throughput (Upload / Download) |
945.8 Mbps /940.6Mbps |
| PPPoE NAT Throughput (Upload / Download) |
942.9 Mbps/942.9Mbps |
| L2TP NAT Throughput (Upload / Download) |
837.4 Mbps /881.5Mbps |
| PPTP NAT Throughput (Upload / Download) |
803.0 Mbps/910.5 Mbps |
| 66 Byte Packet forwarding rate (Upload / Download) |
1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate (Upload / Download) |
81274 pps/ 91275 pps |
| IPSec VPN Throughput | ESP-SHA1-AES256: 646.9Mbps ESP-SHA256-AES256: 642.8Mbps ESP-SHA384-AES256: 648.9Mbps ESP-SHA512-AES256: 658.4 Mbps |
| GRE | Unencrypted: 624.2Mbps Encrypted: 301.5Mbps |
| WireGuard VPN | 393.5Mbps |
| SSL VPN | 126.7Mbps |
| OpenVPN | 129.3Mbps |
| L2TP VPN Throughput | Unencrypted: 1034.0 Mbps Encrypted: 570.0 Mbps |
| PPTP VPN Throughput | Unencrypted: 1165.0 Mbps Encrypted: 209.0 Mbps |
| Basic Functions | WAN Connection Type |
| DHCP | DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP |
| MAC Clone | Modify WAN Address |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non- Address mode |
| Stateful ACL | √ |
| Model | ER706W V1.2 |
| Basic Functions | mDNS Repeater |
| Quality of Service | √ |
| Bridge VLAN | √ |
| VLAN | 802.1Q VLAN |
| Wireless Function | Wireless Encryption |
| Multiple SSIDs | 16 in total (8 per radio) |
| Enable/Disable Wireless Radio | √ |
| Enable/Disable SSID Broadcast | √ |
| Guest Network | √ |
| Automatic Channel Selection Algorithm |
√ |
| Transmit Power Control | Adjust transmit Power on dBm |
| Seamless Roaming | √ |
| Mesh | √ (with EAP that supports Mesh) |
| OFDMA | √ |
| Beamforming | √ |
| MU-MIMO | √ |
| Rate Limit | Based on SSID/Client |
| Load Balance | √ |
| Airtime Fairness | √ |
| Band Steering | √ |
| RADIUS Accounting | √ |
| MAC Authentication | √ |
| Reboot Schedule | √ |
| Wireless Schedule | √ |
| Support Data Rates | 802.11ax: 8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160) 802.11ac: 6.5 Mbps to 2166.7 Mbps (MCS0-MCS11, NSS = 1 to 2 VHT20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48 ,54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48 ,54 Mbps |
| Model | ER706W V1.2 |
| Transmission | Load Balance |
| NAT | One-to-One NAT Multi-Net NAT Virtual Server 1 Port Triggering NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Routing | Static Routing Policy Routing 2 RIP 2 OSPF |
| Session Limit | IP-based Session Limit |
| Bandwidth Control | IP-based Bandwidth Control |
| VPN | IPSec VPN |
| PPTP VPN | PPTP VPN Server 3 PPTP VPN Client (10) 50 Tunnels PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server 3 L2TP VPN Client (10) 50 Tunnels L2TP over IPSec |
| GRE | Only in Standalone Mode |
| WireGuard VPN | √ |
| SSL VPN | 50 Tunnels |
| OpenVPN | OpenVPN Server 3 OpenVPN Client (5) 55 OpenVPN Tunnels “Certificate + Account” Mode Full Mode |
