Description
Technical Specifications
| Model | TL-SG1008P |
|---|---|
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE802.1p |
| Network Ports | 8*10/100/1000Mbps RJ45 ports with 4 PoE ports (port 1 to port 4) |
| Network Media(Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100Base-TX: UTP category 5, 5e or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable or above cable(maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |

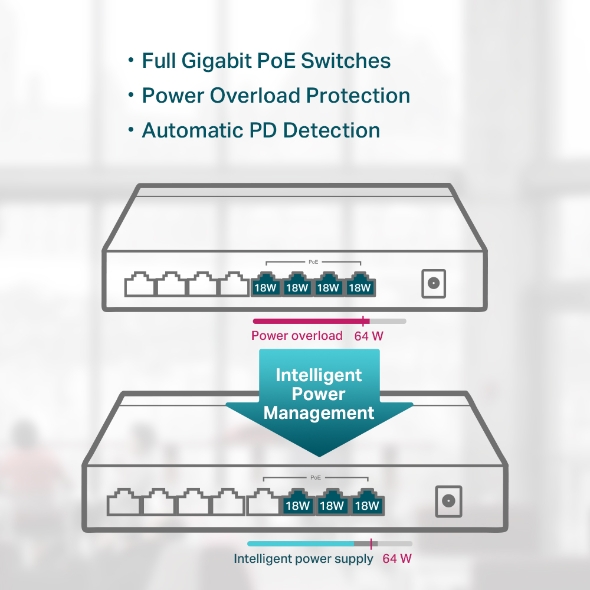

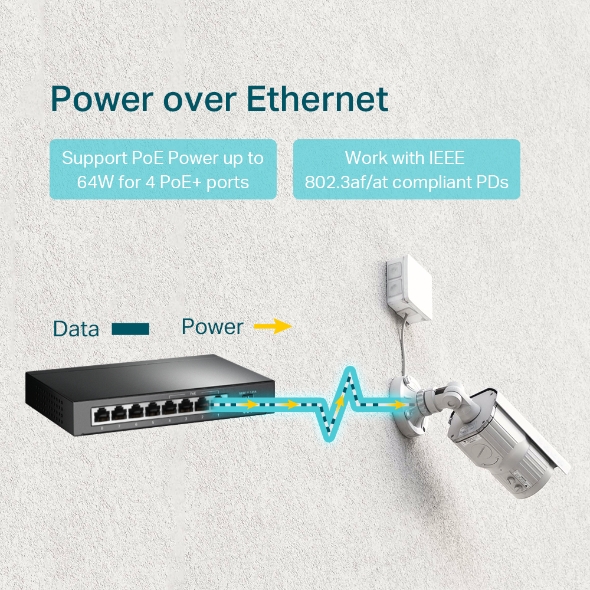

| PoE | PoE Standard: 802.3 af/at PoE Ports 1-4, up to 30 W per port PoE Power Budget 64 W* |
| Auto Negotiation | YES |
| Auto MDI/MDIX | YES |
| Max Power Consumption | 4.7 W ( 220V/50Hz. no PD connected) 73.5 W (220V/50Hz. with 64W PD connected) |
| Max Heat Dissipation | 16.03 BTU/h (no PD connected) 250.64 BTU/h (with 64W PD connected) |
| Forwarding Mode | Store and Forward |
| Switch Capacity | 16Gbps |
| MAC Address Table | 4K, Auto-learning, Auto-aging |
| Extend Mode | YES (For Ports 1-2) |

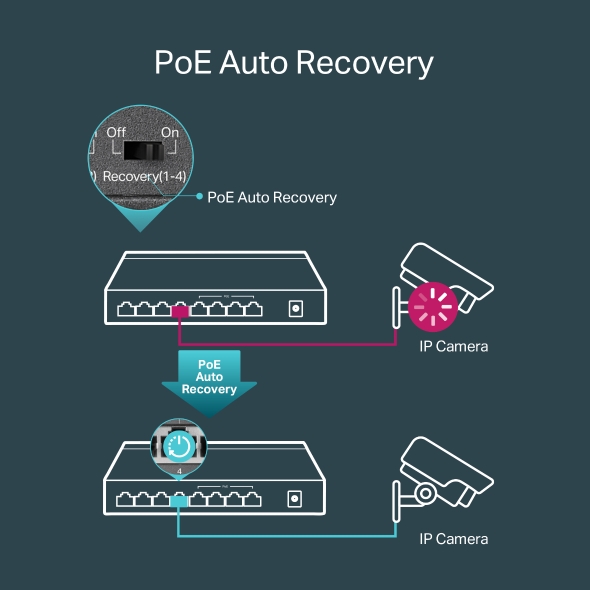

| PoE Auto Recovery | YES (For Ports 1-4) |
| Flow Control | YES |
| Fanless | YES |
| LED | Power, Link/Act, PoE Status, PoE MAX |
| Dimensions | 6.7×3.9×1.1in.(171x98x27mm) |
| Certifecation | CE, FCC |
| Operating Temperature | 0°C to 40 °C (32 °F to 104°F ) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158°F ) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
