TP-Link Omada ES210GMP - 8 Port Gigabit Managed PoE Switch

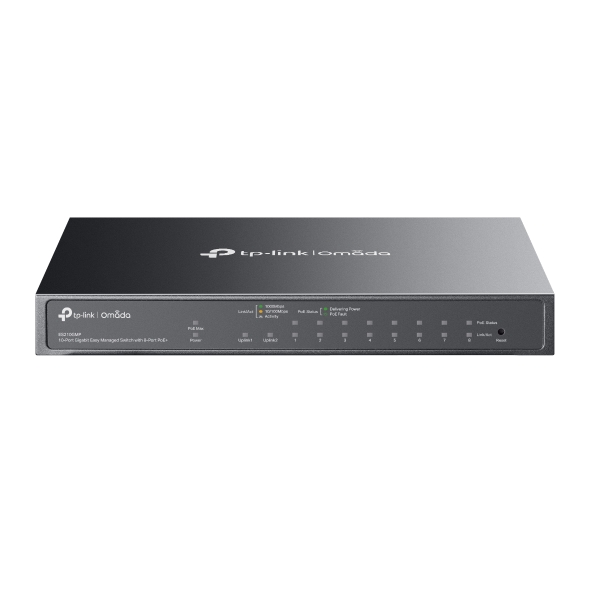

TP-Link Omada ES210GMP - 8 Port Gigabit Managed PoE Switch - Image 2

TP Link

TP-Link Omada ES210GMP – 8 Port Gigabit Managed PoE Switch

SKU TPL-ES210GMP

In stock

£86.76 ex VAT

£104.11 inc VAT

Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

  • 8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
  • 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
  • 123W Power Budget, with up to 30W for each PoE port*
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design

Order now for delivery Tuesday 27 October on orders over £300

  • Free next working day delivery to mainland UK on orders over £300 inc VAT placed by 11am, Monday to Friday
  • Orders under £300 inc VAT: £9.99 delivery in 2 to 3 working days.
  • 14 day returns on unused items
  • VAT invoice with every order

Installer or electrician? Apply for a trade account

Key specifications

Model
ES210GMP
General
Interface
Flash
64 Mbit
Port Standard
IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3x: Flow Control IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering IEEE 802.1q: Virtual Bridged Local Area Networks
PoE
PoE Standard
PoE Ports
8, up to 30 W /per port
PoE Power Budget
123 W
Performance
Switching Capacity
Full specification

Description

Technical Specifications

Model ES210GMP
General Interface
Flash 64 Mbit
Port Standard IEEE 802.3i:10BASE-T Ethernet;
IEEE 802.3u:100BASE-X Fast Ethernet;
IEEE 802.3ab:1000BASE-T Gigabit Ethernet;
IEEE 802.3x: Flow Control
IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering
IEEE 802.1q: Virtual Bridged Local Area Networks
PoE PoE Standard
PoE Ports 8, up to 30 W /per port
PoE Power Budget 123 W
Performance Switching Capacity
Packet Forwarding Rate 14.88 Mpps
MAC Address Table 8K
Packet Buffer 4 Mbit
Transmission Method Store and Forward
Jumbo Frame 15 KB
Physical &
Environment		 Power Supply
Surge Protection ±6 kV in common mode for Ethernet Ports
ESD Protection Air: ±8 kV, Contact: ±4 kV
MTBF 411681h @ 25°C
Dimensions
(W x D x H)		 8.2×4.9×1.0 in (209×126×26 mm)
Fan Quantity Fanless
Installation Desktop/Wall-Mounting
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Operation Humidity 10% to 90% RH, non-condensing
Storage Humidity 5% to 90% RH, non-condensing
Certification CE, FCC, RoHS
Model ES210GMP
SDN Support • Support Hardware Controller, Software Controller, Cloud-Based Controller
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration
L2 Features • Link Aggregation
– Static Link Aggregation
– Up to 4 aggregation groups and up to 6 ports per group
• Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– One-to-One
– Many-to-One
– Ingress/Egress/Both
• Port Statistics
– Port Mirror Status
– Traffic Statistics
• 802.1ab LLDP
L2 Multicast • IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
– Max 32 VLAN Groups
– 4K VID
QoS • 802.1p DSCP Priority
• 8 Priority Queues
• Priority Schedule Mode
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port-Based Rating Limit
• Storm Control
– Multiple Control Modes (kbps/pps)
– Broadcast/Multicast/Unknown-Unicast Control
Management • Web-based GUI
• DHCP Client
• Cable Diagnostics
Model Description
ES210GMP Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
Model Description
SM311LS Gigabit SFP module, Single-mode, LC interface, Up to 20km distance
SM311LM Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance
SM321A Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 20 km
SM321A-2 Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 2 km
SM321B Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 20 km
SM321B-2 Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 2 km
Model Description
SM331T 1000BASE-T RJ45 SFP Module
Model Description
MC210CS Gigabit Single-Mode Media Converter, up to 20 km, chassis mountable
MC200CM Gigabit Multi-Mode Media Converter, up to 550 m, chassis mountable
MC220L Gigabit SFP Media Converter, chassis mountable
MC1400 14-slot power supply chassis for TP-LINK MC Series Media Converter, 19-inch rack-mountable
Model Description
FC111A-20 100Mbps Single-Mode WDM Media Converter, up to 20 km, TX:1550nm, RX:1310nm, chassis mountable
FC111B-20 100Mbps Single-Mode WDM Media Converter, up to 20 km, TX:1310nm, RX:1550nm, chassis mountable
FC311A-2 Gigabit Single-Mode WDM Media Converter, up to 2 km, TX:1550nm, RX:1310nm, chassis mountable
FC311B-2 Gigabit Single-Mode WDM Media Converter, up to 2 km, TX:1310nm, RX:1550nm, chassis mountable
FC311A-20 Gigabit Single-Mode WDM Media Converter, up to 20 km, TX:1550nm, RX:1310nm, chassis mountable
FC311B-20 Gigabit Single-Mode WDM Media Converter, up to 20 km, TX:1310nm, RX:1550nm, chassis mountable
FC1400 14-slot power supply chassis for TP-LINK FC Series Media Converter, 19-inch rack-mountable

Additional information

Brand

TP Link
Number of ports

8-10 ports
PoE

PoE (15W)
Management

Managed
Port speed

Multi-gig (2.5G/10G)
