TP-Link Omada SG2005P-PD - 5 Port Gigabit Outdoor PoE Extender Switch (1x PoE In / 4x PoE Out)
TP-Link Omada SG2005P-PD - 5 Port Gigabit Outdoor PoE Extender Switch (1x PoE In / 4x PoE Out) - Image 2
TP-Link Omada SG2005P-PD - 5 Port Gigabit Outdoor PoE Extender Switch (1x PoE In / 4x PoE Out) - Image 3

TP Link

TP-Link Omada SG2005P-PD – 5 Port Gigabit Outdoor PoE Extender Switch (1x PoE In / 4x PoE Out)

SKU TPL-SG2005P-PD

In stock

£90.48 ex VAT

£108.58 inc VAT

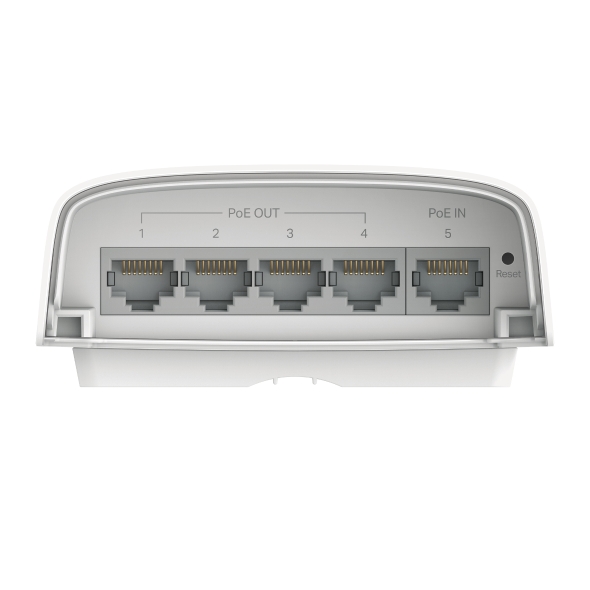

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out

  • Up to 200m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100m to 200m without losing gigabit speeds, perfect for long-range surveillance cameras and access points
  • 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively
  • Outdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions.

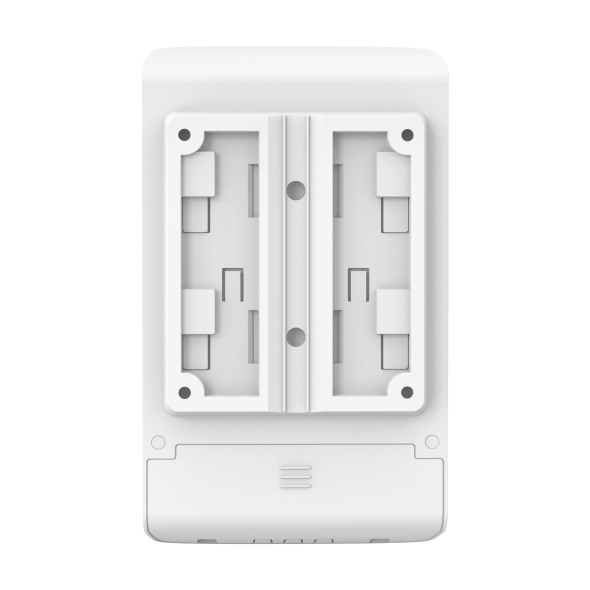

  • Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management.
  • Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN.

Order now for delivery Tuesday 27 October on orders over £300

  • Free next working day delivery to mainland UK on orders over £300 inc VAT placed by 11am, Monday to Friday
  • Orders under £300 inc VAT: £9.99 delivery in 2 to 3 working days.
  • 14 day returns on unused items
  • VAT invoice with every order

Installer or electrician? Apply for a trade account

Key specifications

Model
SG2005P-PD
General
Interface
Flash
32 MB
DRAM
256 MB
Port Standard
IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet;
PoE
PoE Standard
PoE Power Budget
64 W when powered by 802.3bt Type 4 (90 W) 44 W when powered by 802.3bt Type 3 (60 W) 19 W when powered by 802.3at 6 W when powered by 802.3af
Performance
Switching Capacity
Full specification

Description

Technical Specifications

Model SG2005P-PD
General Interface
Flash 32 MB
DRAM 256 MB
Port Standard IEEE 802.3i:10BASE-T Ethernet;
IEEE 802.3u:100BASE-X Fast Ethernet;
IEEE 802.3ab:1000BASE-T Gigabit Ethernet;
PoE PoE Standard
PoE Power Budget 64 W when powered by 802.3bt Type 4 (90 W)
44 W when powered by 802.3bt Type 3 (60 W)
19 W when powered by 802.3at
6 W when powered by 802.3af
Performance Switching Capacity
Packet Forwarding Rate 7.44 Mpps
MAC Address Table 8K
Packet Buffer 4.1 Mbit
Transmission Method Store and Forward
Number of IP Interfaces 16
Number of Static Routers 32 (IPv4, IPv6)
Jumbo Frame 9 KB
Physical &
Environment		 Power Supply
Max Power Consumption 71.5 W (when powered by 802.3bt Type 4 (90 W))
Max Heat Dissipation 243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W))
Standby Power Consumption 6.7 W
Dimensions
(W x D x H)		 6.7 × 3.9 × 1.5 in (170 × 100 × 38.5 mm)
IP Rating IP55
Surge Protection 4 kV
Fan Quantity Fanless
Installation Pole-Mounting/Wall-Mounting
Operating Temperature -40 to 60 °C (-40 to 140 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Operation Humidity 10% to 90% RH, non-condensing
Storage Humidity 5% to 90% RH, non-condensing
Certification CE, FCC, RoHS

Additional information

Brand

TP Link
Number of ports

4-6 ports
PoE

PoE (15W)
Management

Unmanaged (plug and play)
Port speed

Gigabit
