TP-Link Omada ES205GP - 5 Port Gigabit Managed PoE Switch

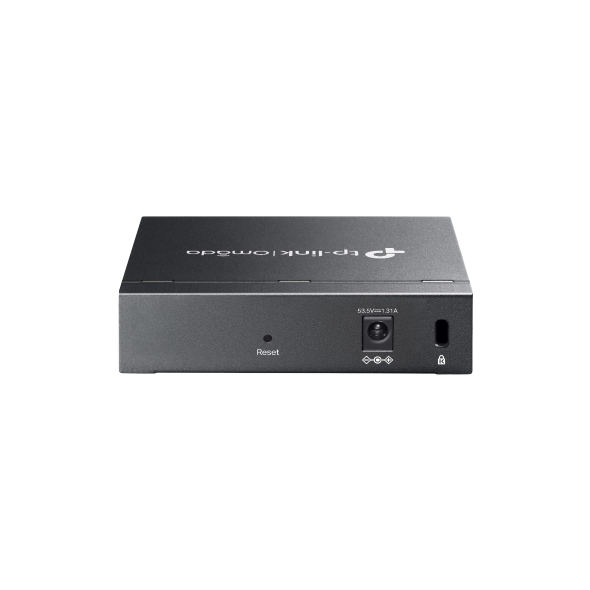

TP-Link Omada ES205GP - 5 Port Gigabit Managed PoE Switch - Image 2

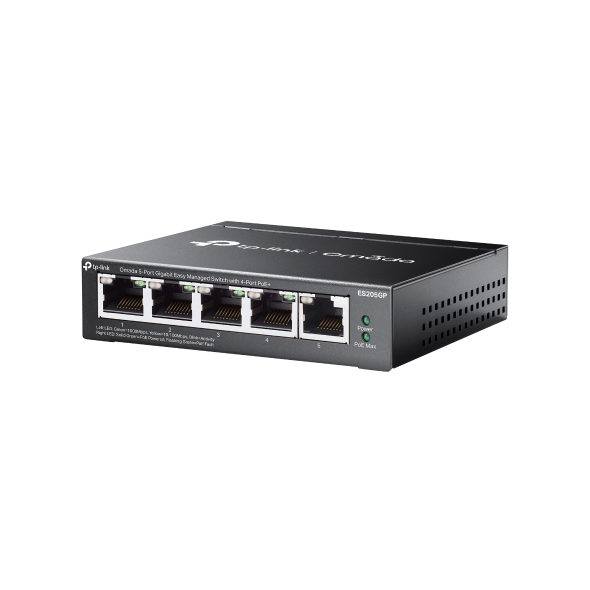

TP-Link Omada ES205GP - 5 Port Gigabit Managed PoE Switch - Image 3

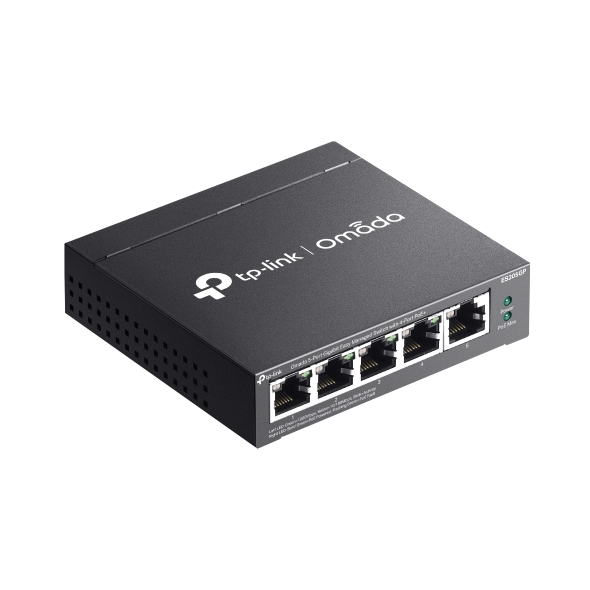

TP-Link Omada ES205GP - 5 Port Gigabit Managed PoE Switch - Image 4

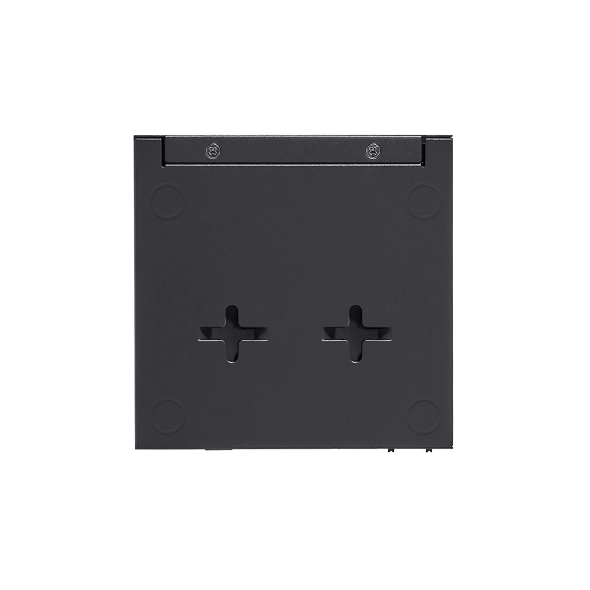

TP-Link Omada ES205GP - 5 Port Gigabit Managed PoE Switch - Image 5

TP Link

TP-Link Omada ES205GP – 5 Port Gigabit Managed PoE Switch

SKU TPL-ES205GP

Out of stock

£45.24 ex VAT

£54.29 inc VAT

TP-Link Omada ES205GP: 5-Port Gigabit Managed PoE Switch

The TP-Link Omada ES205GP is a managed PoE switch designed for small to medium business networks. With full Omada SDN integration, it offers centralized cloud management, advanced security, and reliable power delivery for IP cameras, access points, and VoIP phones.

Key Features:

  • 5 Gigabit Ports: All ports support Gigabit speeds.

  • PoE+ Support: 4 PoE+ ports with a total budget of up to 65W for powering compatible devices.

  • Omada SDN Integration: Centralized cloud or on-premises controller management with zero-touch provisioning.

  • Advanced Network Control: VLAN, QoS, IGMP Snooping, and link aggregation for optimized traffic handling.

  • Compact & Fanless Design: Silent operation, ideal for offices or retail environments.

  • Robust Security: 802.1X authentication, ACL, IP-MAC-Port binding, and storm control for secure networking.

  • Plug-and-Play Deployment: Easy setup with auto device discovery and configuration via the Omada app.

Key specifications

Model
ES205GP
General
Interface
Flash
64 Mbit
Port Standard
IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3x: Flow Control IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering IEEE 802.1q: Virtual Bridged Local Area Networks
PoE
PoE Standard
PoE Ports
4, up to 30 W /per port
PoE Power Budget
65 W
Performance
Switching Capacity
Full specification

Description

Technical Specifications

Model ES205GP
General Interface
Flash 64 Mbit
Port Standard IEEE 802.3i:10BASE-T Ethernet;
IEEE 802.3u:100BASE-X Fast Ethernet;
IEEE 802.3ab:1000BASE-T Gigabit Ethernet;
IEEE 802.3x: Flow Control
IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering
IEEE 802.1q: Virtual Bridged Local Area Networks
PoE PoE Standard
PoE Ports 4, up to 30 W /per port
PoE Power Budget 65 W
Performance Switching Capacity
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 8K
Packet Buffer 4 Mbit
Transmission Method Store and Forward
Jumbo Frame 15 KB
Physical &
Environment		 Power Supply
Surge Protection ±6 kV in common mode for Ethernet Ports
ESD Protection Air: ±8 kV, Contact: ±4 kV
MTBF 559597h @ 25°C
Dimensions
(W x D x H)		 3.9 × 3.9 × 1.0 in ( 99.8 × 98 × 25 mm)
Fan Quantity Fanless
Installation Desktop/Wall-Mounting
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Operation Humidity 10% to 90% RH, non-condensing
Storage Humidity 5% to 90% RH, non-condensing
Certification CE, FCC, RoHS
Model ES205GP
SDN Support • Support Hardware Controller, Software Controller, Cloud-Based Controller
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration
L2 Features • Link Aggregation
– Static Link Aggregation
– Up to 2 aggregation groups and up to 4 ports per group
• Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– One-to-One
– Many-to-One
– Ingress/Egress/Both
• Port Statistics
– Port Mirror Status
– Traffic Statistics
• 802.1ab LLDP
L2 Multicast • IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
– Max 32 VLAN Groups
– 4K VID
QoS • 802.1p DSCP Priority
• 8 Priority Queues
• Priority Schedule Mode
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port-Based Rating Limit
• Storm Control
– Multiple Control Modes (kbps/pps)
– Broadcast/Multicast/Unknown-Unicast Control
Management • Web-based GUI
• DHCP Client
• Cable Diagnostics
Model Description
ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Model Description
MC210CS Gigabit Single-Mode Media Converter, up to 20 km, chassis mountable
MC200CM Gigabit multi-mode SC SFP Transceiver, up to 550 m, chassis mountable
MC200L Gigabit SFP slot supporting mini-GBIC modules, chassis mountable
MC1400 14-slot power supply chassis for TP-LINK MC Series Media Converter, 19-inch rack-mountable
Model Description
FC111A-20 100Mbps Single-Mode WDM Media Converter, up to 20 km, TX:1550nm, RX:1310nm, chassis mountable
FC111B-20 100Mbps Single-Mode WDM Media Converter, up to 20 km, TX:1310nm, RX:1550nm, chassis mountable
FC311A-2 Gigabit Single-Mode WDM Media Converter, up to 2 km, TX:1550nm, RX:1310nm, chassis mountable
FC311B-2 Gigabit Single-Mode WDM Media Converter, up to 2 km, TX:1310nm, RX:1550nm, chassis mountable
FC311A-20 Gigabit Single-Mode WDM Media Converter, up to 20 km, TX:1550nm, RX:1310nm, chassis mountable
FC311B-20 Gigabit Single-Mode WDM Media Converter, up to 20 km, TX:1310nm, RX:1550nm, chassis mountable
FC1400 14-slot power supply chassis for TP-LINK FC Series Media Converter, 19-inch rack-mountable

Additional information

Brand

TP Link
Number of ports

4-6 ports
PoE

PoE (15W)
Management

Managed
Port speed

Gigabit
