Netvio 70m 4K/60 HDR | 100m 1080p | HDBaseT Receiver

HDBaseT Receivers: 40m | 40m + ARC | 70m + ARC & LAN

The RX-HT2-70-10 is a top of line receiver with ARC & S/PDIF support and allows up to 70 meters of transmission distance over HDBaseT via CAT5e/6/6a at full 4K/60 HDR & 100 meters for 1080p.

If the consumer uses a sound bar or audio system that supports ARC or S/PDIF and the TV is far away from the matrix then this receiver is the perfect choice. Once the matrix is connected to the receiver via CAT cable, you then connect a HDMI cable into the receiver and into the TV which then provides an image.

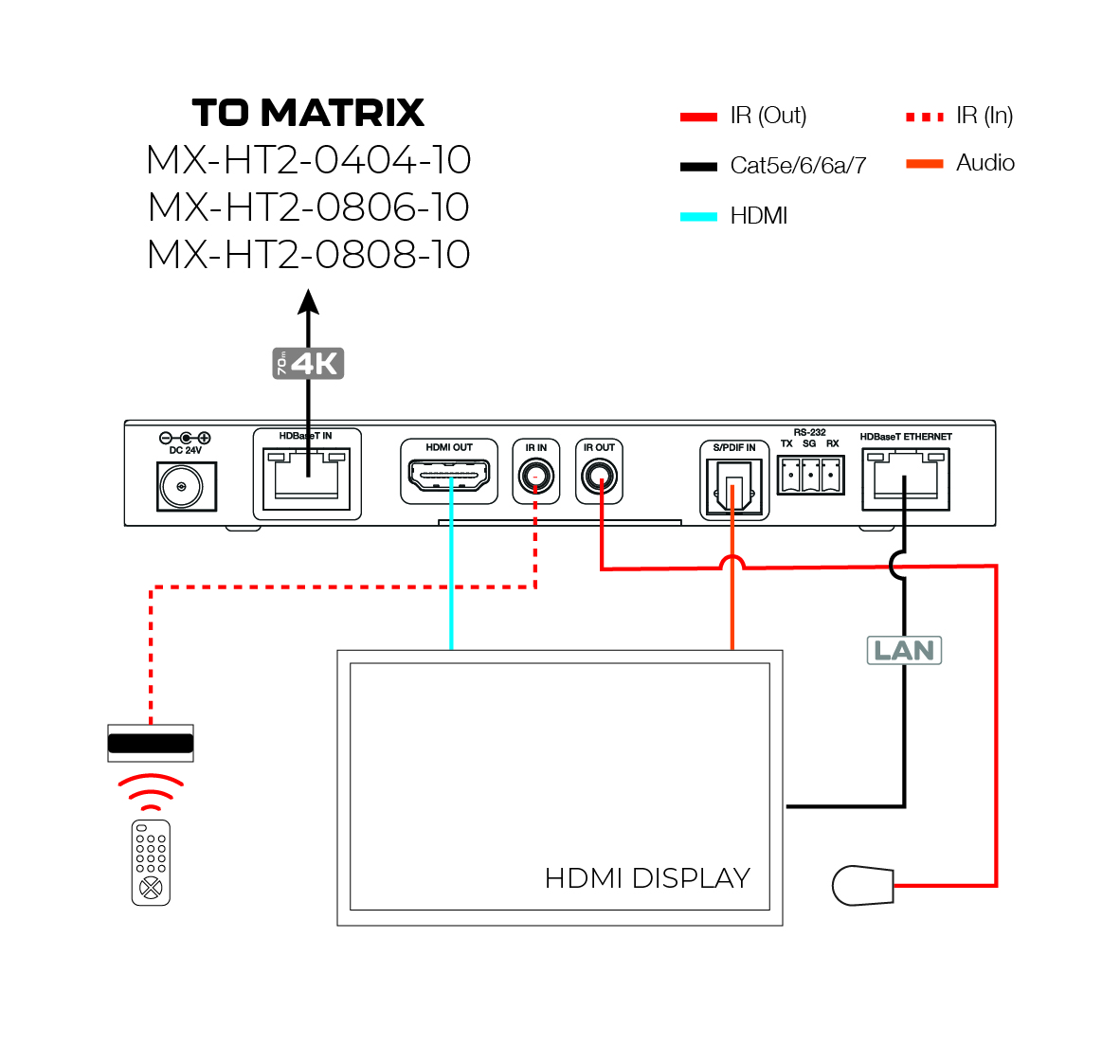

It can also provide network connectivity to TVs that may be far away by using the LAN port on the receiver and connecting a cable into the TV. Certain HDBaseT ports on Netvio's matrices support this, for example the MX-HT2-0404-10 on output 4 supports 70m and also HDBaseT Ethernet for output 4 only. Simply cable this back to the router and the TV that's 70 meters away should receive a network connection. Please see both wiring diagrams on matrices and receivers to see how it works.

You have your standard 2 way IR controls as well as support for control systems via RS-232, including full app controls using the Netvio GO app and also Netvio 360 desktop software to customize the user experience.

• HDBaseT Distance: 70m 4K/60 HDR & 100m 1080p
• Max Video Transmission: 3840x2160 60fps 4:4:4 8b
• Encoding Data Rate: HDBaseT - 10.2Gbs
• RJ45 LAN Port for TVs without Network Connectivity
• RS-232 & ARC + S/PDIF Support
• FREE Netvio 360 Desktop Software & Netvio GO
• 5 Year Warranty
