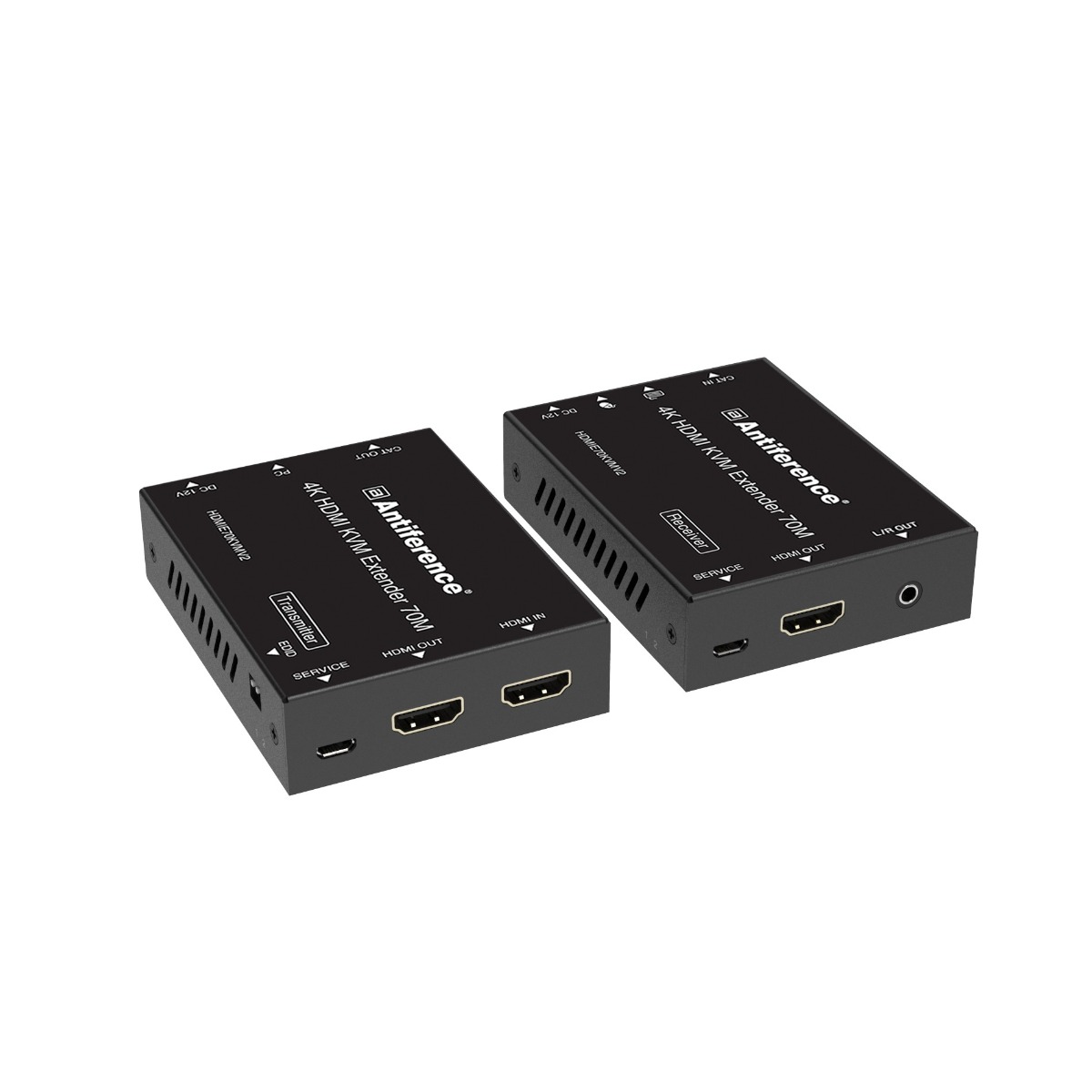

Antiference HDMIE70KVMV2 – 70m 4K CAT6 extender w/HDMI loop, PoC & KVM

Extend a 4K or 1080p source up to 70m over a single CAT6 with KVM control. Features include a local HDMI loop out, an EDID management system & a bi-directional smart PoC system.

KVM (Keyboard, Video, Mouse) is a USB-based system that enables remote control of a source device such as a PC, server, or CCTV NVR device. A single USB port is located on the transmitter for connectivity to the source and on the receiver end, there are 2 USB ports for the keyboard and mouse. It is possible to control the source completely remotely.

Also included is an audio embedding 3.5mm port at the receiver end.

• 18Gbps HDMI extender with KVM
• 1 HDMI input, 1 CAT6 output + local HDMI loop through
• Supports resolutions up to 2160p@60 4:4:4
• HDCP 2.2
• 70m range for 4K 0r 1080p
• KVM (Keyboard, Video, Mouse) control
• EDID management
• Smart PoC system
• Supports HDR & Dolby Vision
