Netvio 4×4 HDBaseT Video & Audio Matrix

HDBaseT Matrices: 4x4 | 8x6+2 | 8x8

Need to display multiple sources on multiple TVs around a large premises? The HDBaseT Netvio control matrix allows you to input 4 sources and display to 4 TVs via HDBaseT and another 4 TVs via the HDMI mirrored outputs. Simply connect your sources to the inputs of the matrix and then using CAT5e/6/6a cable to a receiver. Once your receiver and matrix are connected, connect a HDMI lead into the receiver and into the back of your TV.

Netvio has streamlined its product range to help you easily pick which product you require. This 4x4 matrix allows outputs 1-3 to reach up to 40m and 70m for output 4 at 4K. You will require a Netvio receiver of which there are 3 to choose from; the standard 40m, 40m with ARC and 70m with ARC + LAN. Depending on the situation, each receiver may need to be different and Netvio gives you that flexibility.

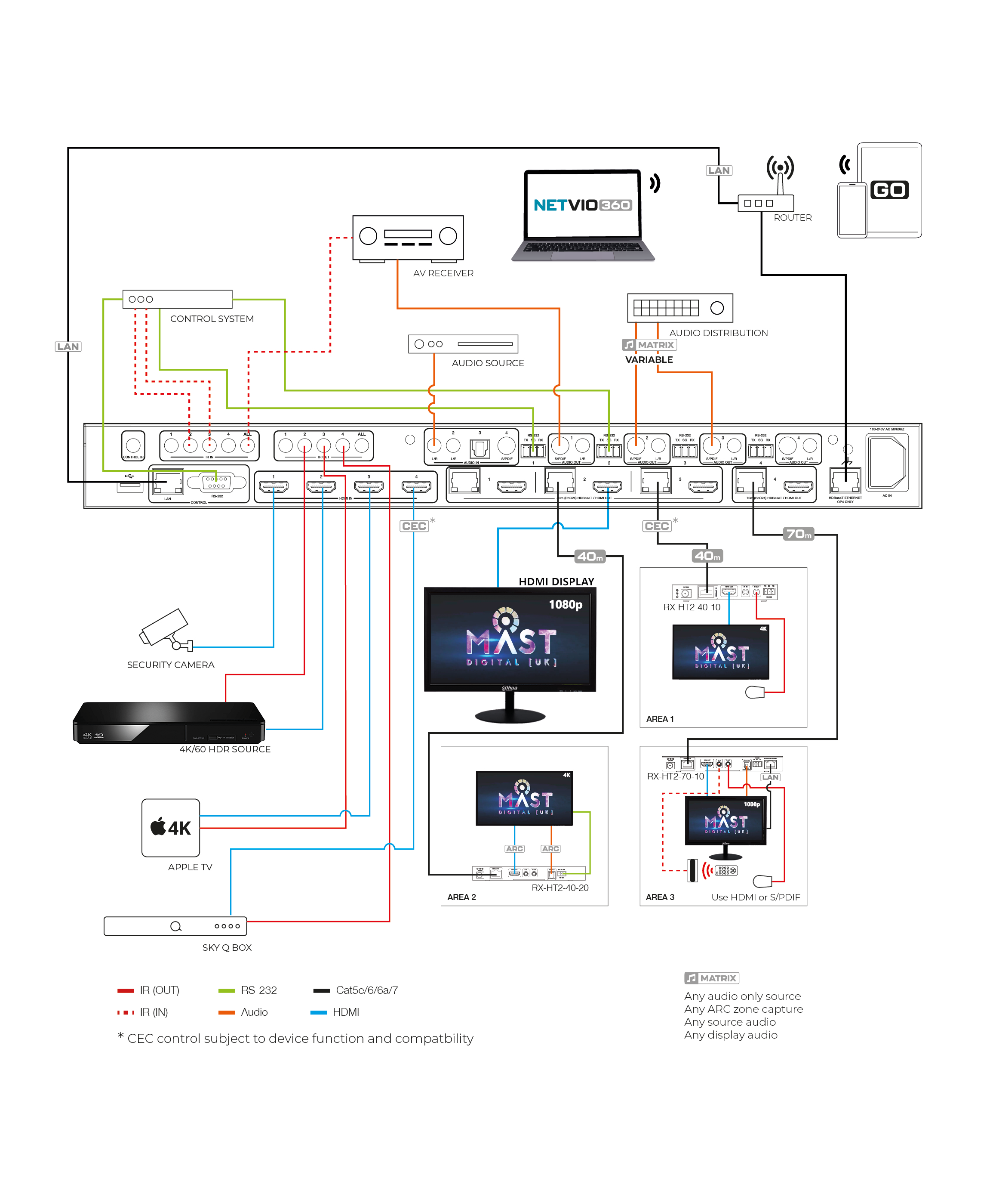

With full support for ARC, auto-scaling, 70m OP4 + Ethernet for TVs that can't receive network due to distance, Zone RS-232 for control systems direct or routed, full audio systems including AV receivers, audio sources, audio distribution and free app & software control, this makes Netvio's matrices the most competitive when it comes to features, value and price. Please see the wiring diagram image as a reference.

• Max Video Transmission: 3840x2160 60fps 4:4:4 8b
• Encoding Data Rate: HDBaseT - 10.2Gbs, HDMI - 17.82Gbs
• Outputs 1-3: HDBaseT 40m 4K/60 HDR & 70m/1080p,
• Output 4: HDBaseT 70m 4K/60 HDR & 100m/1080p + HDBaseT Ethernet Port for Network Connectivity (Requires RX-HT2-70-10 Receiver)
• 4x HDMI Mirrored Outputs
• Auto-Scaling between 4K/60 HDR and 1080p
• Supports ARC & CEC, RS-232, Audio Receivers, Sources and distribution
• FREE Netvio 360 Desktop Software & Netvio GO
• 5 Year Warranty
