Netvio 40m 4K/60 HDR | 70m 1080p | HDBaseT Extender

1080p | 4K/30 HDR |  4K/60 HDR | 4K/60 HDR + ARC | 4K/60 HDR + ARC & LAN

Need to transmit a 4K source, such as SkyQ or 4K Blu-Ray further than 7M? Netvio's 4K HDMI extender is a great and simple solution to carry the signal up to 40m for 4K or 70m for 1080p over CAT5e/6/6a plus the length of HDMI cables into each receiver & extender.

Featuring PoC24, both the transmitter & receiver can be powered by mains but only one needs to be plugged in at any one time as the other unit of the pair will be conveniently powered over the ethernet cable.

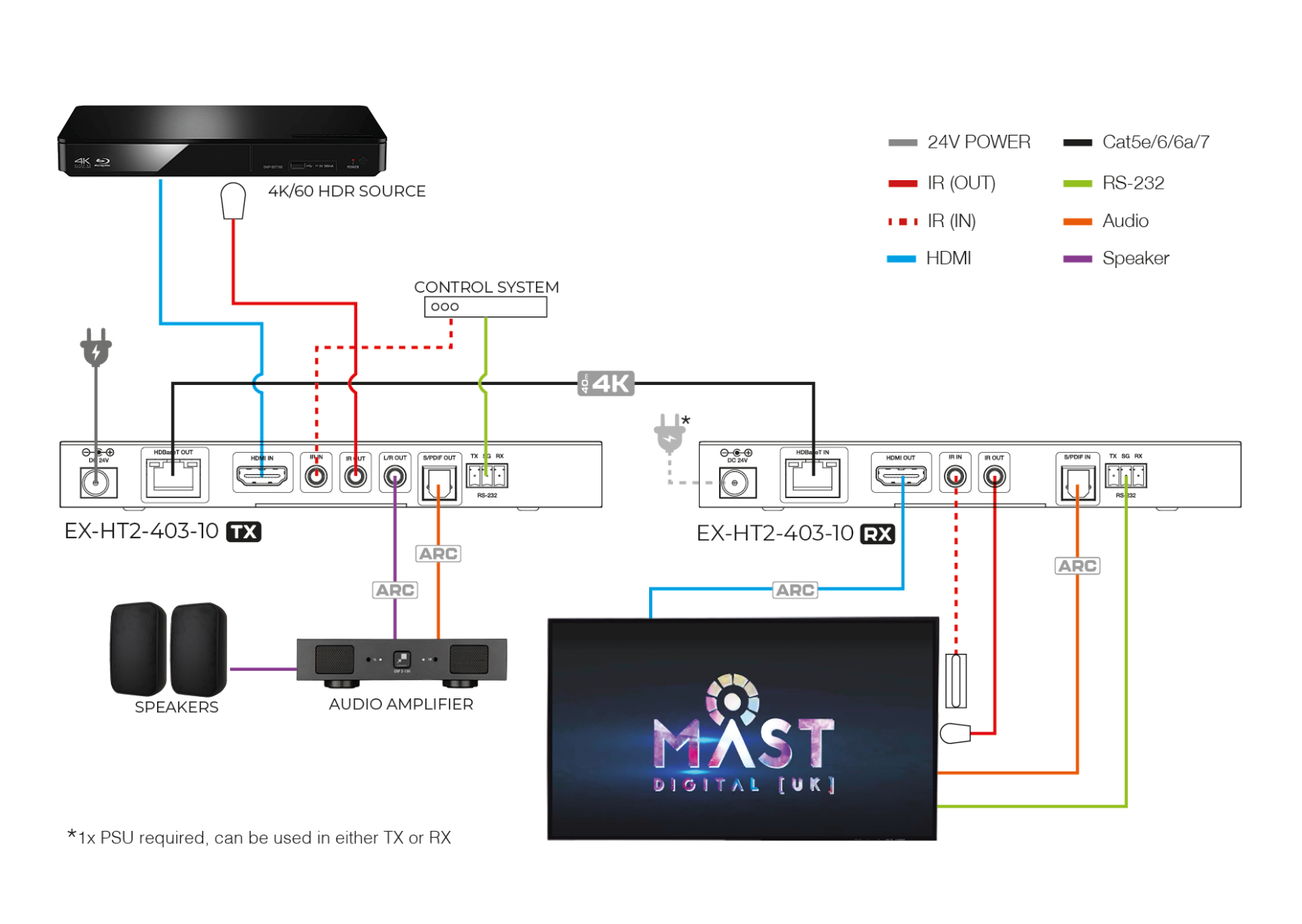

ARC (Audio Return Channel) allows this extender to be compatiable with audio systems or soundbars that support ARC so you're not losing out on the best audio experience. Along with S/PDIF, you can connect your audio system or soundbar into the receiver which is then sent to the transmitter. Please see the wiring diagram image for reference.

All of the Netvio 4K extenders also feature RS-232 to connect to a control system for IR control with remotes.

Specs include:

• Max Video Signal: 3840x2160 60fps 4:4:4 8b
• Max Transmission: 4K at 40m and 70m for 1080p over CAT5e / CAT6
• Supports ARC & S/PDIF for Audio Systems & Soundbars
• PoC24 (Power over Cable) from included 24v PSU
• All IR accessories included for remote control & RS-232 Pass Through
• 5 Year Warranty
