Description
Content Plus+ Narrative:
Netvio Content Plus+ revolutionizes distribution with advanced multi-stream encoders, enabling seamless delivery of high-quality, low-bandwidth content across devices and platforms using real-time-stream-protocol (RTSP) capabilities.
Software:
Discover, configure, optimize, and manage large-scale AV applications seamlessly with the latest user-interface design. Streamline installation processes with one-click automated routines, significantly reducing installation times.
User App:
Reduces typical control system costs to 0%, while maintaining extensive control of audio, video, media sources, displays, and video walls. Now includes multi-amplifier audio capabilities for leading brands, making it the perfect cost-free AV control platform.
Pixel Perfection:
A video quality of 4K 4:4:4 signifies a high level of detail and precision in colour representation. This specification denotes full chroma subsampling, ensuring that every pixel retains its complete colour information, ideal for large screen formats or close-up detail.
Sixty Hertz:
A 60Hz higher frame rate enhances the viewing experience, especially in fast-paced scenes, gaming, and multimedia content, resulting in more lifelike and fluid motion on-screen.
Audio Excellence:
Experience unparalleled audio immersion with support for the latest DTS:X, IMAX, and Dolby Atmos audio technologies. Capture & route audio content from displays ARC/ eARC capture.
Clock Synchronization:
Routing audio and video with genlock precision enhances the user experience while providing integrators with the tools and confidence to deliver highly synchronized solutions for demanding applications.
Technical Specifications
Audio | Video
- Supports HDMI2.0b 18Gb HDMI input signal
- Compliance upto HDCP2.2
- Max Video Transmission 3840×2160 60fps 4:4:4 8bit
- HDR Support at 4K60 4:2:2 10bit
- IP Preview (RTSP) Main Output 1920×1080 30fps
- IP Preview Sub Output 960×580 30fps
- Enhanced compatibility mode ideal conference hubs, laptop & commercial display integration
- HDMI Loop Out (TX) 3840×2160 60fps 8b 4:4:4
- HDR Compatible including HDR10, HDR10+, Dolby Vision
- Scaler capable of 4K to 2K
- End to Latency =< less than 1 video frame
- LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master
- Multiple audio connectivity including analog and digital options
- Supports ARC/eARC capture & routing
- Ability to embed additional audio source to HDMI signal via encoder
Software & Control
- Compatible with Netvio360 for discovery, configuration, security, management & routing
- Independent control signal routing of IR, RS-232 & CEC
- Available control system drivers include Crestron, Control4, Savant, RTi, Elan
- Onboard Netvio-Go-Control, a license-free app, provides a compelling alternative to traditional control systems. Tailored for a streamlined and less complex AV experience.
- Onboard IR & RS-232 ports, with signal routing via control system

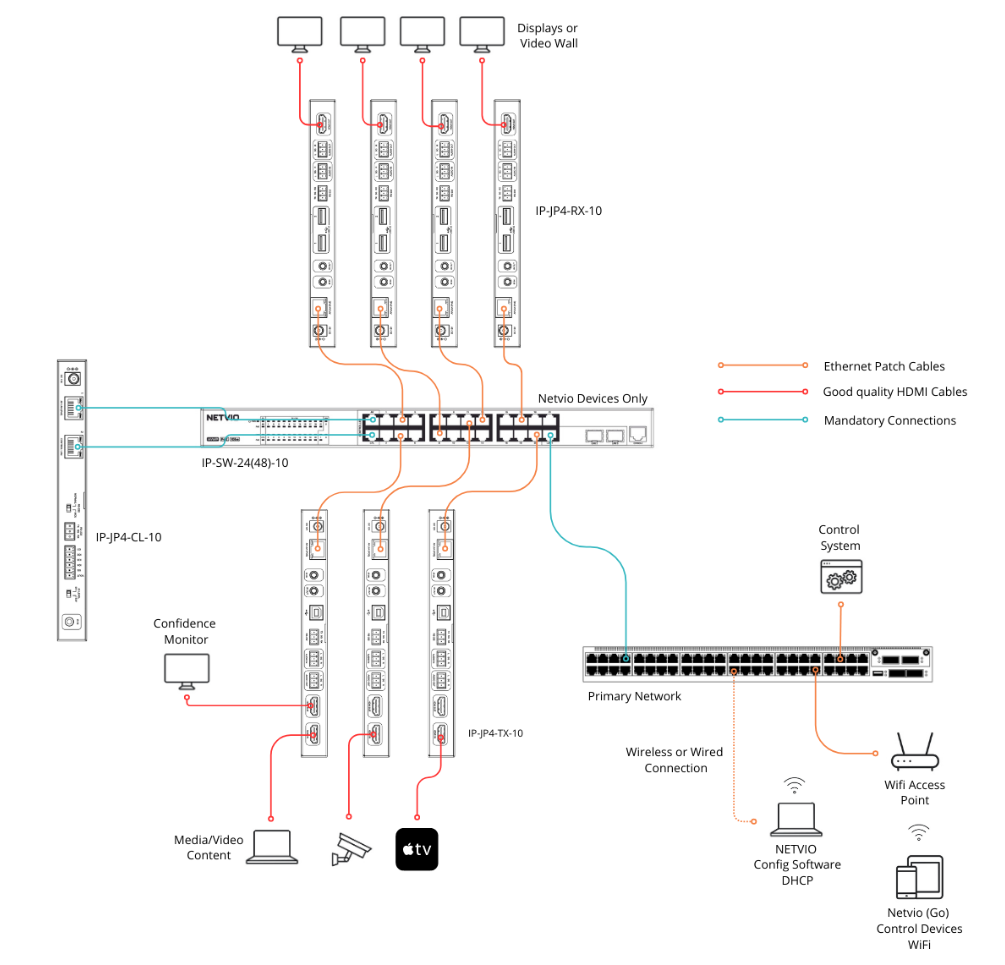

Works with…
- IP-JP4-60-TX-10 (Encoder)
- IP-JP4-60-RX-10 (Decoder)
- IP-JP4-CL-10 (Secure IP Terminal/Controller)
- IP-RK-10 (Rack)
- IP-SW-24P-10 (Network Switch)
- IP-SW-48P-10 (Network Switch)
- TS-13-10 (Touch Panel)
- Not compatible with IP-JP4 series products
Electrical & Mechanical
- 5-Year product warranty
- Product Approvals CE, UKCA, FCC, RoSH
- Product Dimensions: W: 205mm x D: 136m x H: 26mm
- Package Dimensions: W: 260mm x D: 160mm x H: 77mm
- Unit Weight | 630g
- Power | IEEE 802.3af (10watts max per device)
- Operating temperature | 32 ºF to 104ºF / -20 ºC to 60ºC
- Storage temperature | -4 ºF to 140ºF / -20ºC to 60ºC
- BTU: 30 Btu/hr nominal
Technical Specifications
| Delivery Duration | Special Order – Please Enquire For Lead Time |
|---|---|
| Brand | Netvio |
| Colour | White |
| Special Order | Yes |
