Description
Technical Specifications
| Left and Right Interchangeable |
Yes |
|---|---|
| Power Output | 12 V ± 5% (Max: 1 A) |
| Arm Type | Straight Arm Barrier;Telescopic Arm Barrier |
| Arm Length | Straight arm: 2.7 m–6 m (8.86 ft–19.69 ft) |
| Arm Model | IPMECD-0262-M30-LED IPMECD-0262-M40-LED IPMECD-0262-M50-LED IPMECD-0262-M60-LED IPMECD-0262-M2745, 2.7 m–4.5 m (8.86 ft–14.76 ft) adjustable IPMECD-0262-M4560, 4.5 m–6 m (14.76 ft– 19.69 ft) adjustable |
| Opening/Closing Time | 1.4 sec–6 sec（speed is measured by the arm length and weight） |
| Motor Type | DC brushless |
| Rotational Speed | 1500 RPM |
| Transmission Ratio | 88:1 |
| Bluetooth Standard | GFSK, π/4-DQPSK |
| Bluetooth Frequency Range | NA2.402 GHz–2.480 GHz ISM band |
| Bluetooth Power Transmission |
–15.7 dBm to +6.4 dBm |
| Sub 1G Modulation Type | ASK |
| Sub 1G Frequency Range | 433.82 MHz–434.02 MHz |
| Sub 1G Power Transmission | 433.82 MHz–434.02 MHz@–10 dBm |
| Power Supply | 100–264 VAC |
| Power Consumption | ＜432 W |
| Motor Lifespan | 6 million times |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Humidity | 10%–90% (RH), non-condensing |
| Protection | IP54 |
| Anti-corrosion Level | Basic Protection |
| Product Dimensions | 340.0 mm × 260.0 mm × 978.0 mm (13.39″ × 10.24″ × 38.50″) (L × W × H) |
| Packaging Dimensions | 1,058.0 mm × 375.0 mm × 425.0 mm (41.77″ × 14.76″ × 16.73″) (L × W × H) |
| Net Weight | 37.6 kg (82.92 lb) |
| Gross Weight | 43.2 kg (95.52 lb) |
| Installation | Bottom-mounted with expansion bolts |
| Type | Model |

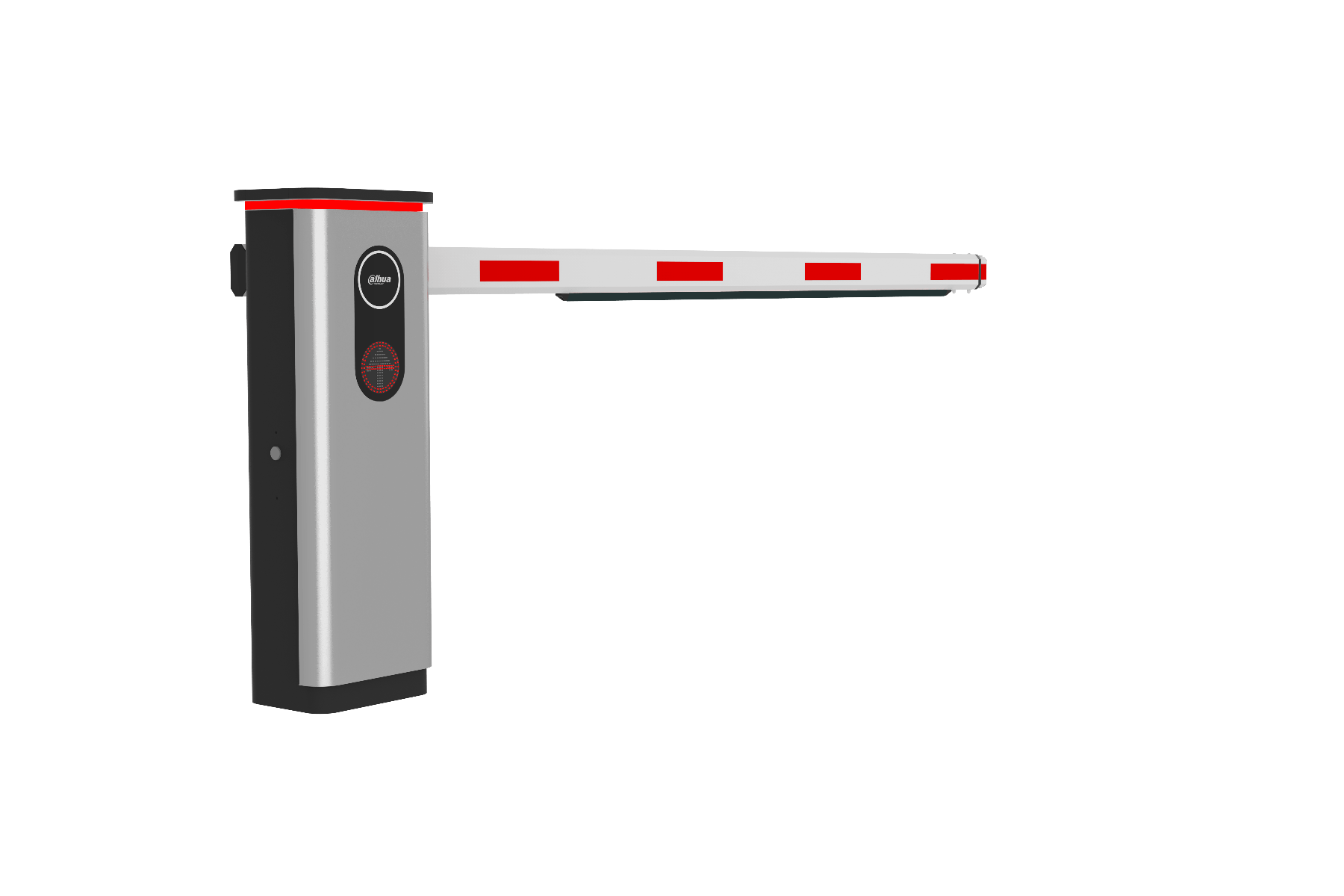

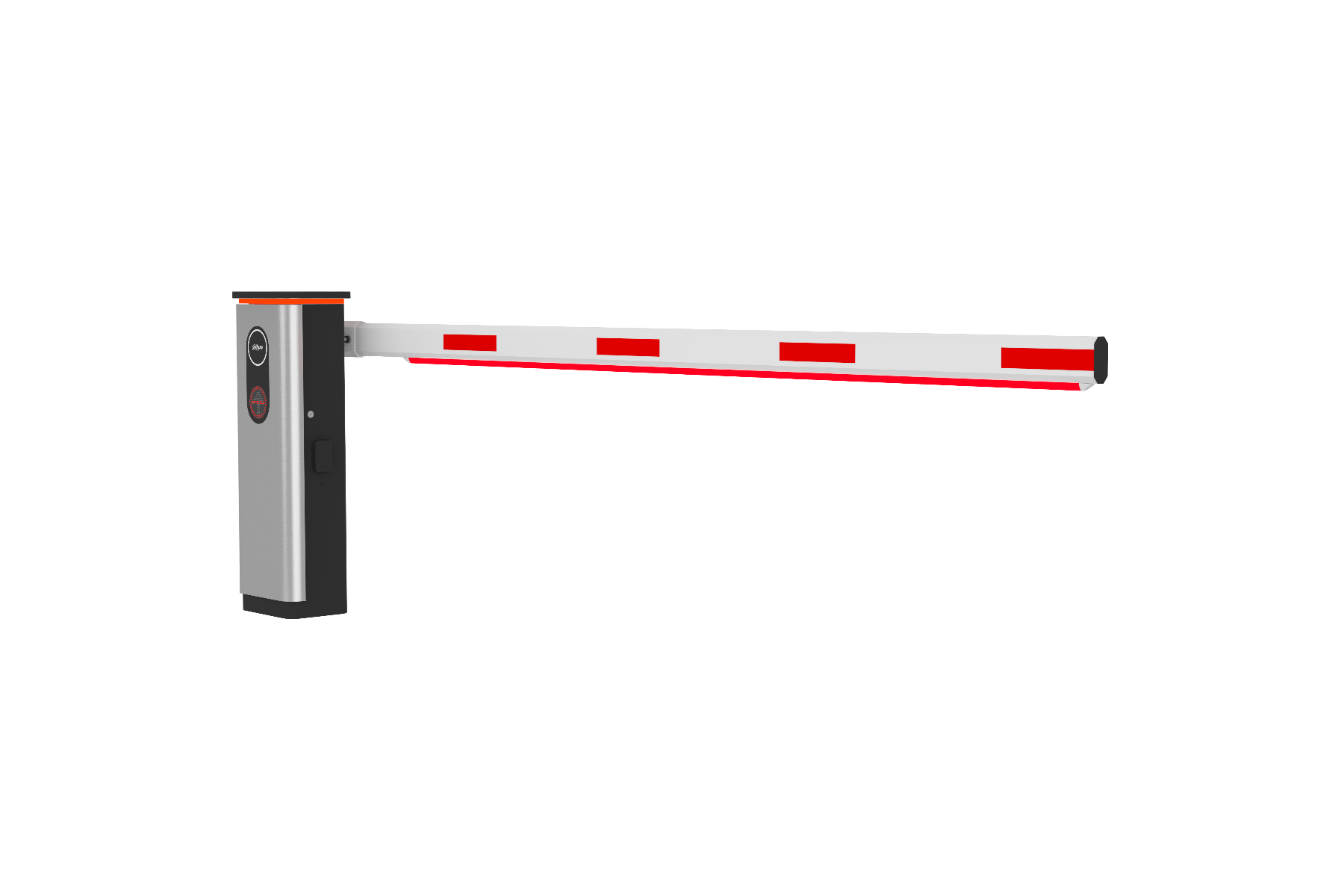

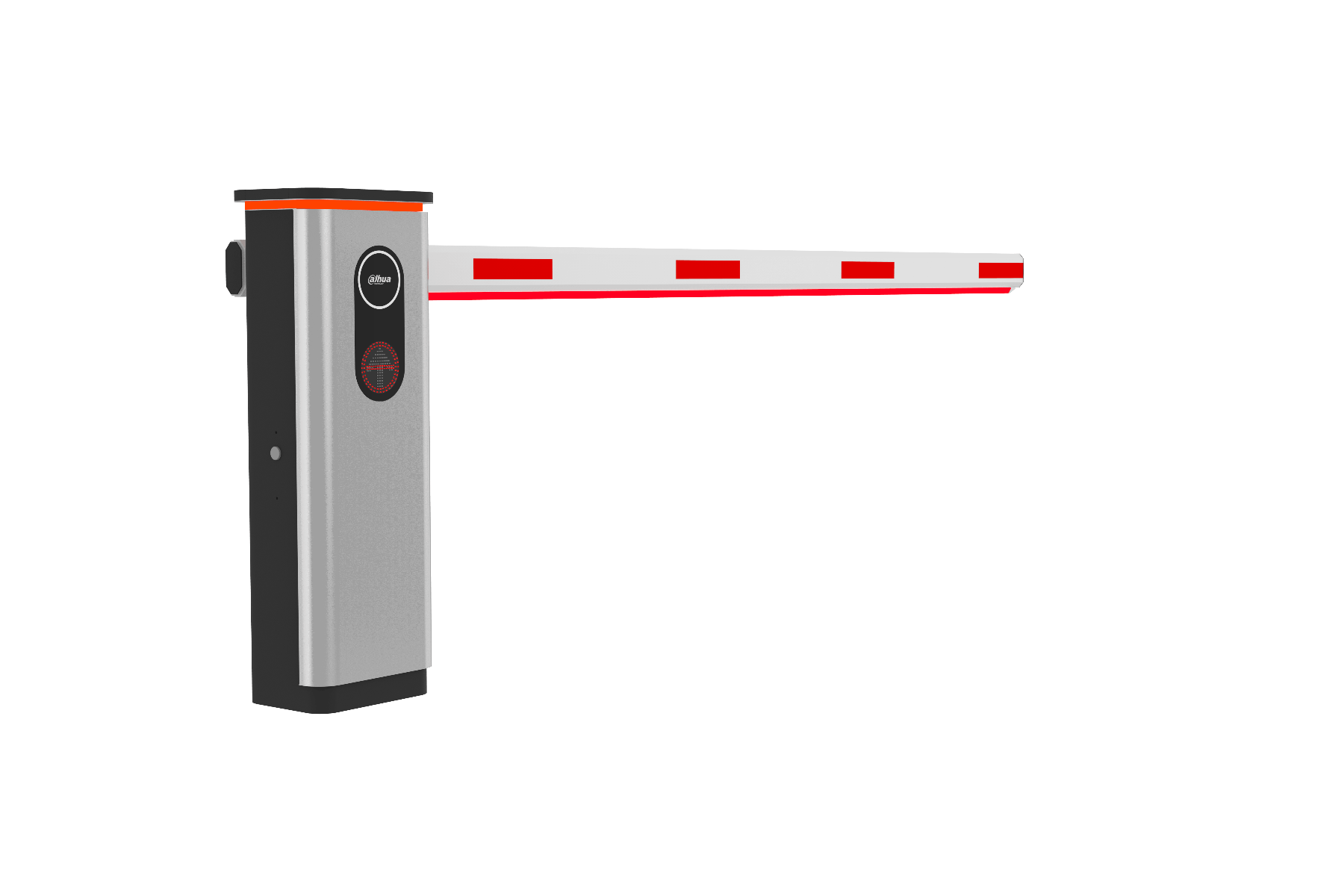

| Barrier | DHI-IPMECD-2062-R |
| RS-485 | 1 |
| I/O | 1 |
| Status Output | 2 channels. One channel is fully open and the other channel is fully closed. |
| Anti-drop | Supports loop, IR and radar anti-smashing function. |
| Auto Opening in Power Failure |
Yes |
| Auto Lifting against Obstruction |
Yes |
| Count Mode | Yes |
| Hand Crank Control in Power Failure |
Yes |
| Limit Description | The position at which the barrier rises and falls is adjustable. |
| RS-485 Log | Access operation log information through the RS-485 port, the information includes the number of opening barrier, the type of opening barrier, error code and more |
| Remote Control | Supports remote control at a maximum distance of 50 m (164 ft) in open space. |
| Number of Pairable Remote Controllers |
Includes 2 remote controls, and supports up to 40 |
