Technical Specifications
| Main Processor | 32 Bit |
|---|---|
| Memory | 16M |
| Input | Door sensor x 1, Exit button x 1 |
| Output | Relay x 1 (Door lock,) |
| Reader | Reader x 1 |
| Read Format | 13.56MHz(Mifare)/125KHz(“-D” EM, Optional) |
| Read Range | 3-6cm (max.) |
| Response Time | <0.1s |
| Cardholders | 30,000 |
| Events | 150,000 |
| User Management | General, VIP, Guest, Patrol, Blocklist, Duress |
| Alarm Function | Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm |
| Period Setting | Support 128 groups of schedule, 128 groups of periods and 128 groups of holiday periods |
| To PC | RJ45(10/100M) |
| To Reader | Wiegand/ RS485 |
| RTC | Yes |
| Voice Prompt | No |
| Beep Tone | Buzzer |

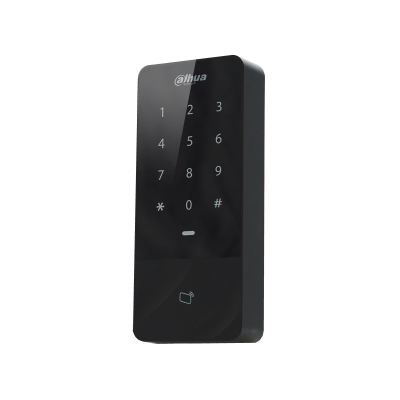

| Keyboard | Sensitive touch keypad with blue backlight |
| Power Supply | 9-15DC/200mA |
| Working Environment | -30°C~+60°C |
| Working Humidity | ≤95% |
| Dimension(W×D×H) | 62*23*142mm |
| Weight | 0.5Kg |
