Technical Specifications
| Image Sensor | 4K CMOS |
|---|---|
| Max. Resolution | 3840 (H) × 2160 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/3 s–1/100000 s NTSC: 1/4 s–1/100000 s |
| Min. Illumination | 0.001 lux@F1.0 (Color, 30 IRE) 0.0001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | IR: 40 m (131.23 ft) Warm Light: 40 m (131.23 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (Warm light);2 (IR light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| White Balance | Auto;Area white balance |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR&WL; WL Mode; IR Mode |
| Defog | Electronic defog |
| Digital Zoom | 4× |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Sound Warning | Audio 1: alarm Audio2: No parking here Audio3: Private land no entry. Audio4: Warning zone keep off Audio5: Welcome Volume: high/medium/low; duration: 5 s–60 s; 110 dB |
| Red/Blue Light Warning | Flash: 5 s–60 s; frequency: high/medium/low |
| Lens Type | Fixed-focal |
| Auto Focus | No |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 106°; V: 55°; D: 125° 3.6 mm: H: 85°; V: 45°; D: 100° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 2.0 m (6.56 ft) 3.6 mm: 2.8 m (9.19 ft) |
| DORI Distance |
Lens |
| 2.8 mm | 91.0 m (298.56 ft) |
| 3.6 mm | 107.6 m (353.02 ft) |
| Certifications | CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368- 1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Input | One channel built-in mic |
| Alarm Output | 1 channel |
| Power Supply | 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera) |
| Power Consumption | Max 10.45 W (12 VDC, IR on) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Low |
| Video Frame Rate | CVI: PAL: 4k@15 fps; 5M@25 fps; 4M@25 fps; NTSC: 4k@15 fps; 5M@25 fps; 4M@30 fps; AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps; TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps; CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR; HLC-Pro |
| WDR | 120 dB |
| Casing Material | Metal |
| Product Dimensions | Φ122.0 mm × 110.9 mm (Φ4.80″ × 4.37″) |
| Net Weight | 0.72 kg (1.59 lb) |
| Gross Weight | 0.96 kg (2.12 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
| Type | Model |
| 4K Camera | DH-HAC-ME1809HP- A-PV |
| DH-HAC-ME1809HN- A-PV |

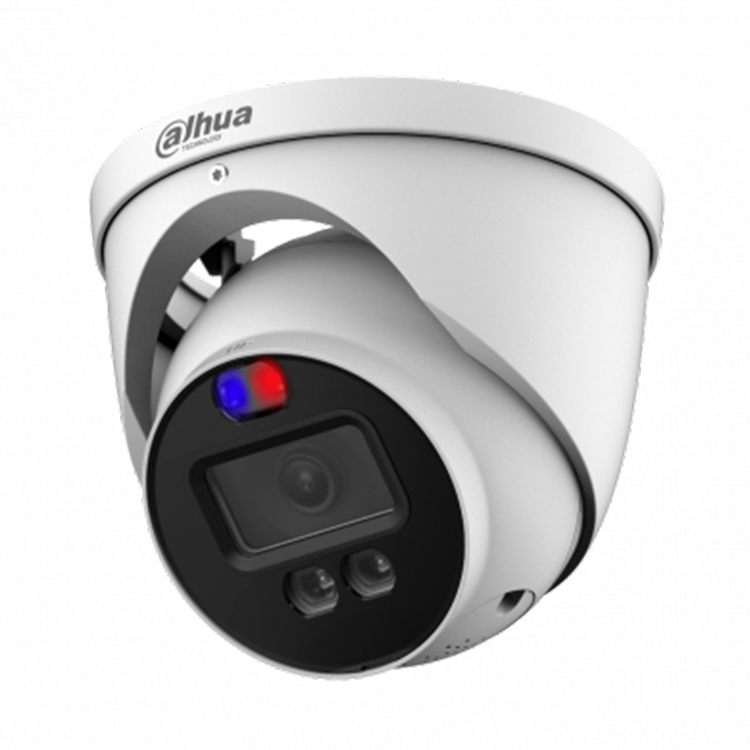

4K Smart Dual Light TiOC HDCVI Eyeball Camera |
| Accessories (Optional) |
PFA130-E |
| PFA152-E | Pole Mount Bracket |
| PFB203W | Wall Mount Bracket |
| PFA106 | Adapter Plate of Mini Dome & Eyeball Camera |
| PFB220C | Ceiling Mount Bracket |
| PFM800-4K | 1-CH Passive Video Balun |
| PFM321D | 12VDC Power Adapter |
| PFM904 | Integrated Mount Tester |
