Description
Technical Specifications
| Main Processor | Embedded Processor |
|---|---|
| Operating System | Embedded Linux Operation System |
| Button Type | Mechanical |
| Number of Buttons | 1 |
| Interoperability | ONVIF; CGI |
| Network Protocol | IPv4; RTSP; UDP; DNS; P2P; UPnP; RTP; TCP; SIP |
| Camera | 1/2.9″ 2 MP CMOS |
| Field of View | H: 168.6°, V: 87.1°, D: 176.7° |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H.265; H.264 |
| Video Resolution | Main stream: 720p; WVGA; D1; CIF Sub stream: 1080p; WVGA; D1; QVGA; CIF |
| Video Frame Rate | 25 fps |
| Video Bit Rate | 256 Kbps to 8 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto(ICR)/Color/B/W; Color/B/W |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 kHz, 16 bits |
| Communication Mode | Digital 2-wire |
| Unlock Mode | Remote |
| Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
| Storage | Supports Micro SD card (up to 256 GB) |
| Web Configuration | Yes |
| Casing Material | Aluminum |
| RS-485 | 1 |
| Alarm Output | 1 |
| Power Output | 1 port, 12 V/600 mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Network Port | 1 × RJ-45 port, 10/100 Mbps network port |
| Tamper Alarm | Yes |
| Appearance Color | Silver |
| Power Supply | Dahua 2-wire switch (max. power supply distance is 50 m) 48 VDC, 1 A; PoE (802.3af/at) |
| Power Adapter | Optional |
| Installation | Flush Mount; Surface Mount |
| Certifications | CE |
| Accessory | Surface mount box (optional); flush mount box (optional); rain cover (optional) |
| Product Dimensions | 130 mm × 96 mm × 28.5 mm (5.12″ × 3.78″ × 1.12″) |
| Protection | IK07; IP65 |
| Operating Temperature | –30°C to +60°C (–22°F to +140°F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Environment | Outdoor |
| Operating Altitude | 0 m–3000 m (0 ft–9842.52 ft) |
| Power Consumption | ≤4 W (standby), ≤5 W (working) |
| Gross Weight | 0.48 kg (1.06 lb) |
| Storage Temperature Storage Humidity |
0 °C to +40 °C (+32 °F to +104 °F) 30%–75% (RH), non-condensing |
| Type | Model |

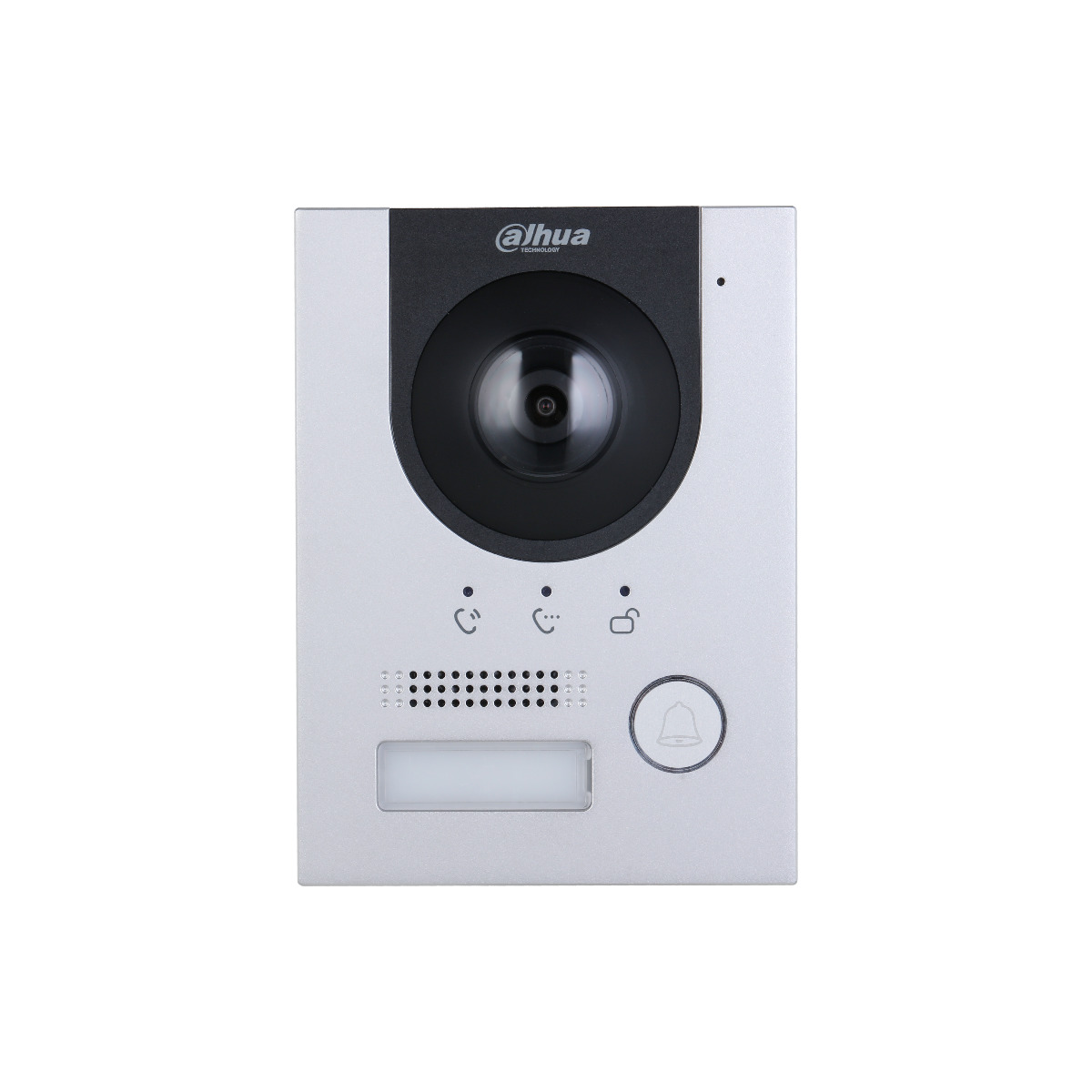

| 2-wire IP Villa Door Station |
DHI-VTO2202F-P-S3 |
| Accessories | VTM114 |
| VTM115 | Surface Mounted Box |
| VTM05R | Surface-mounted rain cover for VTO2202F |
| Power Supply |
DHI-VTNS2003B-2-A |
| DHI-VTNS1001B-2-A | 2-wire Switch |
