Technical Specifications
| Image Sensor | Panorama: 1/1.8″” CMOS Detail: 1/1.8″” CMOS |
|---|---|
| Pixel | Panorama: 4 MP Detail: 4 MP |
| Max. Resolution | Panorama: 2688 (H) × 1520 (V) Detail: 2688 (H) × 1520 (V) |
| ROM | 8 GB |
| RAM | 4 GB |
| Electronic Shutter Speed | Panorama: 1 s–1/30,000 s Detail: 1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Panorama: Color: 0.001 lux@F1.3 B/W: 0.0001 lux@F1.3 Detail: Color: 0.001 lux@F1.6 B/W: 0.0001 lux@F1.6 0 lux (IR light on) |
| Illumination Distance | Panorama (white light): 30 m (98.43 ft) Detail (IR light): 100 m (328.08 ft) |
| Illuminator On/Off Control | Panorama: Zoom Prio; Manual; Auto; Off Detail: Zoom Prio; Manual; Auto; Off |
| Illuminator Number | Panorama: 4 white lights Detail: 4 IR lights |
| Focal Length | Panorama: 2.8 mm–12 mm Detail: 5.4 mm–135 mm |
| Max. Aperture | Panorama: F1.3–F2.0 Detail: F1.6–F4.0 |
| Field of View | Panorama: H: 99.2°–45.8°; V: 59.7°–27.0°; D: 110.4°– 51.7° Detail: H: 58°–3.5°; V: 35°–2°; D: 64°–4° |
| Optical Zoom | Panorama: 4× Detail: 25× |
| Focus Control | Auto; Semi-Auto; Manual |
| Close Focus Distance | Panorama: 1 m–2.5 m (3.28 ft–8.20 ft) Detail: 0.5 m–7 m (1.64 ft–22.97 ft) |
| Iris Control | Panorama: Auto Detail: Auto |
| DORI Distance | Detect |
| Panorama: 129 m (423.23 ft) Detail: 1,724 m (5,656.17 ft) |
Panorama: 51.3 m (168.31 ft) Detail: 690 m (2,263.78 ft) |
| Pan/Tilt Range | Panorama: Pan: 0° to 360° endless Tilt: 0° to 30° Detail: Pan: 0° to 305° Tilt: –10° to 90° |
| Manual Control Speed | Panorama: Pan: 0.1°/s–100°/s; Tilt: 0.1°/s–25°/s Detail: Pan: 0.1°/s–400°/s; Tilt: 0.1°/s–200°/s |
| Preset Speed | Panorama: Pan: 100°/s; Tilt: 50°/s Detail: Pan: 360°/s; Tilt: 200°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset; Scan; Tour |
| PTZ Protocol | DH-SD Pelco-P/D (auto recognition) |
| Video Metadata | Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction |
| IVS (Perimeter Protection) | Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Face Recognition | Yes |
| Video Compression | H.264H; H.264B; Smart H.265+; H.265; MJPEG(Sub Stream); Smart H.264+; H.264M |
| Streaming Capability | 3 streams |
| Resolution | Panorama: 4M (2688 × 1520); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288) Detail: 4M (2688 × 1520); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576); VGA (640× 480); CIF (352 × 288) |
| Video Frame Rate | Panoramic: Main stream: 4M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/VGA/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/CIF (1–25/30 fps) Detail: Main stream: 4M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/VGA/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/CIF (1–25/30 fps) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 512 Kbps–13056 Kbps H.265: 204 Kbps–7936 Kbps |
| Day/Night | Panorama: Auto (ICR) Detail: Auto (ICR) |
| BLC | Yes |
| WDR | Panorama: 120 dB Detail: 120 dB |
| HLC | Yes |
| White Balance | Panorama: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Detail: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; Manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| S/N Ratio | Panorama: ≥ 55 dB Detail: ≥ 55 dB |
| Audio Compression | G.711a; G.711mu; G.726; MPEG2-Layer2; G.722.1; G.729; G723 |
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol | TCP; FTP; RTMP; IPv6; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; DDNS; UPnP; ICMP; UDP; IGMP; HTTP; DHCP; SMTP; SNMP v1/v2c/v3 (MIB-2); QoS; RTSP; ARP |
| Interoperability | CGI; ONVIF Profile S&G&T; GB/T28181 |
| Streaming Method | Unicast; Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | FTP; Micro SD card (512 GB) |
| Browser | IE9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Management Software | DSS; NVR; Smart PSS |
| Mobile Client | iOS; Android |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT,bare wire) |
| Two-way Audio | Yes |
| Alarm Linkage | Capture; preset; tour; recordings on SD card; alarm digital input; send email |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; illegal access |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Power Supply | 36 VDC, 2.23 A (± 25%) Hi-PoE |
| Power Consumption | Basic: 21 W Max.: 40 W (PTZ, zoom, focus, IR light, white light, and smart plan enabled) |
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
| Operating Humidity | ≤ 95% (RH) |
| Protection | IP67; TVS 8000 V lightning protection; surge protection; voltage transient protection |
| Product Dimensions | 385 mm × Φ277 mm (15.16″ × Φ10.91″) |
| Net Weight | 9 kg (19.84 lb) |
| Gross Weight | 13.8 kg (30.42 lb) |
| Type | Model |

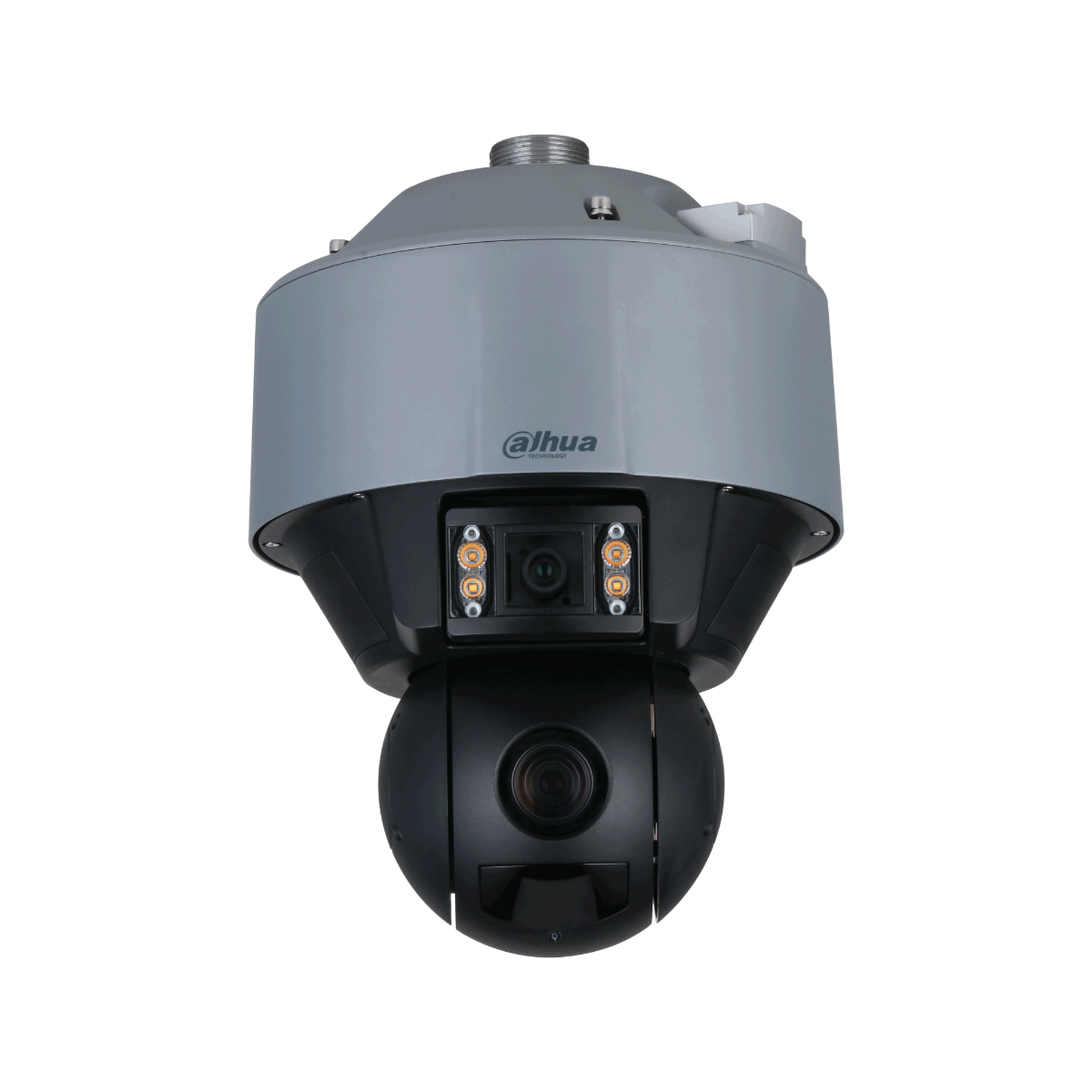

| Dual-PTZ Camera |
DH-SDT5X425-4Z4- QA-2812 |
| Accessories | 36 VDC/2.23A PFB306W-S PFA150 PFB300C-S |
