Dahua DH-SDT3E410-8P-MB-A-PV1 - 8MP & 4MP 10x Starlight TiOC Network Panoramic & PTZ Camera
Dahua DH-SDT3E410-8P-MB-A-PV1 - 8MP & 4MP 10x Starlight TiOC Network Panoramic & PTZ Camera - Image 2
Dahua DH-SDT3E410-8P-MB-A-PV1 - 8MP & 4MP 10x Starlight TiOC Network Panoramic & PTZ Camera - Image 3
Dahua DH-SDT3E410-8P-MB-A-PV1 - 8MP & 4MP 10x Starlight TiOC Network Panoramic & PTZ Camera - Image 4
Dahua DH-SDT3E410-8P-MB-A-PV1 - 8MP & 4MP 10x Starlight TiOC Network Panoramic & PTZ Camera - Image 5

Dahua

Dahua DH-SDT3E410-8P-MB-A-PV1 – 8MP & 4MP 10x Starlight TiOC Network Panoramic & PTZ Camera

SKU DH-SDT3E410-8P-MB-A-PV1

In stock

£378.18 ex VAT

£453.82 inc VAT

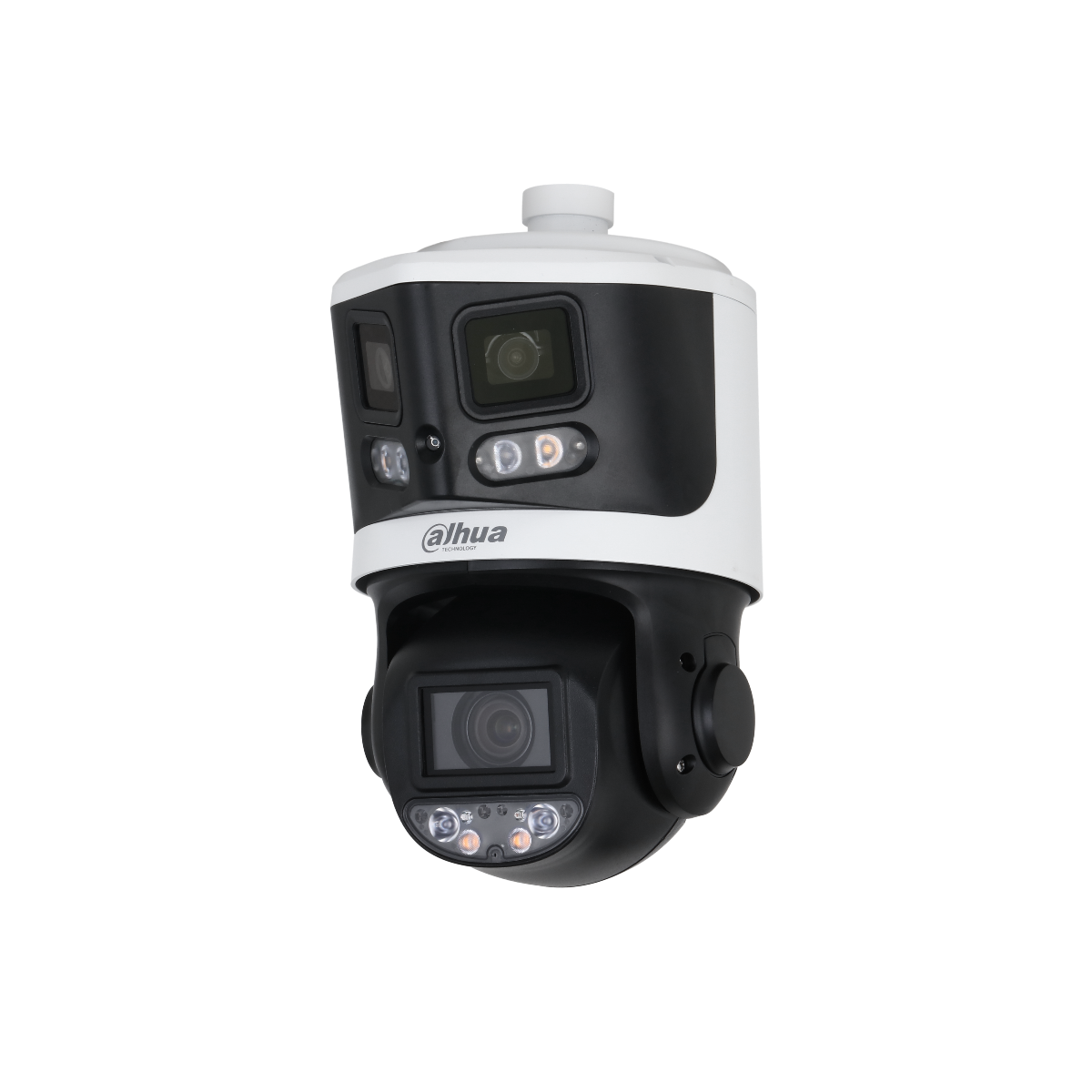

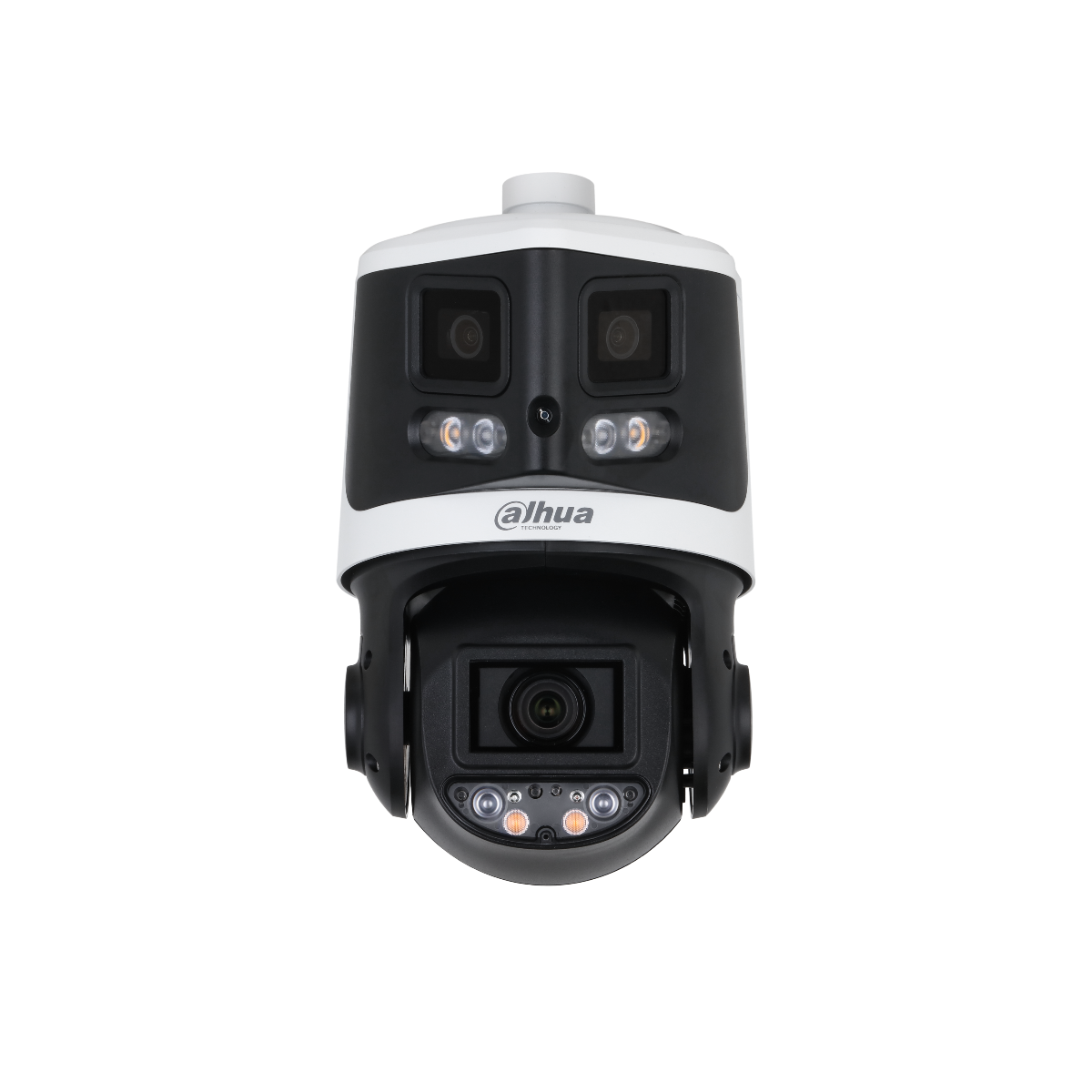

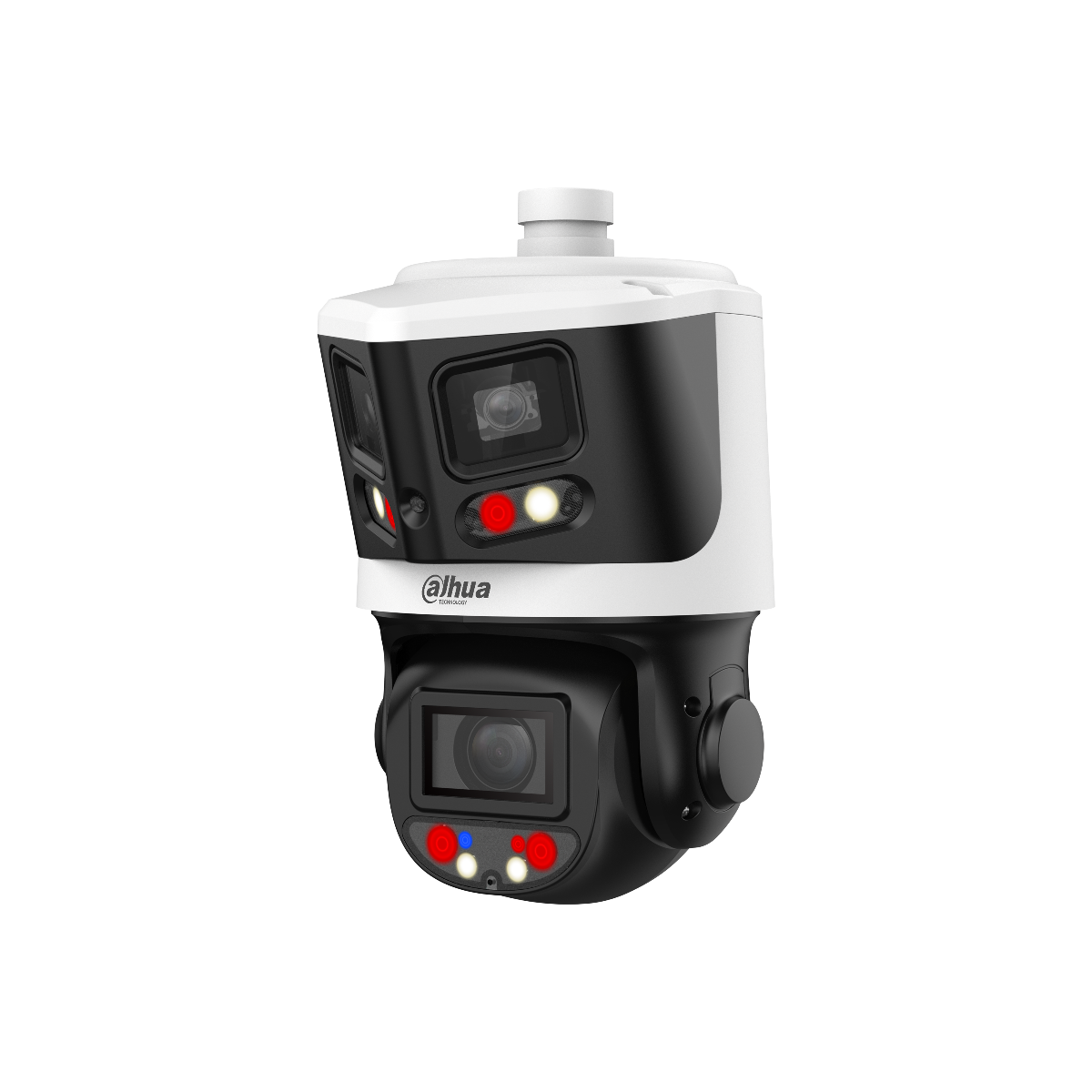

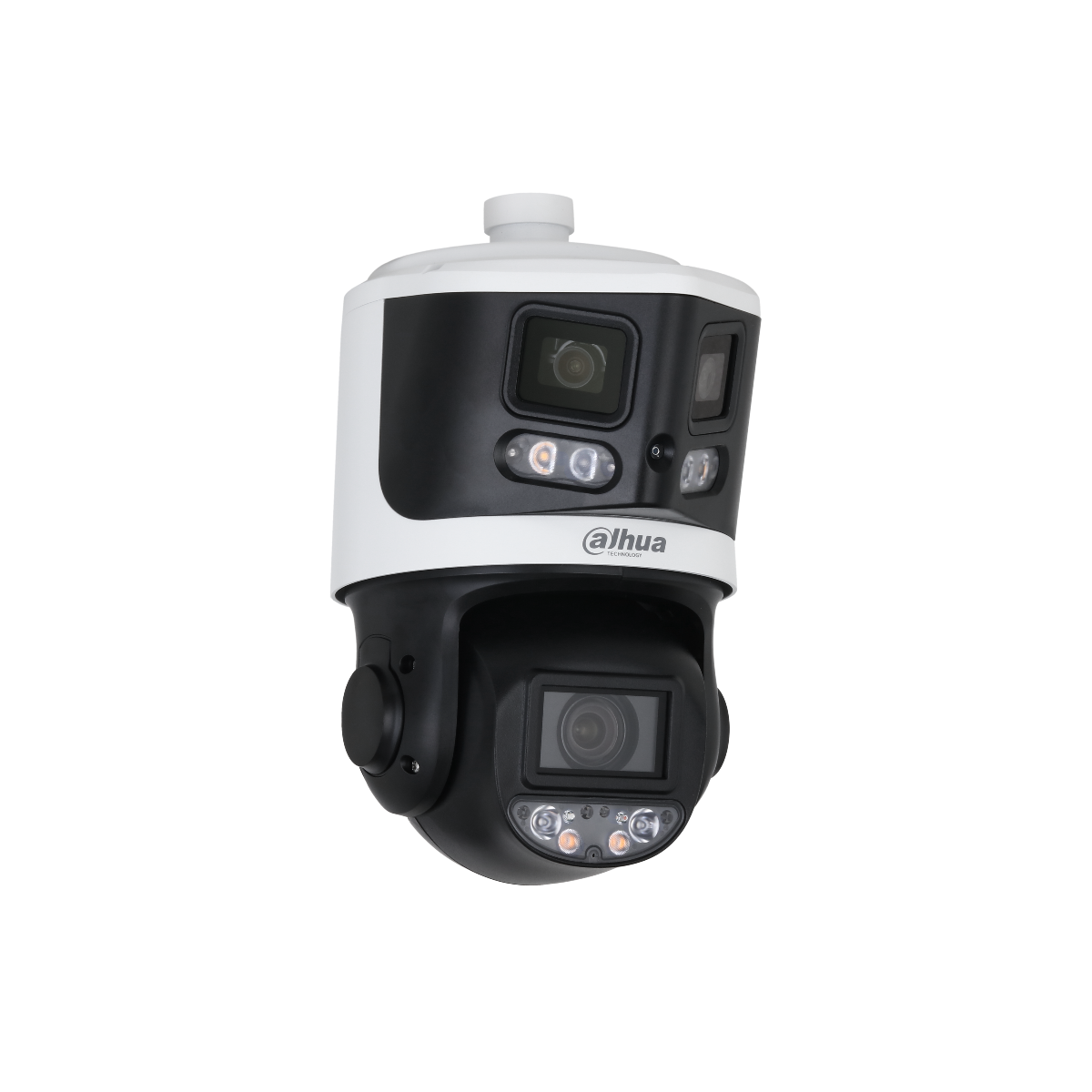

Dahua DH-SDT3E410-8P-MB-A-PV1: 8MP+4MP 10x Starlight TiOC Network Panoramic & PTZ Camera

The Dahua DH-SDT3E410-8P-MB-A-PV1 is an advanced 8MP+4MP 10x Starlight TiOC Network Panoramic & PTZ Camera, designed for 24/7 monitoring, active deterrence, and real-time alerts. It features panoramic 180° wide-angle coverage, 10x optical zoom, and smart tracking for precise surveillance. Equipped with Starlight technology, it delivers clear images even in ultra-low-light conditions. Additional features include auto-tracking, perimeter protection, face detection, and Smart Motion Detection (SMD 4.0). With IR illumination up to 70m and smart dual-light technology, it provides both infrared and full-color video. Rated IP66, it is built for robust outdoor performance.

*Includes PFB5310W - Wall Mount Bracket

> Panorama: Outputs 180° wide angle splicing image
> Detail: 1/2.8" 4MP STARVIS™ CMOS
> 10x optical zoom
> Starlight IR technology
> 25/30 fps @ 8MP
> IR distance up to 70m
> Warm light illumination distance up to 30m
> Active deterrence, Auto tracking Lite, Perimeter protection, Face detection
> SMD 4.0
> IP66
> Smart dual light

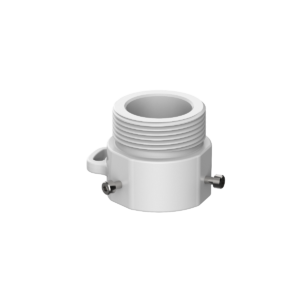

Compatible mounts and junction boxes

Listed by the manufacturer for this camera. Added at the same quantity as the camera.

Order now for delivery Tuesday 27 October on orders over £300

  • Free next working day delivery to mainland UK on orders over £300 inc VAT placed by 11am, Monday to Friday
  • Orders under £300 inc VAT: £9.99 delivery in 2 to 3 working days.
  • 14 day returns on unused items
  • VAT invoice with every order

Installer or electrician? Apply for a trade account

Key specifications

Image Sensor
Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS
Pixel
Overview channel: 8 MP; Detail channel: 4 MP
Max. Resolution
Overview channel: 5376 (H) × 1520 (V); Detail channel: 2560 (H) × 1440 (V)
ROM
Overview channel: 4 GB; Detail channel: 4 GB
RAM
Overview channel: 2 GB; Detail channel: 1GB
Electronic Shutter Speed
Overview channel: 1 s–1/100,000 s; Detail channel: 1 s–1/30,000 s
Scanning System
Progressive
Min. Illumination
Overview channel: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) Detail channel: 1 s–1/30,000 s 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on)
Full specification

Description

How to set up Tracking on Dahua X-Spans PTZ Series

One of the biggest differences from a standard PTZ, and probably the most common question we get about these cameras, is how the tracking works; it is set up differently from a single-lens PTZ.

The Guide To Choosing a PTZ (2026)

A PTZ stands for Pan, Tilt, Zoom. It means the camera can move left, right, up, down, and zoom in on a target. They are an ideal choice when monitoring multiple points at once is necessary. You can set presets to quickly monitor different scenes, or set up tours to automatically monitor at set intervals.

Read our blog to find out more on the PTZ features.

How to set up auto tracking on X-Spans PTZ

Auto tracking works by setting presets on the camera and linking those presents to IVS rules, so when a rule is triggers, the system can automatically follow a detected human or vehicle, keeping the subject in frame without the need for manual control. For installers and end users, this means clearer evidence, better visibility of incidents, and less chance of losing a target as it moves across a site. Watch the full video from Connor to see how to set it up.

Camera

Image Sensor

Overview channel: 1/2.8″ CMOS;

Detail channel: 1/2.8″ CMOS

Pixel

Overview channel: 8 MP;

Detail channel: 4 MP

Max. Resolution

Overview channel: 5376 (H) × 1520 (V);

Detail channel: 2560 (H) × 1440 (V)

ROM

Overview channel: 4 GB;

Detail channel: 4 GB

RAM

Overview channel: 2 GB;

Detail channel: 1GB

Illuminator On/Off Control

Overview channel: Manual; Auto; Off
Detail channel: Zoom Prio; Manual; Auto; Off

Illuminator Number

Overview channel: 2 (IR light); 2 (white light);

Detail channel: 2 (Dual light fusion); 2 (IR light)

Lens

Focal Length

Overview channel: 2.8 mm;

Detail channel: 4 mm–40 mm

Max. Aperture

Overview channel: F1.6;

Detail channel: F1.6-F3.6

Field of View

Overview channel: H: 180°; V: 47°;
Detail channel: H: 58°–11.3°; V: 33.1°–6.4°; D: 66.4°–12.8°

Optical Zoom

Overview channel: NA;

Detail channel: 10×

Focus Control

Auto; manual; semi-auto

Close Focus Distance

Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–0.5 m (0.33 ft–1.64 ft)

Iris Control

Overview channel: NA;

Detail channel: NA

DORI Distance

Detect

Observe

Recognize

Identify

500 m

(1640.42 ft)

197.5 m

(647.97 ft)

100 m

(328.08 ft)

50 m

(164.04 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

Pan/Tilt Range

Pan: 0° to 345°;
Tilt: -10° to +90°

Manual Control Speed

Overview channel: NA;

Detail channel: H: 0.1°–80°/s; V: 0.1°–50°/s

Preset Speed

H: 80°/s; V: 50°/s

Preset

300

Power-off Memory

Yes

Idle Motion

Preset

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human/vehicle alarm classification; linkage tracking (only for people)

Face Detection

Detail channel: Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.

SMD

SMD 4.0

SMD

Yes

Active Deterrence

Light Warning

Red and blue light warning;
Flash duration: 5 s–30 s;
Flash frequency: high, medium, low

Sound Warning

Offers 11 sound alarm and 10 custom sound alarms can be imported.
Sound can be set from 0%–100%.
Play times can be set from 1-10.

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; H.264M; MJPEG (Sub Stream 1)

Streaming Capability

3 streams

Resolution

Overview channel: 5376 × 1520; 26886 × 752; 1080p (1920 × 1080); 720p (1280 × 720); 1344 × 368; D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240);
Detail channel: 2560 × 1440; 3M (2304 × 1296); 1080p (1920 × 1080); 1280 × 960 (1.3M); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Overview channel:

Main stream: 5376 × 1520 @(1–25/30 fps)
Sub stream 1: 1344 × 368/D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 2688 × 752/1080p/1.3M/720p @(1–25/30 fps);
Detail channel:

Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

Overview channel: H264: 128 kbps–16,384 kbps
H265: 51 kbps–13,312 kbps;
Detail channel: H264: 96 kbps–16,384 kbps
H265: 38 kbps–10,240 kbps

Day/Night

Overview channel: Auto; Color; B/W;
Detail channel: Auto; Color; B/W; Electronic

BLC

Yes

WDR

Overview channel: DWDR
Detail channel: 120 dB

HLC

Yes

White Balance

Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Overview channel: Auto; manual; gain prio
Detail channel: Auto; manual; gain prio

Noise Reduction

Overview channel: 2D NR; 3D NR
Detail channel: 2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Overview channel: NA
Detail channel: Electronic Image Stabilization (EIS)

Defog

Overview channel: Electronic
Detail channel: Electronic

Digital Zoom

Overview channel: NA
Detail channel: 16×

Image Rotation

Overview channel: NA
Detail channel: 180°

S/N Ratio

Overview channel: ≥55dB
Detail channel: ≥55dB

Audio

Audio Compression

Overview channel: PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729;
Detail channel: NA

Network

Network Port

RJ-45 (100 Base-T)

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; QoS; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; RTSP; ARP

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (512 GB); FTP/SFTP; NAS

Browser

web5.0:
IE 9 and later versions;
Chrome 41 and later versions;
Firefox 50 and later versions;
Safari 10 and later versions

Management Software

DMSS; DSS Pro

Mobile Client

iOS; Android

Certification

Certifications

CE: EN55032/EN55035/IEC61000-3-2/IEC61000-3-3/EN62368-1/IEC62471

Port

Audio Input

1 channel (LINE IN, bare wire,built-in mic (mutually exclusive))

Audio Output

1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive))

Alarm Input

1 (on-off value input: 0–5 VDC)

Alarm Output

1 channel

Alarm Linkage

Capture; recording; send email; preset; alarm digital output; audio; warning light

Alarm Event

Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

12 VDC, 3 A ± 10%
PoE+(802.3at)

Power Consumption

Basic: 12 W;
Max: 25 W (illuminator + heating glass + siren and light active deterrence + PTZ)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Protection

TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection

Structure

Product Dimensions

140.3 mm × 181.7 mm × 238.8 mm (5.52″ × 7.15″ × 9.40″) (L × W × H)

Net Weight

2.17 kg (4.78 lb)

Gross Weight

3.1 kg (6.83 lb)

Manufacturer Product Link

Click here for more details from the manufacturer

Technical Specifications

Image Sensor Overview channel: 1/2.8″ CMOS;
Detail channel: 1/2.8″ CMOS
Pixel Overview channel: 8 MP;
Detail channel: 4 MP
Max. Resolution Overview channel: 5376 (H) × 1520 (V);
Detail channel: 2560 (H) × 1440 (V)
ROM Overview channel: 4 GB;
Detail channel: 4 GB
RAM Overview channel: 2 GB;
Detail channel: 1GB
Electronic Shutter Speed Overview channel: 1 s–1/100,000 s;
Detail channel: 1 s–1/30,000 s
Scanning System Progressive
Min. Illumination Overview channel:
0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator on)
Detail channel:
1 s–1/30,000 s
0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator on)
Illumination Distance Overview channel:
30 m (98.43 ft) (IR);
30 m (98.43 ft) (white light)
Detail channel:
70 m (229.66 ft);
30 m (98.43 ft) (white light)
Illuminator On/Off Control Overview channel: Manual; Auto; Off
Detail channel: Zoom Prio; Manual; Auto; Off
Illuminator Number Overview channel: 2 (IR light); 2 (white light);
Detail channel: 2 (Dual light fusion); 2 (IR light)
Focal Length Overview channel: 2.8 mm;
Detail channel: 4 mm–40 mm
Max. Aperture Overview channel: F1.6;
Detail channel: F1.6-F3.6
Field of View Overview channel: H: 180°; V: 47°;
Detail channel: H: 58°–11.3°; V: 33.1°–6.4°; D: 66.4°–
12.8°
Optical Zoom Overview channel: NA;
Detail channel: 10×
Focus Control Auto; manual; semi-auto
Close Focus Distance Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1
m–0.5 m (0.33 ft–1.64 ft)
Iris Control Overview channel: NA;
Detail channel: NA
DORI Distance Detect
500 m
(1640.42 ft)		 197.5 m
(647.97 ft)
Pan/Tilt Range Pan: 0° to 345°;
Tilt: -10° to +90°
Manual Control Speed Overview channel: NA;
Detail channel: H: 0.1°–80°/s; V: 0.1°–50°/s
Preset Speed H: 80°/s; V: 50°/s
Preset 300
Power-off Memory Yes
Idle Motion Preset
IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering
detection; abandoned/missing object; fast moving;
parking detection; people gathering; human/vehicle
alarm classification; linkage tracking (only for people)
Face Detection Detail channel: Supports face detection, optimization,
capturing pictures, uploading high-quality face
snapshots and enhancing face images. Attribute
Extraction is also supported, where 6 attributes and
8 expressions can be detected. Face cutout is also
offered, where you can cutout one face at a time
and customize the size to be a one-inch photo. The
supported methods for capturing snapshots are real-
time capturing, quality first, and selecting a preferred
image among a group of snapshots.
SMD SMD 4.0
SMD Yes
Light Warning Red and blue light warning;
Flash duration: 5 s–30 s;
Flash frequency: high, medium, low
Sound Warning Offers 11 sound alarm and 10 custom sound alarms
can be imported.
Sound can be set from 0%–100%.
Play times can be set from 1-10.
Video Compression H.264H; H.264B; Smart H.265+; H.265; Smart H.264+;
H.264M; MJPEG (Sub Stream 1)
Streaming Capability 3 streams
Resolution Overview channel: 5376 × 1520; 26886 × 752; 1080p
(1920 × 1080); 720p (1280 × 720); 1344 × 368; D1 (704
× 576/704 × 480); CIF (352 × 288/352 × 240);
Detail channel: 2560 × 1440; 3M (2304 × 1296); 1080p
(1920 × 1080); 1280 × 960 (1.3M); 720p (1280 × 720);
D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate Overview channel:
Main stream: 5376 × 1520 @(1–25/30 fps)
Sub stream 1: 1344 × 368/D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 2688 × 752/1080p/1.3M/720p @
(1–25/30 fps);
Detail channel:
Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30
fps)
Sub stream 1: D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate Overview channel: H264: 128 kbps–16,384 kbps
H265: 51 kbps–13,312 kbps;
Detail channel: H264: 96 kbps–16,384 kbps
H265: 38 kbps–10,240 kbps
Day/Night Overview channel: Auto; Color; B/W;
Detail channel: Auto; Color; B/W; Electronic
BLC Yes
WDR Overview channel: DWDR
Detail channel: 120 dB
HLC Yes
White Balance Overview channel: Auto; indoor; outdoor; tracking;
manual; sodium lamp; natural light; street lamp
Detail channel: Auto; indoor; outdoor; tracking;
manual; sodium lamp; natural light; street lamp
Gain Control Overview channel: Auto; manual; gain prio
Detail channel: Auto; manual; gain prio
Noise Reduction Overview channel: 2D NR; 3D NR
Detail channel: 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization Overview channel: NA
Detail channel: Electronic Image Stabilization (EIS)
Defog Overview channel: Electronic
Detail channel: Electronic
Digital Zoom Overview channel: NA
Detail channel: 16×
Image Rotation Overview channel: NA
Detail channel: 180°
S/N Ratio Overview channel: ≥55dB
Detail channel: ≥55dB
Audio Compression Overview channel: PCM, G.711A, G.711Mu, G.726,
MPEG2-Layer2, G.722.1, G.729;
Detail channel: NA
Network Port RJ-45 (100 Base-T)
Network Protocol FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE;
NTP; RTP; 802.1x; QoS; HTTPS; SNMP; TCP/IP; DDNS;
UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP;
RTSP; ARP
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P
Streaming Method Unicast/Multicast
User/Host 20 (total bandwidth: 64 M)
Storage Micro SD card (512 GB); FTP/SFTP; NAS
Browser web5.0:
IE 9 and later versions;
Chrome 41 and later versions;
Firefox 50 and later versions;
Safari 10 and later versions
Management Software DMSS; DSS Pro
Mobile Client iOS; Android
Certifications CE: EN55032/EN55035/IEC61000-3-2/IEC61000-3-3/
EN62368-1/IEC62471
Audio Input 1 channel (LINE IN, bare wire,built-in mic (mutually
exclusive))
Audio Output 1 channel (LINE OUT,bare wire;built-in speaker
(mutually exclusive))
Alarm Input 1 (on-off value input: 0–5 VDC)
Alarm Output 1 channel
Alarm Linkage Capture; recording; send email; preset; alarm digital
output; audio; warning light
Alarm Event Motion/tampering detection; network disconnection
detection; IP conflict detection; memory card state
detection; memory space detection
Power Supply 12 VDC, 3 A ± 10%
PoE+(802.3at)
Power Consumption Basic: 12 W;
Max: 25 W (illuminator + heating glass + siren and light
active deterrence + PTZ)
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95%
Protection TVS 6000 V lightning proof; IP66; surge protection;
voltage transient protection
Product Dimensions 140.3 mm × 181.7 mm × 238.8 mm (5.52″ × 7.15″ ×
9.40″) (L × W × H)
Net Weight 2.17 kg (4.78 lb)
Gross Weight 3.1 kg (6.83 lb)
Type Model
Network
PTZ Camera		 DH-SDT3E410-8P-MBA-
PV1
Accessories PFB5310W

Additional information

Brand

Dahua
Colour

White
Technology

IP (network)
Resolution

8MP (4K)
Night vision

Dual light (IR + colour)
Night vision range

Up to 100m
Optical zoom

Up to 15x
Features

Active deterrence (light & siren), Auto-tracking, Two-way audio

Reviews

There are no reviews yet.

Be the first to review “Dahua DH-SDT3E410-8P-MB-A-PV1 – 8MP & 4MP 10x Starlight TiOC Network Panoramic & PTZ Camera”

Your email address will not be published. Required fields are marked *

Related products
