Description
Technical Specifications
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665) |
|---|---|
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR |
| WDR | 130 dB |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | Yes (It needs to be controlled through the XVR) |
| Illumination Mode | Smart IR&WL; WL Mode; IR Mode |
| Mirror | Yes (It needs to be controlled through the XVR) |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.0001 lux@F1.0 (Color, 30 IRE) 0.00001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | IR: 50 m (164.04 ft);Warm light: 50 m (164.04 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 4 (Multi-core light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Certifications | CE-LVD: EN 62368-1 CE-EMC: EN 55032; EN 55035 |
| Built-in Mic | Yes, built-in dual Mic |
| Camera Audio | CVI |
| Pick-up Distance | 12 m (39.37 ft) |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 111°; V: 58.5°; D: 136.3° 3.6 mm: H: 91.1°; V: 48.7°; D: 107.9° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.4 m (4.59 ft) 3.6 mm: 2.0 m (6.56 ft) |
| DORI Distance |
Lens |
| 2.8 mm | 63.8 m ( 209.32 ft) |
| 3.6 mm | 77.8 m ( 255.25 ft) |
| *DORI (Detec (EN-62676-4) video to distin The numbers distances. For and commissi |
t, Observe, Recognize, Identify) is a standard system for defining the ability of a person viewing the guish persons or objects within a covered area. in this table do not reflect intelligent function intelligent function distances, refer to installation oning manual/project design tool. |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
| Power Supply | 12 VDC (±30%) |
| Power Consumption | Max 6.1 W (12 VDC, LED on) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.;Moderate Protection (Only supported by -ATC model) *The products feature high-grade anti-corrosion protection, making them well-suited for environments with standard corrosion resistance requirements. They perform reliably from 2 km (1.24 mi) and above in coastal areas and in locations prone to acid rain exposure. |
| Video Frame Rate | CVI: PAL: 5M@25 fps; 5M@12.5 fps NTSC: 5M@25 fps; 5M@10 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M@20 fps NTSC: 5M@20 fps CVBS: PAL: 960H NTSC: 960H |
| Casing Material | Metal |
| Product Dimensions | Φ106.0 mm × 93.2 mm (Φ4.17″ × 3.67″) |
| Net Weight | 0.50 kg (1.10 lb) |
| Gross Weight | 0.63 kg (1.39 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
| Type | Model |
| HDCVI CAMERA | DH-HAC-HDW1549XMN-IL- A-PRO |
| DH-HAC-HDW1549XMP-IL- A-PRO |

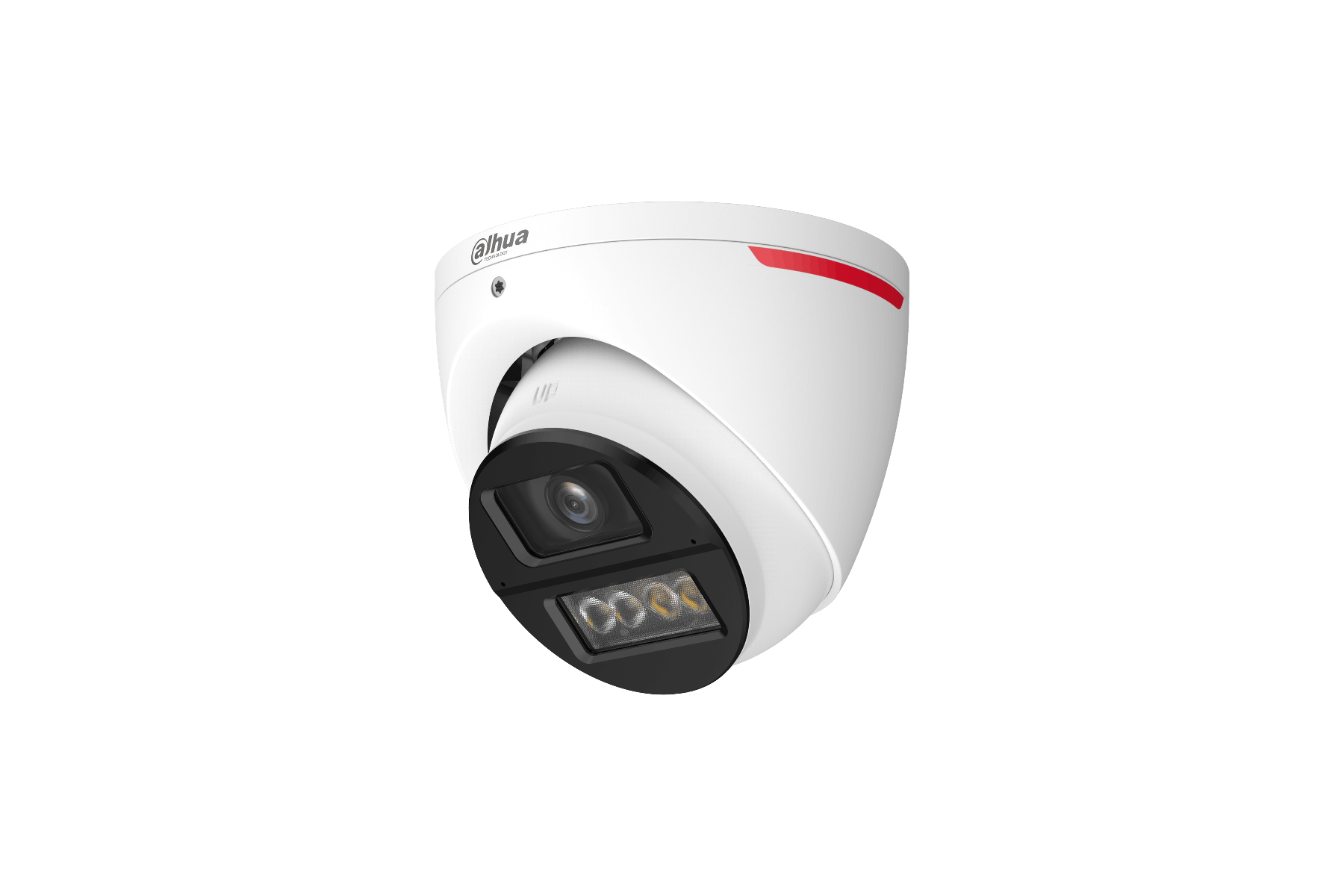

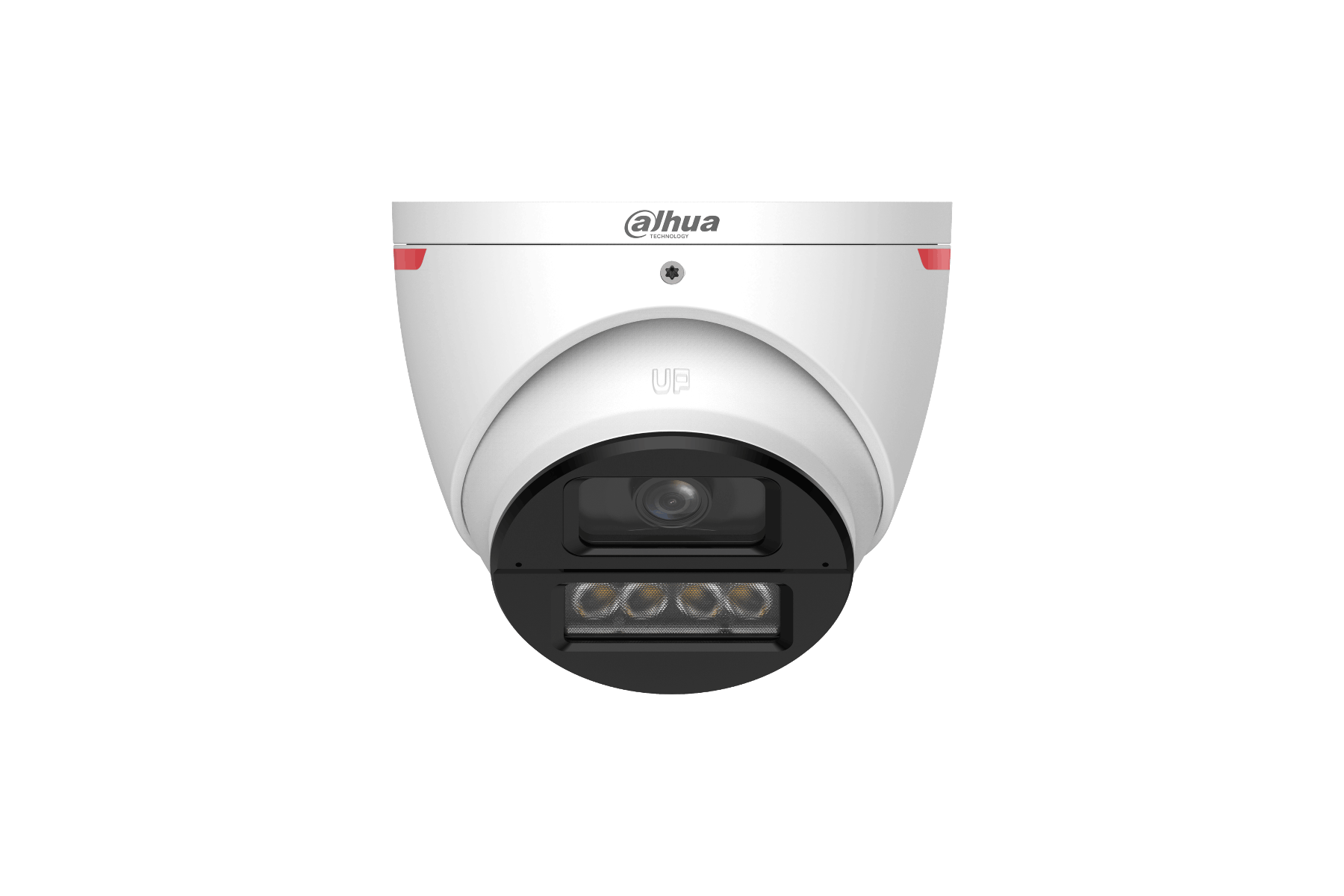

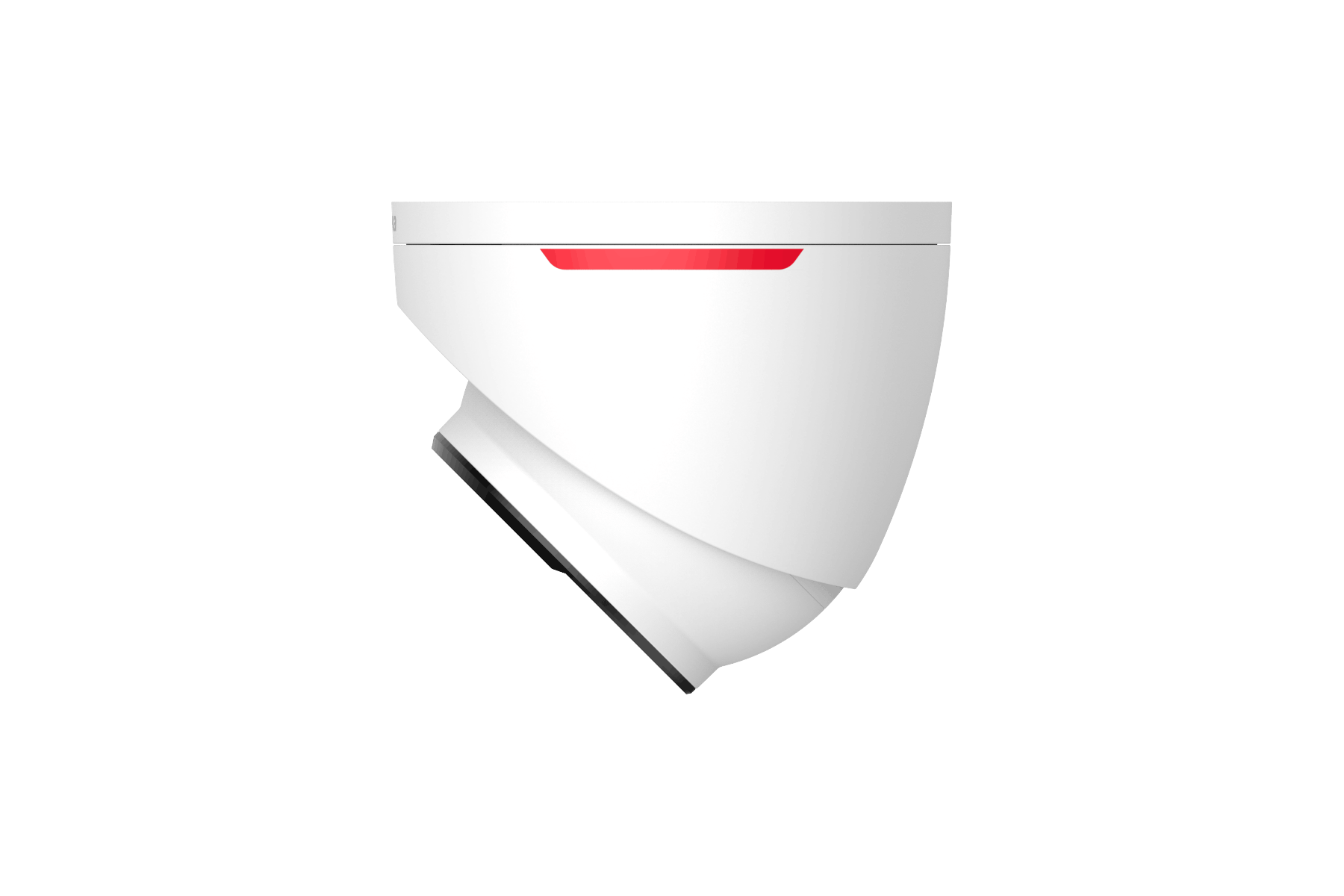

5MP WizColor HDCVI Fixed- focal Eyeball Camera,PAL |
| Accessories (Optional) | DH-PFB220C |
| DH-PFA109 | Mount Adapter |

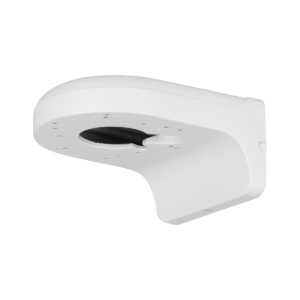

| DH-PFB305W | Wall Mount Bracket |
| DH-PFA151 | Corner Mount Bracket |
| DH-PFA150 | Pole Mount Bracket |
| DH-PFA156 | Pole Mount Bracket |
| DH-PFB2204W | Wall Mount Bracket |
| DH-PFA130-E | Water-proof Junction Box |
| G3416GW | G3/4″ Water Joint |
| DH-PFM800-4K | 1 Channel Passive HDCVI Balun |
| DH-PFM320-010EN | DC12V 1A Power Adapter |
| DH-PFM325D-1210EN | DC12V 1A Power Adapter |
| DH-PFM325D-1215EN | DC12V 1.5A Power Adapter |
| DH-PFM320-020EN | DC12V 2A Power Adapter |
| DH-PFM320D-EN | DC12V 2A Power Adapter |
| PFM904 | Integrated Mount Tester |
