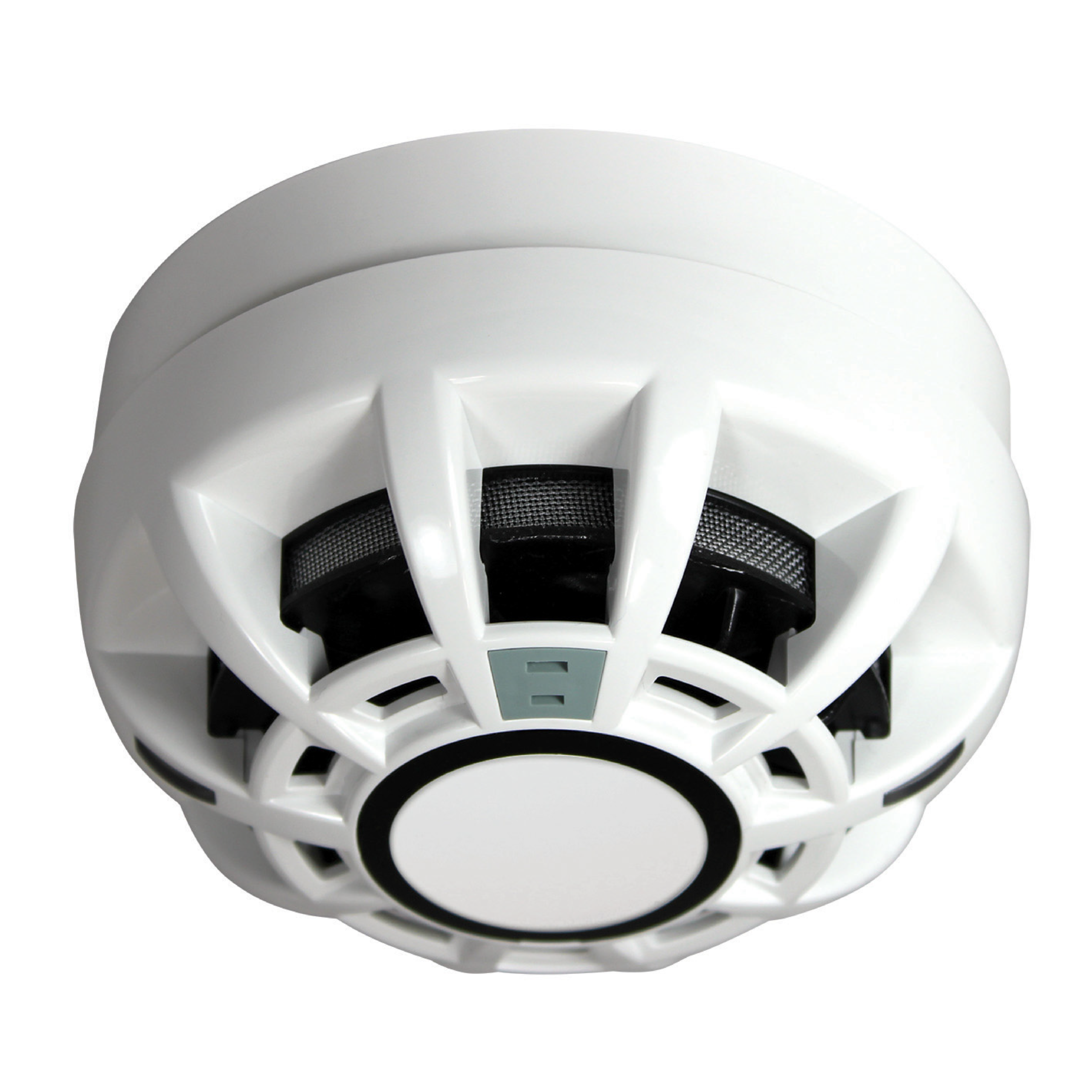

C-TEC CAST Pro Smoke, Heat, Co, Detector With Tone Sounder (CTEC-CP411T)

Description

The C-TEC CAST Pro CP411T Smoke, Heat & CO Detector with Tone Sounder is an advanced addressable fire detection device designed to provide multiple fire detection functions from a single compact unit. Combining smoke, heat and carbon monoxide (CO) detection with an integrated 92dB(A) tone sounder, the CP411T can provide rapid fire detection and a clear local alarm signal while helping reduce false alarms. It is designed for use with C-TEC CAST protocol addressable fire alarm systems, including compatible XFP and ZFP CAST fire alarm panels.

The CP411T uses C-TEC’s advanced MASC™ smoke detection chamber and AFFIRM™ algorithms to distinguish genuine fire conditions from potential false-alarm sources. Multiple programmable detection modes allow the device to combine smoke, heat and CO detection according to the requirements of the application. Its default Mode 10 combines normal-sensitivity smoke detection, A2 heat detection and CO detection, providing a comprehensive multi-sensor approach to fire detection.

With a powerful 92dB(A) tone sounder, 360° visible red LED indicators and an integrated short-circuit loop isolator, the C-TEC CP411T CAST Pro multisensor detector is a versatile choice for addressable fire alarm systems. The detector is certified to relevant EN54 standards, including EN54-3, EN54-5, EN54-7, EN54-13, EN54-17, EN54-29 and EN54-31, and requires a CA408 CAST base for connection. Its compact 105mm design makes it suitable for a wide range of commercial fire alarm applications.

Key Features

• C-TEC CAST Pro CP411T smoke, heat and CO multisensor detector with integrated tone sounder.
• Combines smoke, heat and carbon monoxide detection in one addressable device.
• Integrated 92dB(A) tone sounder at 1 metre for effective local audible warning.
• Advanced MASC™ smoke detection chamber designed for rapid fire detection and improved false-alarm rejection.
• AFFIRM™ algorithms enhance detection performance and help reduce unwanted alarms.
• 12 programmable detection modes provide flexibility for different fire detection requirements.
• Default Mode 10 combines normal-sensitivity smoke, A2 heat and CO detection.
• Built-in short-circuit loop isolator for enhanced CAST system resilience.
• Dual red LED indicator strips provide 360° alarm visibility.
• Certified to EN54-3, EN54-5, EN54-7, EN54-13, EN54-17, EN54-29 and EN54-31.
