Ajax EN54 Fire Hub Jeweller 125732 – White

*Due to current stock availability issues, we are unable to supply single units of this product. Complete project orders can still be fulfilled however, our sales team may contact you to discuss your order.

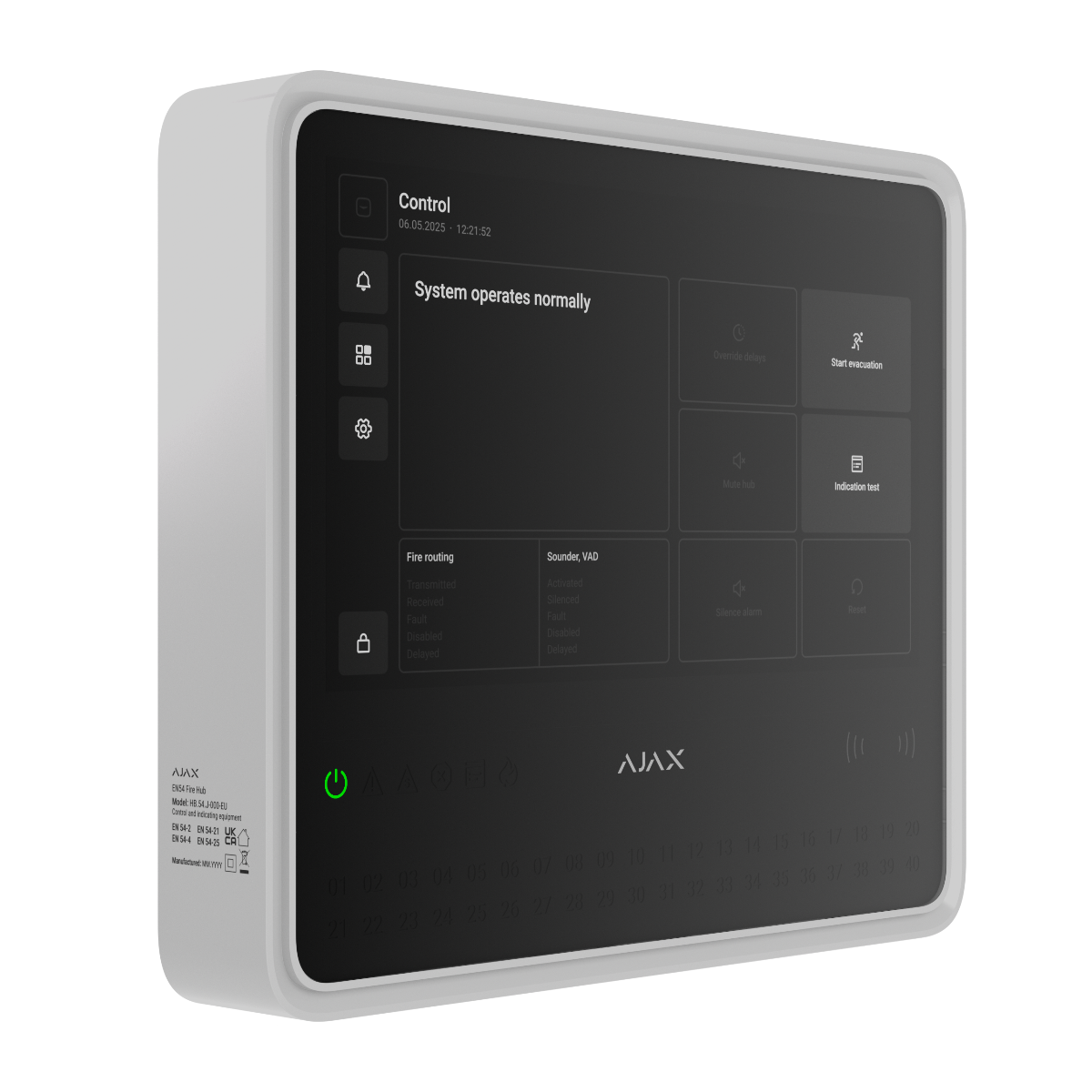

Ajax EN54 Fire Hub Jeweller – Wireless Fire Alarm Control Panel - 125732

The Ajax EN54 Fire Hub Jeweller is a fully wireless, touchscreen control panel designed for commercial-grade fire protection. It serves as the central control and indicating equipment (CIE) for the Ajax EN54-certified fire alarm system, combining advanced communication, intuitive controls, and seamless integration with intrusion, video, and automation devices.

Key Features:

• Certified to EN 54-2, EN 54-4, EN 54-21, EN 54-25 & EN 50131 (Grade 2)

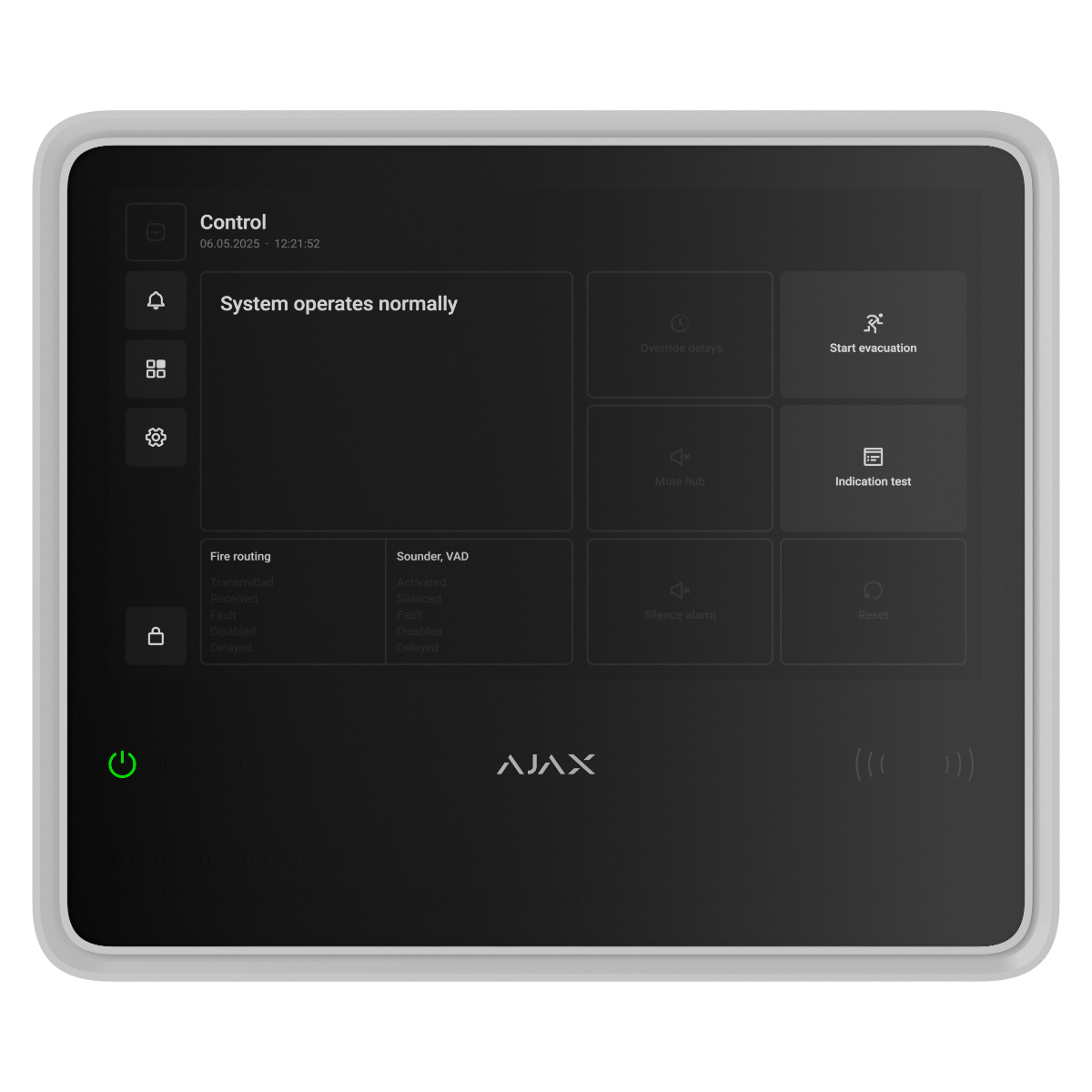

• 10.1” IPS touchscreen with intuitive interface for fire event control

• Connects up to 200 wireless devices across 40 fire zones

• Multi-channel communication: Ethernet, Wi-Fi & dual SIM (2G/3G/4G)

• Jeweller radio protocol with up to 2,000 m wireless range

• 24h or 72h battery backup with optional EN54 Internal Battery

• Built-in buzzer & LED indicators for alarms, faults & disablements

• Supports remote control & configuration via Ajax apps

• Compatible with MotionCam & photo verification for visual alerts

• EN54 ReX support for range extension up to 35 km² with 5 extenders
