Technical Specifications

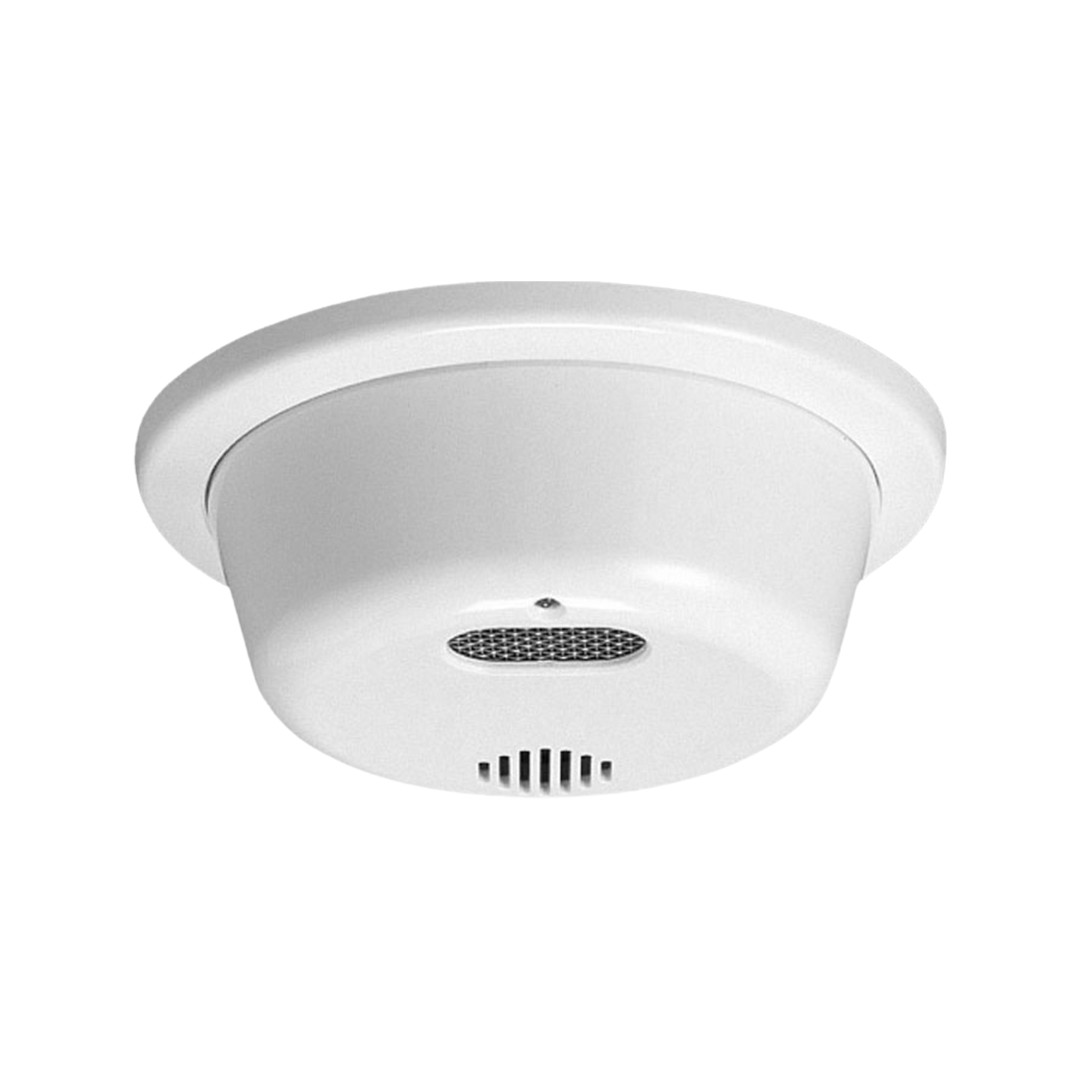

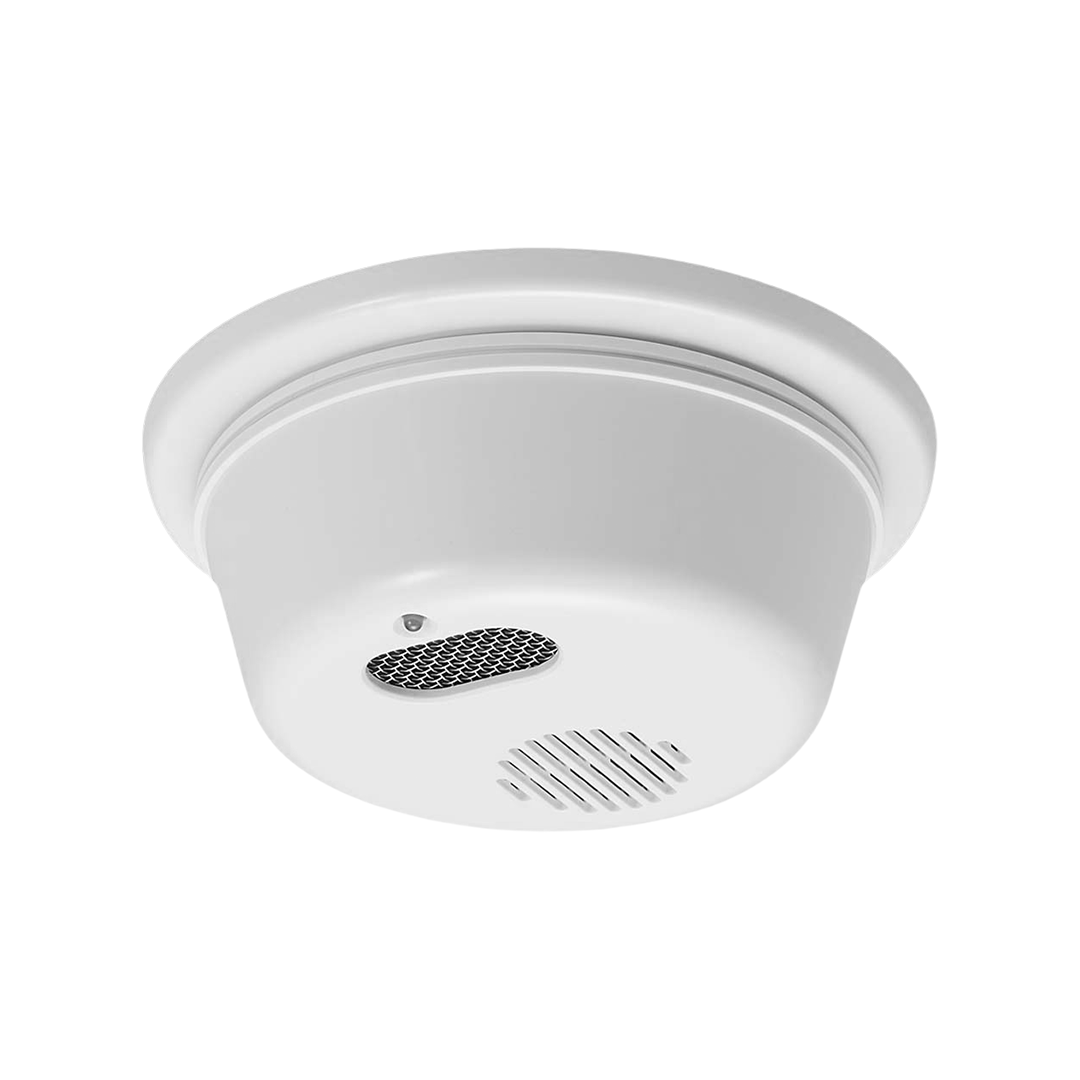

| Model No. | FS-1000E |
|---|---|
| Detection system | Ultraviolet rays detection (Detected wave length 180~260nm) |
| Detection distance | 33ft. (10m) (2.76″(7cm) lighter flame, in front) |
| Detection angle | Approx. 120˚(conically) |
| Sensitivity adjustment |
Detection sensitivity (H [100%], L [50%]) Detection timer (1sec., 6sec., 15sec., 30sec.) |
| Power supply | • Type-3 alkaline battery (LR6)×2 (3V) …accessory • Exclusive lithium battery (CR17450E-R-2-CM2)×1 (3V) …optional • External power supply 9VDC to 30VDC with polarity |
| Power consumption | Stand by: 50μA Max. when battery power supply 5mA Max. when external power supply Alarm: 50mA Max. when buzzer sounds |
| LED | Indication: Red LED Alarm: Flashing every 0.2sec. during off-delay approx. 10sec. Low battery: Light on 0.1sec. every approx. 5sec. |
| Buzzer | Alarm: Sounds intermittently every 0.2sec. during off-delay 10sec. Low battery: Sound 0.1sec. intermittently every approx, 5sec. Volume: 80dB or more 3.3ft. (1m) ahead (Silent setting is available by cutting internal jumper line) |
| External output | NPN open collector output (Useful as an output with voltage when external power is used) 30V (DC) 50mA, off-delay 10sec. continuous output |
| Wiring | Terminals |
| Ambient temp. range |
+14˚F to +140˚F (−10˚C to +60˚C) without condensation Battery performance may decrease under +32˚F (0˚C) or beyond +104˚F (+40˚C) |
| Installation | Indoor (Ceiling or wall mount) |
| Weight | Approx. 7oz (200g) including battery (accessory) 1.8oz (50g) |
| External dimensions | (cid:73)4.72″ (120mm)×H1.57″ (40mm) |
| Appearance | ABS resin (white) |
| Accessories | • Exclusive battery case of Type-3×2pcs, ×1 • Type-3 alkaline battery LR6×2 • Sensor locking screw (cid:73)3×6, ×1 • Tapping screw (cid:73)4×25, ×2 |
