Description
Technical Specifications
| Model | EAP683 UR |
|---|---|
| Name | AX6000 Ceiling Mount Wi-Fi 6 Access Point |
| Main Design | LAN Interfaces |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Maximum Data Rate | 2.4 GHz: 1148 Mbps, 5 GHz: 4804 Mbps |
| Wireless Client Capacity | 2GHz: 256, 5GHz: 256 |
| Antennas | 2.4 GHz: 4 × 4.0 dBi, 5 GHz: 4 × 5.0 dBi |
| Transmit Power | CE: <20 dBm(2.4 GHz EIRP); <23dBm(5 GHz band 1 & band 2 EIRP); <28dBm(5 GHz band 3 EIRP) FCC: <26 dBm(2.4 GHz); <26dBm(5 GHz) |
| Reception Sensitivity | 2.4GHz: 11ax HE20 MCS0:-95dBm;11ax HE20 MCS11:-65dBm 11ax HE40 MCS0:-92dBm;11ax HE40 MCS11:-64dBm 5GHz: 11ax HE20 MCS0:-94dBm;11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-91dBm;11ax HE40 MCS11:-61dBm 11ax HE80 MCS0:-88dBm;11ax HE80 MCS11:-58dBm 11ax HE160 MCS0:-85dBm;11ax HE160 MCS11:-55dBm |
| Centralized Management |
Omada Software Controller |
| Omada Cloud-Based Controller |
• |
| Omada Hardware Controller |
• |
| Omada APP | • |
| Security | Captive Portal Authentication |
| Access Control | • |
| Maximum number of MAC Filter |
4000 |
| Wireless Isolation between Clients |
• |
| VLAN | • |
| Rogue AP Detection | • |
| Wireless Encryption | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE |
| Model | EAP683 UR |
| Wireless Function |
Multiple SSIDs |
| Channel | US: 2G:1~11; 5G: 36-48, 52-64 (DFS), 100-140 (DFS), 149-165 EU: 2G: 1~13; 5G: 36-48, 52-64 (DFS), 100-140 (DFS) |
| Enable/Disable Wireless Radio |
• |
| Enable/Disable SSID Broadcast |
• |
| Guest Network | • |
| Automatic Channel Assignment |
• |
| Transmit Power Control | Adjust transmit Power on dBm |
| QoS (WMM) | • |
| Seamless Roaming | • |
| Mesh | • |
| Beamforming | • |
| MU-MIMO | 4*4 MU-MIMO DL&UL |
| MIMO | 4*4 (2.4G and 5G) MU-MIMO 4*4 (2.4G and 5G) SU-MIMO |
| OFDMA | OFDMA UL/DL |
| Rate Limit | Based on SSID/Client |
| Load Balance | • |
| Airtime Fairness | • |
| Band Steering | • |
| RADIUS Accounting | • |
| MAC Authentication | • |
| Reboot Schedule | • |
| Wireless Schedule | • |
| Wireless Statistics | • |
| Static IP/Dynamic IP | • |
| Support Data Rates |
802.11ax |
| 802.11ac | 6.5Mbps to 4333Mbps(MCS0—MCS11,NSS=1 to 4 VHT20/40/80/160) |
| 802.11n | 6.5Mbps to 800Mbps (MCS0—MCS9,HT20/40) |
| 802.11g | 6, 9, 12, 18, 24, 36, 48 ,54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11a | 6, 9, 12, 18, 24, 36, 48 ,54 Mbps |
| Management | LED ON/OFF Control |
| Management MAC Access Control |
• |
| Web-based Management | • |
| SNMP | v1, v2c, v3 |
| SSH | • |
| Restore & Backup | • |
| Firmware update via Web | • |
| NTP | • |
| System Log | • |
| Email Alerts | • |
| Model | EAP683 UR |
| Physical & Environment |
Power Supply |
| Maximum Power Consumption |
EU: 20.43W(For PoE); 17.7W(For DC) US: 23.51W(For PoE); 20.63W(For DC) |
| Reset | • |

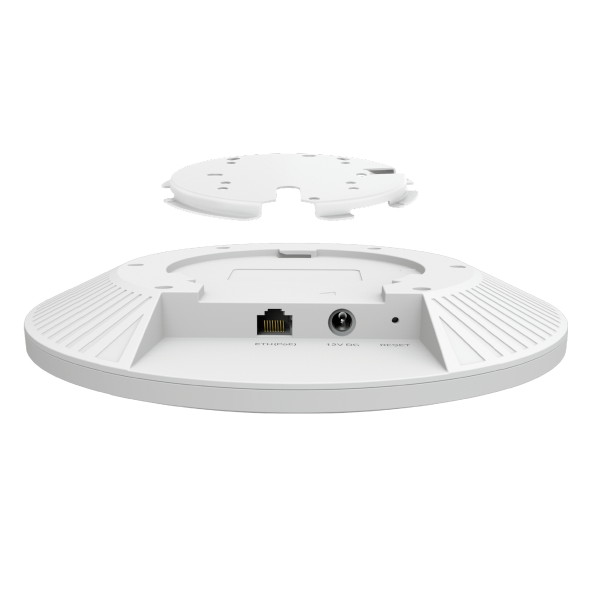

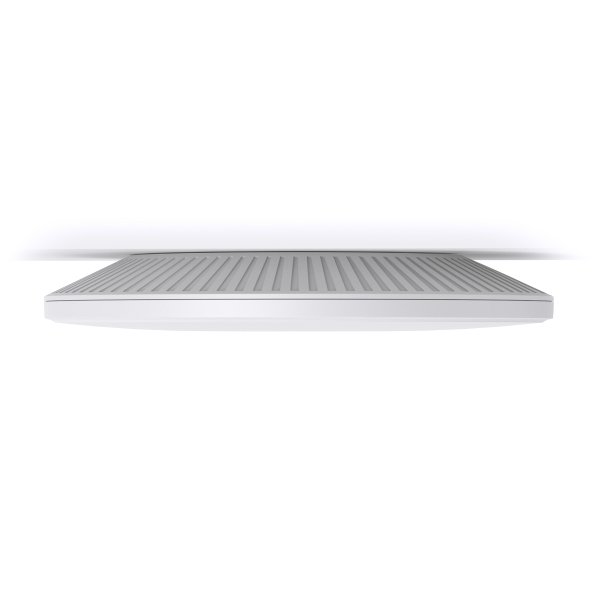

| Mounting | Ceiling / Wall mouting (Kits included) |
| Others | Certifications |

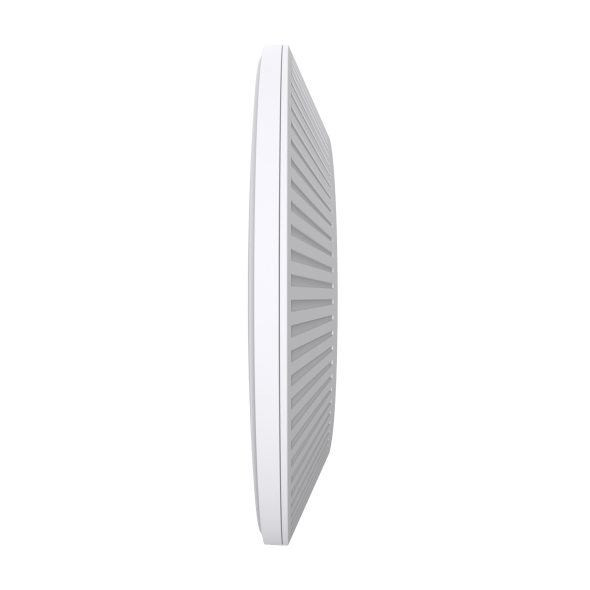

| Dimensions (W x D x H) | 220 x 220 x 32.5 mm |
| Net Weight | 694.6g |
| Enclosure Material / Rack Material |
Top cover: PC-V0 Bottom shell: aluminum alloy ADC-12 Mounting rack: SUS304 stainless steel |
| Lightning Protection | Air discharge: ±8kV Contact discharge: ±4kV Common mode: 10/700: ±4kV |
| Environment | Operating Temperature: 0 °C–40 °C (32 °F–104 °F); Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing; |
| Elevation-0° | Elevation-90° |
