Description
Technical Specifications
| Model | EAP650-Desktop |
|---|---|

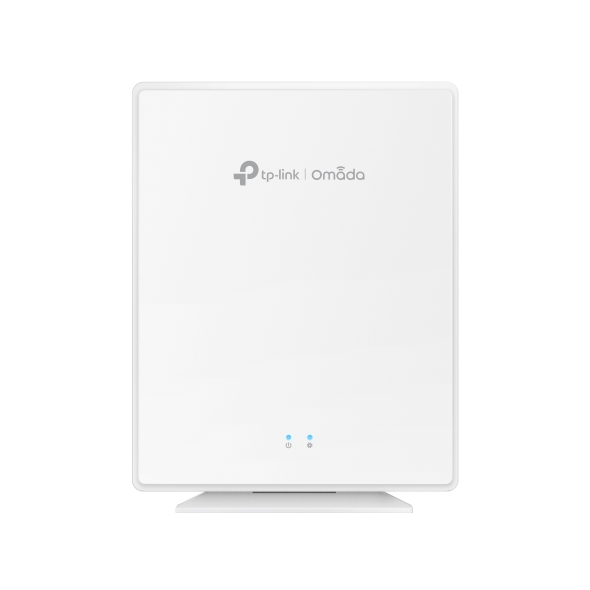

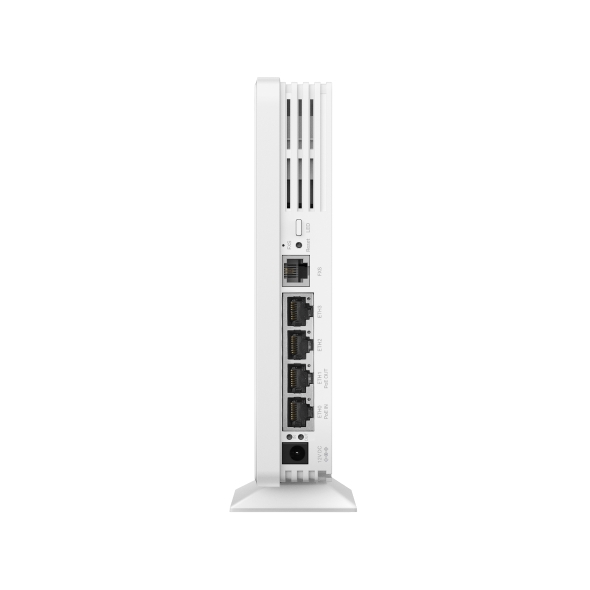

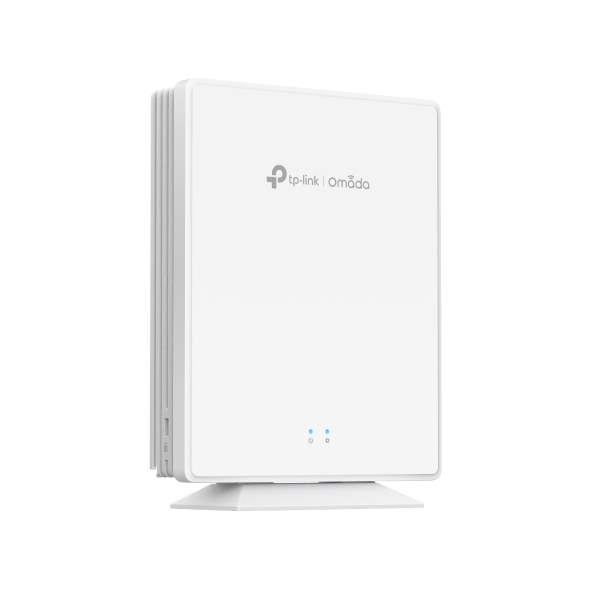

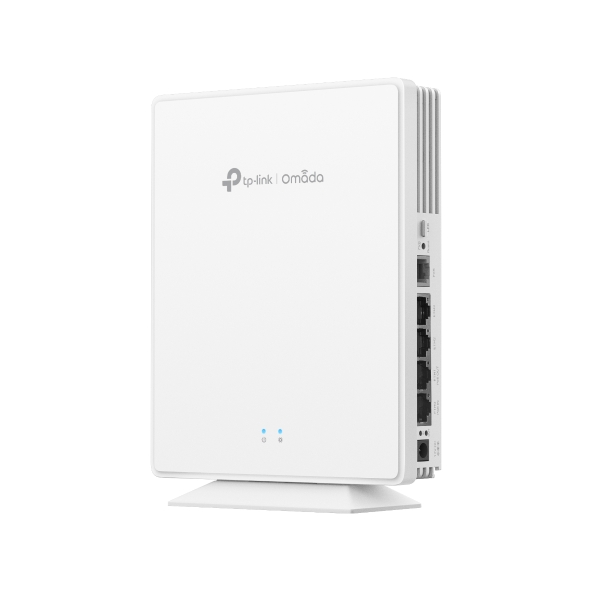

| Name | AX3000 Desktop Wi-Fi 6 Access Point |
| Main Design | Interfaces |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Maximum Data Rate | 574 Mbps (2.4 GHz) +2402 Mbps (5 GHz) |
| Wireless Client Capacity | 250+ |
| Antennas | 2.4 GHz: 2x 5 dBi 5 GHz: 3x 4.7 dBi |
| Transmit Power | CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 29 dBm (5 GHz, band 3, EIRP); FCC: < 26 dBm (2.4 GHz); < 27 dBm (5 GHz) |
| Reception Sensitivity | 2.4GHz: 11ax HE20 MCS0:-95.5dBm; 11ax HE20 MCS11:-65.5dBm 11ax HE40 MCS0:-94dBm; 11ax HE40 MCS11:-64.5dBm 5GHz: 11ax HE20 MCS0:-94.5dBm; 11ax HE20 MCS11:-64.5dBm 11ax HE40 MCS0:-92.5dBm; 11ax HE40 MCS11:-62.5dBm 11ax HE80 MCS0:-90dBm; 11ax HE80 MCS11:-60.5dBm 11ax HE160 MCS0:-86.5dBm; 11ax HE160 MCS11:-57dBm |
| Centralized Management |
Omada Software Controller |
| Omada Hardware Controller |
• |
| Omada Cloud-Based Controller |
• |
| Omada APP | • |
| Security | Captive Portal Authentication |
| Access Control | • |
| Maximum number of MAC Filter |
4000 |
| Wireless Isolation between Clients |
• |
| VLAN | • |
| Rogue AP Detection | • |
| Wireless Encryption | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| 802.1X Support | • |
| Model | EAP650-Desktop |
| Wireless Function |
Multiple SSIDs |
| Channel | EU: 2G:1-13 5G: 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140 US: 2G:1-11 5G: 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,149,153,157,161,165 |
| Enable/Disable Wireless Radio |
• |
| Enable/Disable SSID Broadcast |
• |
| Guest Network | • |
| Automatic Channel Assignment |
• |
| Transmit Power Control | Adjust transmit Power on dBm |
| QoS (WMM) | • |
| Seamless Roaming | • |
| Mesh | • |
| Beamforming | • |
| MU-MIMO | 2*2 MU-MIMO DL/UL |
| MIMO | 2×2 (2.4G & 5G) MU-MIMO |
| OFDMA | UL/DL OFDMA |
| Rate Limit | Based on SSID/Client |
| Load Balance | • |
| Airtime Fairness | • |
| Band Steering | • |
| RADIUS Accounting | • |
| MAC Authentication | • |
| Reboot Schedule | • |
| Wireless Schedule | • |
| Wireless Statistics | • |
| Static IP/Dynamic IP | • |
| Support Data Rates |
802.11ax |
| 802.11ac | 6.5 Mbps to 866 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) |
| 802.11g | 6, 9, 12, 18, 24, 36, 48 ,54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11a | 6, 9, 12, 18, 24, 36, 48 ,54 Mbps |
| Model | EAP650-Desktop |
| Management | LED ON/OFF Control |
| Management MAC Access Control |
• |
| Web-based Management | • |
| SNMP | v1, v2c, v3 |
| SSH | • |
| Restore & Backup | • |
| Firmware update via Web | • |
| NTP | • |
| System Log | • |
| Email Alerts | • |
| Physical & Environment |
Power Supply |
| Maximum Power Consumption |
Mode |
| DC power | EU: 15.8W US: 16.8W (PoE Out off) |
| 802.3bt | EU: 18.7W US: 19.9W (PoE Out off) |
| 802.3at | EU: 18.7W US: 19.9W (PoE Out off) |
| 802.3af | EU: 10W US: 12W (PoE Out off) |
| Reset | • |

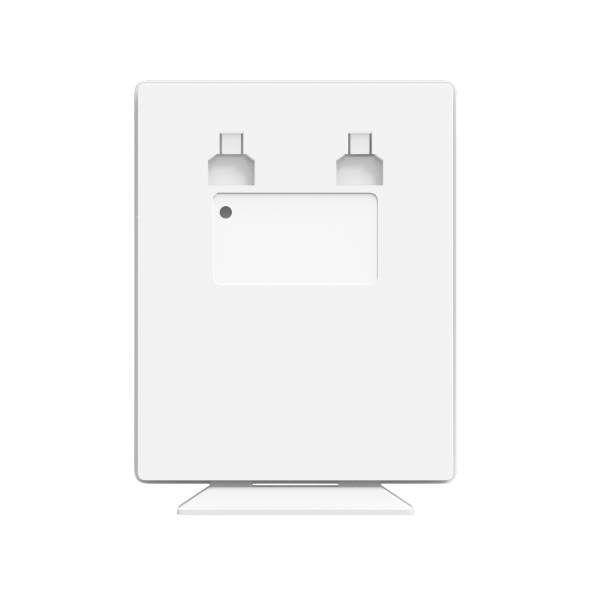

| Mounting | Desktop / Wall mouting (Kits included) |
| Model | EAP650-Desktop |
| Others | Certifications |
| Dimensions (W x D x H) | 175×140×33 mm |
| Net Weight | 452g (excluding mounting base) |
| Enclosure Material / Rack Material |
Shell: PC Mounting base: PC |
| Lightning Protection | AC 2KV (Adapter) |
| Environment | Operating Temperature: 0 °C–40 °C (32 °F–104 °F); Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing; |
