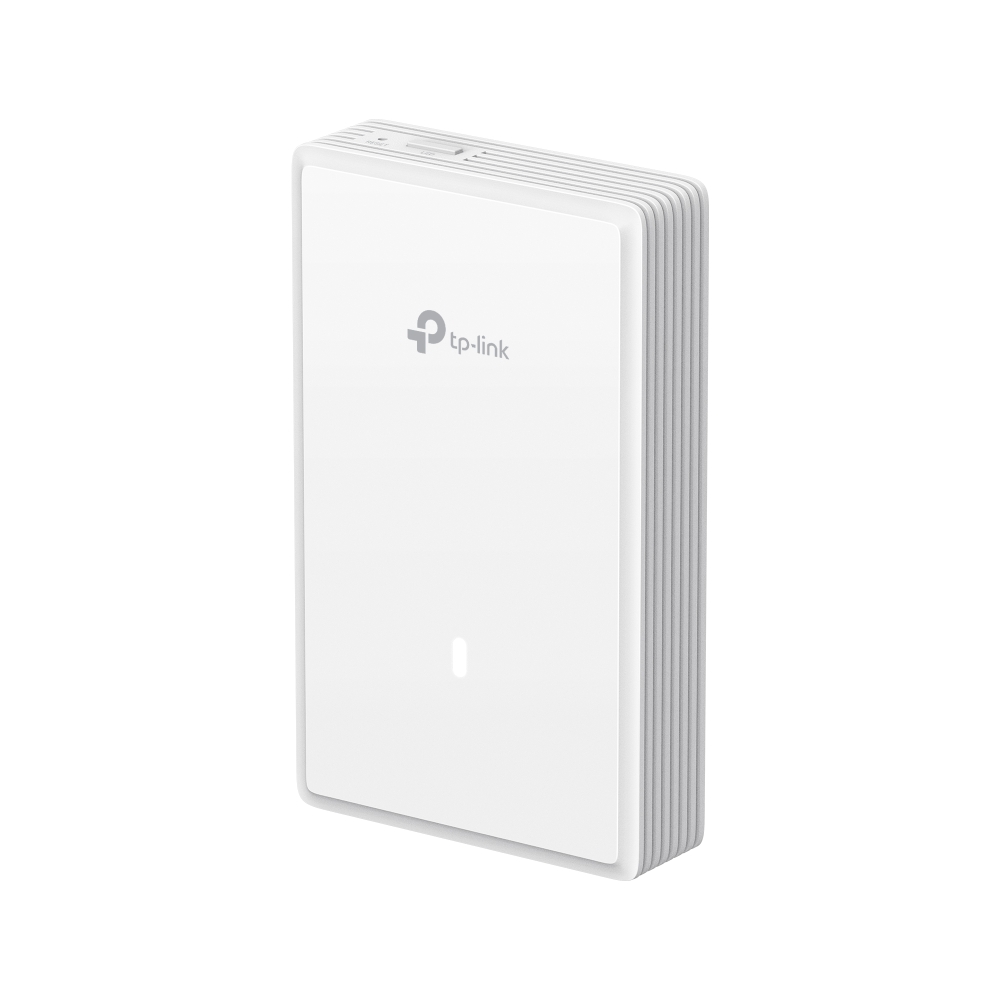

TP-Link Omada EAP725-WALL - BE3600 Wall Plate Dual-Band Wi-Fi 7 Access Point
TP-Link Omada EAP725-WALL - BE3600 Wall Plate Dual-Band Wi-Fi 7 Access Point - Image 2
TP-Link Omada EAP725-WALL - BE3600 Wall Plate Dual-Band Wi-Fi 7 Access Point - Image 3
TP-Link Omada EAP725-WALL - BE3600 Wall Plate Dual-Band Wi-Fi 7 Access Point - Image 4
TP-Link Omada EAP725-WALL - BE3600 Wall Plate Dual-Band Wi-Fi 7 Access Point - Image 5
TP-Link Omada EAP725-WALL - BE3600 Wall Plate Dual-Band Wi-Fi 7 Access Point - Image 6
TP-Link Omada EAP725-WALL - BE3600 Wall Plate Dual-Band Wi-Fi 7 Access Point - Image 7

TP Link

TP-Link Omada EAP725-WALL – BE3600 Wall Plate Dual-Band Wi-Fi 7 Access Point

SKU TPL-EAP725-WALL

In stock

£132.60 ex VAT

£159.12 inc VAT

TP-Link Omada EAP725-Wall BE3600 Wall Plate Dual-Band Wi-Fi 7 Access Point

The TP-Link Omada EAP725-Wall BE3600 is a wall plate access point designed for enterprise environments. With Wi-Fi 7 technology, it offers exceptional speed, capacity, and reliability, making it ideal for high density areas such as offices, conference rooms, and educational institutions.

Key Features:

  • Dual-Band Wi-Fi 7: Delivers up to 3.6 Gbps total throughput across 5GHz (2882Mbps), and 2.4GHz (688Mbps) bands.

  • Multi-Link Operation (MLO): Enhances performance by enabling simultaneous data transmission across multiple channels.

  • 160 MHz Channel Bandwidth: Allows for wider channels, increasing data rates and reducing latency.

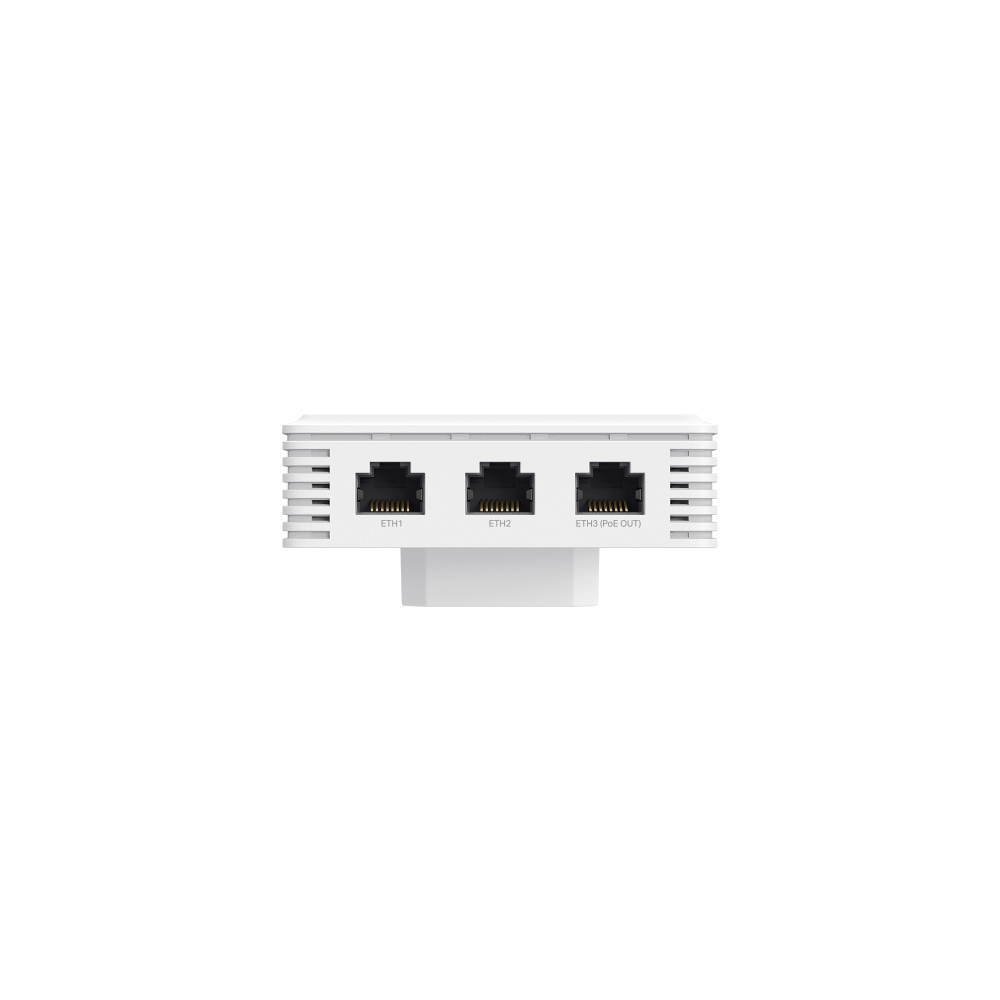

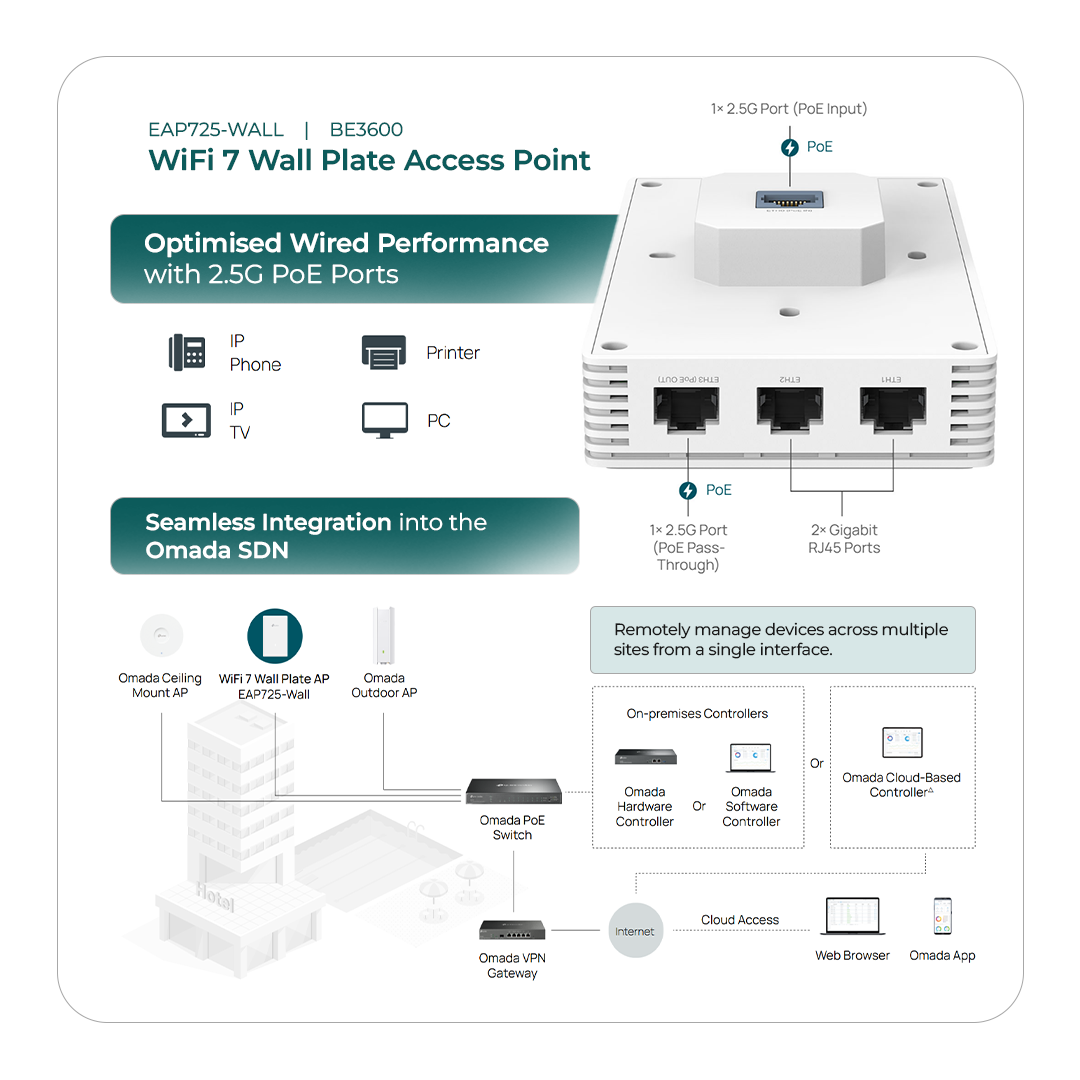

  • 2× 2.5G RJ45 Port + 2x 1G RJ45: Supports high-speed wired connections to fully utilize Wi-Fi 7 capabilities.

  • Power over Ethernet (PoE): Simplifies installation by delivering both power and data over a single Ethernet cable.

  • Centralized Cloud Management: Easily manage and monitor the network through the Omada Cloud Controller or mobile app.

  • Omada Mesh Technology: Provides seamless roaming and extended coverage by connecting multiple access

Order now for delivery Tuesday 27 October on orders over £300

  • Free next working day delivery to mainland UK on orders over £300 inc VAT placed by 11am, Monday to Friday
  • Orders under £300 inc VAT: £9.99 delivery in 2 to 3 working days.
  • 14 day returns on unused items
  • VAT invoice with every order

Installer or electrician? Apply for a trade account

Key specifications

Model
EAP725-Wall
Name
US: BE5000 Wall Plate Wi-Fi 7 Access Point EU: BE3600 Wall Plate Wi-Fi 7 Access Point
Main Design
LAN Interfaces
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Maximum Data Rate
US: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) EU: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
Wireless Client Capacity
2.4 GHz: 128, 5 GHz: 128
Antennas
2.4 GHz: 2 × 4dBi, 5 GHz: 2 × 5dBi
Bluetooth
Bluetooth 5.2
Full specification

Description

Technical Specifications

Model EAP725-Wall
Name US: BE5000 Wall Plate Wi-Fi 7 Access Point
EU: BE3600 Wall Plate Wi-Fi 7 Access Point
Main Design LAN Interfaces
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be
Maximum Data Rate US: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
EU: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
Wireless Client Capacity 2.4 GHz: 128, 5 GHz: 128
Antennas 2.4 GHz: 2 × 4dBi, 5 GHz: 2 × 5dBi
Bluetooth Bluetooth 5.2
Transmit Power CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 25 dBm (5 GHz, band 3, EIRP)
FCC:< 22 dBm (2.4 GHz); < 22 dBm (5 GHz, band 1&band 2&band 3&band 4)
Reception Sensitivity 2.4 GHz:
11be EHE20 MCS0: -97dBm;
11be EHE20 MCS11: -66dBm
11be EHE40 MCS0: -93dBm;
11be EHE40 MCS11: -65dBm
5 GHz:
11be EHT20MCS0: -97dBm;
11be EHT20MCS13: -62dBm;
11be EHT40MCS0: -94dBm;
11be EHT40MCS13: -58dBm;
11be EHT80MCS0: -91dBm;
11be EHT80MCS13: -55dBm;
11be EHT160MCS0: -88dBm;
11be EHT160MCS13: -54dBm
Centralized
Management		 Omada Software
Controller
Omada Hardware
Controller		 •
Omada APP •
Security Captive Portal
Authentication
Access Control •
Maximum number of MAC
Filter		 4000
Wireless Isolation
between Clients		 •
VLAN •
Rogue AP Detection •
Wireless Encryption WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Model EAP725-Wall
Wireless
Function		 Multiple SSIDs
Channel US:
2.4 GHz:1 – 11
5 GHz: 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,144,149,153,157,161,165
EU:
2.4 GHz:1 – 13
5 GHz: 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140
Enable/Disable Wireless
Radio		 •
Enable/Disable SSID
Broadcast		 •
Guest Network •
Automatic Channel
Assignment		 •
Transmit Power Control Adjust transmit Power on dBm
QoS (WMM) •
Seamless Roaming •
Mesh •
Beamforming •
MU-MIMO –
MIMO 2*2 (2.4 GHz and 5 GHz) MIMO
OFDMA DL/UL OFDMA
Rate Limit Based on SSID/Client
Load Balance •
Airtime Fairness •
Band Steering •
RADIUS Accounting •
MAC Authentication •
Reboot Schedule •
Wireless Schedule •
Wireless Statistics •
Static IP/Dynamic IP •
Support Data
Rates		 802.11be
802.11ax 2.4 GHz Band: 8Mbps to 568Mbps(MCS0—MCS11,NSS=1 to 2 HE20/40)
5 GHz Band: 8Mbps to 2402Mbps(MCS0—MCS11, NSS=1 to 2 HE20/40/80/160)
802.11ac 6.5Mbps to 1733Mbps(MCS0—MCS9,NSS=1 to 2 VHT20/40/80/160)
802.11n 6.5Mbps to 300Mbps(MCS0—MCS15,HT20/40)
802.11g 6, 9, 12, 18, 24, 36, 48 ,54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11a 6, 9, 12, 18, 24, 36, 48 ,54 Mbps
Model EAP725-Wall
Management LED ON/OFF Control
Management MAC
Access Control		 •
Web-based Management •
SNMP v1, v2c, v3
SSH •
Restore & Backup •
Firmware update via Web •
NTP •
System Log •
Email Alerts •
Physical &
Environment		 Power Supply
Maximum Power
Consumption		 Mode
802.3bt 17W
802.3at 17W
Reset •
Mounting Wall mouting (Kits included)
Others Certifications
Dimensions (W x D x H) 143 x 86 x 40 mm
Net Weight 365.8g
Enclosure Material / Rack
Material		 Top Cover: PC
Middle Frame: PC
Bottom Shell: Aluminum Alloy
Environment Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
Operating Humidity: 10%–90% non-condensing;
Storage Humidity: 5%–90% non-condensing;
