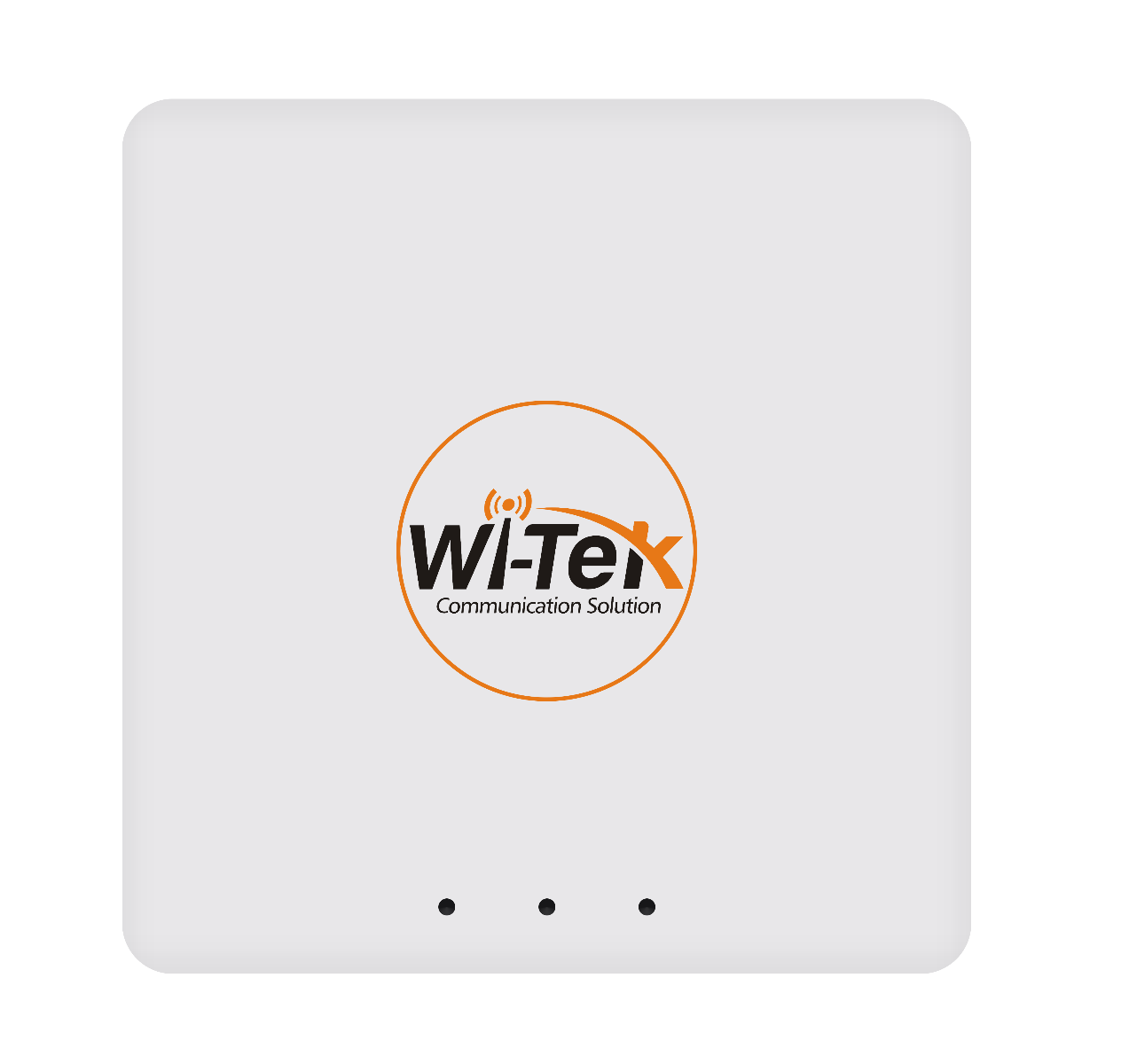

WITEK Mini Wireless AP Controller Remote Access Cloud Cube

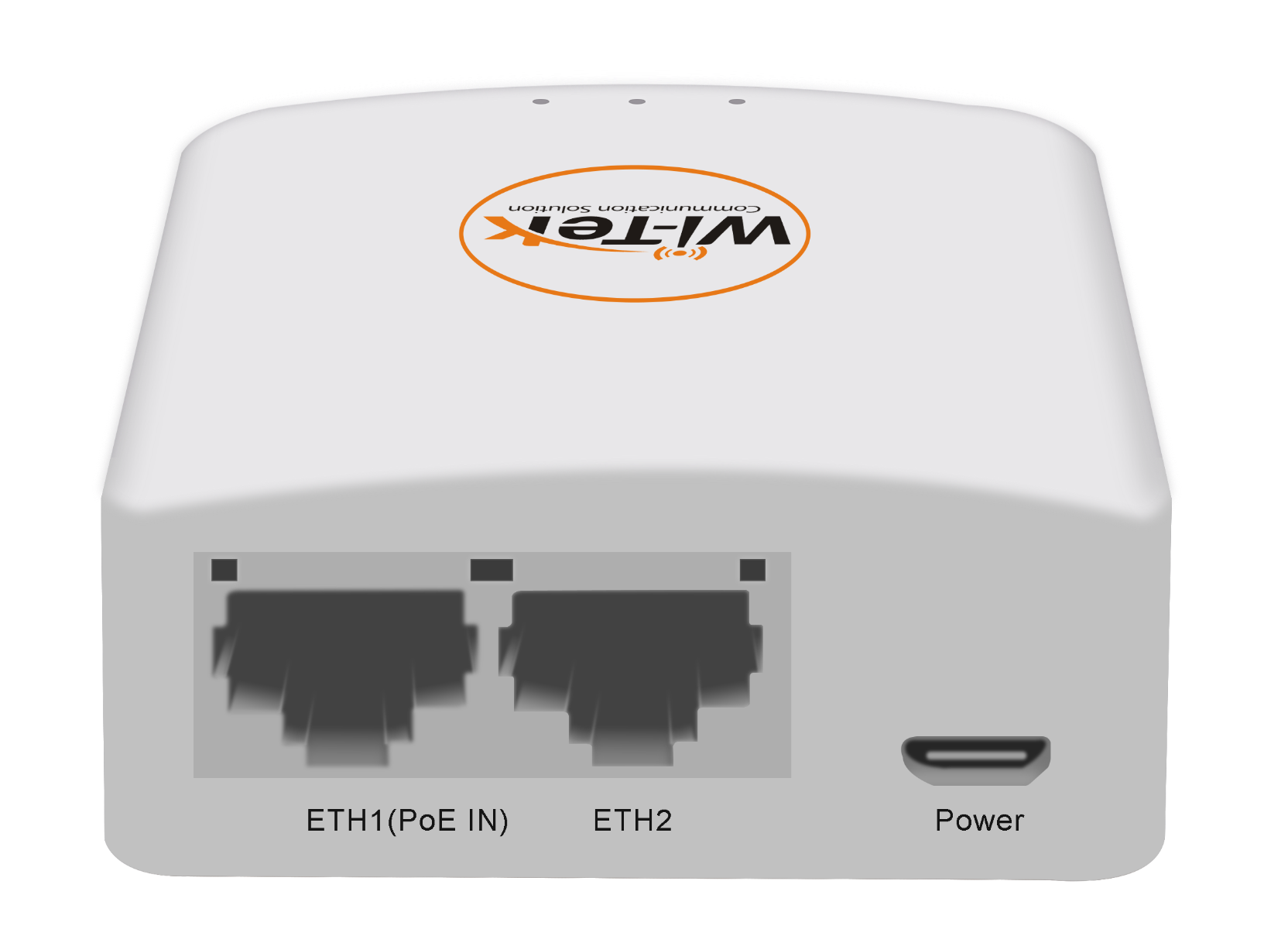

WITEK Mini Wireless AP Controller Remote Access Cloud Cube - Image 2
WITEK Mini Wireless AP Controller Remote Access Cloud Cube - Image 3
WITEK Mini Wireless AP Controller Remote Access Cloud Cube - Image 4

Wi-Tek

WITEK Mini Wireless AP Controller Remote Access Cloud Cube

SKU WI-AC50

In stock

£22.46 ex VAT

£26.95 inc VAT

The Wi-Tek WI-AC50 Cloud Cube is ideal for sites with multiple APs acting as a central point to configure & manage all APs on the network.

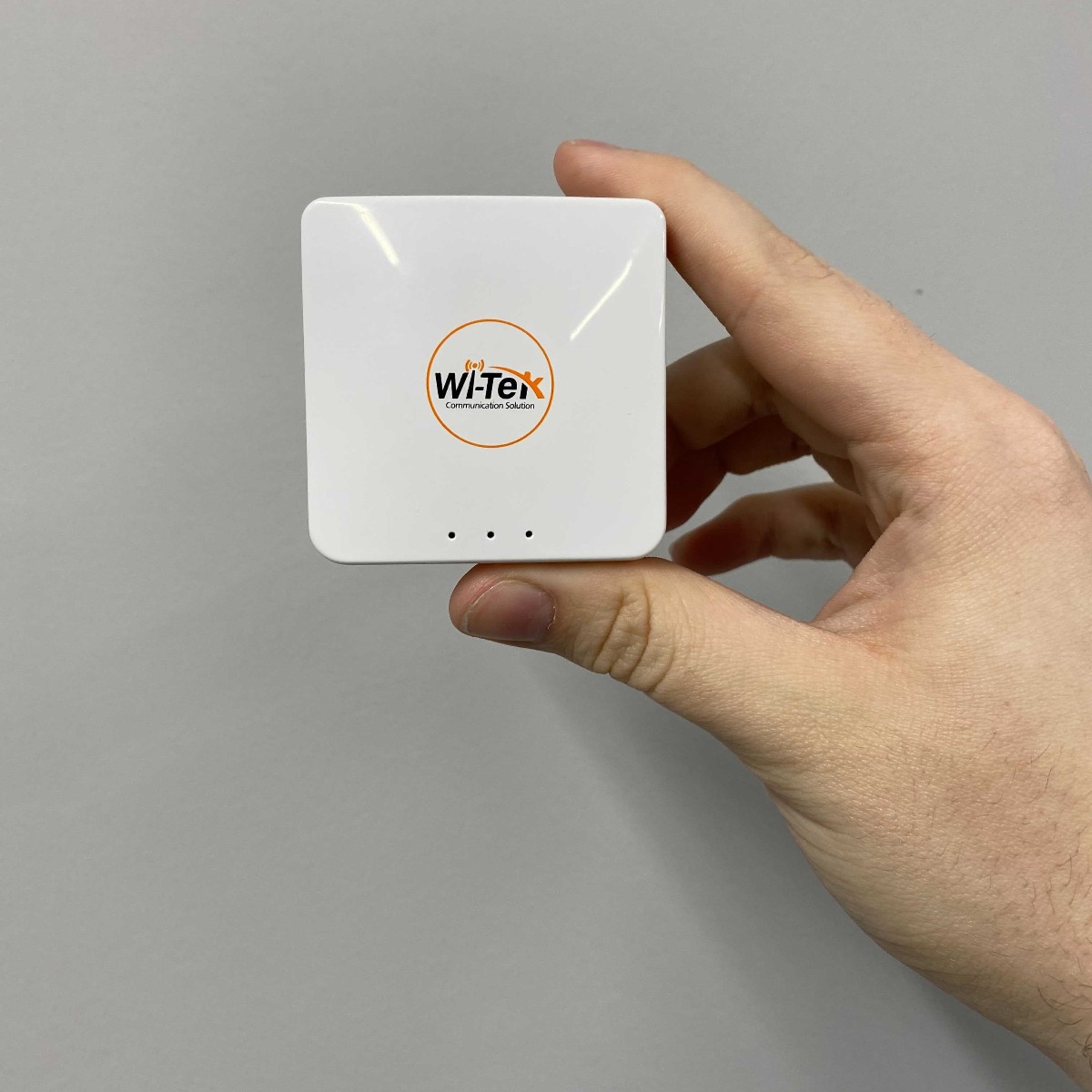

This tiny module can be PoE powered from a PoE switch (or by Micro USB) to connect entire sites to the Wi-Tek Cloud. It includes options to duplicate settings across multiple APs or configure separately saving installation time by eliminating the need to login individually to each site AP. Specs include:

  • 802.3af 48V PoE powered
  • 2.4Ghz up to 300Mbps - 2x 3dBi Antennas
  • 5.8GHz up to 450Mbps - 1x 4dBi Antennas
  • 2x 10/100Mbps RJ45s
  • Controller & Cloud Management supported

Matt Digital's blog on the WI-AC50! Click here

Order now for delivery Tuesday 27 October on orders over £300

  • Free next working day delivery to mainland UK on orders over £300 inc VAT placed by 11am, Monday to Friday
  • Orders under £300 inc VAT: £9.99 delivery in 2 to 3 working days.
  • 14 day returns on unused items
  • VAT invoice with every order

Installer or electrician? Apply for a trade account

Key specifications

Products
WI-AC50
Hardware Version
V2
RAM
128MB
Flash
16MB
Interface
2*10/100 Base-T Ethernet ports 1 x 2.0 USB Port ( reserved In-advance ) 1* micro USB (power) 1* 2.4GHz Wireless interface
AP Unified Configuration
50APs
Network Access
DHCP, static IP
Cloud Access
Yes
Full specification

Description

– Maximum AP managed number up to 50

– 2x 100Mbps Ethernet Ports with 1*PoE Input

– AP and Clients online status statistics

– Manage indoor and outdoor access points

– Intra-AC, Inter-AP L2 roaming time less than 20ms

– Built-in captive portal server and customized welcome page

– Supports Wi-Tek Cloud platform management

Technical Specifications

Products WI-AC50
Hardware Version V2
RAM 128MB
Flash 16MB
Interface 2*10/100 Base-T Ethernet ports

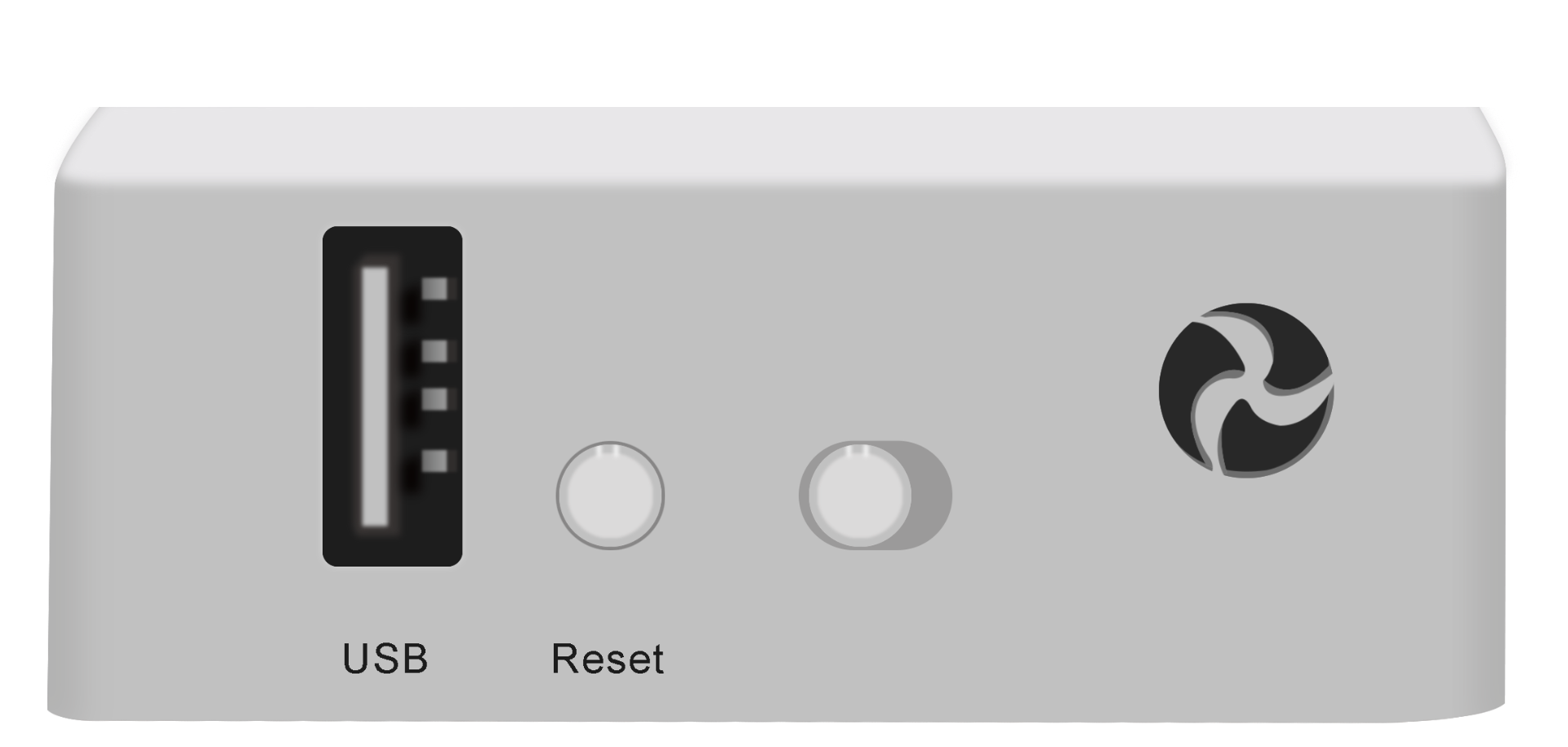

1 x 2.0 USB Port ( reserved In-advance )
1* micro USB (power)
1* 2.4GHz Wireless interface
AP Unified Configuration 50APs
Network Access DHCP, static IP
Cloud Access Yes
L3 Management Yes
Main Function Auto AP Discovery
Environment Operating Temperature: -40℃~55℃
Storage Temperature: -40℃~70℃
Operating Humidity: 5%~95% (non-condensing)
Storage Humidity: 5%~95% (non-condensing)
Dimensions 63mm * 63mm * 24mm
Items Quantity
WI-AC50 1 pcs
Ethernet Cable 1 pcs
Quick Installation Guide 1 pcs

Additional information

Brand

Wi-Tek
