Wi-Tek WI-PS328GF - 24 Port Gigabt PoE Switch 400W
Wi-Tek WI-PS328GF - 24 Port Gigabt PoE Switch 400W - Image 2
Wi-Tek WI-PS328GF - 24 Port Gigabt PoE Switch 400W - Image 3
Wi-Tek WI-PS328GF - 24 Port Gigabt PoE Switch 400W - Image 4
Wi-Tek WI-PS328GF - 24 Port Gigabt PoE Switch 400W - Image 5

Wi-Tek

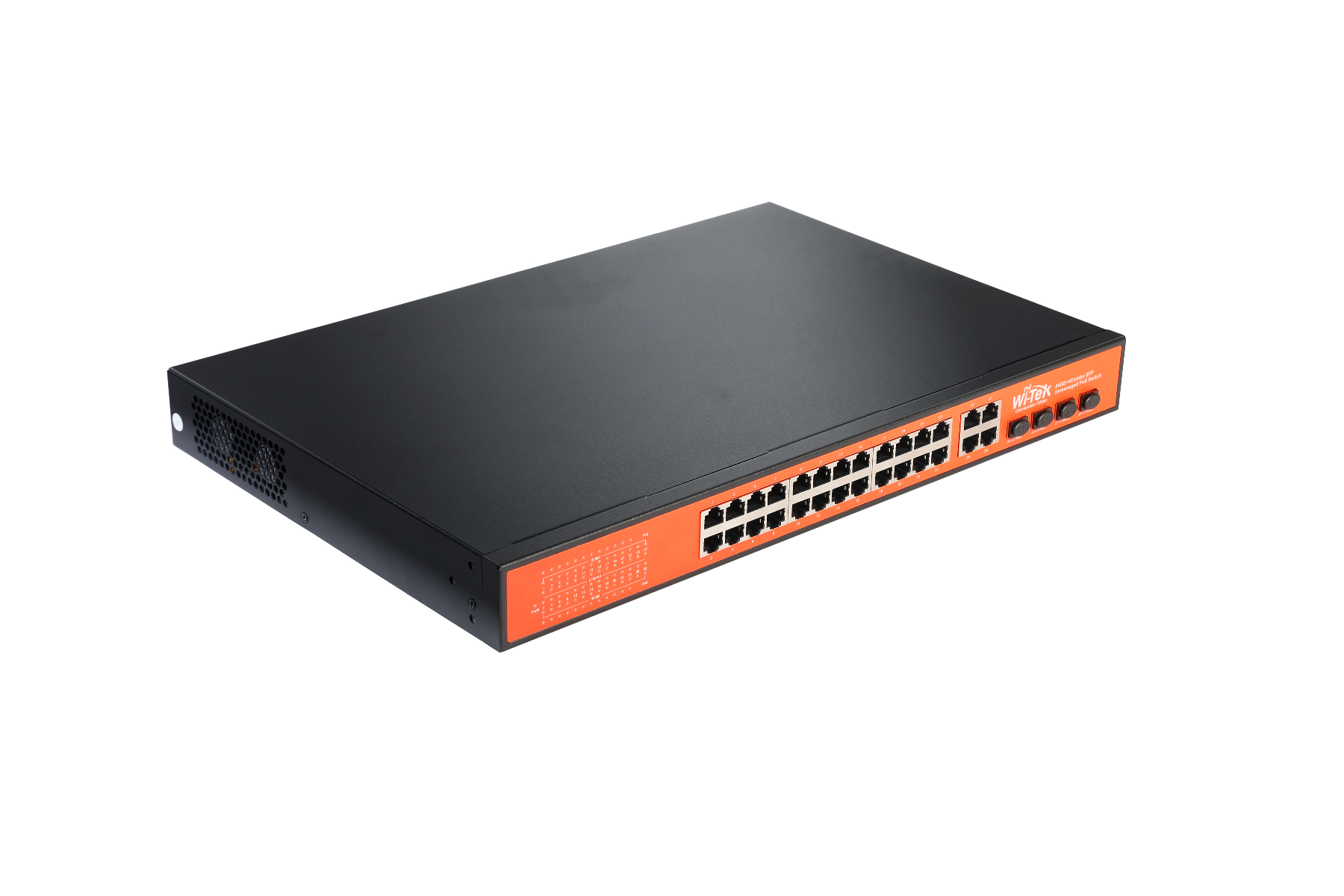

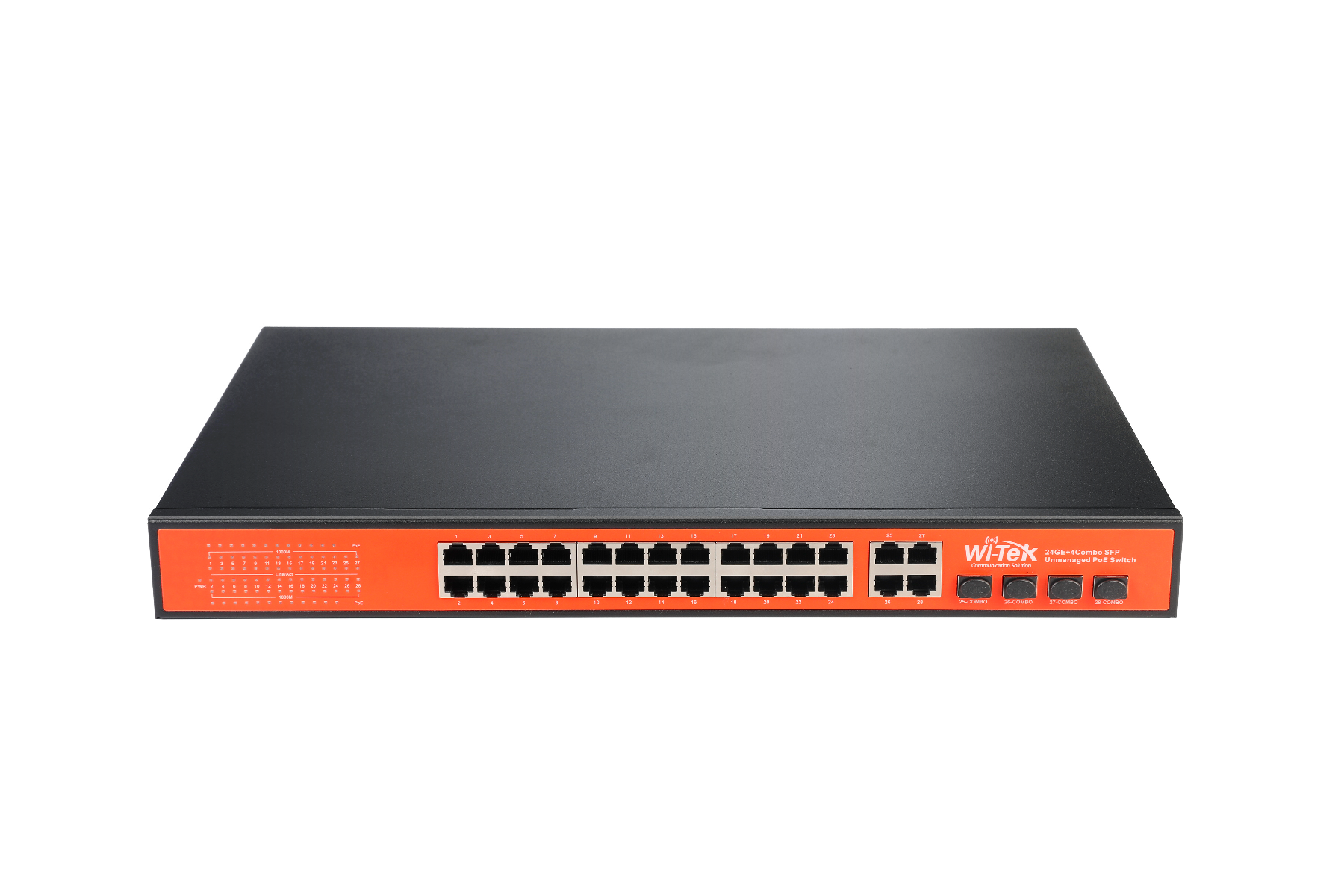

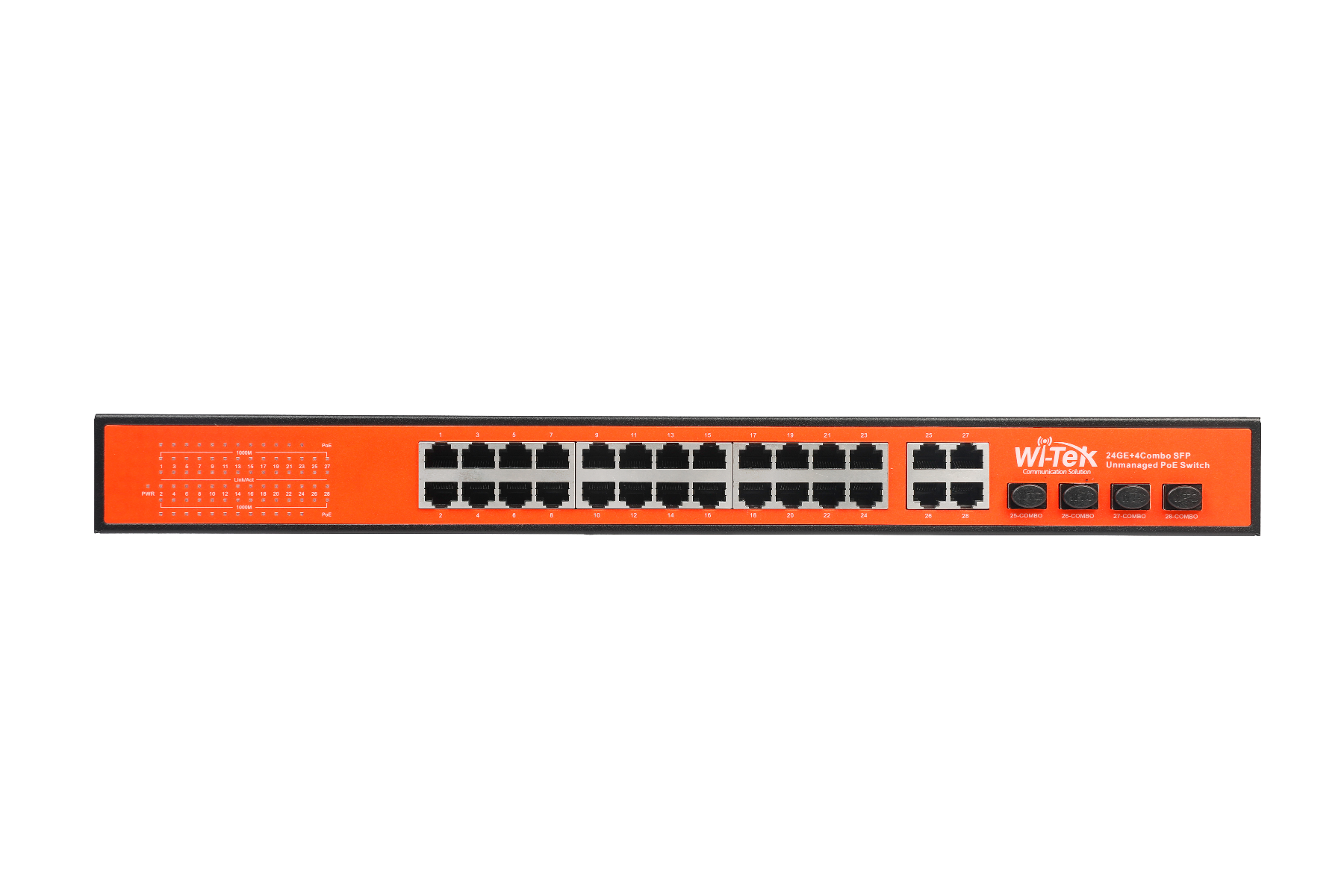

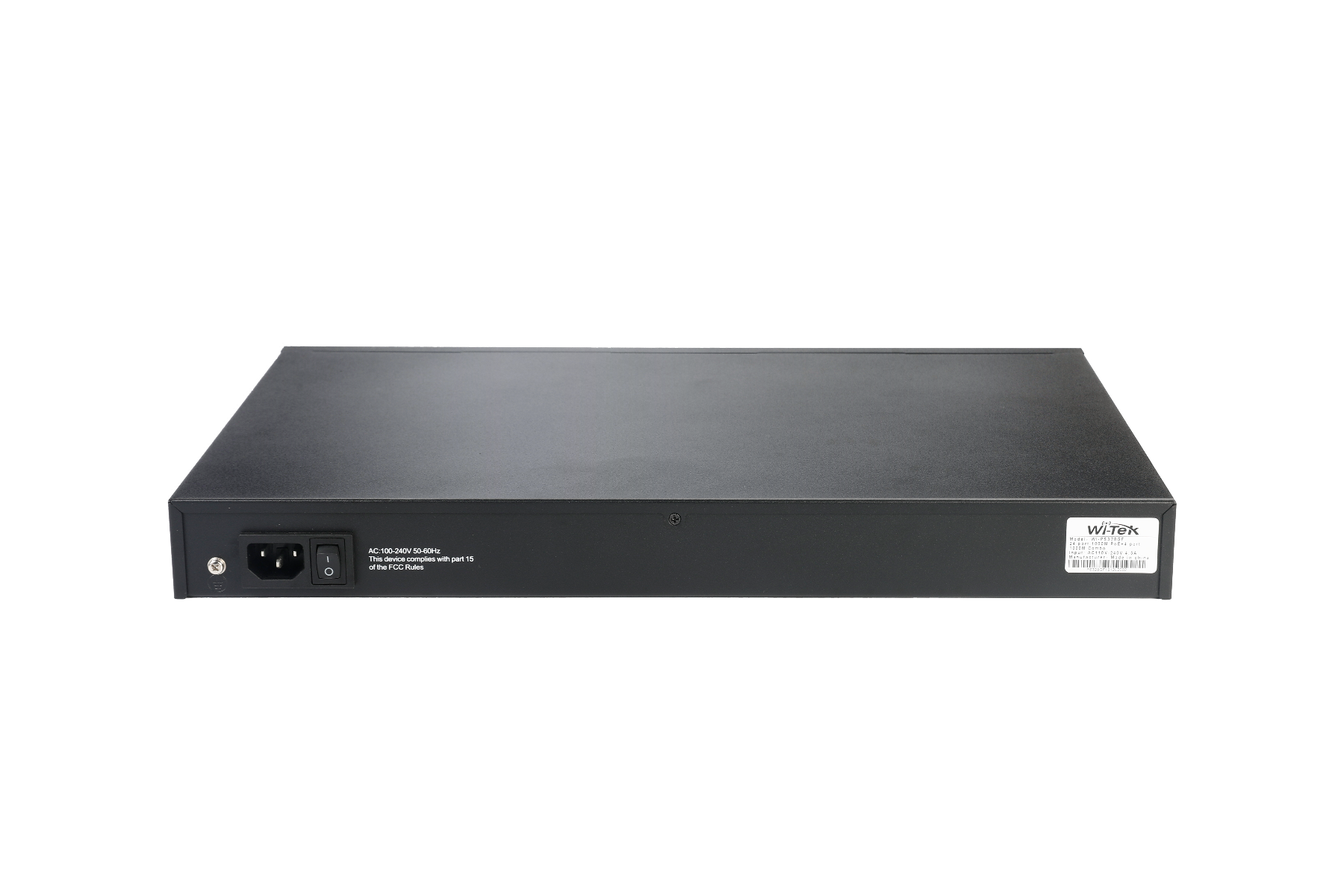

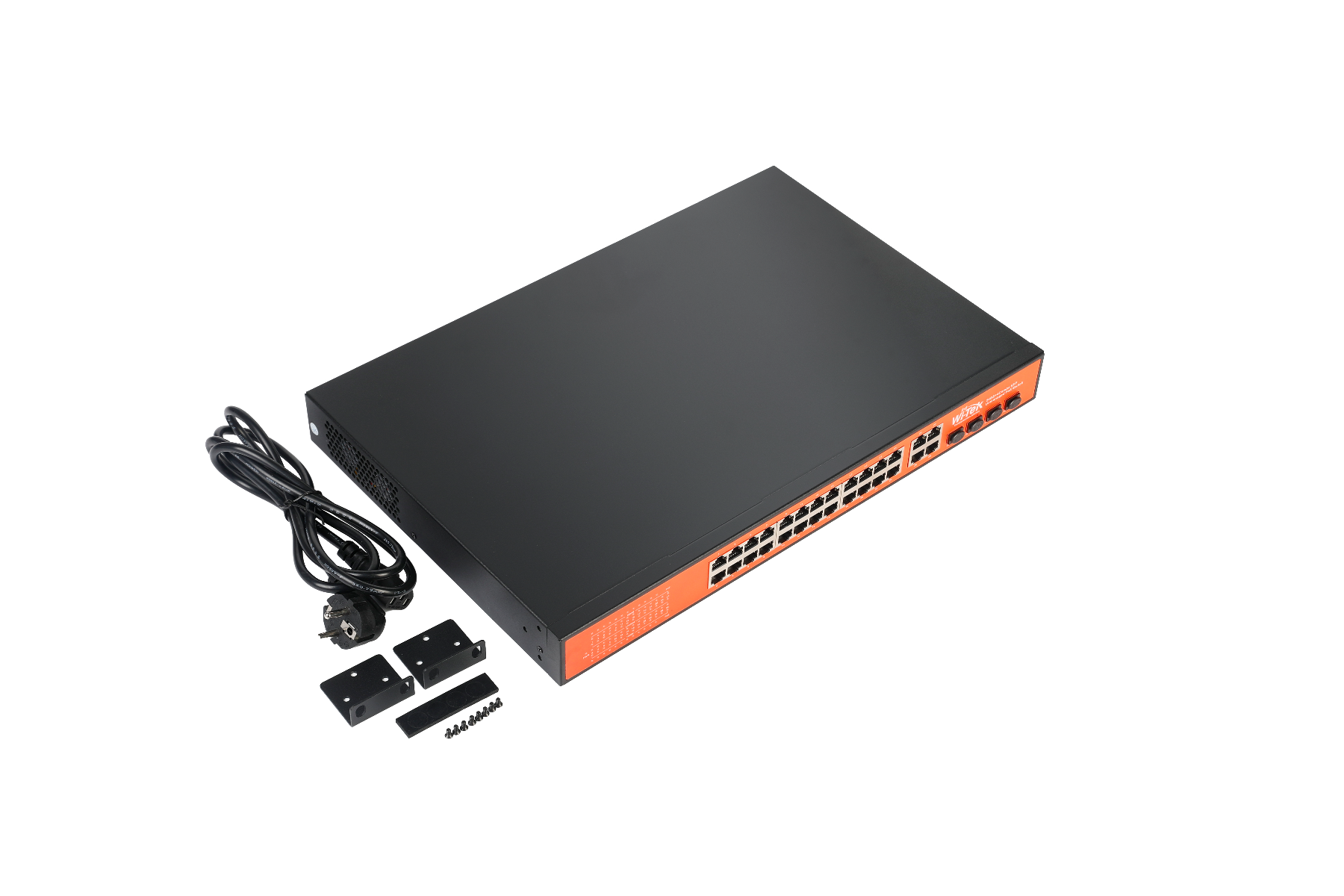

Wi-Tek WI-PS328GF – 24 Port Gigabt PoE Switch 400W

SKU WI-PS328GF

In stock

£246.34 ex VAT

£295.61 inc VAT

• 24GE PoE ports

• 4 Combo GB/SFP Uplink ports

• Supports PoE power up to 30W for each port

• Supports PoE IEEE 802.3af/at compliant PDs

• Internal power adapter supply 400W output power

• LED indicators for LINK/ACT, Power, PoE Status, 100/1000Mbps

• 8K entry MAC address table with auto-learning and auto-aging

Order now for delivery Tuesday 27 October on orders over £300

  • Free next working day delivery to mainland UK on orders over £300 inc VAT placed by 11am, Monday to Friday
  • Orders under £300 inc VAT: £9.99 delivery in 2 to 3 working days.
  • 14 day returns on unused items
  • VAT invoice with every order

Installer or electrician? Apply for a trade account

Key specifications

Model
WI-PS305G
V2
V2
4 1000Mbps RJ45 PoE Ports
8 1000Mbps RJ45 PoE Ports
1 1000Mbps RJ45 Port
2 1000Mbps RJ45 Ports
Port 1- 4
Port 1- 8
Port 1: 802.3bt 60 W Port 2-4: 802.3af/at
Port 1: 802.3bt 60 W Port 2-8: 802.3af/at
Port 1：60W max. Port 2-4: 30W Max. Total PoE power budget: 63 W max.
Port 1：60W max. Port 2-4: 30W Max. Total PoE power budget: 118 W max.
12 Gbps
20 Gbps
Full specification

Description

Technical Specifications

Model WI-PS305G
V2 V2
4 1000Mbps RJ45
PoE Ports		 8 1000Mbps RJ45
PoE Ports
1 1000Mbps RJ45 Port 2 1000Mbps RJ45 Ports
Port 1- 4 Port 1- 8
Port 1: 802.3bt 60 W
Port 2-4: 802.3af/at		 Port 1: 802.3bt 60 W
Port 2-8: 802.3af/at
Port 1：60W max. Port 2-4:
30W Max. Total PoE power
budget: 63 W max.		 Port 1：60W max. Port 2-4:
30W Max. Total PoE power
budget: 118 W max.
12 Gbps 20 Gbps
8.93 Mpps 14.88 Mpps
AC 100-240V 1A AC 100-240V 1.4A
dle: 2 W 100% Traff ic
Rate with PoE: 65 W		 Idle: 2 W 100% Traff ic
Rate with PoE: 120 W
Model WI-PS305G
P
On: The device power on
is normal
Off: The device is power
off or failed
PoE
On: PoE is working
Off: PoE not working
Link
On: Data on TX/RX
Off: Ports link down
E
On: DIP switch is enabled
in Extend mode
V
On: DIP switch is enabled
in VLAN mode
1000M
On: The negotiate speed is
1000Mbps and ports link up
Off: The negotiate speed is
10/100Mbps, not 1000Mbps		 P
On: The device power on
is normal
Off: The device is power
off or failed
PoE
On: PoE is working
Off: PoE not working
Link
On: Data on TX/RX
Off: Ports link down
E
On: DIP switch is enabled
in Extend mode
V
On: DIP switch is enabled
in VLAN mode
1000M
On: The negotiate speed is
1000Mbps and ports link up
Off: The negotiate speed is
10/100Mbps, not 1000Mbps
190x131x33mm 210x151x33mm
Net Weight: 0.62 kg Net Weight: 0.79 kg
Package Weight: 1.045 kg Package Weight: 1.21 kg
Model WI-PS305G
Model WI-PS310GF
V1 V1
8 1000Mbps RJ45
PoE Ports		 16 1000Mbps RJ45
PoE Ports
2 1000Mbps SFP Slots 2 1000Mbps SFP Slots
Port 1- 8 Port 1- 16
30W Max. for each port,
146 W Max. for PoE
power budget		 30W Max. for each port,
295 W Max. for PoE
power budget
20 Gbps 36 Gbps
14.88 Mpps 26.78 Mpps
AC 110-240V 1.8A
DC 37-57V		 AC 100-240V 3.6A
Idle: 4 W 100% Traff ic Rate
with PoE: 150 W		 Idle: 5 W100% Traff ic Rate
with PoE: 300 W
Model WI-PS310GF
POWER
On: The device power on is
normal
Off: The device is power off
or failed
PoE
On: PoE is working
Off: PoE not working
Link
On: Data on TX/RX
Off: Ports link down
9、10(SFP)
Blinking: Indicates that the
Switch is actively sending
or receiving data over
that port.
On: Indicates the link through
that port is successfully
established
at 10/100/1000Mbps.
Off: No device is connected
to the corresponding port.		 PWR
On: The device power on is
normal
Off: The device is power off
or failed
PoE
On: PoE is working
Off: PoE not working
Link/Act
On: Data on TX/RX
Off: Ports link down
1000M
On: The negotiate speed is
1000Mbps and ports link up
Off: The negotiate speed is
10/100Mbps, not 1000Mbps
280x140x44mm 440x291x44mm
Net Weight: 0.97 kg Net Weight: 3.23 kg
Package Weight: 1.555 kg Package Weight: 4.01 kg

Additional information

Brand

Wi-Tek
Number of ports

24 ports
PoE

PoE++ (60-90W)
Management

Unmanaged (plug and play)
