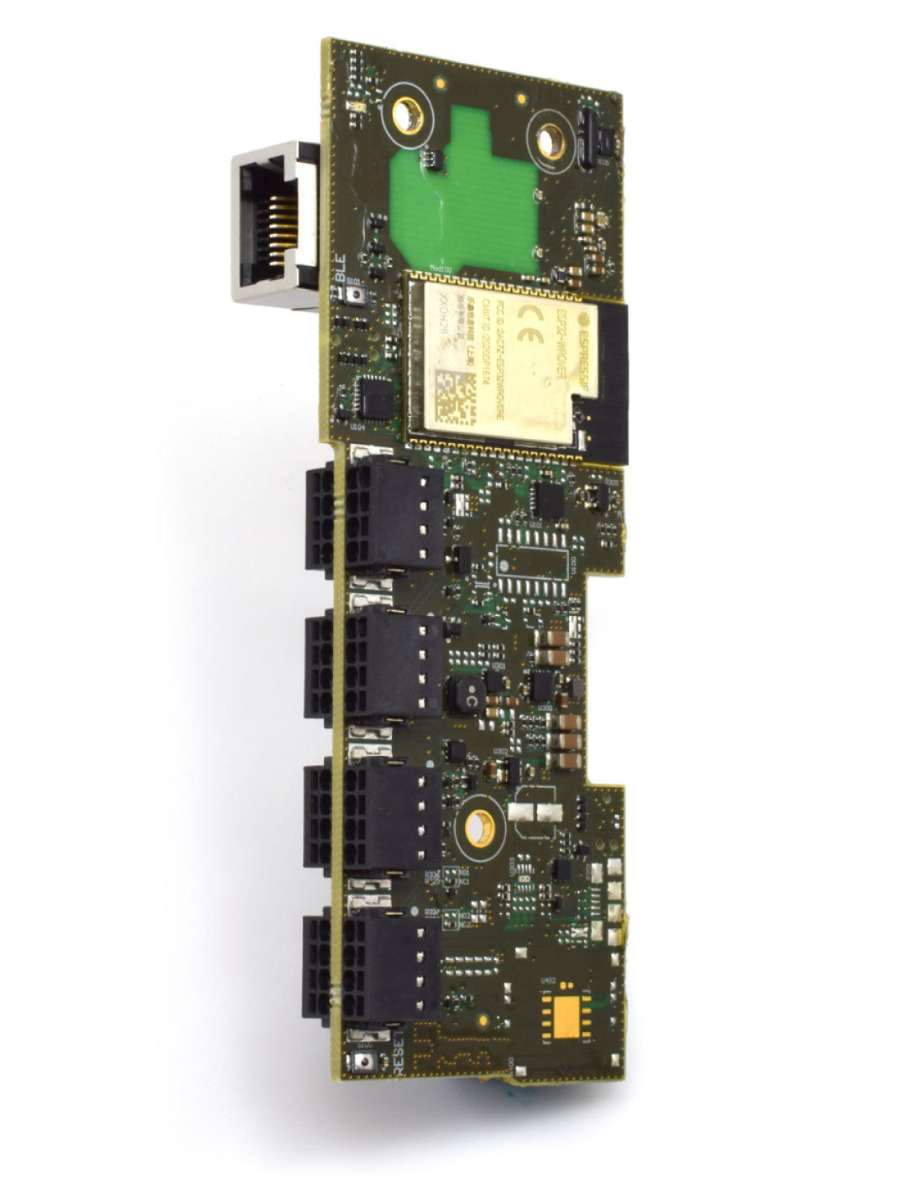

WebLock Controller – 2 Doors WiFi/Eth, Wiegand – Fail Secure

*Due to the project based nature this item is special order only*

DLA (Digital Lock Access) Controller is part of WebLock's Online Access Control System that connects the WebLock Cloud and the electric locks and keypads.

• WebLockʼs DLA v4 connects to the WebLock cloud via wired LAN, WiFi, or mobile NBIoT networks.
• Each DLA supports up to two entryways equipped with solenoid or motor-driven locks, keypads or card readers communicating over Wiegand or RS-232 interfaces, and door status sensors.
• Additional I/O pins enable integration with other equipment, such as lighting.
• No additional central unit is needed. Depending on the number of controllers in one location, you can choose single controller boxes, multi-controller enclosures or rack-mounted configurations for your installation.

Features:

• Up to 2 Wiegand or RS-232 readers
• Up to 2 lock drivers (maximum 3A @ 12VDC each)
• Up to 2 inputs for door status sensors (such as Hall-effect sensors)
• Up to 2 inputs for tamper sensors
• Ethernet, WiFi, and NB-IoT support available
• Supports 25,000–50,000 cards, codes, or access rules per controller
• Able to log 100,000 events locally
• Push-in connections for easy wiring (20-26 AWG solid-core wire supported, suitable for CAT5 or CAT6)
• AES256 encryption
