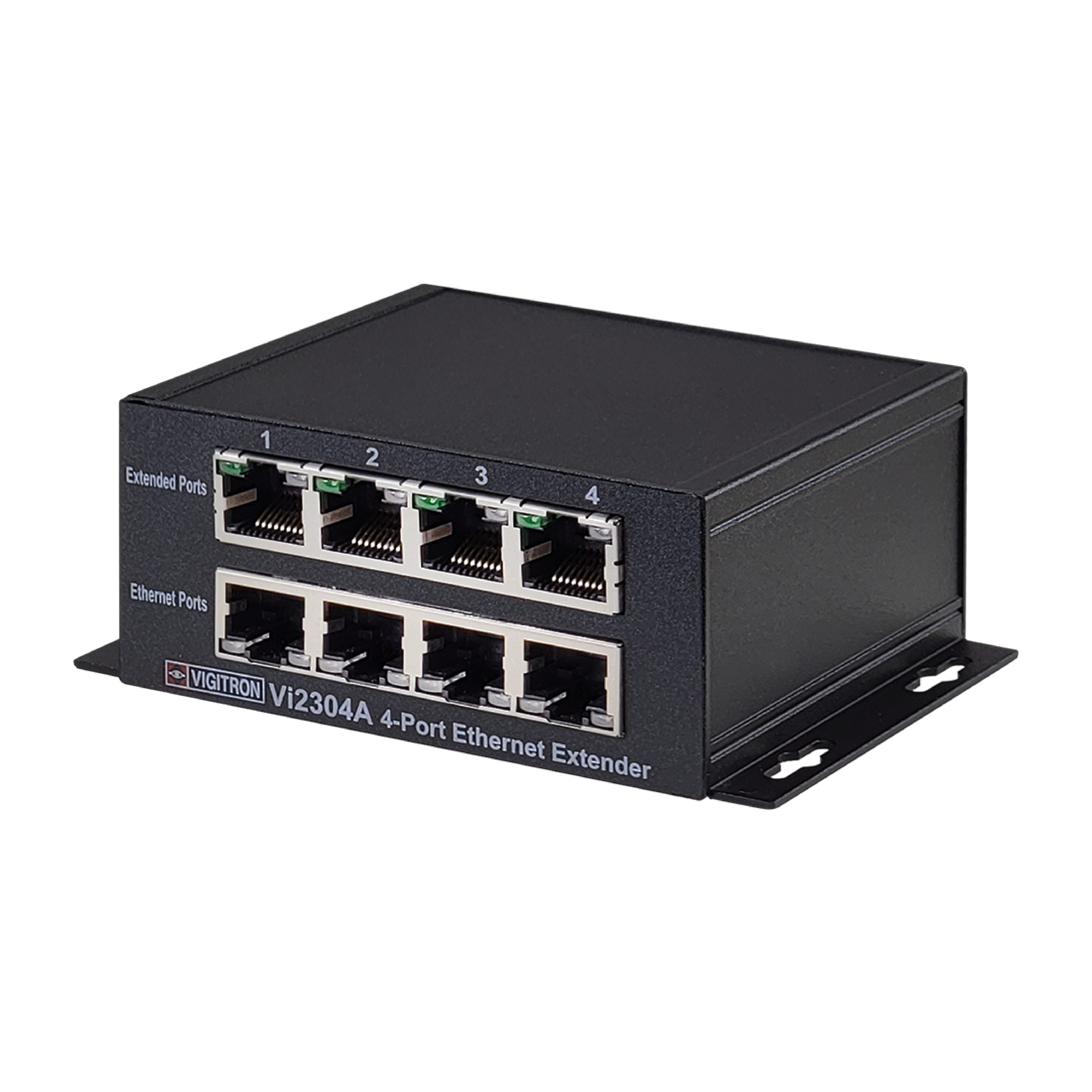

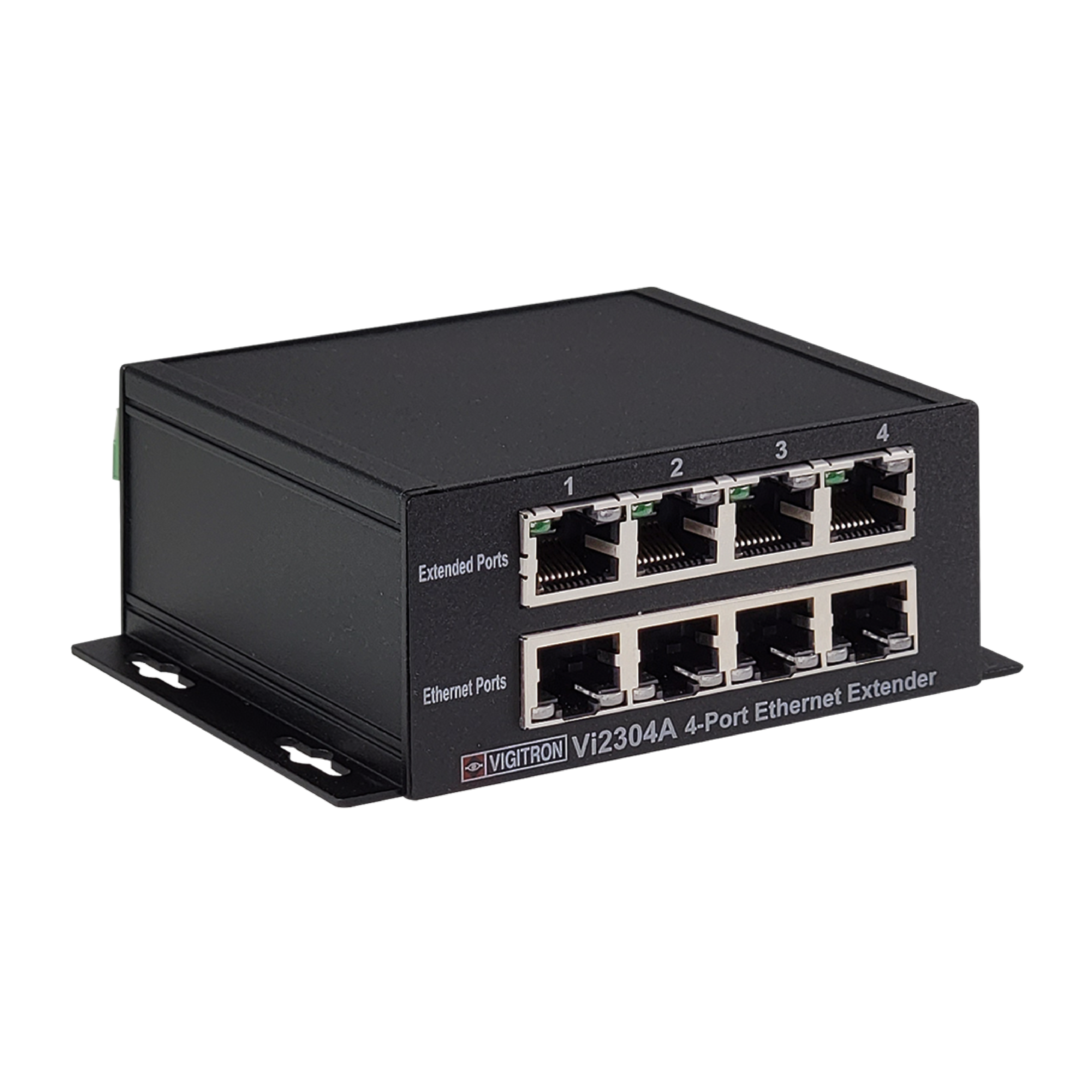

Vigitron 4-Port MaxiiCopper Ethernet/PoE Extender upto 900m, Requires 72w PoE or 12VDC 3ah (VIG-VI2304A)

The Vigitron VIG-VI2304A MaxiiCopper is a high-performance 4-port Ethernet and PoE extender designed to overcome the traditional 100-metre Ethernet limitation. Capable of extending Ethernet connectivity up to 914 metres (3,000 feet) over standard Cat5 or better UTP cable, it provides a cost-effective solution for connecting IP cameras, access control devices, intercoms, and other network equipment across large sites without the need for fibre optic cabling.

Supporting IEEE 802.3af, 802.3at, and 802.3bt Pass-Through PoE (PTP™) with up to 74W of power, the VI2304A enables both power and data to be transmitted over a single cable. Its 4 independent extension ports allow multiple devices to be connected simultaneously while maintaining reliable, full-duplex 10/100Mbps network performance. Vigitron’s proprietary Symmetric Bandwidth (SBW™) and Virtual Zero Packet Loss (VZPL™) technologies ensure stable data transmission for high-resolution IP surveillance systems and bandwidth-intensive applications.

Designed for demanding commercial and industrial environments, the VI2304A features a durable aluminium housing and operates in temperatures ranging from -40°C to +75°C. It supports Jumbo Frames up to 9,600 bytes, complies with major IEEE networking standards and RFC protocols, and requires either a 72W PoE source or a 12VDC power supply for flexible deployment. Whether installed in warehouses, campuses, transport facilities, or perimeter security applications, the VIG-VI2304A delivers dependable long-range Ethernet and PoE performance.
