Description

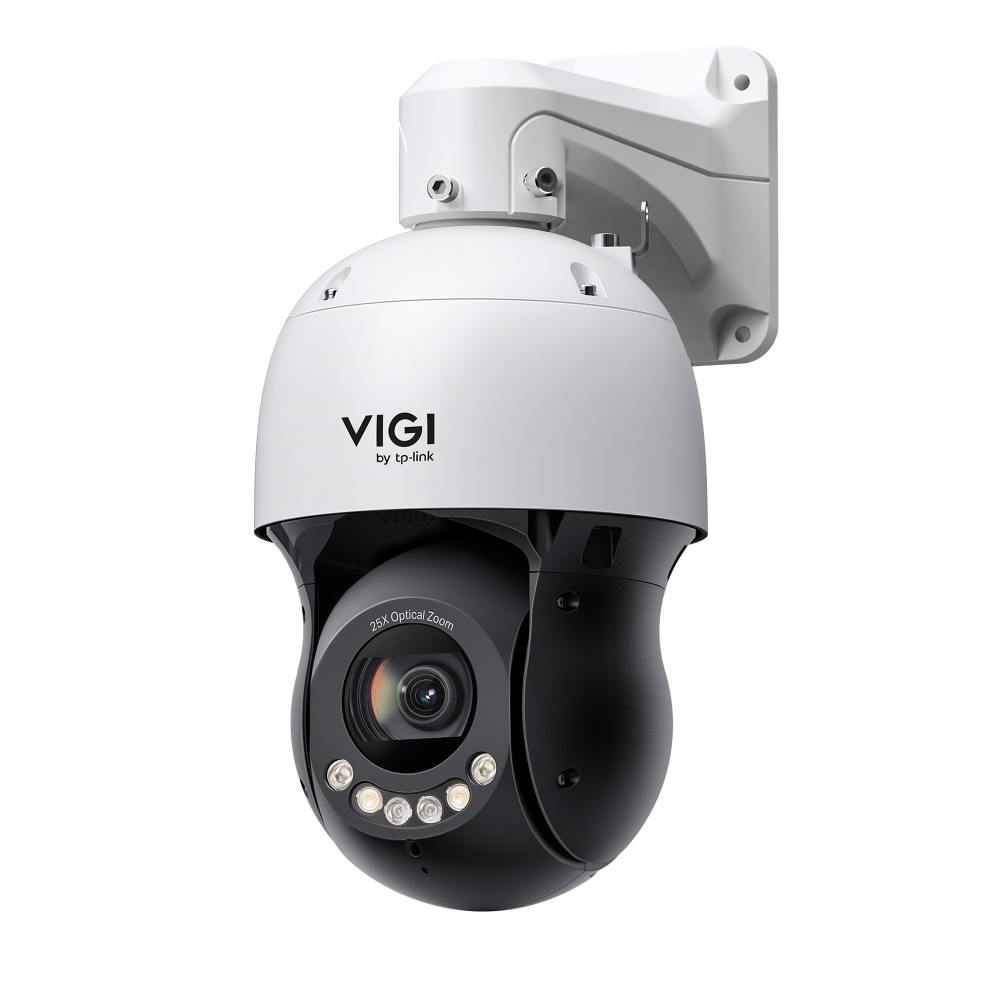

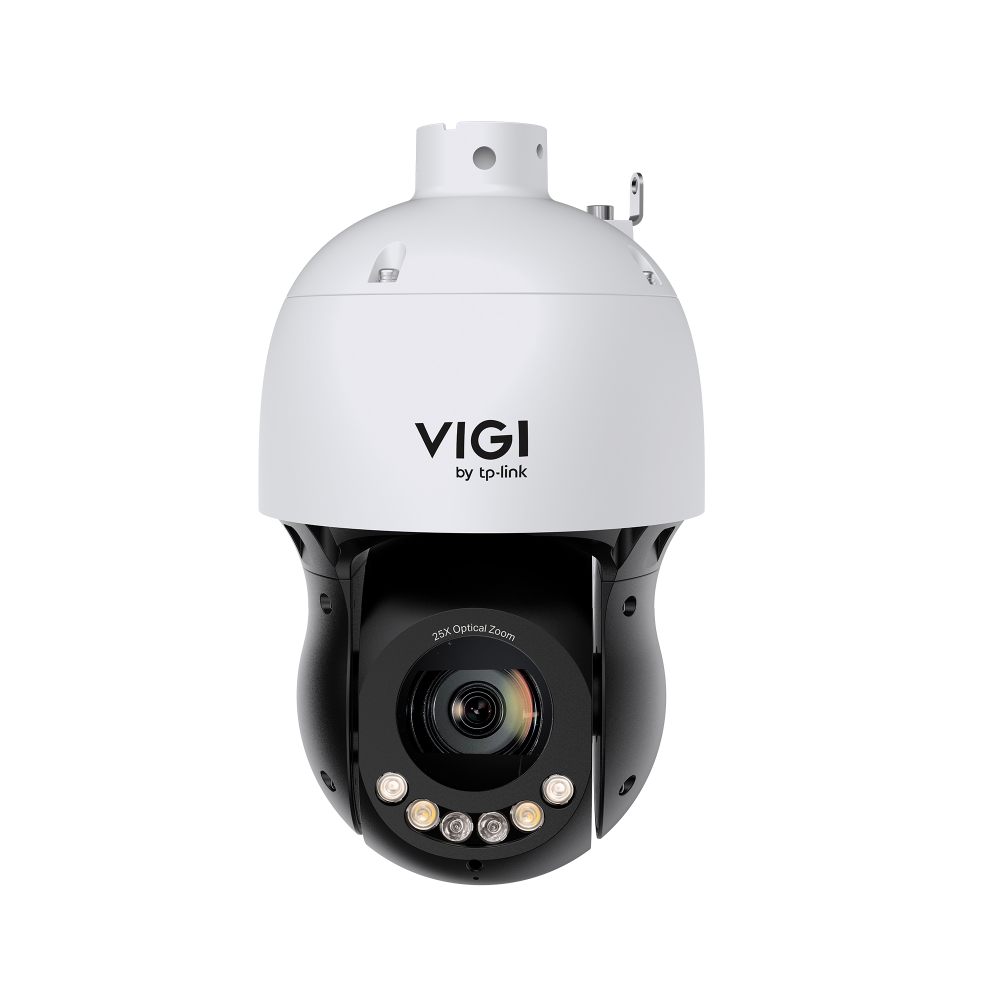

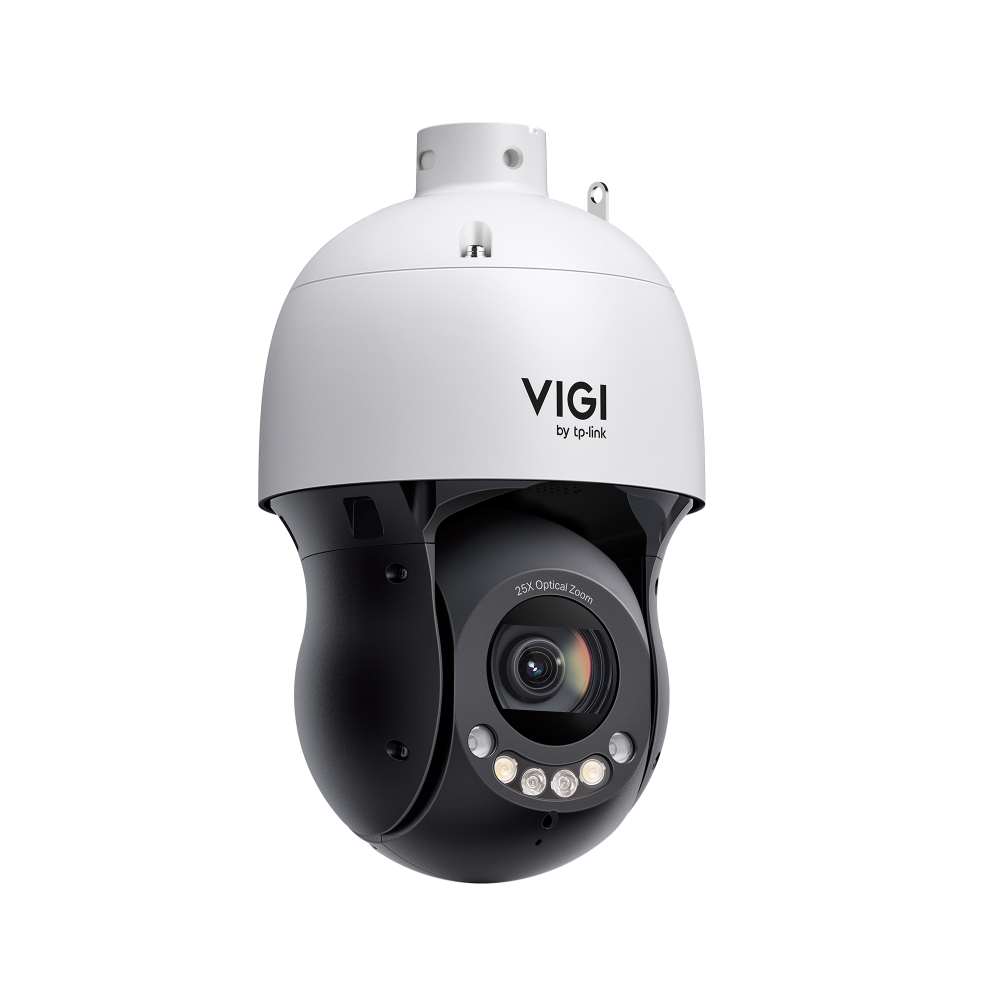

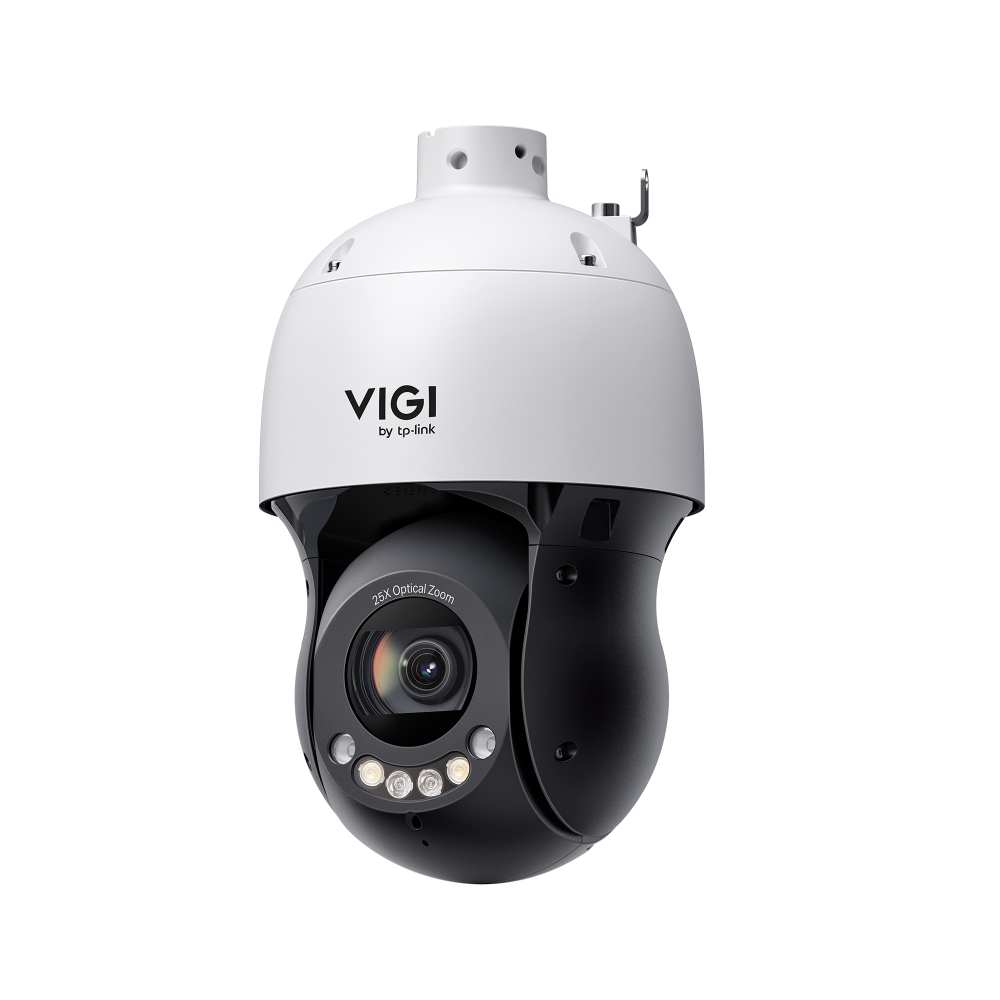

TP-Link’s NEW VIGI Insight PTZ5425
Click to watch a short video of Harry going throught the features of the first ever PTZ camera from TP-Link.
Technical Specifications
| Product Model | InSight PTZ5425 |
|---|---|
| Image Sensor | 1/2.9” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/30000 s |
| Slow Shutter | Yes |
| Min. Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| Type | Motorized Varifocal Lens |
| Focal Length | 5.2-130 mm (25X Optical Zoom) |
| Aperture | Max. F1.6 |
| FOV | • Horizontal FOV: 2.30°-57.06° • Vertical FOV: 1.31°-32.74° • Diagonal FOV: 2.63°-65.01° |
| DORI Distance | Wide • D: 351 ft (107 m) • O: 144 ft (44 m) • R: 69 ft (21 m) • I: 36 ft (11 m) Tele • D: 8530 ft (2600 m) • O: 3553 ft (1083 m) • R: 1706 ft (520 m) • I: 853 ft (260 m) |
| Pan/tilt Range | Pan: 0° to 360°, Tilt: -20° to 90° (Auto Flip) |
| Pan/tilt Speed | Pan Speed: • Configurable from 0° to 160°/s • Preset Speed: 240°/s Tilt Speed: • Configurable from 0° to 120°/s • Preset Speed: 200°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Pattern Scan | 16 Pattern Scans |
| Park Action | Preset, Patrol Scan, Pattern Scan, Home |
| Power Up Actions | Yes |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset, Patrol Scan, Pattern Scan |
| PTZ Protocol | Pelco-D, Pelco-P, Self-adaptive |
| Illuminator Type | • 2× IR LED • 2× Integrated Infrared-White LED |
| Illuminator Distance | † • IR LED: 100 m (328 ft) † • White LED: 50 m (164 ft) |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
