TP-Link SG1210MPE - 8 Port Gigabit PoE Smart Switch
TP-Link SG1210MPE - 8 Port Gigabit PoE Smart Switch - Image 2
TP-Link SG1210MPE - 8 Port Gigabit PoE Smart Switch - Image 3
TP-Link SG1210MPE - 8 Port Gigabit PoE Smart Switch - Image 4
TP-Link SG1210MPE - 8 Port Gigabit PoE Smart Switch - Image 5
TP-Link SG1210MPE - 8 Port Gigabit PoE Smart Switch - Image 6
TP-Link SG1210MPE - 8 Port Gigabit PoE Smart Switch - Image 7

TP Link

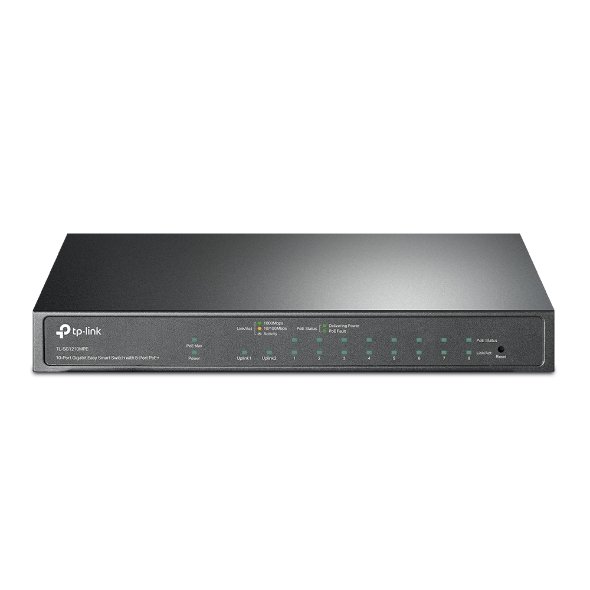

TP-Link SG1210MPE – 8 Port Gigabit PoE Smart Switch

SKU TPL-SG1210MPE

Out of stock

£93.92 ex VAT

£112.70 inc VAT

10-Port Gigabit Easy Smart Switch with 8-Port PoE+

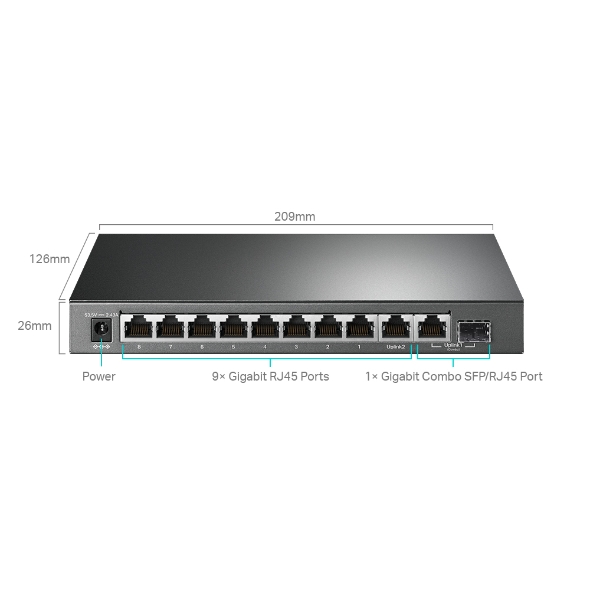

  • 9x Gigabit RJ45 ports and 1x combo gigabit SFP/RJ45 port

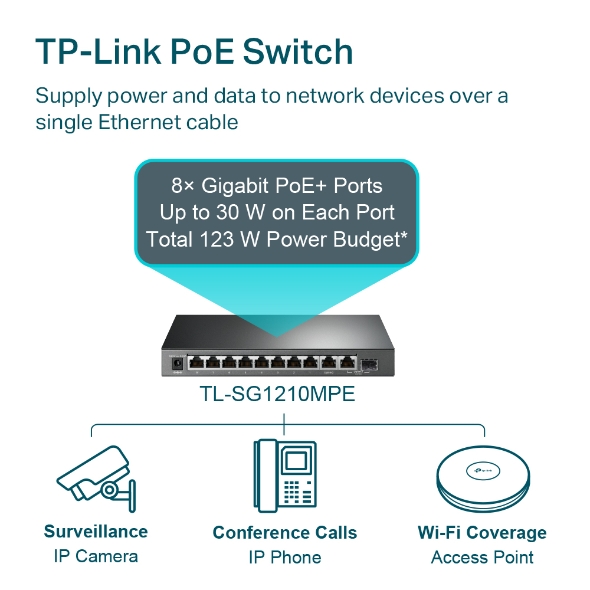

  • Equipped with eight 802.3af/at PoE+ ports with up to 30W for each port, the switch can transfer data and power via one single cable
  • Supports PoE power up to 123W for all PoE ports

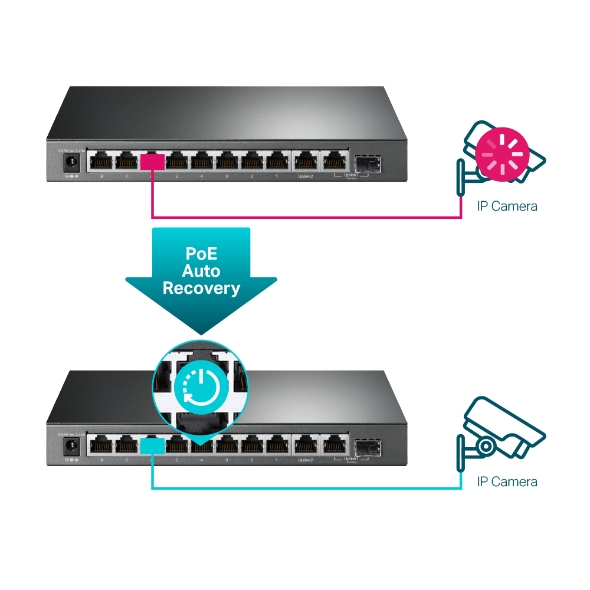

  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery

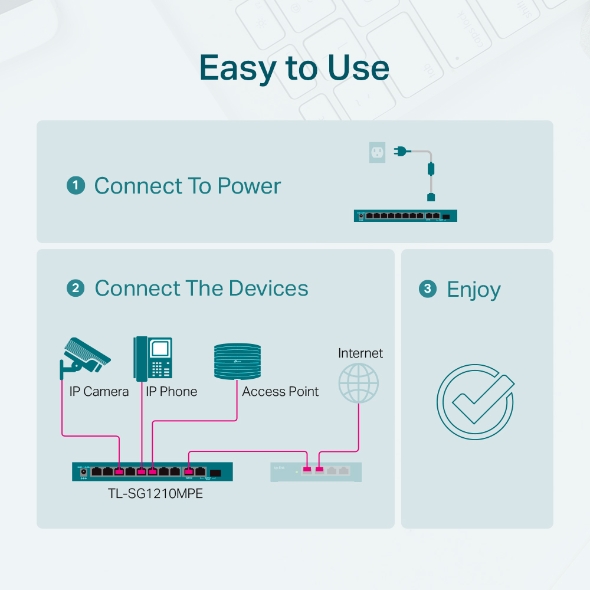

  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Fanless design lowers energy consumption and eliminates operating noise

Learn more about TP-LINK PoE technology >

Key specifications

Model
TL-SG1210MPE
Physical Features
Interface
PoE Standard
802.3af/at
PoE Ports
Port 1-8, up to 30 W per port
PoE Power Budget
123 W
External Power Supply
External Power Adapter(output: 53.5 VDC/2.43 A)
Max Power Consumption
7.66 W (220 V/50 Hz. no PD connected) 141.54 W (220 V/50 Hz. with 123 W PD connected)
Max Heat Dissipation
26.12 BTU/h (220 V/50 Hz. no PD connected) 482.65 BTU/h (220 V/50 Hz. with 123 W PD connected)
Full specification

Description

Technical Specifications

Model TL-SG1210MPE
Physical
Features		 Interface
PoE Standard 802.3af/at
PoE Ports Port 1-8, up to 30 W per port
PoE Power Budget 123 W
External Power Supply External Power Adapter(output: 53.5 VDC/2.43 A)
Max Power
Consumption		 7.66 W (220 V/50 Hz. no PD connected)
141.54 W (220 V/50 Hz. with 123 W PD connected)
Max Heat Dissipation 26.12 BTU/h (220 V/50 Hz. no PD connected)
482.65 BTU/h (220 V/50 Hz. with 123 W PD connected)
Fan Quantity Fanless
LED Power, PoE Max, Speed/Link/Act, PoE Status
Dimensions 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Environment Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90% RH, non-condensing
Storage Humidity: 5% to 95% RH, non-condensing
Performance Switching Capacity
Forwarding Rate 14.88 Mpps
MAC Address Table 4K
Jumbo Frame 16 KB
L2 Switching Features (cid:127) IGMP Snooping
– IGMP Snooping
– Supports 128 Groups
(cid:127) Link Aggregation
– Supports static link aggregation
– Supports up to 4 aggregation groups, containing 4 ports per group
(cid:127) Port Mirroring
– One to One
– Many to One
• Cable Test
(cid:127) Loop Prevention
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs)
• MTU/Port/802.1Q VLAN
Quality of Service (QoS) • Support Port-based/802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
PoE (cid:127) Extend Mode
• PoE Auto Recovery
Management • Web-based Graphic User Interface (GUI)
• Easy Smart Conguration Utility
– Central Management
– Friendly user interface
Ethernet Protocols (cid:127) IEEE 802.3i 10BASE-T
(cid:127) IEEE 802.3u 100BASE-TX/FX
(cid:127) IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
(cid:127) IEEE 802.1q VLANs/VLAN tagging
• IEEE 802.1p QoS

Additional information

Brand

TP Link
Number of ports

8-10 ports
PoE

PoE (15W)
Management

Smart
Port speed

Gigabit
