Description
Technical Specifications

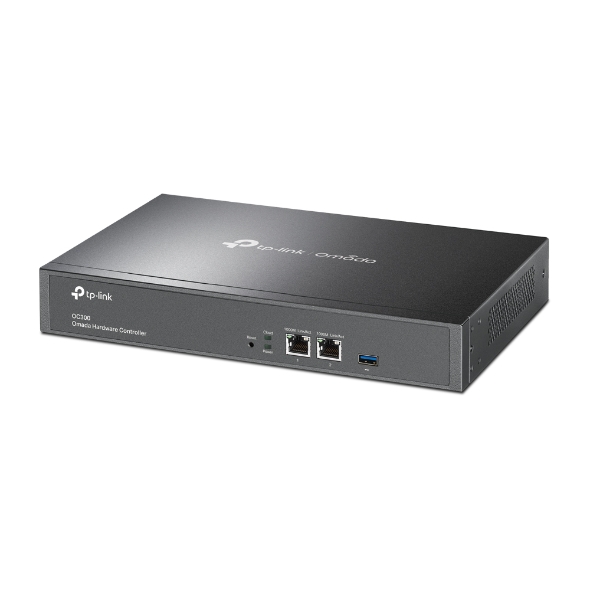

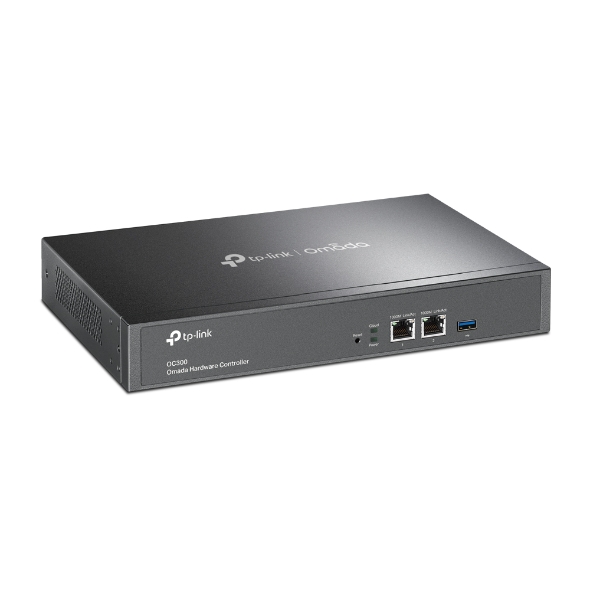

| Model | OC300 |
|---|---|
| Main Design | Processor |
| Memory Information | 2 GB DDR4 |
| Storage | 2MB Nor Flash; 8 GB eMMC |

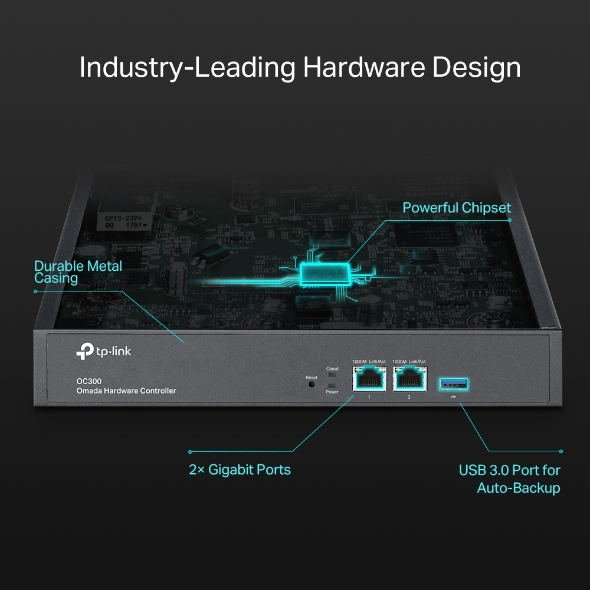

| RJ45 Port | 2 10/100/1000 Mbps Ethernet Ports |
| USB Port | 1 USB 3.0 Port |

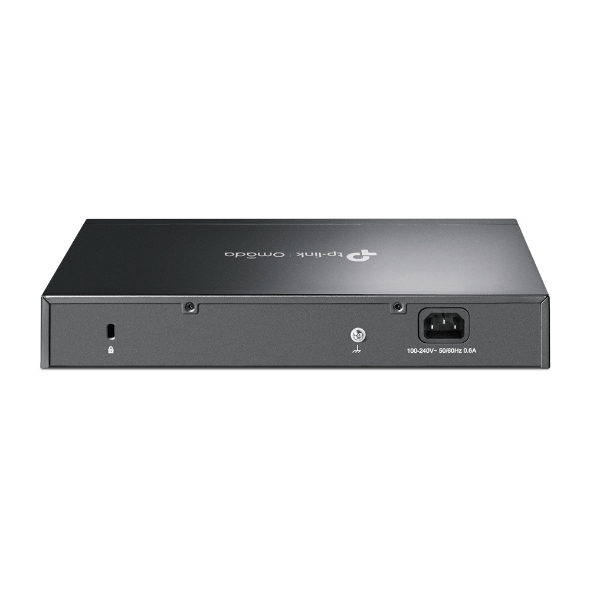

| Interface | 1 Kensington Lock; 1 Reset |
| Hardware Design | Power Supply |
| Max Power Consumption | 9.0 W (no USB 3.0 connected); 14.8 W (with USB 3.0 connected) |
| Dimensions | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
| System Management | Multi-Site Management |
| Multi-tenant Management (Role/Site/Device Privileges) |
√ |
| Cloud Access | √ |
| Migration (Site Migration/Controller Migration) |
√ |
| Account Management | √ |
| Maximum Number of Sites | 100 |
| Maximum Number of Accounts | 1000 |
| Maximum Number of Local Accounts | 500 |
| Maximum Number of Cloud Accounts | 500 |
| Maximum Number of Vouchers | 50,000 |
| Maximum Number of Local Users | 50,000 |
| Maximum Simultaneously Used VLANs | 4,090 per site* |
| Maximum Number of WLAN Groups | 500 |
| Maximum Number of SSIDs | 16 in each site |
| Maximum Number of ACL | For each site: Router: 64 Switch: 32** EAP: 16 |
| Maximum Number of Free Authentication | 32 in each site |
| Maximum Number of Pre-Authentication Access |
32 in each site |
| Maximum Number of Authentication Free Policy |
96 in each site |
| Maximum Number of Reboot Schedule | 8 in each site |
| Maximum Number of PoE Schedule | 8 in each site |
| Maximum Number of MAC Filter Groups | 8 in each site |
| Maximum Number of MAC Addresses in Each MAC Filter Group |
500 (4,000 in total per controller) |
| Maximum Number of VPN | 64 in each site |
| Maximum Number of Static Routing | 64 in each site |
| Maximum Number of Policy Routing | 64 in each site |
| Backup & Restore | √ |
| Auto Backup | √ |
| Customized UI Interface | √ |
| Model | OC300 |
| Network Management | Wired Network |
| Wireless Network | √ |
| Network Security (ACL/URL Fitering/Attack Defense) |
√ |
| Transmission (Routing/NAT/Session Limit/Bandwidth Control) |
√ |
| VPN (IPSec/L2TP/PPTP/OpenVPN) | √ |
| Portal (Voucher/Local User/SMS/RADIUS/Facebook/ External Portal Server) |
√ |
| 802.1x | √ |
| RADIUS (Authentication/MAC Auth/Accounting) |
√ |
| Device Management | Management Device Type |
| Management Scale** | 500APs, 100 Routers, up to 100 Switches*, up to 5 DeltaStream GPON OLTs* Note: The number of supported Omada Switches decreases by 5 for each DeltaStream GPON OLT added. The DeltaStream GPON OLTs supported by the controller are DS-P7001- 04 and DS-P7001-08. |
| Device Automatic Discovery | √ |
| Batch configuration | √ |
| Online upgrade | √ |
| Reboot Schedule | √ |
| PoE Schedule | √ |
| WLAN Scheduler | √ |
| DDNS | √ |
| SNMP | √ |
| SSH | √ |
| Monitoring | Dashboard (Custom Dashboard) |
| Statistics (Performance/Switch Stats/Speed Test Stats) |
√ |
| Network topology | √ |
| Network Map | √ |
| Devices List (Custom Table) | √ |
| Clients List (Custom Table) | √ |
| Insights (Known Clients/Past Connections/Past Portal Authorizations/Rogue APs) |
√ |
| Logs (Alerts/Events/Custom Notifications) |
√ |
| Others | Certifications |
| Operating Temperature | 0 °C–50 °C (32 °F–122 °F) |
| Storage Temperature | -40 °C–70 °C (-40 °F–158 °F) |
| Operating Humidity | 10%–90% non-condensing |
| Storage Humidity | 5%–90% non-condensing |
