TP-Link Omada ER605 - Gigabit VPN Gateway
TP-Link Omada ER605 - Gigabit VPN Gateway - Image 2
TP-Link Omada ER605 - Gigabit VPN Gateway - Image 3

TP Link

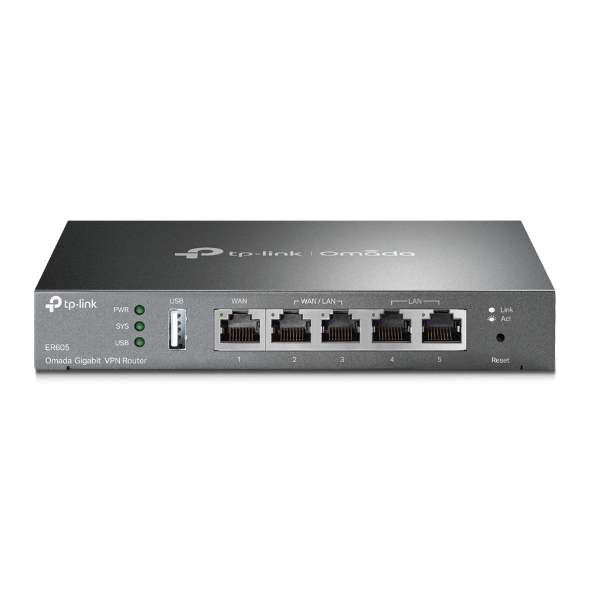

TP-Link Omada ER605 – Gigabit VPN Gateway

SKU TPL-ER605

In stock

£54.84 ex VAT

£65.81 inc VAT

Omada Gigabit VPN Router

  • Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring
  • Centralized Management: Cloud access and Omada app for convenience and easy management
  • Five Gigabit Ports: High-speed wired connectivity

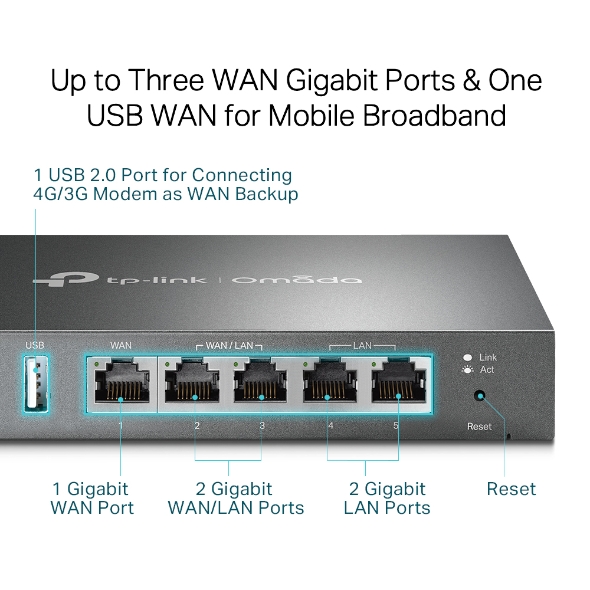

  • Up to 3 WAN Ethernet Ports: 1x gigabit WAN port and 2x gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband
  • One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port
  • Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN, 16× L2TP, and 16× PPTP VPN connections
  • Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data

Order now for delivery Tuesday 27 October on orders over £300

  • Free next working day delivery to mainland UK on orders over £300 inc VAT placed by 11am, Monday to Friday
  • Orders under £300 inc VAT: £9.99 delivery in 2 to 3 working days.
  • 14 day returns on unused items
  • VAT invoice with every order

Installer or electrician? Apply for a trade account

Key specifications

Model
ER605 V2.2
Product Description
Omada Gigabit VPN Gateway
Hardware
Standards and Protocols
Interface
1 Gigabit WAN port 2 Gigabit LAN/WAN ports 2 Gigabit LAN ports
USB
1 1 USB2.0 (supports USB LTE dongle )
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Button
Reset Button
Power Supply
External 12 V/1 A DC Adapter
Full specification

Description

Technical Specifications

Model ER605 V2.2
Product Description Omada Gigabit VPN Gateway
Hardware Standards and Protocols
Interface 1 Gigabit WAN port
2 Gigabit LAN/WAN ports
2 Gigabit LAN ports
USB 1
1 USB2.0 (supports USB LTE dongle )
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Button Reset Button
Power Supply External 12 V/1 A DC Adapter
Flash 128 MB NAND
DRAM 256 MB DDR
LED PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Power Consumption (max.) 7.94 W
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
SDN Support Hardware Controller (OC200/OC300)
2
Performance		 Concurrent Session
New Sessions /Second 2,600
DPI Throughput TCP: 905 Mbps
UDP: 788 Mbps
Static IP NAT Throughput Upload: 945.77 Mbps; Download: 938.79 Mbps
Bi-Directional: 1808.29 Mbps
DHCP NAT Throughput Upload: 945.54 Mbps; Download: 945.66 Mbps
Bi-Directional: 1802.77 Mbps
PPPoE NAT Throughput Upload: 939.71Mbps; Download: 939.43 Mbps
Bi-Directional: 1788.54 Mbps
L2TP NAT Throughput Upload: 815.55 Mbps; Download: 835.59 Mbps
Bi-Directional: 903.13 Mbps
PPTP NAT Throughput Upload: 813.23 Mbps; Download: 850.91 Mbps
Bi-Directional: 894.41 Mbps
66 Byte Packet forwarding rate Upload/Download: 954.50 Mbps
Bi-Directional: 1130.00 Mbps
1518 Byte Packet forwarding rate Upload/Download: 997.50 Mbps
Bi-Directional: 1965.00 Mbps
Model ER605 V2.2
1
Performance		 IPSec VPN Throughput
WireGuard VPN 130.96 Mbps
OpenVPN 21.70 Mbps
GRE Unencrypted: 359.74 Mbps
Encrypted: 78.11 Mbps
L2TP VPN Throughput Unencrypted: 640.99 Mbps
Encrypted: 77.31 Mbps
PPTP VPN Throughput Unencrypted: 759.55 Mbps
Encrypted: 75.80 Mbps
Basic Functions WAN Connection Type
DHCP DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
MAC Clone 2
Modify WAN/LAN MAC Address
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-
Address mode
stateful ACL √
mDNS Repeater √
Quality of Service √
Bridge VLAN √
VLAN 802.1Q VLAN
Transmission Load Balance
NAT One-to-One NAT
Multi-Net NAT
Port Forwarding
3
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Routing Static Routing
Policy Routing
3
RIP
3
OSPF
Model ER605 V2.2
Transmission Session Limit
Bandwidth Control IP-based Bandwidth Control
VPN IPSec VPN
PPTP VPN PPTP VPN Server
1
PPTP VPN Client (10)
16 Tunnels
PPTP with MPPE Encryption
L2TP VPN L2TP VPN Server
1
L2TP VPN Client (10)
16 Tunnels
L2TP over IPSec
GRE Only in Standalone Mode
WireGuard VPN √
OpenVPN OpenVPN Server
1
OpenVPN Client (10)
16 OpenVPN Tunnels
“Certificate + Account” Mode
Full Mode
Security Attack Defense
Filtering 2
Web Group Filtering
URL Filtering
2
Web Security
DNS Proxy DNSSEC, DoH and DoT
ARP Inspection 3
Sending GARP Packets
3
ARP Scanning
IP-MAC Binding
Access Control Source/Destination IP Based Access Control
Model ER605 V2.2
Authentication Web Authentication
Management Service
Maintenance Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
3
Diagnostics (Ping & Traceroute)
3
NTP Synchronize
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
Others Certification
Package Contents ER605, Power Adapter, RJ-45 Ethernet Cable, Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
