Description
Technical Specifications
| Model | ES208G |
|---|---|
| General | Interface |
| Flash | 64 Mbit |
| Port Standard | IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-X Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3x: Flow Control IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering IEEE 802.1q: Virtual Bridged Local Area Networks IEEE 802.1ab: Station and Media Access Control Connectivity Discovery (LLDP) |
| Performance | Switching Capacity |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4 Mbit |
| Transmission Method | Store and Forward |
| Jumbo Frame | 15 KB |
| Physical & Environment |
Power Supply |
| Max Power Consumption | 2.7 W (110V/60Hz) |
| Max Heat Dissipation | 9.09 BTU/hr (110 V/60 Hz) |
| Standby Power Consumption | 0.9 W (110V/60 Hz) |
| Surge Protection | ±6 kV in common mode for Ethernet Ports |
| ESD Protection | Air: ±8 kV, Contact: ±4 kV |
| MTBF | 1141726h @ 25°C |
| Dimensions (W x D x H) | 6.2×4.0×1.0 in (158×100.7×25.4 mm) |
| Fan Quantity | Fanless |

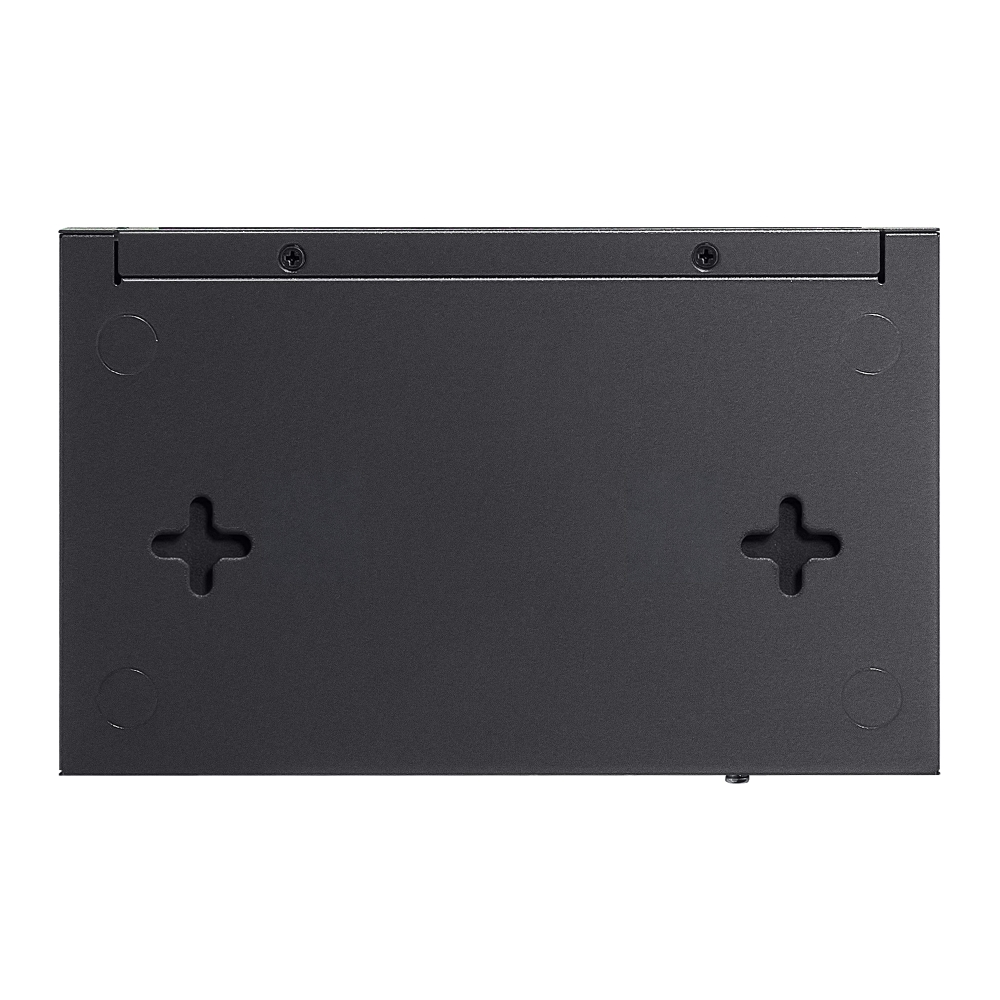

| Installation | Desktop/Wall Mount |
| Operating Temperature | -5 °C to 45 °C (23 °F to 113 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operation Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Certification | CE, FCC, RoHS |
| Model | ES208G |
| SDN Support | • Support Hardware Controller, Software Controller, Cloud-Based Controller • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration |
| L2 Features | • Link Aggregation – Static Link Aggregation – Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both • Port Statistics – Port Mirror Status – Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID |
| QoS | • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port-Based Rating Limit • Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control |
| Management | • Web-based GUI • DHCP Client • Cable Diagnostics |
| Model | Description |

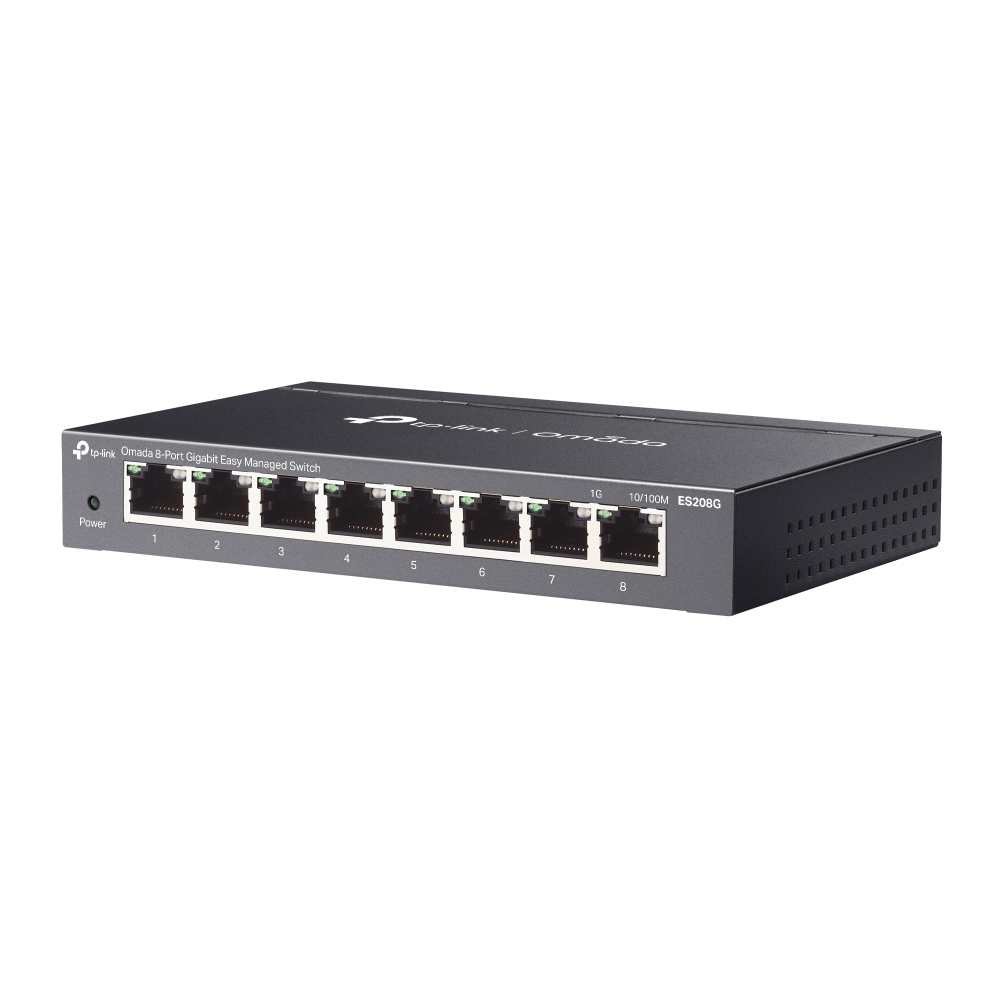

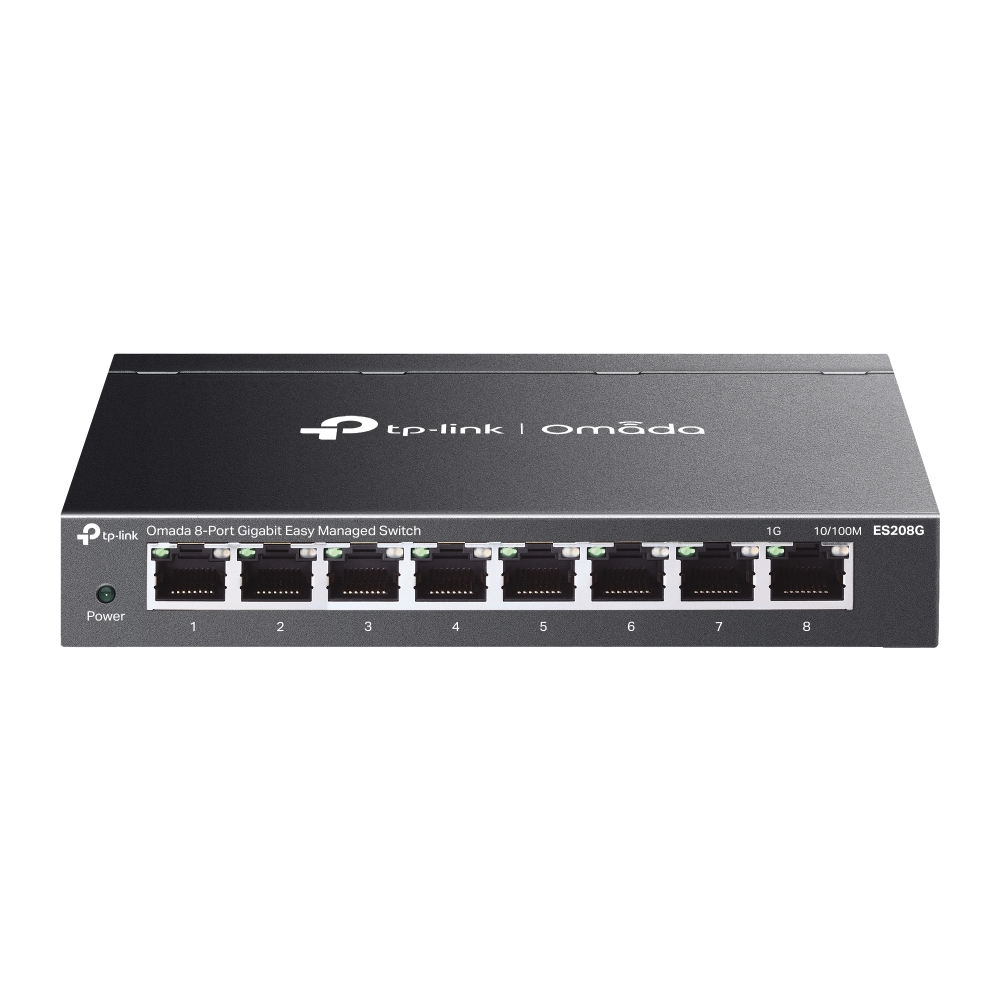

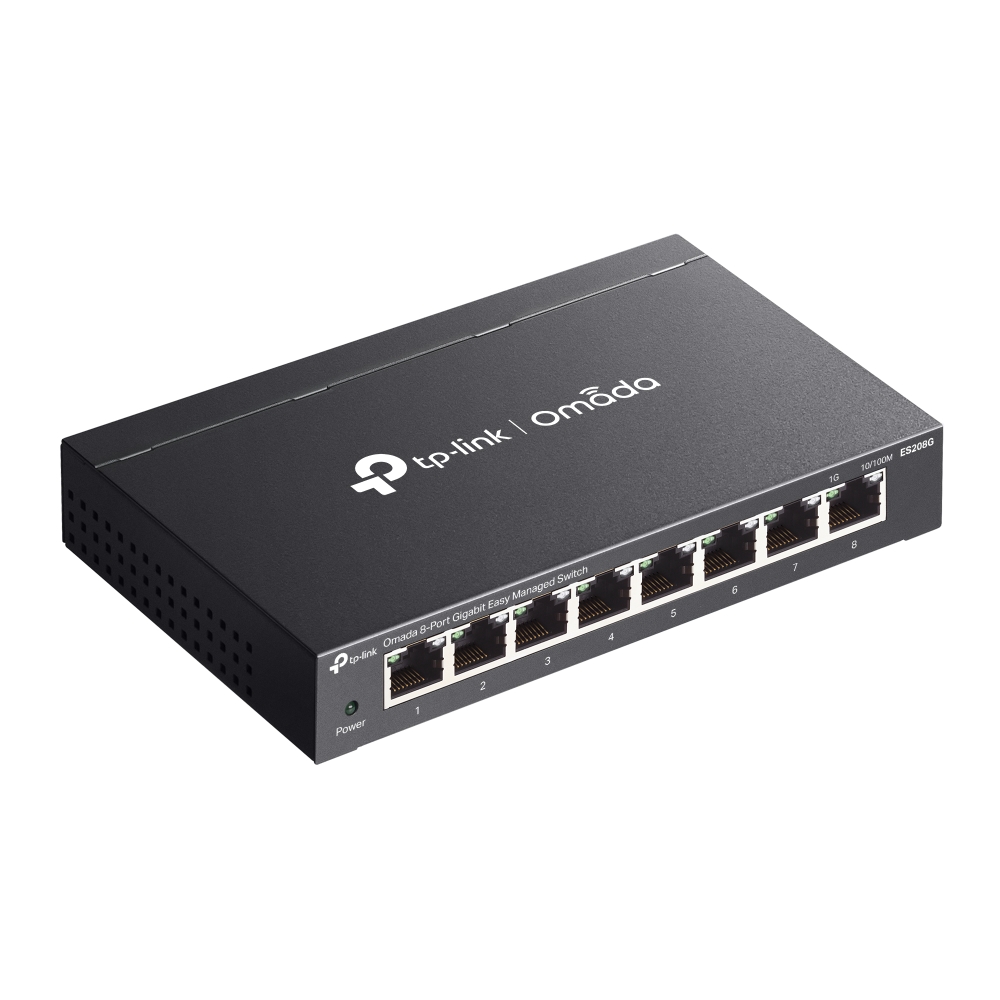

| ES208G | Omada 8-Port Gigabit Easy Managed Switch |
| Model | Description |
| MC210CS | Gigabit Single-Mode Media Converter, up to 20 km, chassis mountable |
| MC200CM | Gigabit Multi-Mode Media Converter, up to 550 m, chassis mountable |
| MC220L | Gigabit SFP Media Converter, chassis mountable |
| Model | Description |
| FC111A-20 | 100Mbps Single-Mode WDM Media Converter, up to 20 km, TX:1550nm, RX:1310nm, chassis mountable |
| FC111B-20 | 100Mbps Single-Mode WDM Media Converter, up to 20 km, TX:1310nm, RX:1550nm, chassis mountable |
| FC311A-2 | Gigabit Single-Mode WDM Media Converter, up to 2 km, TX:1550nm, RX:1310nm, chassis mountable |
| FC311B-2 | Gigabit Single-Mode WDM Media Converter, up to 2 km, TX:1310nm, RX:1550nm, chassis mountable |
| FC311A-20 | Gigabit Single-Mode WDM Media Converter, up to 20 km, TX:1550nm, RX:1310nm, chassis mountable |
| FC311B-20 | Gigabit Single-Mode WDM Media Converter, up to 20 km, TX:1310nm, RX:1550nm, chassis mountable |
