Technical Specifications

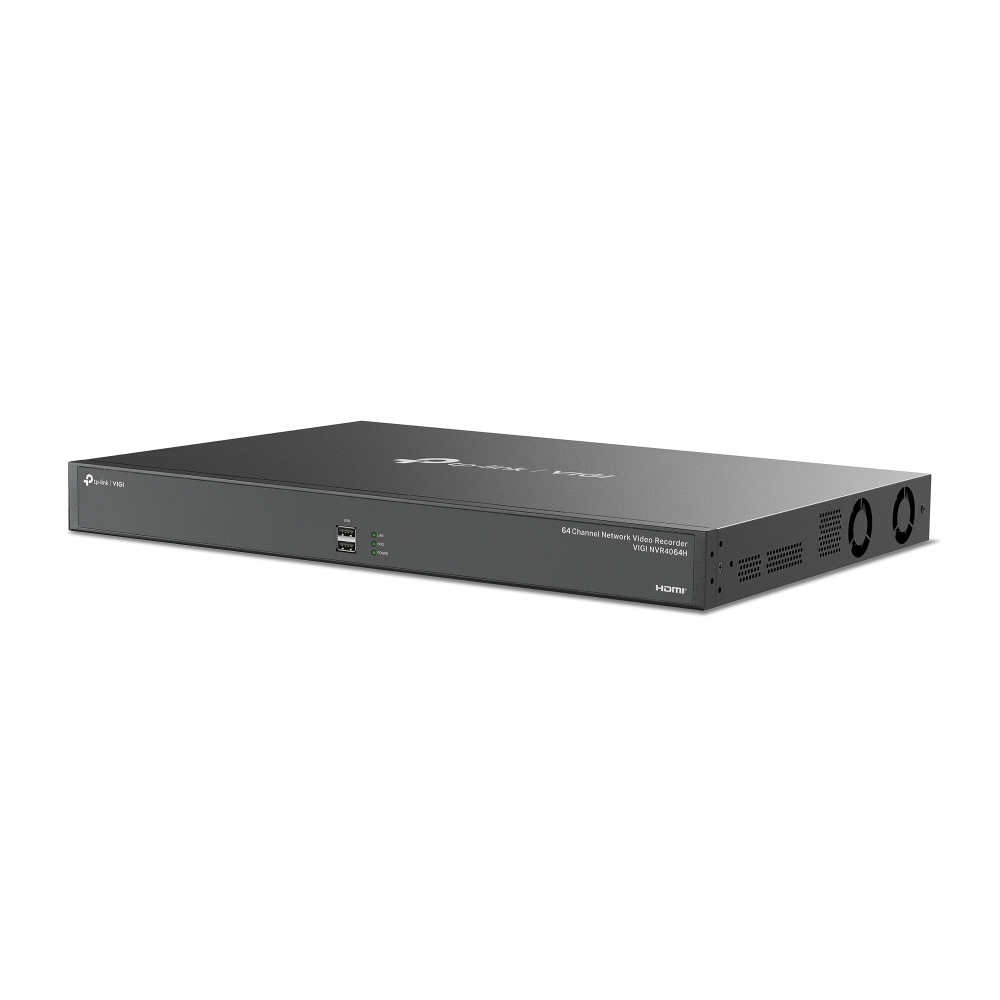

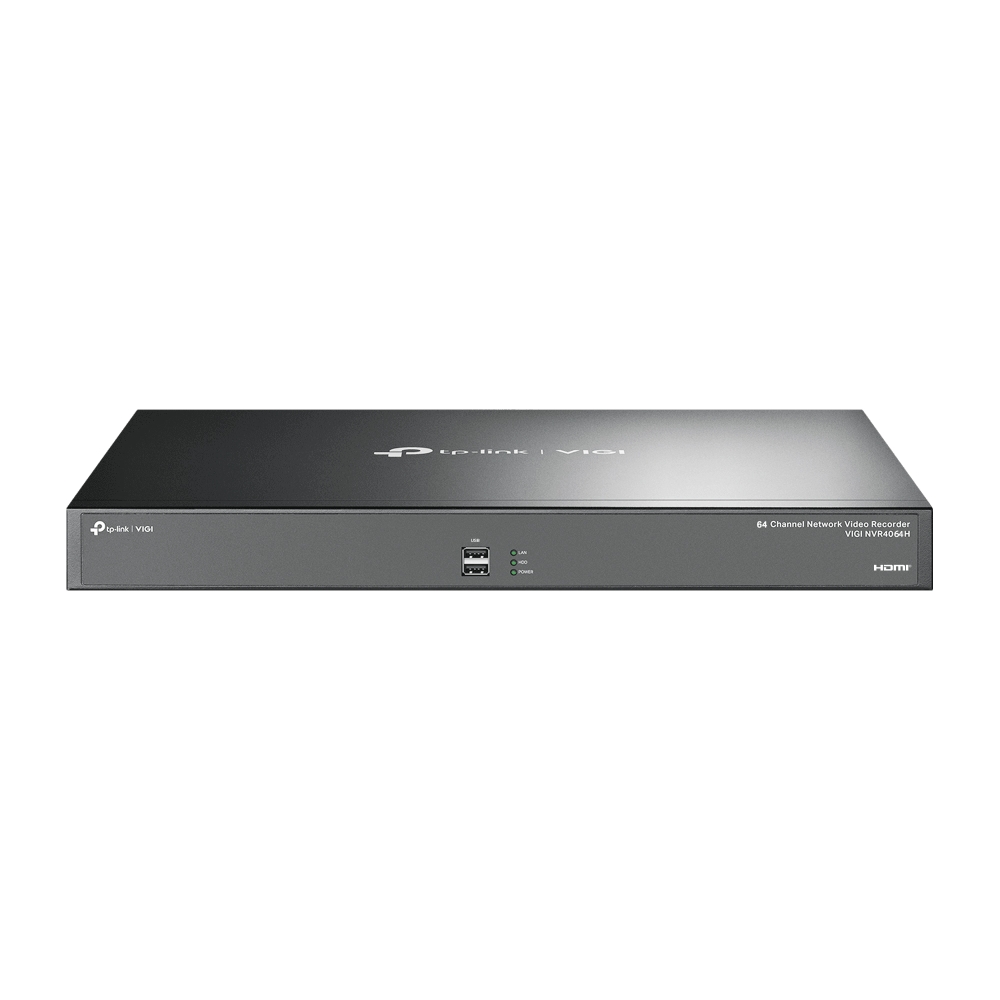

| Model | VIGI NVR4064H |
|---|---|
| Video & Audio | IP Video Input |
| Incoming Bandwidth | Default: 260Mbps Extended Bandwidth Mode: 320Mbps |
| Outgoing Bandwidth | Default: 180Mbps Extended Bandwidth Mode: 320Mbps |
| HDMI Output Resolution | 2 Channels • HDMI1 Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz • HDMI2 Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Video Output Mode | • HDMI1/HDMI2 Independent output • HDMI1/VGA Independent output Note: HDMI2 and VGA cannot operate simultaneously. If both connections are made, HDMI2 will take precedence and function as the primary output. |
| Multi-View Display | 1,4,6,8,9,16,25,32,36,49,64 |
| Decoding | Audio Compression |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | † 16-Channel |
| Capability | • 25fps: , , 16-ch@2MP 32-ch@720P 64-ch@D1 • 30fps: , , 4-ch@8MP 6-ch@5MP 8-ch@4MP |
| Record Management | Record Mode |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
| Network | Protocols |
| Interoperability | ONVIF Profile S, CGI |
| Mobile Phone Access | Android, iOS |
| Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Hard Disk | SATA |
| Capacity | Up to 16 TB Capacity for Each HDD |

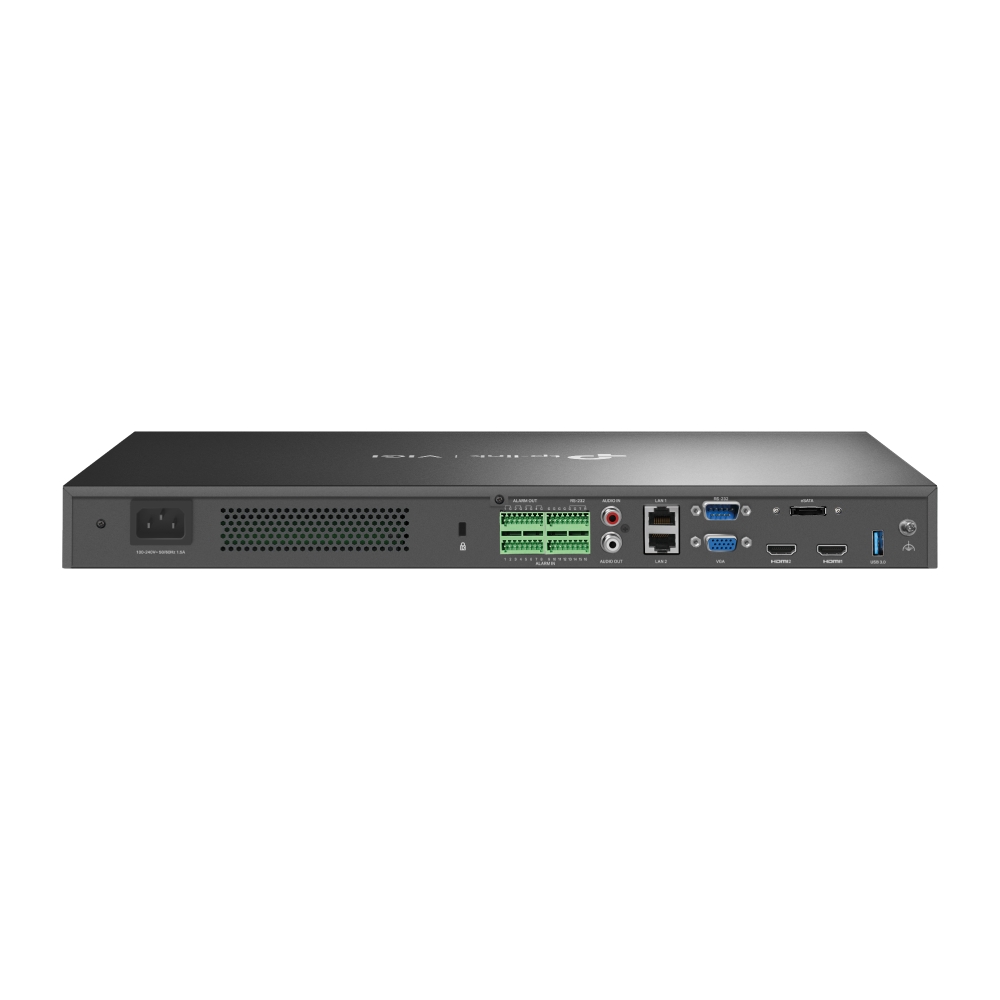

| External Interface | Network Interface |
| USB Interface | Front Panel: 2 × USB 2.0; Rear Panel: 1× USB 3.0 |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 16/4 |
| Serial Interface | 1, RS232 |
| Power | 1× AC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 2 |
| VGA | 1 |
| Alarm | General Alarm |
| Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception Note: The alarm function requires the use of a camera. |
| Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm Note: The alarm function requires the use of a camera. |
| General | Power Supply |
| Power Consumption | • 6.95 W (Without Disk) • 48.38 W (With Disk) |
| Working Temperature | -10–55 °C |
| Storage Temperature | -40–70 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents | • VIGI Network Video Recorder • Mouse • Installation Guide • Power Cord • HDD Power Cables • HDD Data Cables • Terminal Blocks • Mounting Brackets • Screws • Rubber Feet |
| Product Dimensions | 17.32 × 12.99 × 1.73 in (440 × 330 × 44 mm) |
| Weight | # # Net: 4.0 Kg ; Gross: 5.0 Kg |
