Description
Technical Specifications
| Product Model | VIGI NVR1004H-4P |
|---|---|
| IP Video Input | 4-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4 |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous Playback | † 4-Channel |
| Capability | •25fps: 2-ch @ 8MP, 4-ch @ 4MP •30fps: 4-ch @ 4MP, 3-ch @ 5MP |
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
| Playback Mode | Instant Playback, Rgular Playback, Tag Playback, Event Playback |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/ Off |
| Network Protocols | UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Interoperability | ONVIF Profile S, CGI |
| Mobile Phone Access | Android, iOS |
| Browser | Chrome (57+), Firefox (52+), Edge (91+) |

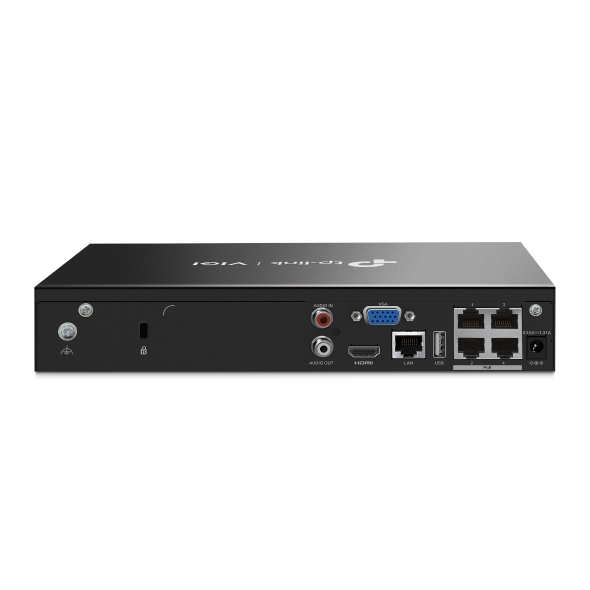

| Interface | 4× RJ-45 10/100 Mbps PoE Port |
| PoE Budget | △ 53 W Available for All PoE+ Ports, 30 W Max per Port |
| Standard | 802.3at/af Compliant |
| Network Interface | 1, RJ-45 10/100 Mbps LAN Port |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| SATA | 1 SATA Interface |
| Capacity | •Up to 10 TB Capacity for Each HDD 1 × 2TB HDD Preinstalled (For VIGI NVR1004H-4P-2TB) |
| General Alarm | Motion Detection, Video Tampering, Scene Change Detection, Line- Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Loitering Detection, Object Abandoned/ Removal Detection, Vehicle Detection, Human Detection, Abnormal Sound Detection, Smart Frame Note: The alarm function requires the use of a camera. |
| Anomaly Alarm | Video Loss, Offline and IP Conflict,Disk Exception, Login Exception |
| Alarm Linkage | Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm Note: The alarm function requires the use of a camera. |
| Package Contents | •VIGI Network Video Recorder •Power Adapter •Power Cables •Rubber Feet •Mouse •Quick Installation Guide |
| Power Supply | 53.5V DC/1.31A |
| Max Power Consumption (Without Disk) |
△ 4.25 W (Without Disk) |
| Max Power Consumption (With Disk) | △ 13.10 W (With Disk) |
| Working Temperature | •NVR: -10–55 °C •Power Adapter: 0–40 °C |
| Storage Temperature | -40-70 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Product Dimensions (W × D × H) | 246.2 × 148.2 × 45 mm |
| Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
