Description

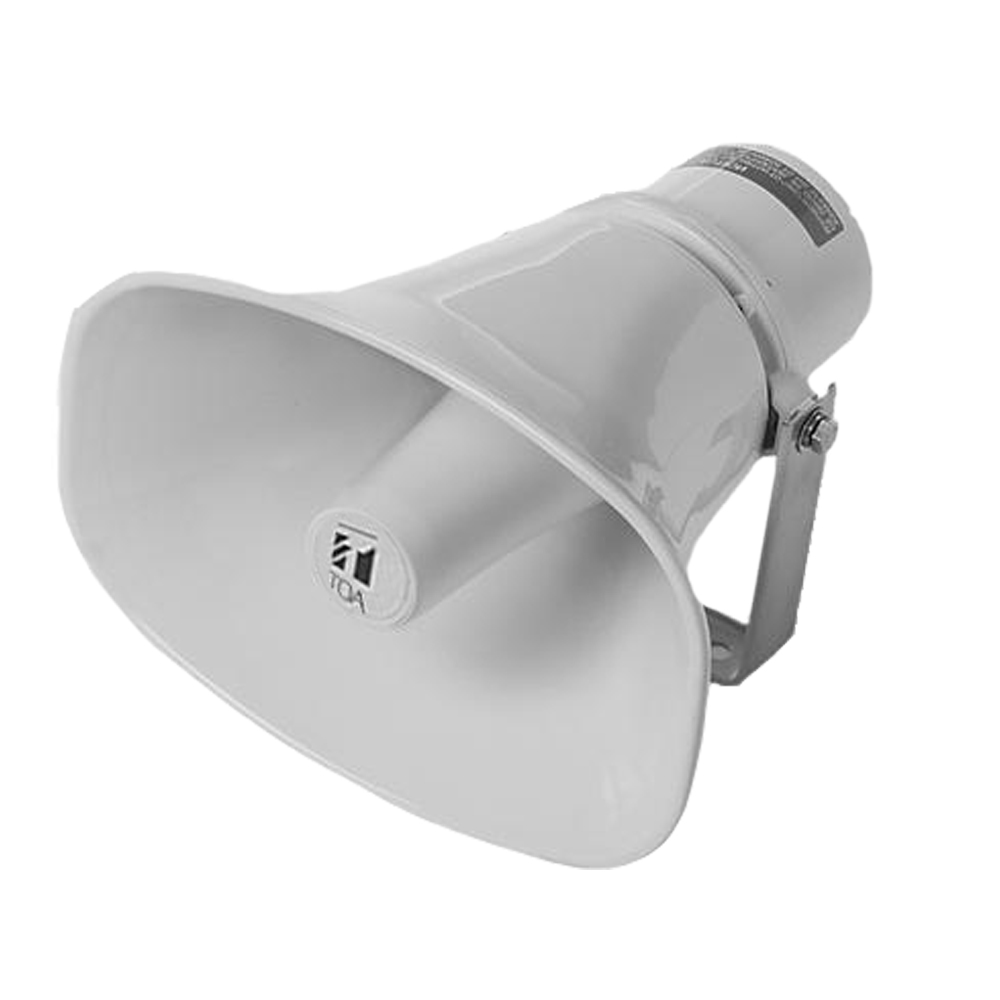

The SC-630M is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit’s weatherproof capability.
| SC-630M | SC-610M | SC-615M | |
|---|---|---|---|
| Frequency response |
250 Hz – 10 kHz |
315 Hz – 12.5 kHz |
280 Hz – 12.5 kHz |
| Connection |
Cable with two wires |
Cable with 2 wires |
Cable with 2 wires |
| Sensitivity (1 W, 1 m) |
113 dB |
110 dB |
112 dB |
| Rated input (High Impedance) |
30 W |
10 W |
15 W |
| Tappings |
30 / 15 / 10 / 5 W (70 V) 30 / 15 / 7.5 / 5 / 2.5 W (100 V) |
100V line: 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W), 10kΩ (1W) 70V line: 500Ω (10W), 1kΩ (5W), 2kΩ (2.5W), 3.3kΩ (1.5W), 10kΩ (0.5W) |
100V LINE: 670Ω (15W), 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W) 70V LINE: 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W), 3.3kΩ (1.5W) |
| Operating temperature |
-20 °C to +55 °C (must be free from dew condensation) |
-20 °C to +55 °C (must be free from dew condensation) |
-20 °C to +55 °C (must be free from dew condensation) |
| Finish |
Aluminium, powder coating, off-white (RAL 9010 or equivalent) |
Aluminium, powder coating, off-white (RAL 9010 or equivalent) |
Aluminium, powder coating, off-white (RAL 9010 or equivalent) |
| Dimensions |
285 x 227 x 277 mm (W x H x D) |
172 x 161 x 188 mm (W x H x D) |
222 x 179 x 234 mm (W x H x D) |
| Weight |
2 kg |
Technical Specifications
| Delivery Duration | Next Day Delivery |
|---|---|
| Brand | TOA |
| Colour | Grey |
| Special Order | No |
