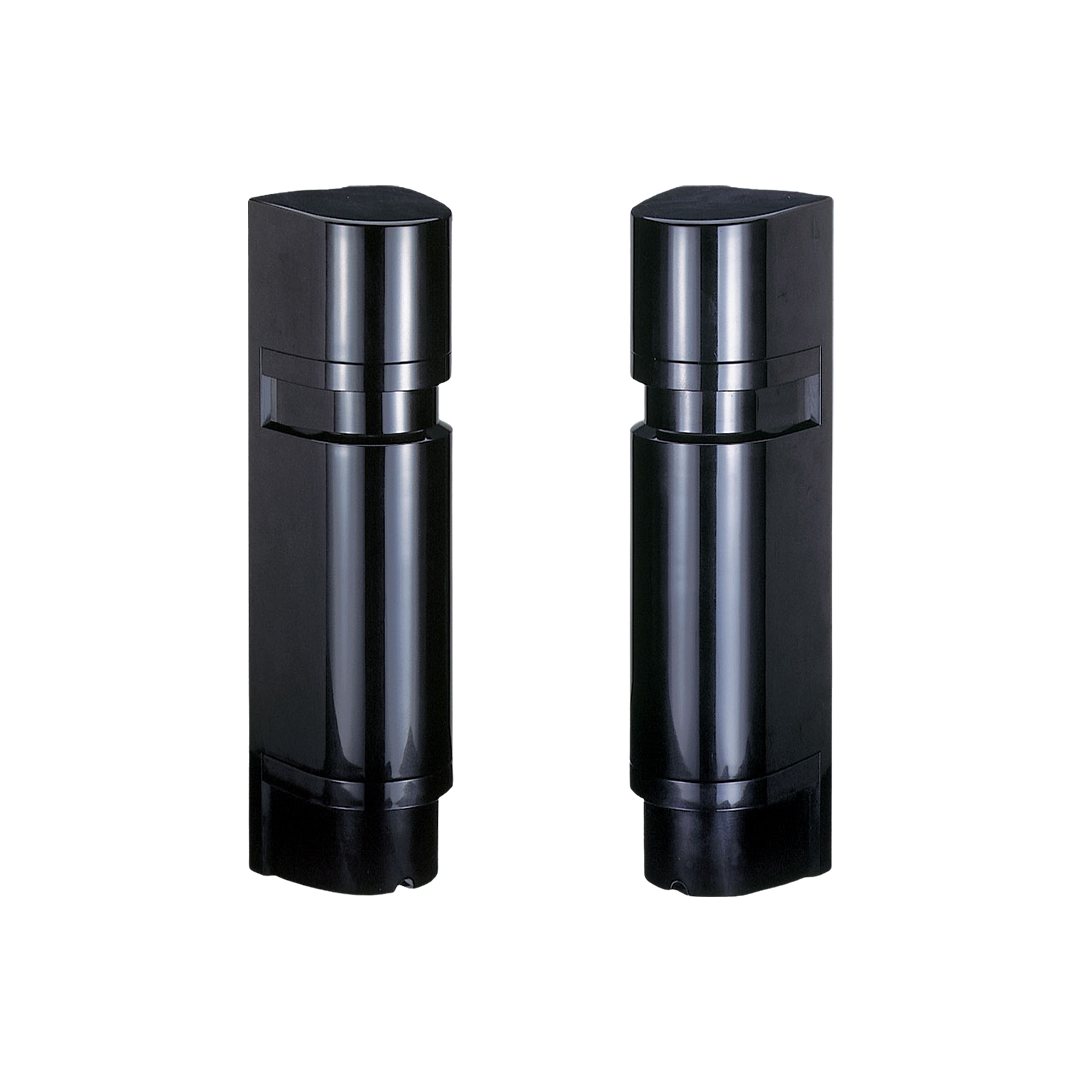

Takex PBIN100HFA – Quad Beam Four Channel (100m Outdoor)

PB-IN-HFA Series - PBIN100HFA Quad Beams

The PB-IN-HFA series is the flagship of the TAKEX range of infrared photoelectric beams.

Synchronising 16 beam paths between Transmitter and Receiver, the PB-IN-HFA series offer unrivalled stability in perimeter security. Coupled with channel separation and environmental (anti fog) circuitry, the PB-IN-HFA series has earned worldwide recognition as the standard our rivals aspire to.

Detection system: Near infrared beam interruption system (TR-RE 4 beams simultaneous interruption)
Infrared beam: Double modulation pulsed beams by LED
Detection distance: Outdoor (100m) or less
Response time: 50msec. to 700msec. variable (Standard : 50msec.)
Frequency Selection: 4 Channels
Supply voltage: 12V to 30V DC (non-polarity)
Current consumption: 70mA or less at protection (max. 105mA or less)
Alarm output: Dry contact relay: NO or NC (selectable) Reset: Interruption time + off-delay (approx. 1.5sec) Contact capacity: 30V (AC/DC) 1A or less
Environmental output: Dry contact relay: NO or NC (selectable) Contact operation: Output when weather condition gets worse / Contact capacity: 30V (AC/DC) 1A or less
Tamper output: Dry contact relay: NC / Contact operation: Output when receiver cover is detached / Contact capacity: 30V (AC/DC) 0.1A or less
LED indicator: Red LED (receiver) / Lights when an alarm is intiated / Lights when beam reception is attenuated
Functions: Modulated beam frequency selection, Tone indicator, Environmental module, Beam power selection, Alarm memory indication, Programmed AGC, Auto-gain lock function, Monitor jack.
Mounting position: Outdoor
Wiring: Terminals
