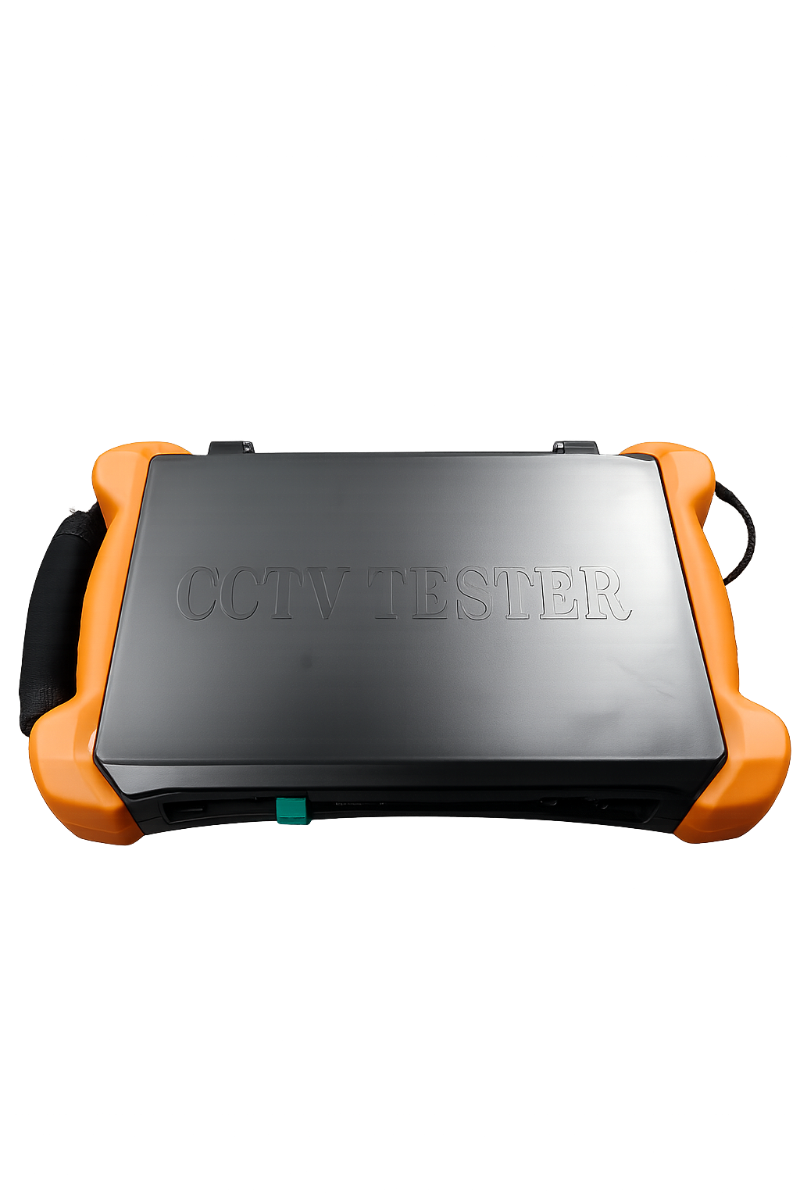

Noctis Pro 8 Inch Multi Function IP CCTV Tester

The Noctis Pro CCTV Tester is an all in one installation and diagnostic tool designed for CCTV, networking, and security professionals. With an 8 inch high resolution touchscreen display, comprehensive IP and analogue camera testing capabilities, PoE output, cable diagnostics, and advanced ONVIF tools, it provides everything needed for commissioning, troubleshooting, and maintaining modern surveillance systems.

Supporting IP, TVI, CVI, AHD, HD-SDI and EX-SDI cameras, the tester allows installers to quickly verify camera operation, configure devices, test network infrastructure, and generate detailed testing reports directly from the device.

Key Features

• 8" touchscreen display with 2048x1536 resolution
• Supports H.265 and H.264 video decoding
• 4K video playback and display support
• IP camera testing with Rapid ONVIF auto discovery
• Supports TVI, CVI and AHD cameras up to 8MP
• HD-SDI and 4K EX-SDI camera testing
• HDMI input and 4K HDMI output
• Integrated PTZ control, video recording and snapshot functions
• Built in PoE power output (48V) for powering IP cameras
• 12V 3A DC power output for camera testing
• Multi device display with TesterPlay for viewing cameras on mobile, PC and tester simultaneously
• Generate installation and testing reports directly from the device

Advanced Cable & Network Diagnostics

The tester includes comprehensive cable testing tools for network, coaxial and telephone cabling, helping installers identify faults quickly.

• RJ45 cable TDR testing
• Cable length measurement
• Cable attenuation testing
• Impedance and reflectivity analysis
• Wire mapping and continuity testing
• Open and short circuit detection
• Cable tracing and tone generation
• Supports Cat5e, Cat6, telephone, BNC and other low voltage cabling
• Maximum cable testing range up to 1.2km
