Description
Audio & Video
Encoding Data Rate
– HDMI Input: Max 17.82Gb/s
– LAN Output: Max 850Mb/s
– Preview Output: Max: 20.48Mb/s + 2048Kb/s
– USB Throughput: Max ~60Mb/s
Max Video Transmission
– HDMI 3840×2160 60fps 8b 4:4:4
– IP Preview Main Output: 1920×10802 30fps
– IP Preview Sub Output: 960×5802 30fps
– HDMI 2.0 compatible
– 300MHz / 300Mcsc
– HDR10, HDR10+, Hybrid Log-Gamma, Dolby Vision
– 4K to 2K 8b
– Modes include, pass-through (no scaling), Fixed 4K → 2K, Automatic
– Inclusive up to 2.2
NETWORK SWITCH REQUIREMENTS:
– Layer 2 or 3 managed PoE switches recommended.
– 1x IEEE 802.3u 100Base-TX Ethernet interface via “RJ45” socket.
– Local discovery and API console via Netvio 360 & Netvio Go APP,3rd-party integration via public API
– Separate multicast group IPs for audio, video, infrared, serial, CEC, USB.
– Link manager via single multicast group IP from query device – response via unicast.
– Default API channel via unicast, secured using SSH protocol.
– Preview, Unicast RTSP protocol for media management of audio/video.
– HDMI: (HDMI passthrough) zero frames.
– HDMI path using compatible decoder = 1 video frame.
– HDMI path using compatible decoder with scaling = 2 video frames.
– Preview: ~1s (varies, no fixed clock) + decoder latency
– Supports KVM mode for multiple USB devices (decoder) to USB host (encoder) data routing, device emulation and data contention mitigation.
– Supports serial generation and reception. Also supports serial routing from encoder –> decoder(s) and decoder –> encoder(s).
– HDMI 3840×2160 60fps 8b 4:4:4
– IP Preview Main Output: 1920×10802 30fps
– IP Preview Sub Output: 960×5802 30fps
HDMI
– HDMI 2.0 compatible
Max Pixel Clock
– 300MHz / 300Mcsc
HDR Compatibility
– HDR10, HDR10+, Hybrid Log-Gamma, Dolby Vision
Scaler Function
– 4K to 2K 8b
– Modes include, pass-through (no scaling), Fixed 4K → 2K, Automatic
HDCP
– Inclusive up to 2.2
Network
NETWORK SWITCH REQUIREMENTS:
– Layer 2 or 3 managed PoE switches recommended.
LAN:
– 1x IEEE 802.3u 100Base-TX Ethernet interface via “RJ45” socket.
– Local discovery and API console via Netvio 360 & Netvio Go APP,3rd-party integration via public API
Delivery:
– Separate multicast group IPs for audio, video, infrared, serial, CEC, USB.
– Link manager via single multicast group IP from query device – response via unicast.
– Default API channel via unicast, secured using SSH protocol.
– Preview, Unicast RTSP protocol for media management of audio/video.
End to End Latency
– HDMI: (HDMI passthrough) zero frames.
– HDMI path using compatible decoder = 1 video frame.
– HDMI path using compatible decoder with scaling = 2 video frames.
– Preview: ~1s (varies, no fixed clock) + decoder latency

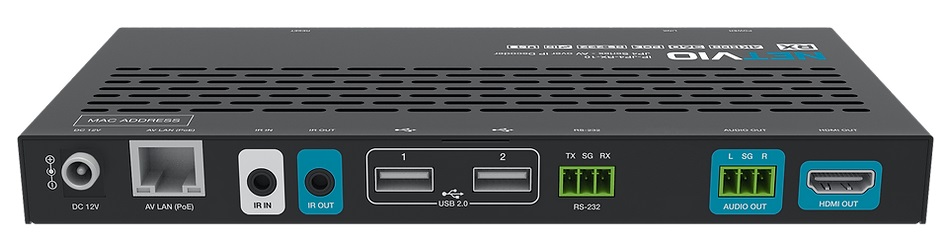

USB:
– Supports KVM mode for multiple USB devices (decoder) to USB host (encoder) data routing, device emulation and data contention mitigation.
RS-232:
– Supports serial generation and reception. Also supports serial routing from encoder –> decoder(s) and decoder –> encoder(s).
IR:
– Supports Infrared generation and reception. Also supports IR routing from encoder –> decoder(s) and decoder –> encoder(s).
– Drivers available for control systems including C4, Crestron, RTi & Elan.
– Discovery, configure, optimise, design via Netvio 360 utility.
– Full spectrum AV control via FREE Netvio application for Apple & Android devices.
– Automatic, Onboard pre-sets, Copy sync (RX)
– Netvio 360 utility – discovery, configure, optimise, design, control
– Netvio GO – Full spectrum AV control
Drivers & Control
– Drivers available for control systems including C4, Crestron, RTi & Elan.
– Discovery, configure, optimise, design via Netvio 360 utility.
– Full spectrum AV control via FREE Netvio application for Apple & Android devices.
EDID
– Automatic, Onboard pre-sets, Copy sync (RX)
FREE Software & Control
– Netvio 360 utility – discovery, configure, optimise, design, control
– Netvio GO – Full spectrum AV control
Technical Specifications
| Delivery Duration | Special Order – Please Enquire For Lead Time |
|---|---|
| Brand | Netvio |
| Colour | White |
| Special Order | Yes |
