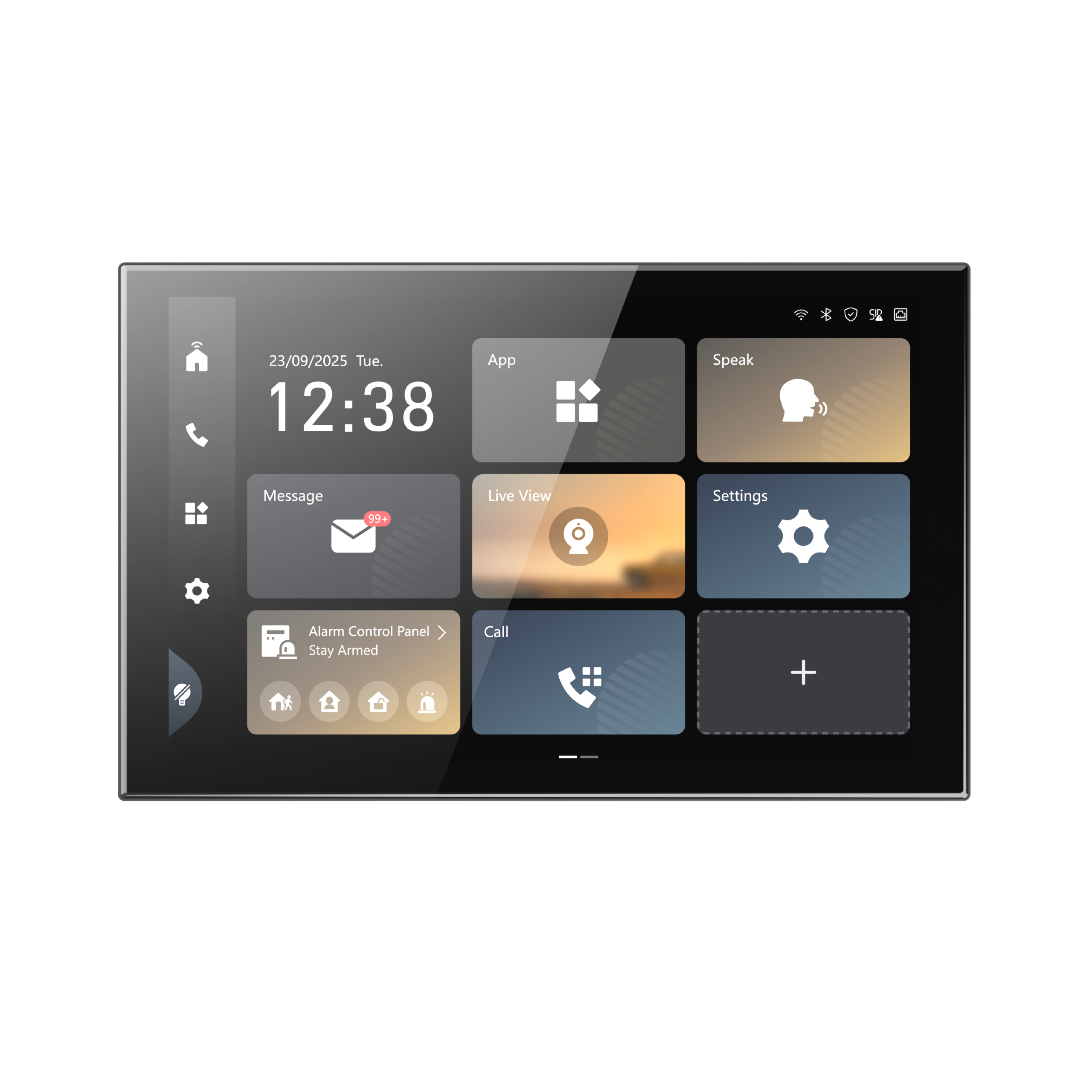

Hikvision IP Intercom 9 Series 10″ Android Touch Screen Intercom Monitor (DS-KH9570-WTE1/S)

The Hikvision DS-KH9570-WTE1/S is a 9 Series indoor station designed for integrated smart security and unified management on a single screen. It provides ultra smooth operation using a high performance embedded processor running Android 14 with up to 4 GB of RAM and 8 GB of internal storage.

The unit features a 10.1-inch IPS capacitive touch display with a resolution of 1920 × 1200 for clear and detailed visuals. Dual built-in omnidirectional microphones and speakers support two-way audio communication with noise suppression and echo cancellation for improved audio quality. The system supports Wi-Fi 6 connectivity on both 2.4 GHz and 5 GHz bands and includes Bluetooth BLE 5.0 for additional network integration. It supports various network protocols including SIP for communication and ONVIF for integration with other IP devices. The indoor station can link up to 17 door phones, 15 indoor extensions and 16 network cameras and store up to 200 captured pictures, 200 alarm records, 200 unlock records and 200 tamper records. On the hardware side the unit has one RJ-45 network interface, RS-485 support, TF card support up to 256 GB and reserved alarm inputs and relay ports. It supports Power over Ethernet (IEEE 802.3at) or 12 VDC power.

The device includes a proximity sensor, supports surface mounting and is intended for indoor use with an operating temperature range from -10 °C to 50 °C and humidity from 10 % to 90 % non-condensing. It offers multi-language support and is suitable for modern security and access control applications.

Features:
