Technical Specifications
| DETECTION AREA | 10 to 35 metres (adjustable) up to 750 sq metres |
|---|---|
| COVERAGE | 90 degree 35 metres x 30 metres max |
| ADJUSTMENT | 180 degree pan + 90 degree tilt |
| FRESNEL LENS | 36 zone – white light filter |
| CUSTOMISED OPTICS | Double silicon shielded dual element eliminates 50,000+ lux of white light |
| OUTPUTS | Silent solid state magnetically immune |
| ALARM 1 ‘CCTV’ | Volt free relay signal contact @ 24VAC/DC @ 50mA with an integral 30Ohm series resistor. Selectable normally open/normally closed. Adjustable timer options: 0.4 to 60 seconds |
| ALARM 2 ‘VIDEO’ | Volt free relay signal contact @ 24VAC/DC @ 50mA. Selectable normally open/normally closed with an integral 30 ohm series resistor. Adjustable timer options: 2 to 60 seconds |
| ALARM 3 ‘A’ | Open collector negative switching – 25mA max. Alarm period 400ms |
| ALARM 4 ‘S’ | Open collector negative switching – 25mA max. Alarm period: Detection + 60 seconds Adjustable: Dusk (2 lux) to 24 hour |
| POWER INPUT | 9 to 15VDC |
| CURRENT | 10mA (12V nominal) |
| PULSE COUNT | 1,2,3 & 4 previous detection ≤ 6 seconds |
| TAMPER | Opens for 2 seconds when cover removed and / or ‘A’ & ‘S’ outputs pulse for 60 seconds (programmable) |
| TEMPERATURE COMPENSATION | Digital sensitivity adjustment |
| OPERATING TEMPERATURE | -20 to +55ºC |
| HOUSING | High Impact ABS |
| PROTECTION RATING | IP55 |
| DIMENSIONS | 104 x 100 x 100mm |
| WEIGHT | 145 grams |
| MOUNTING HEIGHT | Variable – optimum height 3 metres |
| CABLE UP TO 200 METRES UP TO 500 METRES |
Utilising all four outputs – 8 core 7/0.2mm Utilising all four outputs – 8 core 16.0.2mm |

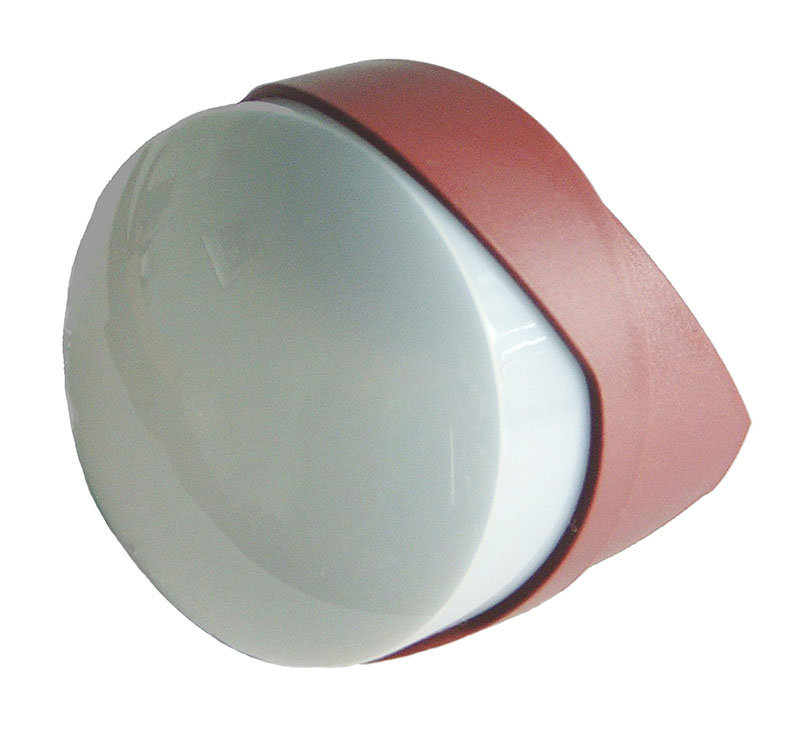

| PART NUMBER (BURGUNDY) | GJD022 |
| PART NUMBER (WHITE) | GJD023 |
