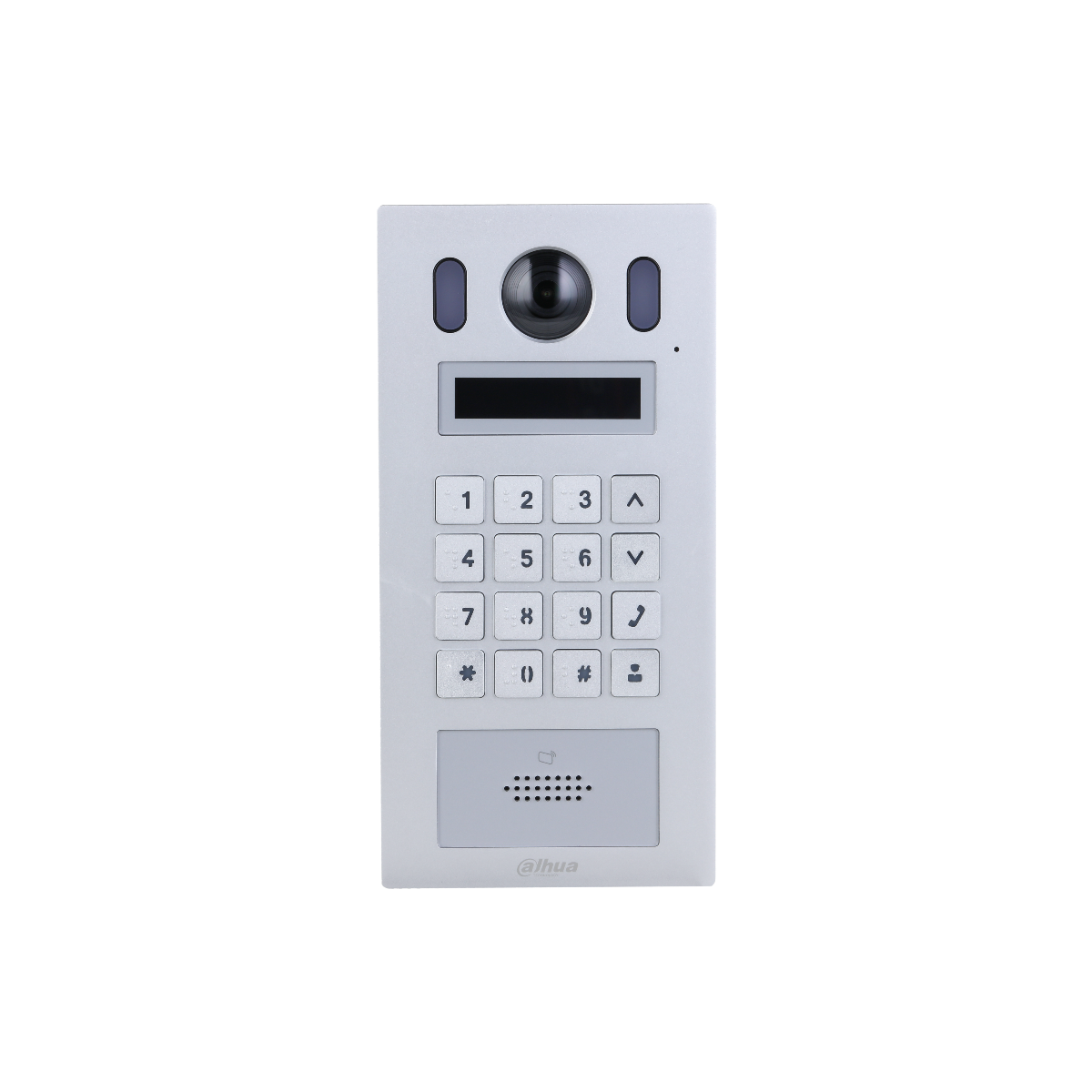

Dahua VTO6222E-P - 2-Wire IP Apartment Door Station

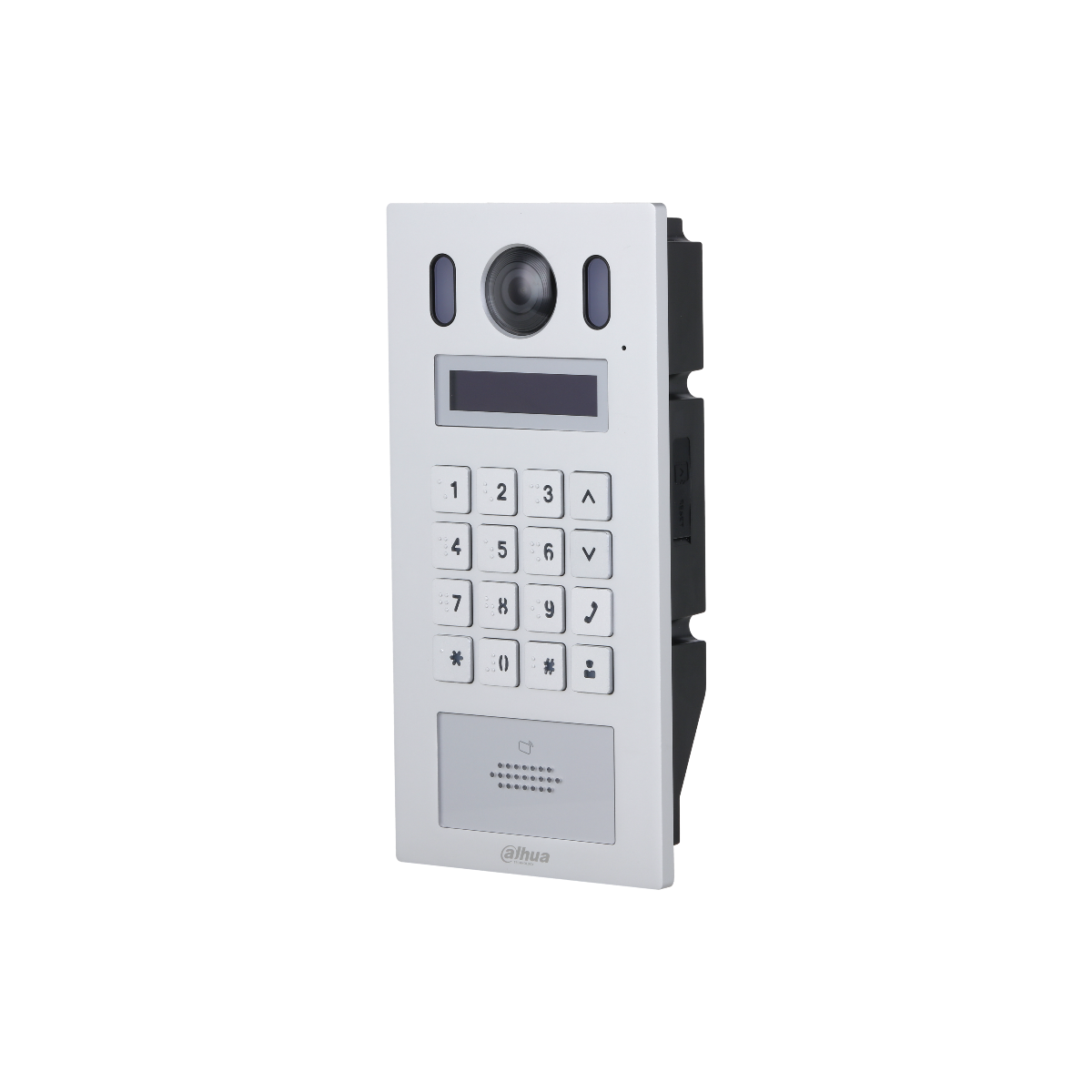

Dahua VTO6222E-P - 2-Wire IP Apartment Door Station - Image 2

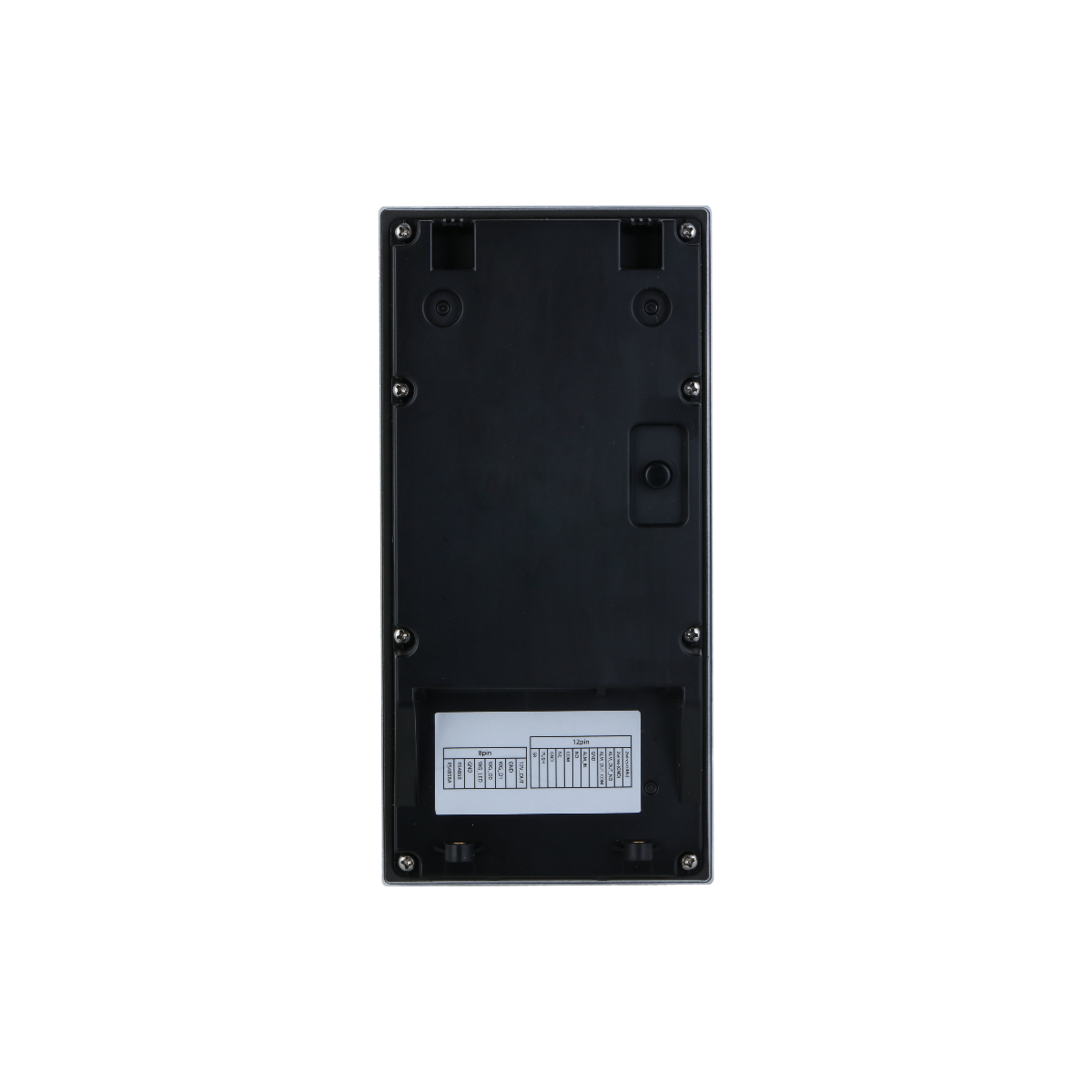

Dahua VTO6222E-P - 2-Wire IP Apartment Door Station - Image 3

Dahua

Dahua VTO6222E-P – 2-Wire IP Apartment Door Station

SKU DHI-VTO6222E-P

In stock

£244.54 ex VAT

£293.45 inc VAT

The Dahua DHI-VTO6222E-P is a durable 2-wire IP apartment door station, designed with an aluminum panel and a mechanical keypad for reliable access control. It supports multiple unlock methods, high user and card capacities, and robust environmental protection, making it suitable for outdoor use.

Key Features:

  • High-Quality Camera: Equipped with a 2MP HD camera for clear video feed.

  • Multiple Unlock Options: Supports password, IC card, and remote unlocking.

  • Large User Capacity: Manages up to 5,000 users and 10,000 cards.

  • Durable Design: Features an aluminum panel with IP65 and IK08 ratings for weather and vandal resistance.

  • Two-Way Audio: Includes digital noise reduction for clear communication.

  • External Device Compatibility: Connects to card readers and controllers through Wiegand.

  • Storage: Supports Micro SD cards up to 256 GB for auto snapshots and video storage.

Order now for delivery Tuesday 27 October on orders over £300

  • Free next working day delivery to mainland UK on orders over £300 inc VAT placed by 11am, Monday to Friday
  • Orders under £300 inc VAT: £9.99 delivery in 2 to 3 working days.
  • 14 day returns on unused items
  • VAT invoice with every order

Installer or electrician? Apply for a trade account

Key specifications

Main Processor
Embedded Processor
Operating System
Embedded Linux OS
Button Type
Mechanical
Number of Buttons
16
Screen Type
Non-touchscreen
Display Screen
2.3"OLED
Camera
1/2.9" 2 MP CMOS
Field of View
H:140°,V:80°, D:160°
Full specification

Description

Technical Specifications

Main Processor Embedded Processor
Operating System Embedded Linux OS
Button Type Mechanical
Number of Buttons 16
Screen Type Non-touchscreen
Display Screen 2.3″OLED
Camera 1/2.9″ 2 MP CMOS
Field of View H:140°,V:80°, D:160°
WDR 120 dB
Noise Reduction 3D NR
Video Compression H264，H265
Video Frame Rate 25 fps
Light Compensation Auto white light
Day/Night Color/B/W
Audio Compression G.711a, G.711u, PCM
Audio Input 1
Audio Output Built-in Speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 KHz, 16 bit
Communication Mode Digital 2-wire
Unlock Mode Card swiping;password;remote
Card Type Mifare card
Auto Snapshot Yes (SD card is inserted in the indoor monitor or door
Storage Supports Micro SD card (up to 256 GB)
Web Configuration Yes
Modulation Type AM
Frequency Range 13.56 MHz
Max. Transmission Power 42dBuA/m @10m
Card Reading Distance 0 cm–3 cm (0″–1.18″)
Casing Material Aluminum
Card Capacity 10000
RS-485 1
Wiegand 1
Alarm Input 1
Alarm Output 1
Power Output 1 port,12 V/600 mA
Door Bell 1
Exit Button 1
Lock Control 1
Network Port 1 × RJ-45 port，10Mbps/100Mbps network port
Tamper Alarm Yes
Appearance Color Silver
Power Supply 48 VDC, 0.4 A, PoE (802.3af/at)
Power Adapter Optional
Installation Flush Mount;Surface Mount
Certifications CE
Product Dimensions 200.0 mm × 98.0 mm × 35.4 mm (7.87″ × 3.86″ × 1.39″)
Operating Temperature –40 °C to +60 °C (–40 °F to +140°F)
Operating Humidity 10%–90% (RH), non-condensing
Operating Environment Outdoor
Operating Altitude Beneath 3000 m (9842.52 ft)
Power Consumption ≤ 5 W (standby), ≤ 7 W (working)
Gross Weight 657 g(1.45 lb)
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity 30%–75%(RH)
Type Model
2-wire IP Apartment Door
D
Station		 2-wire IP Apartment Door

Additional information

Brand

Dahua
Colour

White
System type

2-wire
