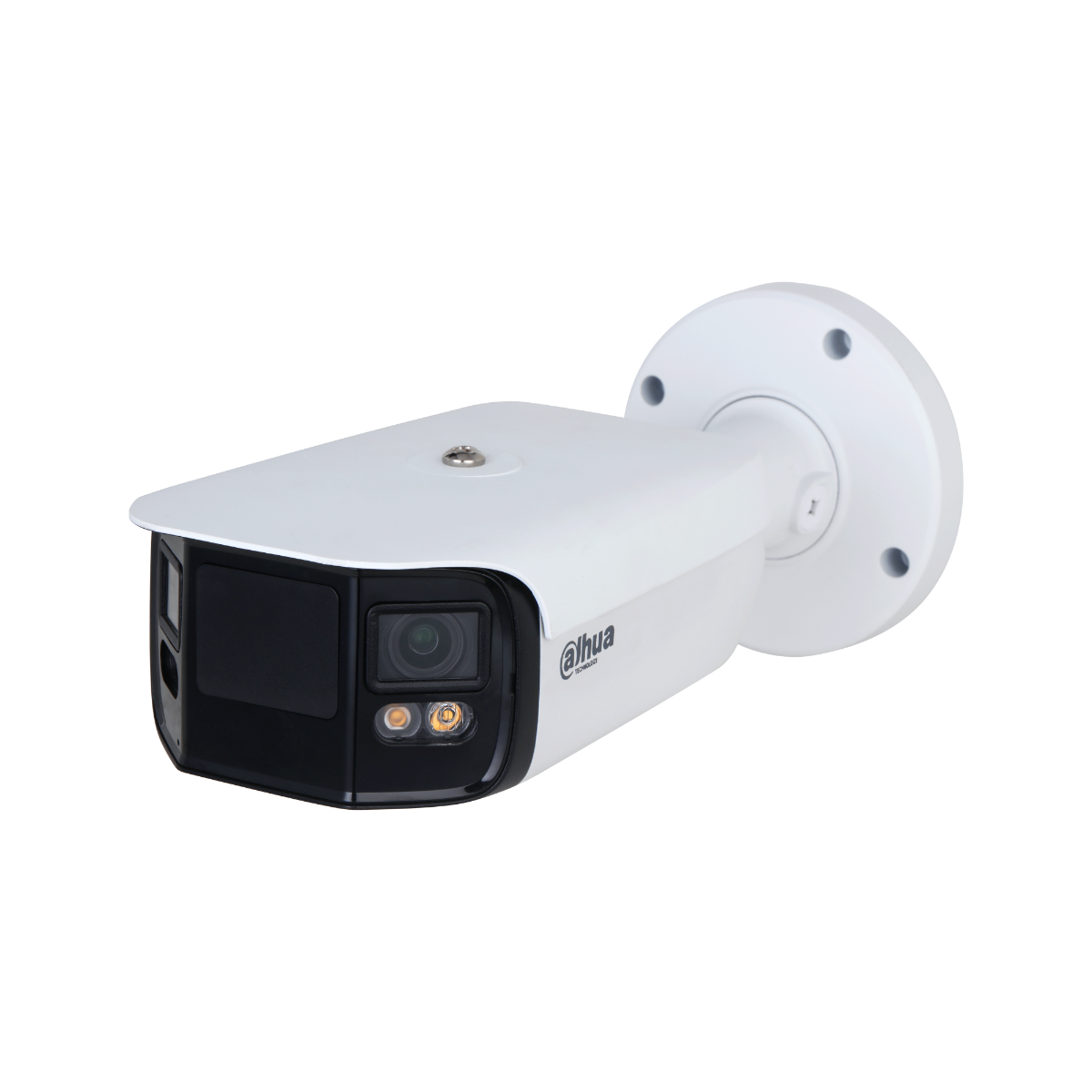

The Dahua IPC-PFW5849-A180-E2-ASTE is an advanced security camera that uses two lenses to create a wide 180-degree view, similar to what the human eye can see. This camera combines two 4MP cameras into one unit that works together to show a complete picture without any blind spots. The camera produces high-quality 8MP (4096 × 1800) video at 25 frames per second, which means the video is smooth and detailed enough to clearly see what’s happening.
Unlike many security cameras that switch to black and white recording at night, this camera maintains full-color video even in low light. This makes it much easier to identify people, vehicles, and objects after dark. To help with nighttime recording, the camera includes a built-in warm light that can illuminate objects up to 40 meters (about 131 feet) away.
The camera includes several smart features that go beyond simple recording. It can detect when people cross a line (tripwire), enter specific areas (intrusion), create heat maps showing where people move most often, and even count people as they enter or exit an area. When the camera detects something important, it can automatically zoom in on that area while still recording the full wide view.
For communication, the camera has a built-in microphone and speaker allowing for two-way conversations – you can both hear what’s happening and speak to people near the camera. It also has connections for external alarms and audio equipment (1 input and 1 output for each). The camera can store footage locally on a microSD card (supports up to 512GB) or connect to a network video recorder.
Built to withstand outdoor conditions, the camera has an IP67 rating, which means it’s completely protected against dust and can withstand temporary water immersion. This makes it suitable for installation in exposed outdoor locations in various weather conditions. The camera can be powered either through a standard 12-volt DC power supply or through Power over Ethernet (PoE), which allows it to receive both power and data through a single network cable.
The camera’s dual 2.8mm lenses work together to provide a natural-looking wide view without the distortion often seen in single-lens wide-angle cameras. The white color of the camera housing helps it blend in with many building exteriors and ceilings.
This camera is part of Dahua’s WizMind series, which focuses on intelligent features and analytics that help security teams work more efficiently by highlighting important events and providing business insights beyond basic security.
Technical Specifications
| Specification |
Detail |
| Brand |
Dahua |
| Camera Type |
IP Network Camera |
| Design |
Dual Lens Wide-Angle |
| Color |
White |
| Resolution |
8MP (4096 × 1800) |
| Video Speed |
25 frames per second |
| Lens Size |
2.8mm (both lenses) |
| View Width |
180 degrees |
| Night Vision |
Built-in warm light |
| Light Range |
40m (131 feet) |
| Audio |
Input and output; built-in mic and speaker |
| Alarm |
Input and output |
| Storage |
Supports up to 512GB microSD card |
| Power Options |
12 VDC or PoE |
| Weather Protection |
IP67 (dustproof and waterproof) |
| Smart Features |
Intrusion, line crossing, heat map, people counting |
| Special Features |
Can zoom in and follow important events |
| Special Order |
No |
Applications
- Store monitoring with customer counting and movement analysis
- Building entrances needing wide-area coverage
- Parking lots requiring a full 180-degree view
- Public spaces like parks or plazas
- Warehouses and large indoor spaces
- Business properties needing both security and visitor analysis
- Bus stations, train platforms, and transportation areas
- Schools and campus buildings
- Places needing two-way communication through the camera
- Areas that need color video recording at night
