Technical Specifications
| Image Sensor | Dual 1/2.7″ CMOS |
|---|---|
| Max. Resolution | 4096 (H) × 1860 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 25 m (82.02 ft) (IR LED) Up to 20 m (65.62 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–77° Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Field of View | Horizontal: 180°; Vertical: 86° |
| Max. Aperture | F1.4 |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| DORI Distance |
Lens |
| 2.8 mm | 50.6 m (166.01 ft) |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD 4.0 |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| EPTZ | Enlarge and track the targets of intelligent alarms |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 4096 × 1860@(1–20 fps ) Sub stream: 1200 × 530@(1–20 fps) Third stream: 1920 × 860@(1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432 |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 6 kbps –16384 kbps H.265: 6 kbps –16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) |
Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Privacy Masking | 4 areas |
| Defog | Yes |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene chaging; audio detection; voltage detection; external alrm; SMD; security exception |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE: IE 8 and later Chrome Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3 V–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Power Consumption | Basic: 3.95 W (12 VDC); 4.95 W (PoE) Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.7 W (12 VDC); 10.85 W (PoE) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Casing | Metal |
| Product Dimensions | Φ122 mm × 135.2 mm (Φ4.80″ × 5.32″ ) |
| Net Weight | 990 g (2.18 lb) |
| Gross Weight | 1150 g (2.54 lb) |
| Type | Model |
| 8MP Camera | DH-IPC-PDW3849-A180- AS-PV |

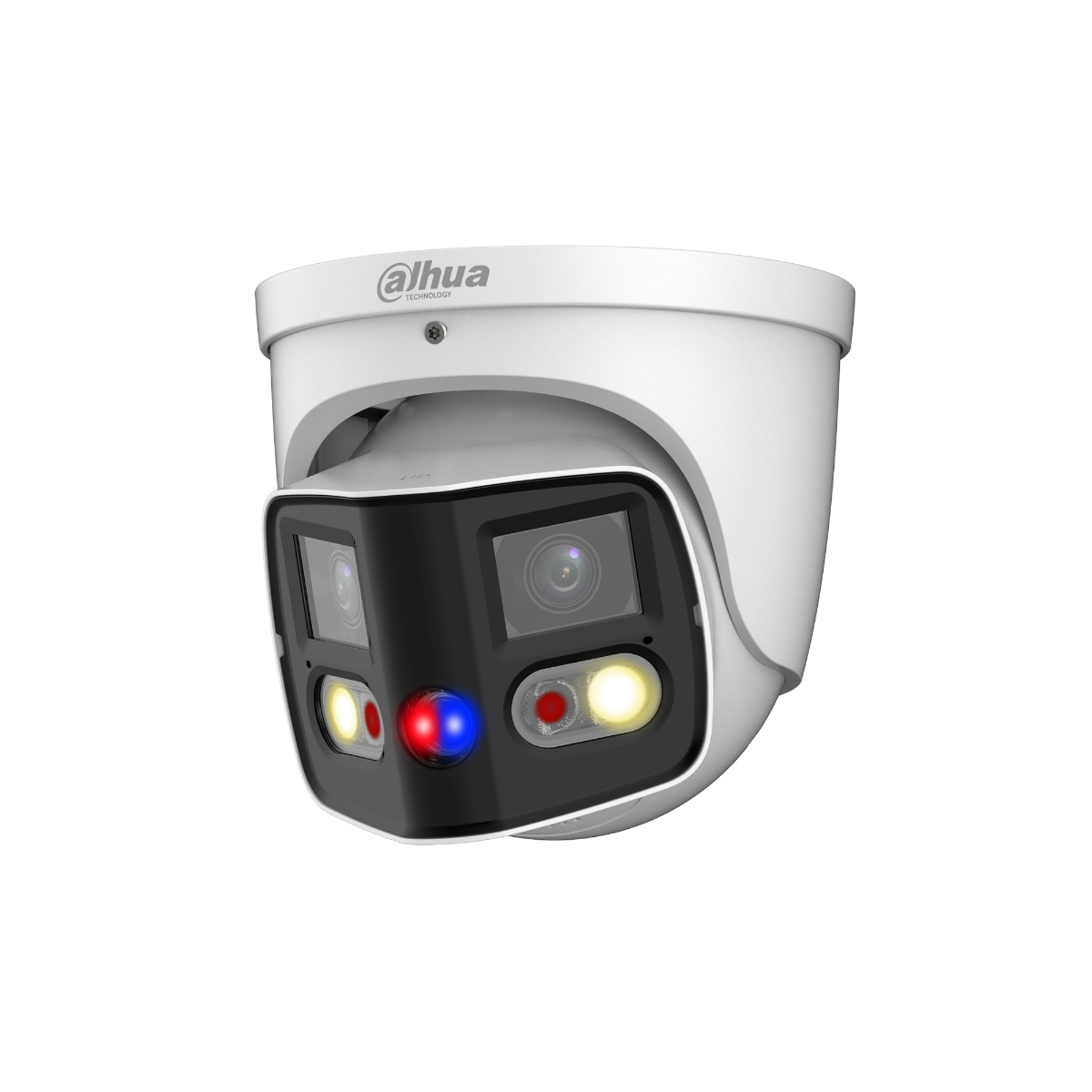

| IPC-PDW3849-A180-AS-PV | 2x4MP TiOC Duo Splicing Fixed- focal Eyeball WizSense Network Camera |
| Accessories (Optional) |
PFA137 |

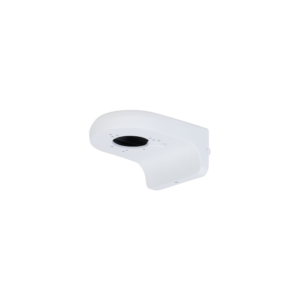

| PFB205W-E | Wall Mount Bracket |
