Description
Technical Specifications
| Image Sensor | 5MP CMOS |
|---|---|
| Max. Resolution | 2880 (H) × 1620 (V) |
| Pixel | 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.001 Lux/F1.2, 0 Lux White Light on |
| Illumination Distance | 60 m (196.9 ft) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 4 |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| White Balance | Auto; Area WB |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Smart Light | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
| Certifications | CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Input | One channel built-in mic |
| Power Supply | 12 V ±30% DC |
| Power Consumption | Max 11.88 W (12 V DC, warm light on) |
| Lens Type | Motorized Vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.2 |
| Field of View | H: 35°–112°; V: 19°–58°; D: 40–137° |
| Iris Type | Fixed iris |
| Close Focus Distance | 1.5 m (4.9 ft) |
| DORI Distance |
Lens |
| 2.7 mm | 65.2 m (213.9 ft) |
| 13.5 mm | 186.6 m (612.2 ft) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to 140 °F); < 95% (nonconden- sation) |
| Storage Temperature | –30 °C to +60 °C (–22 °F to 140 °F); < 95% (nonconden- sation) |
| Protection Grade | IP67 |
| Casing | Metal throughout the whole casing |
| Camera Dimensions | 244.1 mm × 90.4 mm × 90.4 mm (9.61″ × 3.56″ × 3.56″) |
| Net Weight | 0.79 kg (1.74 lb) |
| Gross Weight | 1.04 kg (2.29 lb) |
| Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | 120 dB |
| Type | Model |
| 5MP Camera | DH-HAC-HFW1509TUP- Z-A-LED |
| DH-HAC-HFW1509TUN- Z-A-LED |

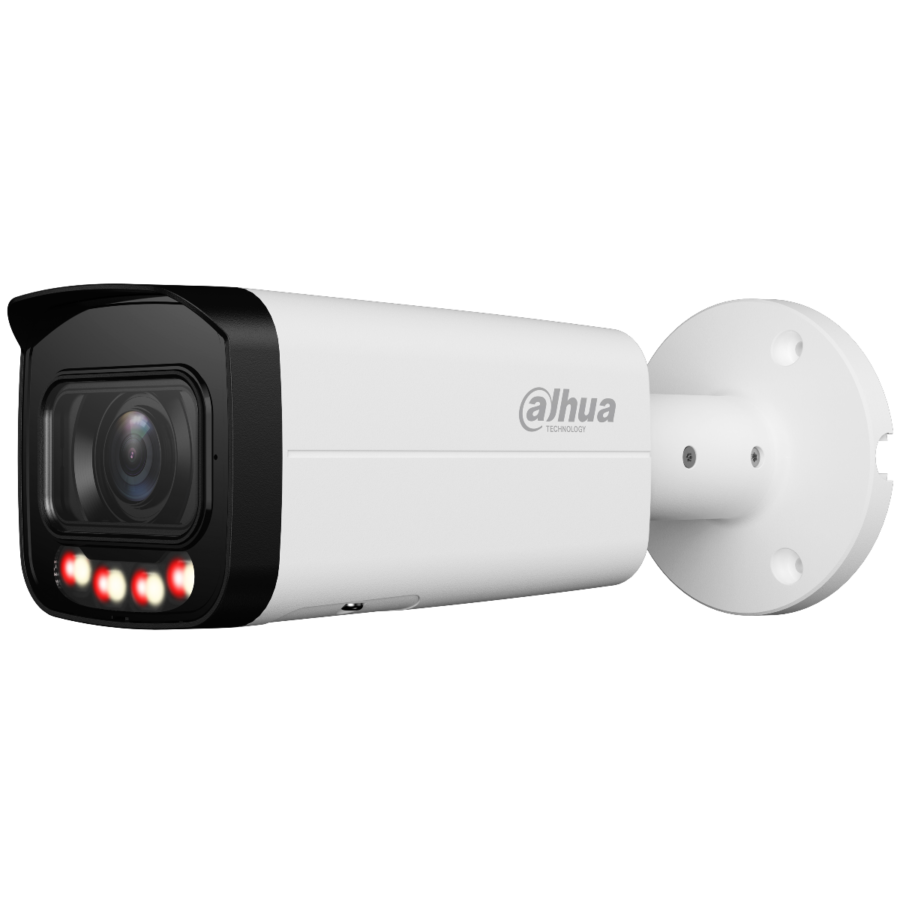

5MP Full-Color HDCVI Motorized Vari-focal Bullet Camera NTSC |
| Accessories (Optional) |
PFA135 |

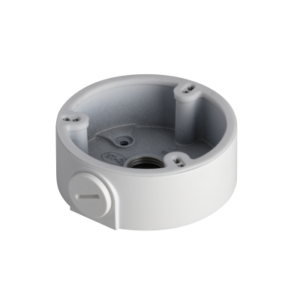

| PFA130-E | Water-proof Junction Box |
| PFA152-E | Pole Mount Bracket (For use with PFA130-E Water-proof Junction Box) |
| PFM800-4K | Passive HDCVI Balun |
| PFM320D PFM904 |
12V 2A Power Adapter Integrated Mount Tester |
