Description
Technical Specifications
| Information Release | Receive and view the published information from the management center |
|---|---|
| Elevator Control | Residents can call the elevator through this device to their floor. |
| Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
| DND Mode | Do not disturb period can be set |
| Number of Extensions | Villa: 1 main VTH and 9 extensions Apartment: 1 main VTH and 4 extensions |
| Storage | Supports micro SD card storage (up to 512 GB) |
| Main Processor | Embedded Processor |
| Operating System | Android 14 |
| Network Protocol | IPv4;RTSP;UDP;DNS;FTP;RTP;TCP;SIP |
| Screen Type | Capacitive Touchscreen |
| Display Screen | 10.1-inch display screen |
| Screen Resolution | 1280 (H) × 800 (V) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 kHz, 16 bit |
| Wi-Fi | Yes |
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax |
| Wireless Frequency Range | 2.4 GHz; 5 GHz |
| Max. Transmission Power | ≤ 20 dBm @ 2400-2483.5 MHz |
| Wireless Standard | BR/EDR/BLE |
| Wireless Frequency Range | 2400-2483.5 MHz |
| Max. Transmission Power | ≤ 20 dBm @ 2400-2483.5 MHz |
| Bluetooth | Yes |
| Communication Mode | Full digital;Digital 2-wire |
| Type | Model |

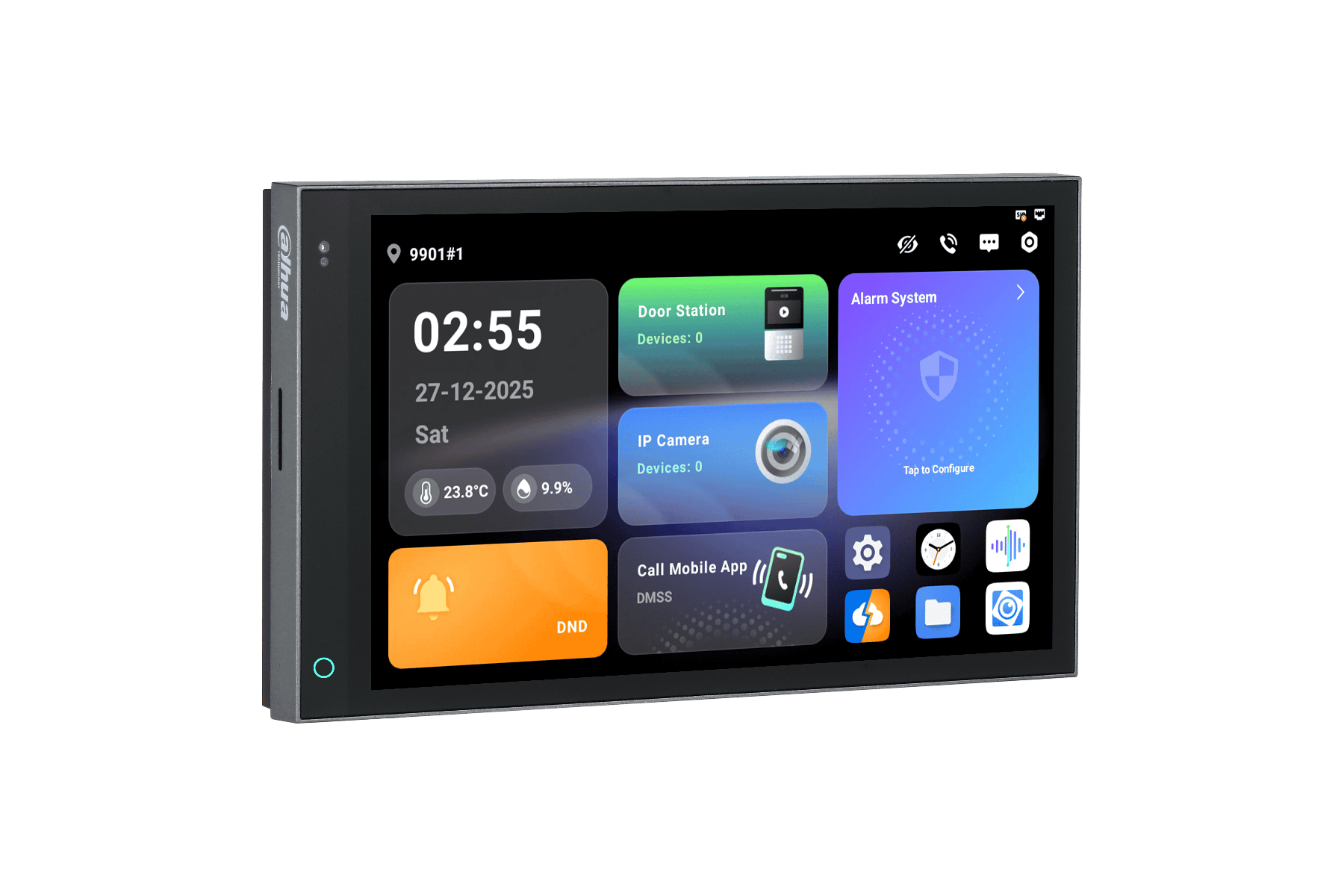

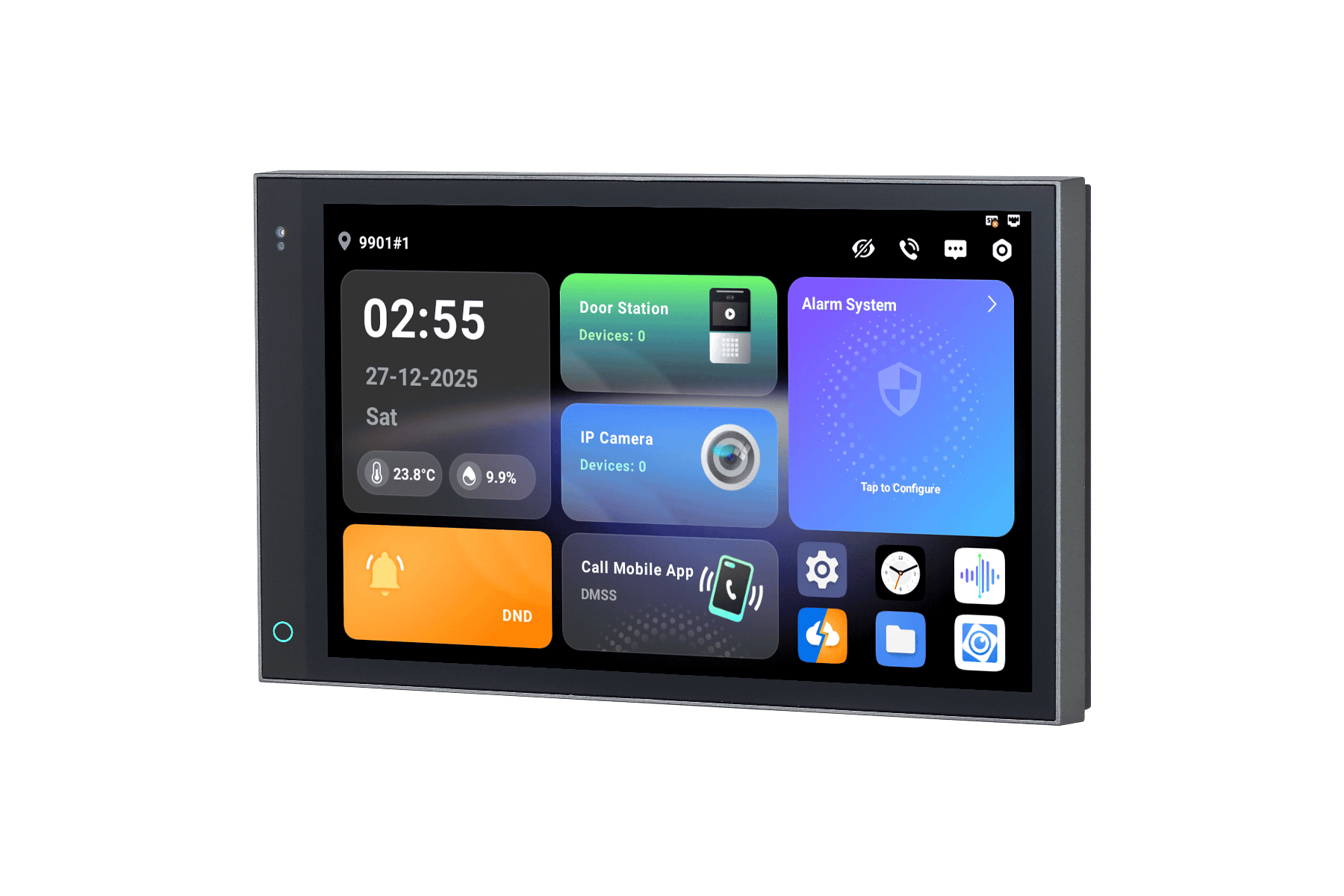

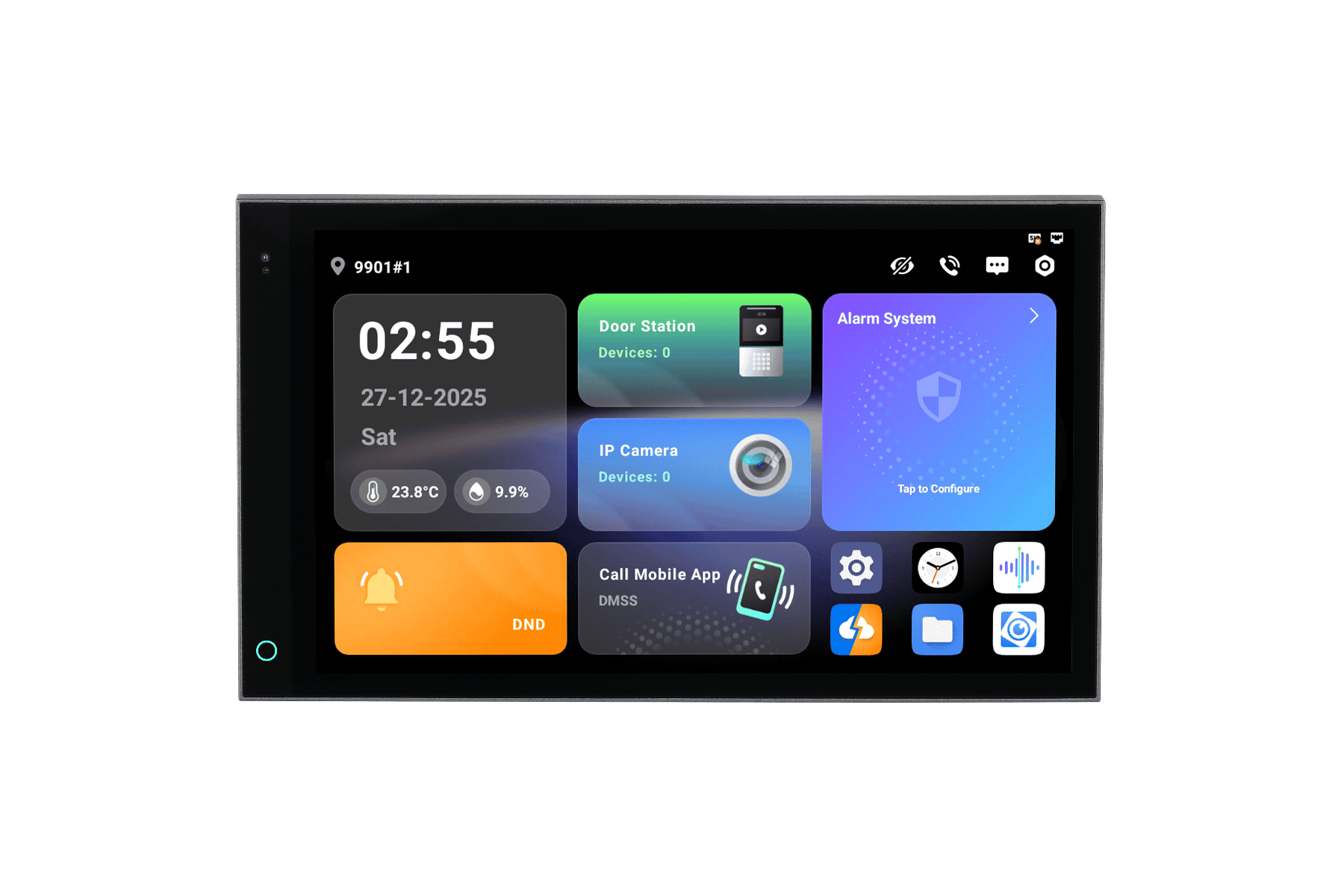

| Smart Control Panel | DHI-SCP3042A-BZ-S |
| Wireless Standard | 802.15.4 |
| Wireless Frequency Range | 2400-2483.5 MHz |
| Max. Transmission Power | ≤ 10 dBm @ 2400-2483.5 MHz |
| Zigbee | Yes |
| Wireless Frequency Range | 868-868.6 MHz |
| Max. Transmission Power | 14 dBm @ 868-868.6MHz |
| Modulation Method | FSK/GFSK |
| RS-485 | 1 |
| USB | 1 |
| Alarm Input | 8 channels |
| Alarm Output | 1 channel |
| Power Output | 1 port (12 V, 200 mA) |
| Doorbell | Yes (use the alarm input port) |
| Network Port | 1 × 10/100 Mbps Ethernet port |
| Casing Material | PC + ABS |
| Appearance Color | Gray |
| Power Supply | 48 VDC, 0.5 A Standard PoE |
| Power Adapter | Optional |
| Installation | Surface Mount |
| Certifications | CE |
| Accessory | Included: RS-485 and power output cable, bracket and alarm cable. Optional: Power cord |
| Product Dimensions | 246.5 mm × 156.1 mm × 19.4 mm (9.70″ × 6.15″ × 0.76″) (H × W × D) |
| Operating Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–95% (RH), non-condensing |
| Operating Altitude | Below 3,000 m (9,842.52 ft) |
| Power Consumption | ≤ 10 W (standby), ≤ 13 W (working) |
| Gross Weight | 1.44 kg (3.17 lb) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 30%–75% |
| Operating Environment | Indoor |
